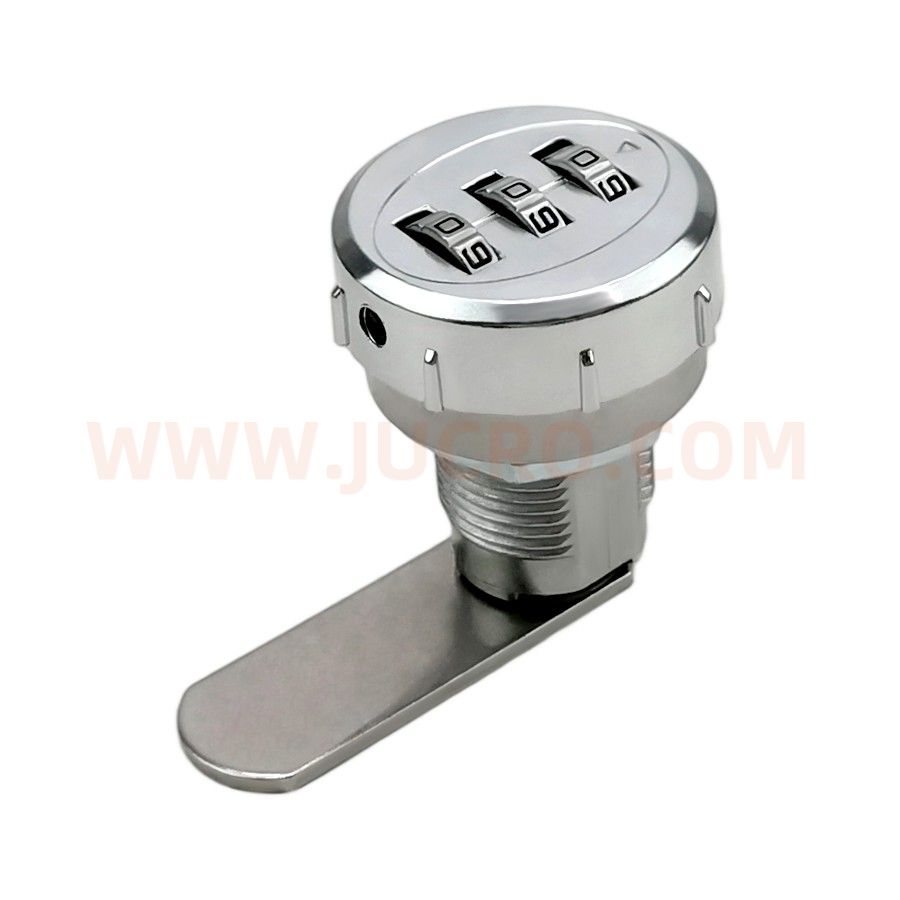

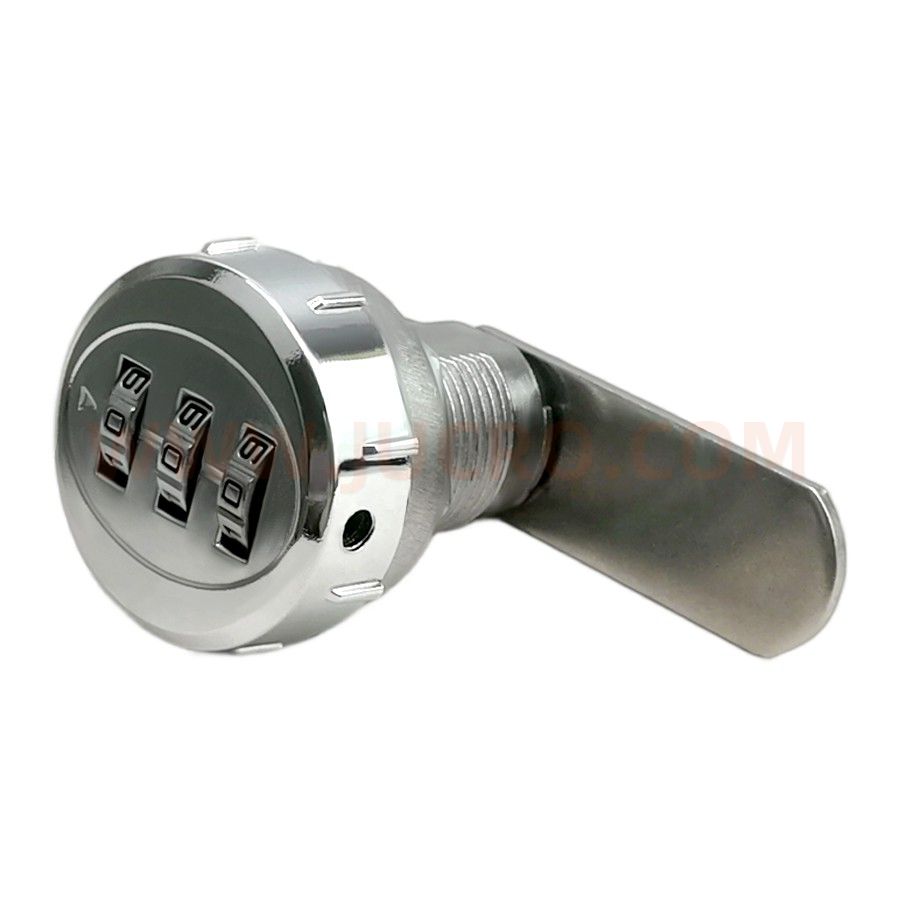

CAM LOCK (DL1132B)
特征说明 CHARACTERISTICS | ||
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy base and Lock cylinder, carbon steel bolt | |
表面处理 Surface treatment | 镀亮铬 Bright chrome plated | 喷黑漆 Black spray powder coated |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock | |
备 注 Remark | 出厂密码:000; 如何改变密码:锁的正面有一个三角孔，在开启状态下用一个别针顶住该孔，不要松开，拨动密码盘至想要的组合，松开别针，密码更改完成。 Default password: 000; How to change password: There is a triangle hole at front surface, at the unlock status, using a pin to push the hole, hold still, dialing to the wanted combination, release the pin, the password is successfully changed. | |
|

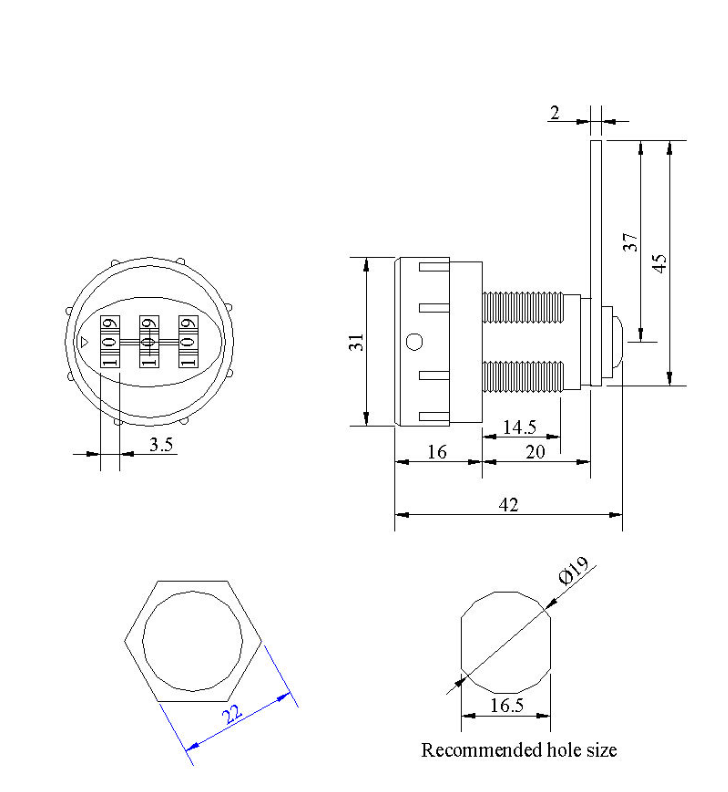

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
