Product Detail
特征说明 CHARACTERISTICS
材 质
Material
锌合金基座、锁芯，碳钢钢栓
Zinc alloy housing and Lock core, carbon steel bolt
表面处理
Surface treatment
镀亮光铬基座、锁芯，钢栓镀白锌
Bright chrome plated housing and lock core, white zinc plated steel bolt
结构说明
Structure descriPTion
旋转90°实现开启或锁闭
Quarter-turn lock/un-lock
备 注
Remark

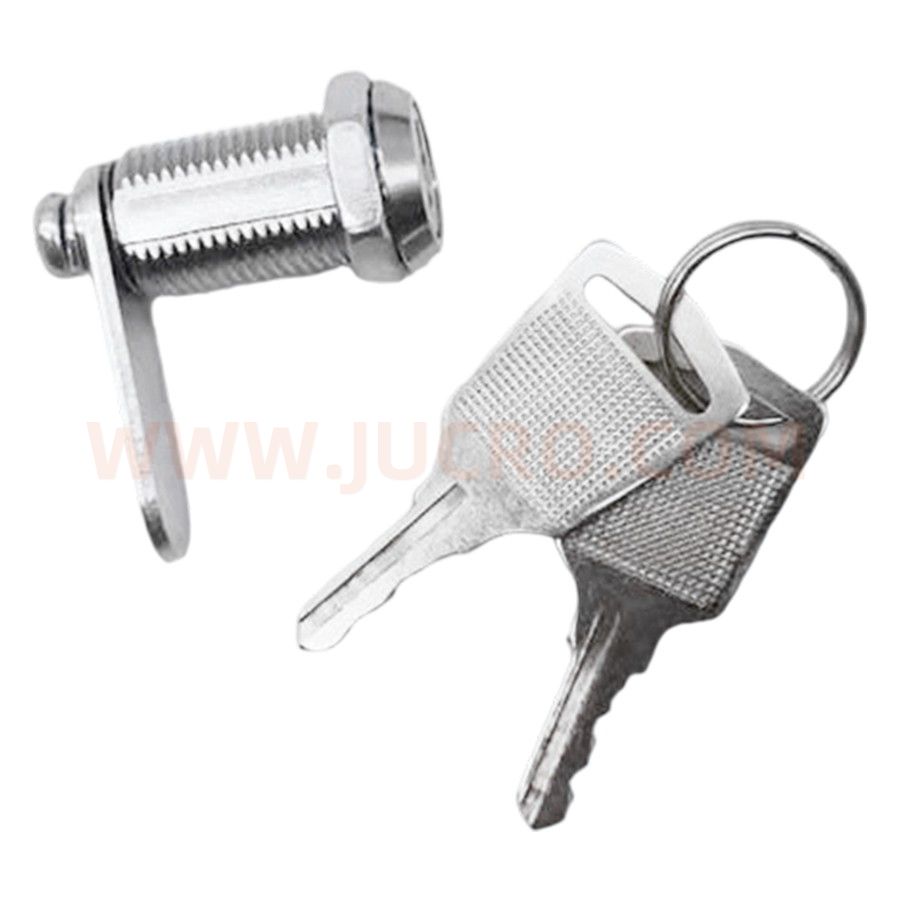

默认钥匙
Default key
性能参数 PERFORMANCE PARAMETERS
***静载荷
Maximum static load
90N
固定螺母的推荐拧紧力矩
Recommended nut tightening torque
17N•m

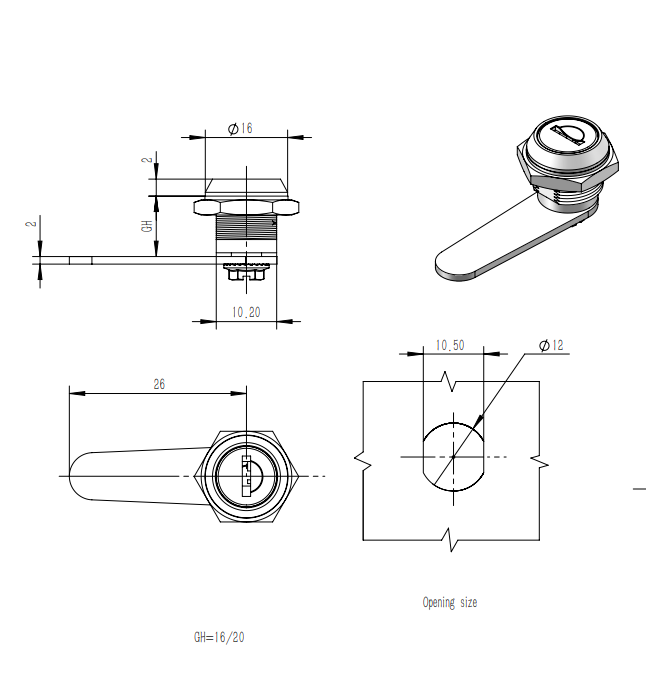

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION
Unit：mm
