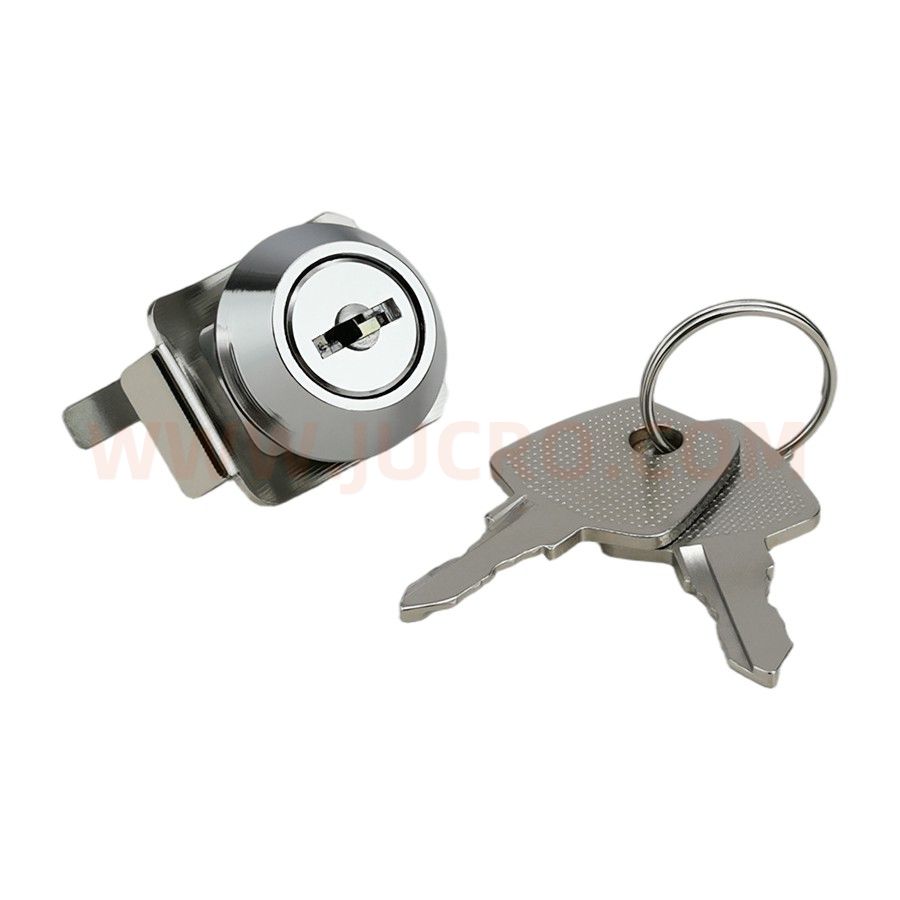

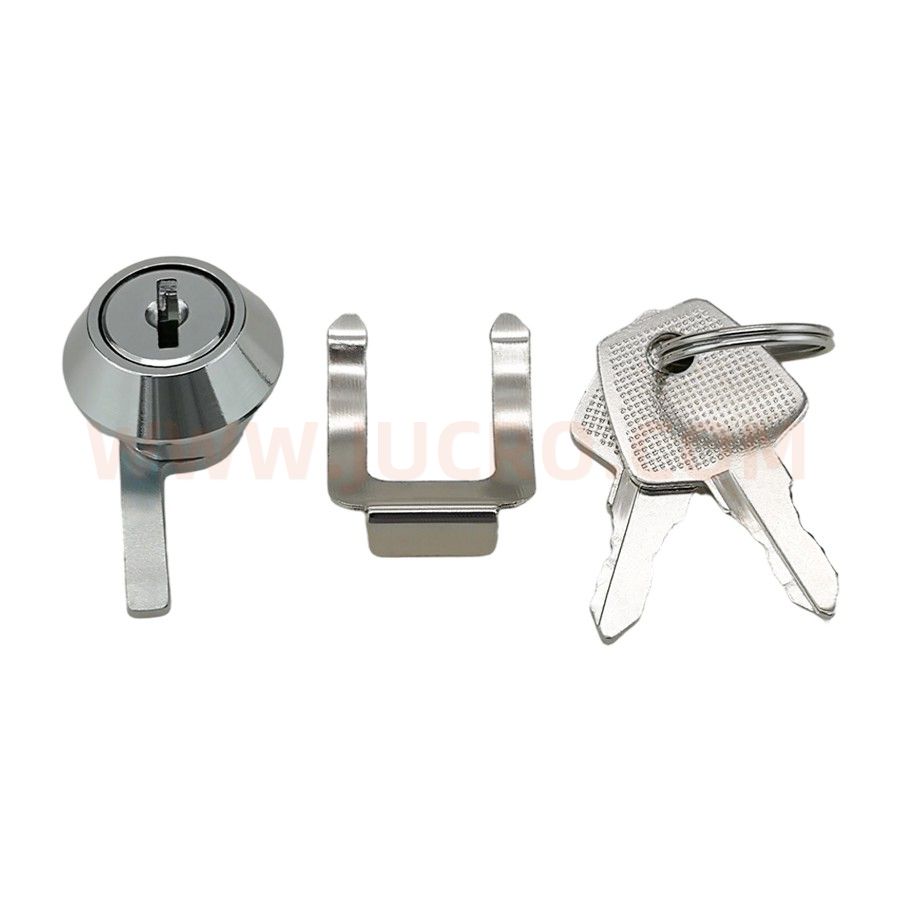

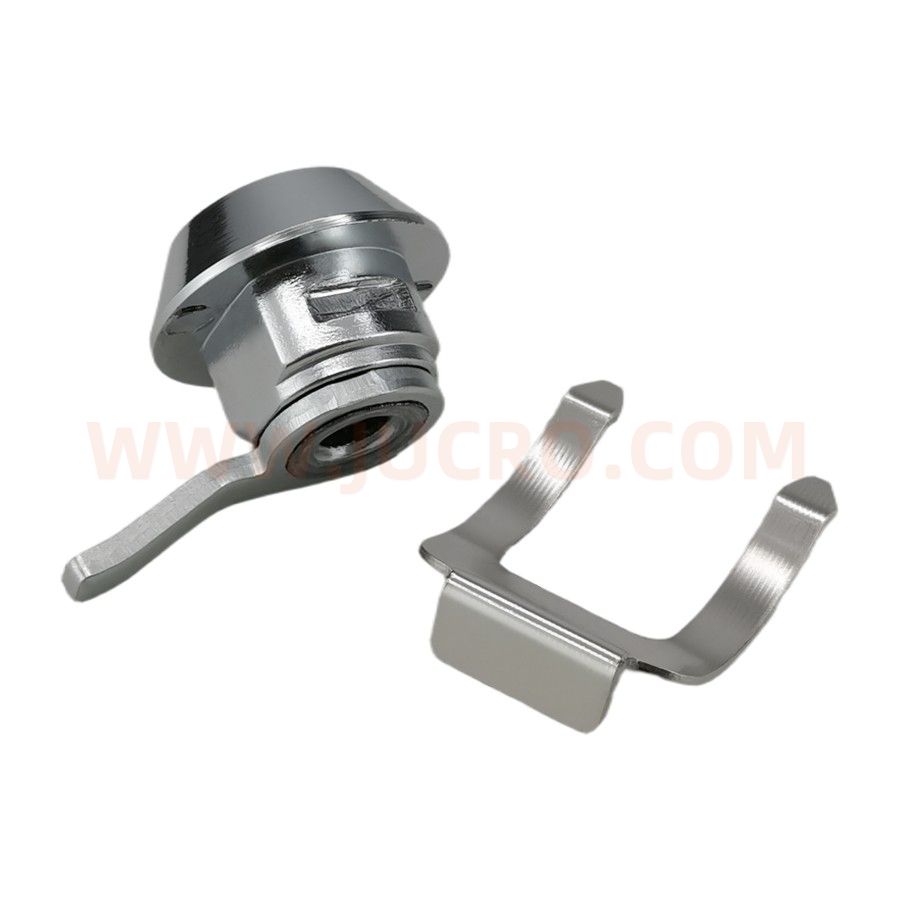

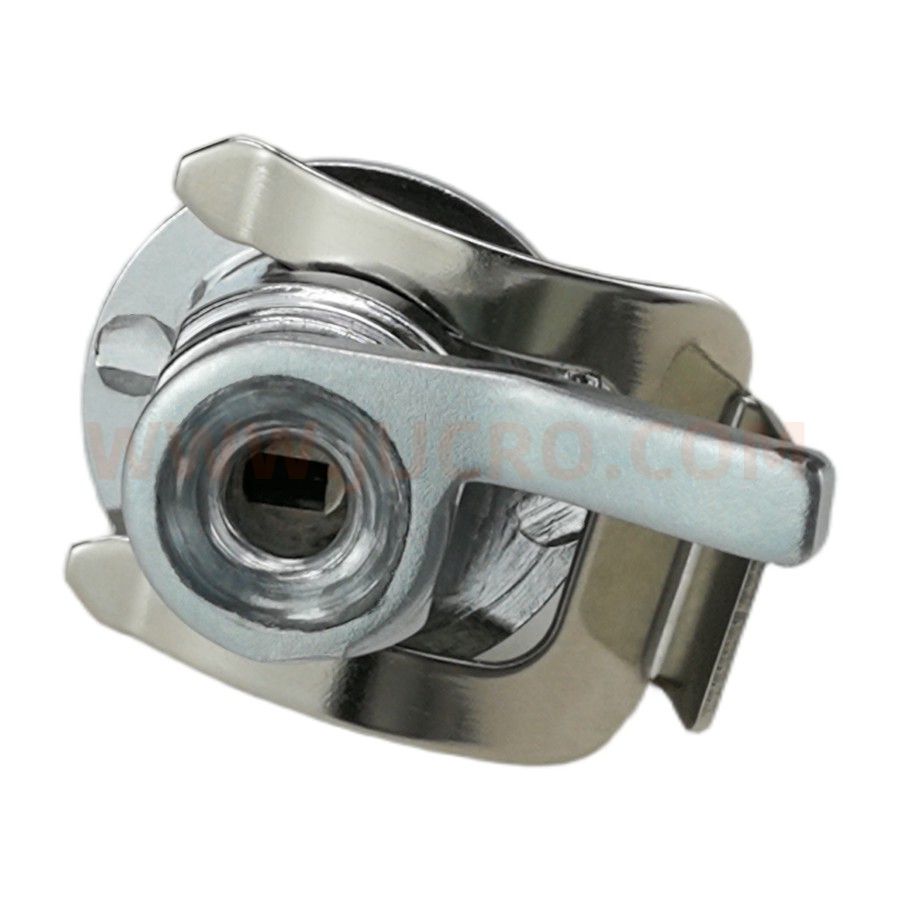

CAM LOCK (DL402-1 )
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy base and Lock cylinder, carbon steel bolt |
表面处理 Surface treatment | 基座及锁芯镀亮光铬，钢栓镀白锌 Bright chrome plated for base and lock cylinder, white zinc plating for steel bolt |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |
备 注 Remark | 选配钥匙 Optional key |

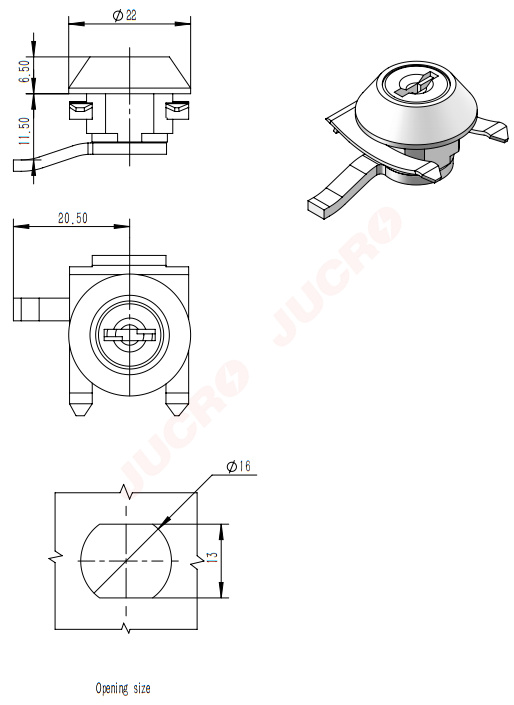

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
