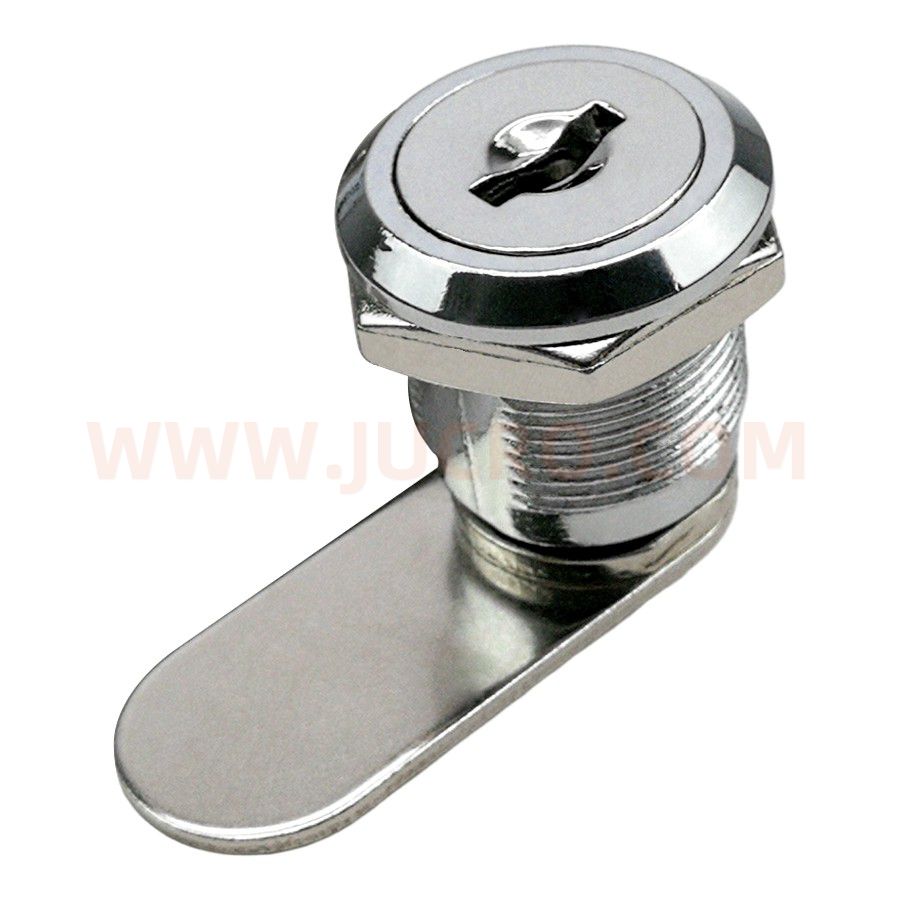

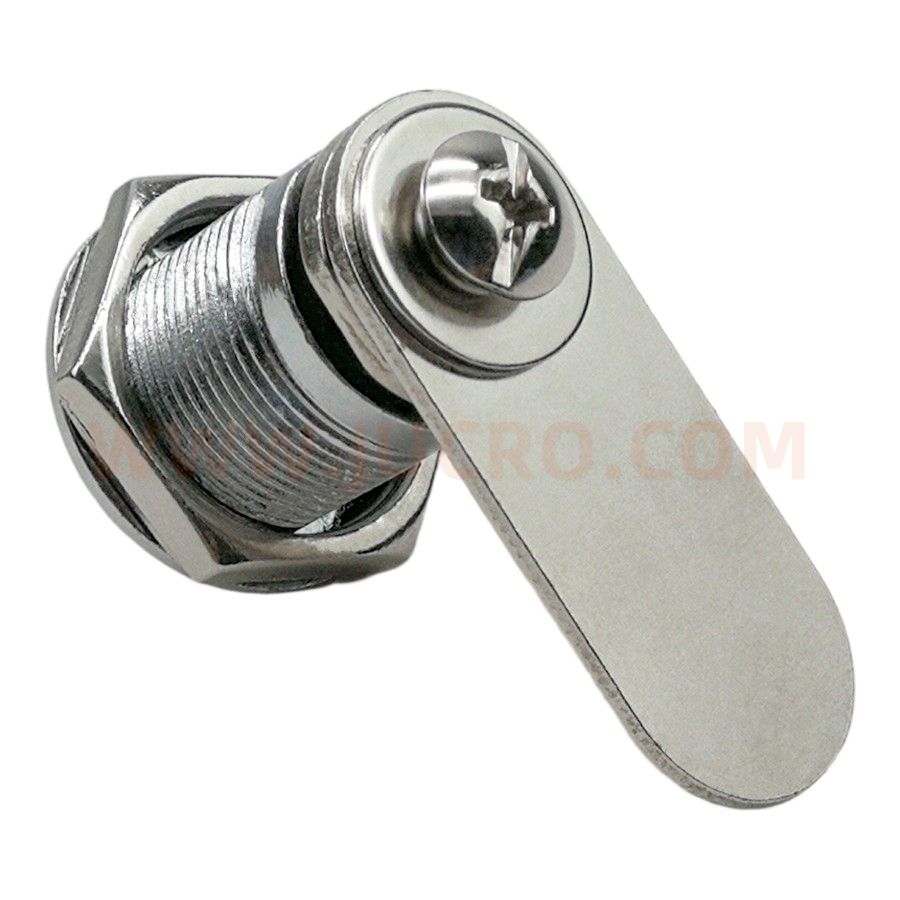

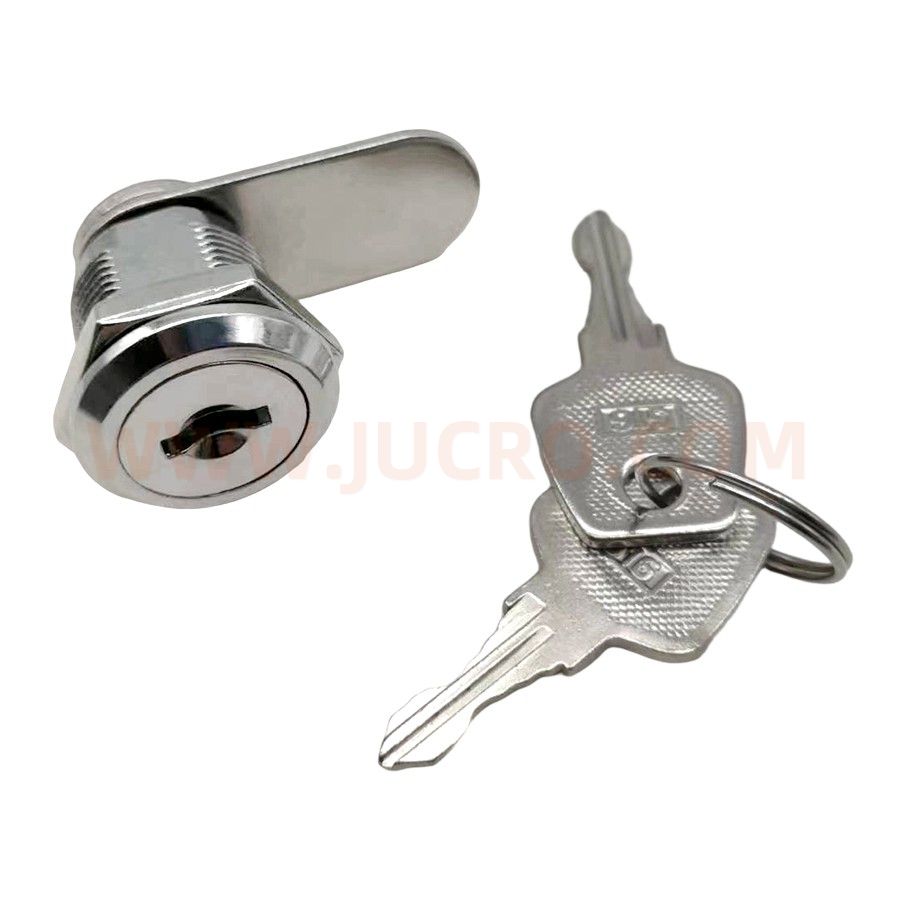

CAM LOCK（DL5131）
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy housing and Lock core, carbon steel bolt |
表面处理 Surface treatment | 镀亮光铬基座、锁芯，钢栓镀白锌 Bright chrome plated housing and lock core, white zinc plated steel bolt |
操作说明 Operation | 顺时针旋转900闭锁 Turn clockwise 900 to latch/lock |
备注 Remark | 钥匙于锁位单拔出/钥匙于锁位及开锁位都可以拔出（可选） Key is only removable at lock position/ Key is removable at both lock and unlock positions.(OPTional) |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 90N |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

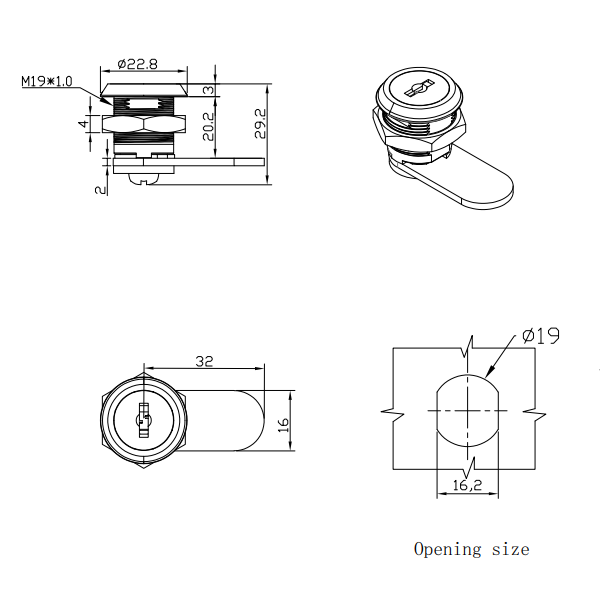

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
