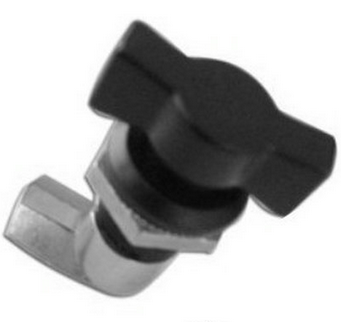

CAM LOCK (DL714-4)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座及钢栓，PA手柄 Zinc alloy housing and bolt, PA handle |
表面处理 Surface treatment | 喷黑漆 Black spray painting |
结构说明 Structure descriPTion | 旋转90°实现开启或闭锁 Quarter-turn Lock/un-lock |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 220N |
***输入扭矩 Maximum input torque | 9N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

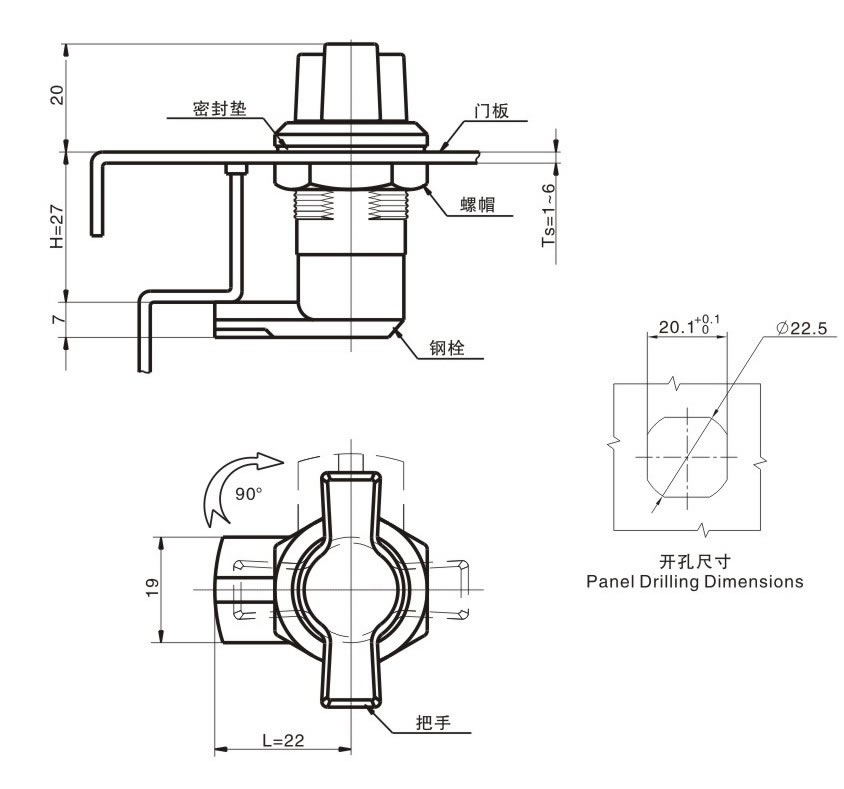

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
