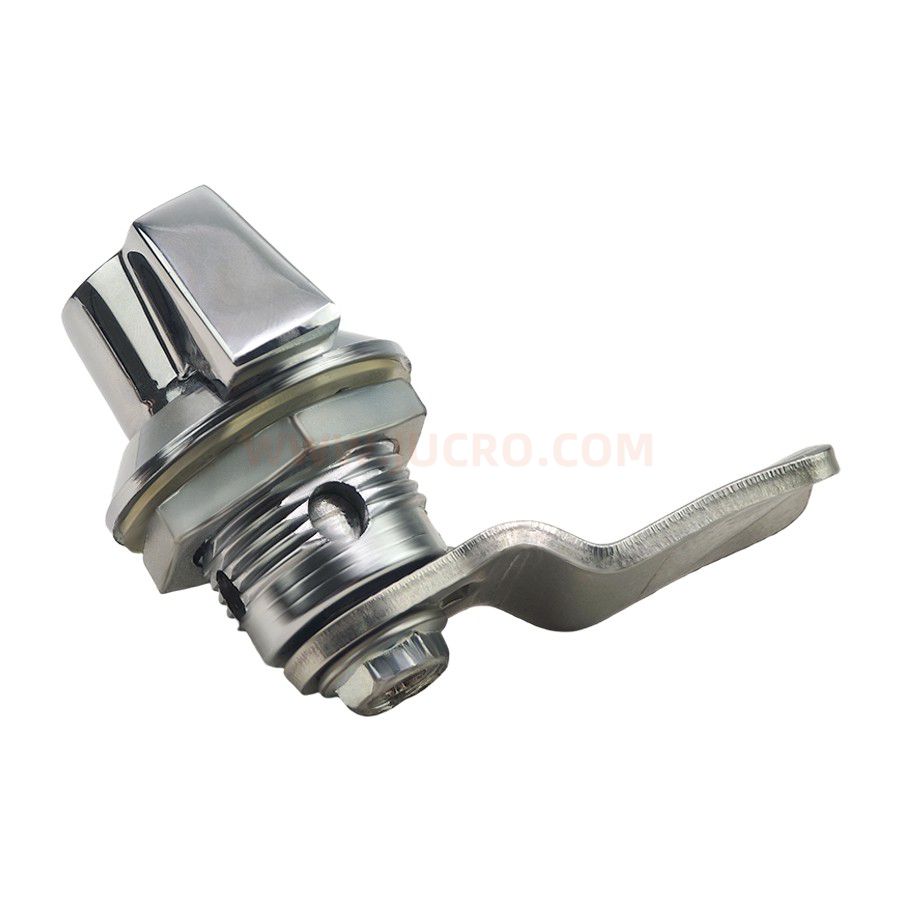

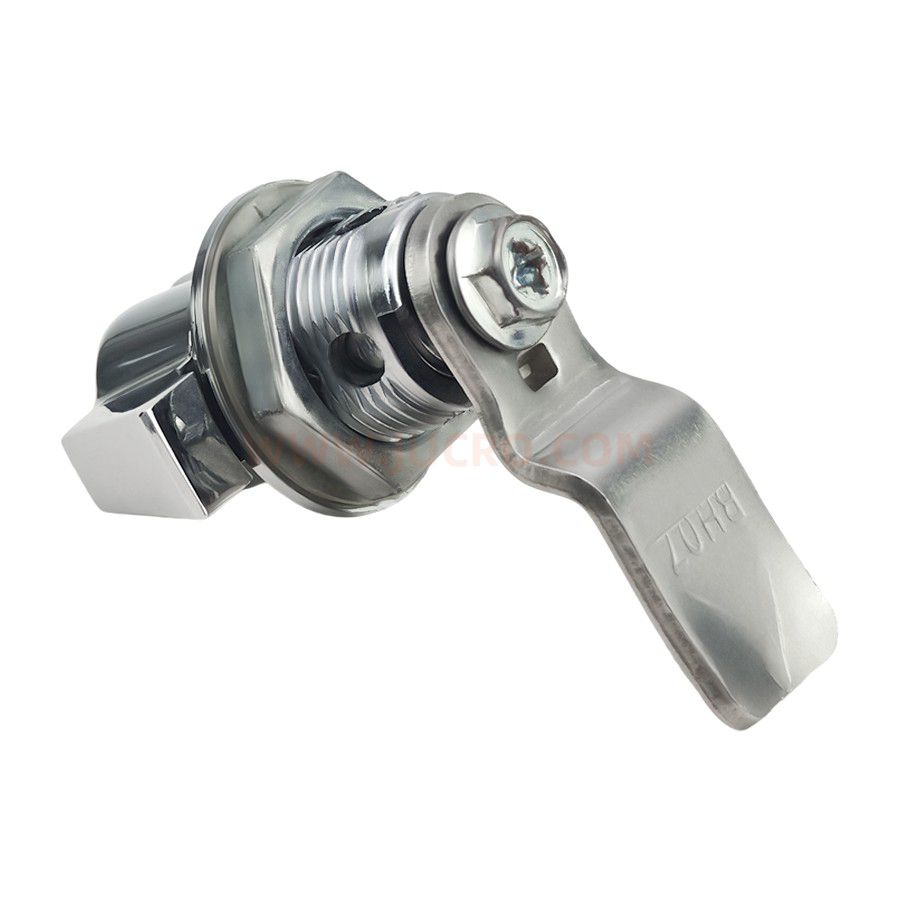

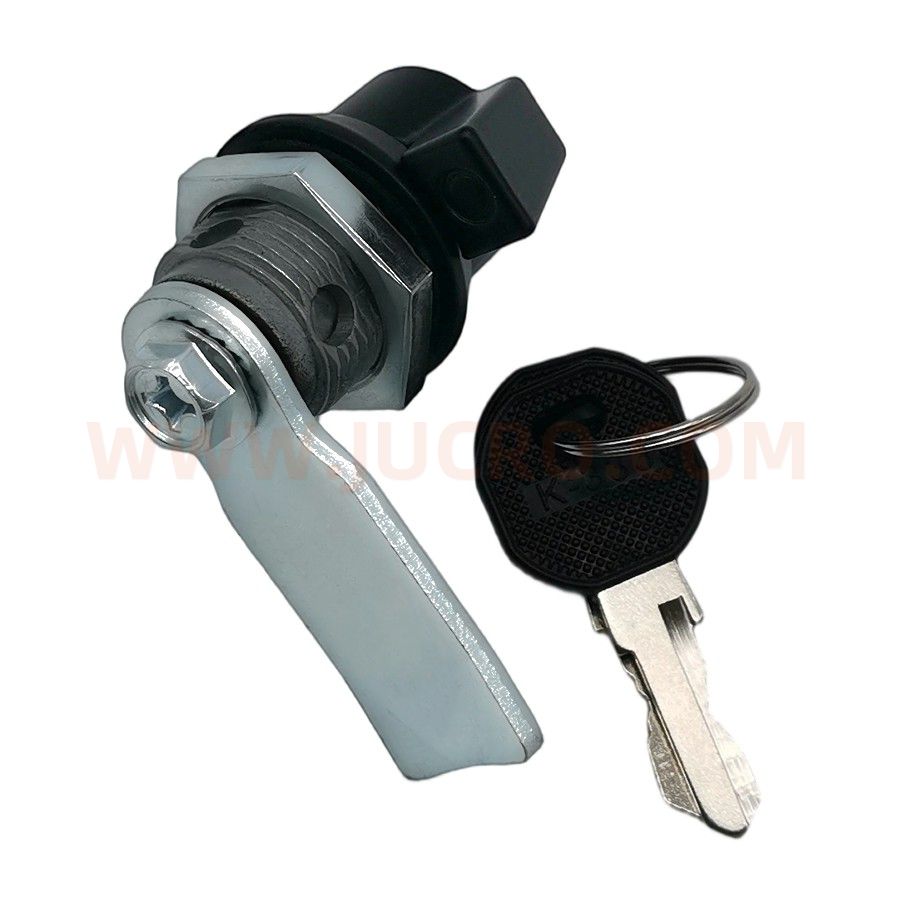

CAM LOCK (DL748-1)
|
特征说明 CHARACTERISTICS |
|
|
材 质 Material |
锌合金基座、手柄，碳钢钢栓 Zinc alloy housing and handle, carbon steel bolt |
|
表面处理 Surface treatment |
黑色喷塑/镀亮铬基座、手柄，镀白锌钢栓 Black spray coated/Chrome plated housing and handle, white zinc plated steel bolt |
|
结构说明 Structure descriPTion |
旋转90°实现开启或闭锁 Quarter-turn Lock/un-lock |
|
备 注 Remark |

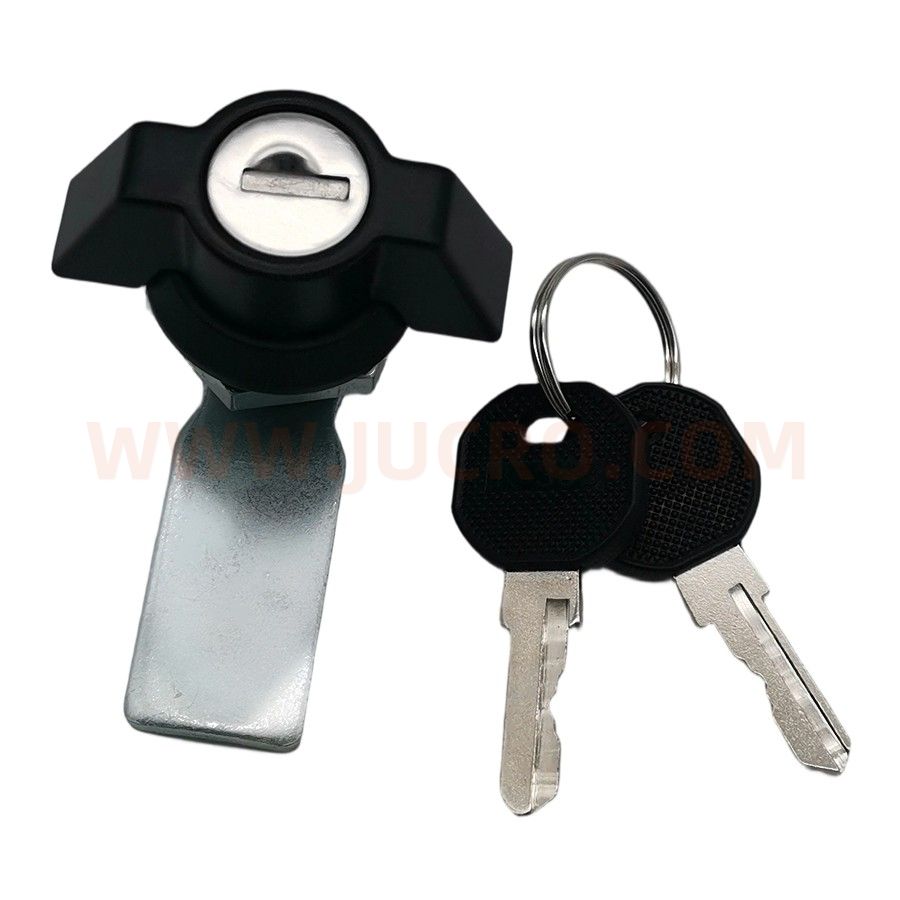

默认钥匙 Default key |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
***静载荷 Maximum static load |
270N |
|
***输入扭矩 Maximum input torque |
30N•m |
|
固定螺母的推荐拧紧力矩 Recommended nut tightening torque |
20N•m |
|

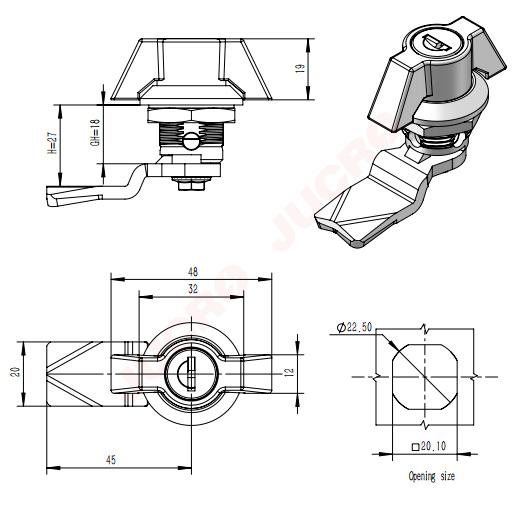

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
