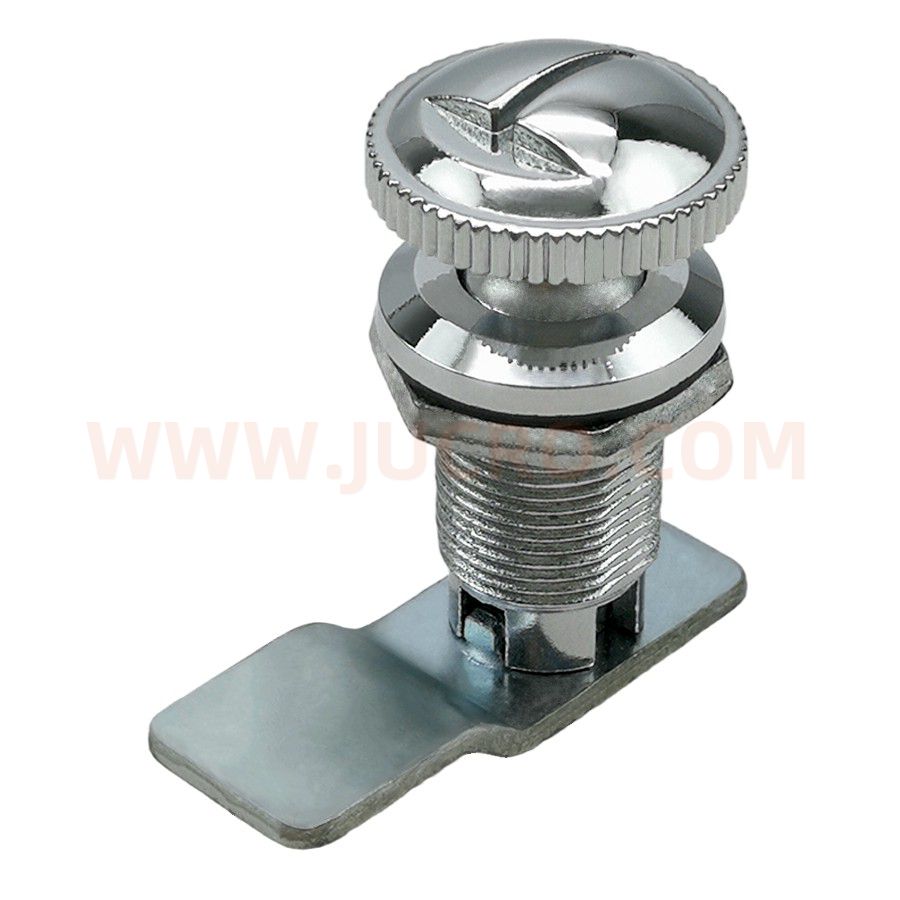

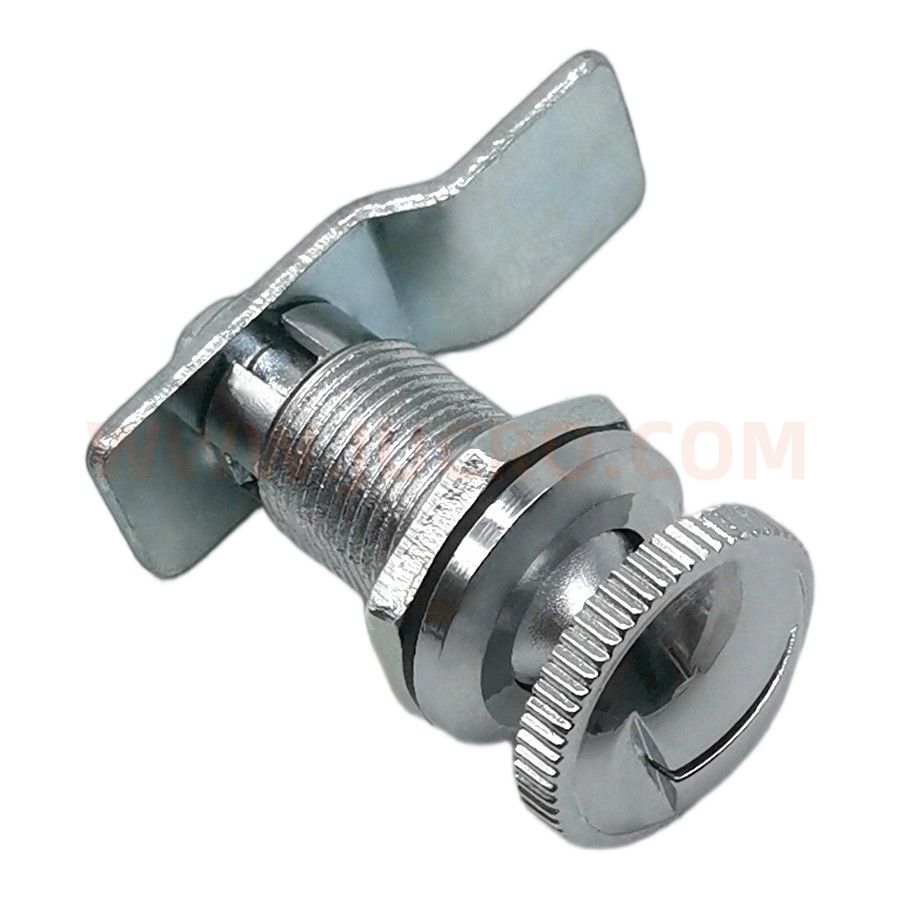

CAM LOCK (DL803)

CAM LOCK (DL803)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄,碳钢钢栓

Zinc alloy base and knob, carbon steel bolt

表面处理

Surface treatment

基座及手柄镀亮铬,钢栓镀白锌

Bright chrome plated for base and knob, white zinc plating for steel bolt.

结构说明

Structure descriPTion

旋转90°实现开启或锁闭,具有自锁闭功能

Quarter-turn Lock/un-lock, with self-locking function



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

91N

***输入扭矩

Maximum input torque

4Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

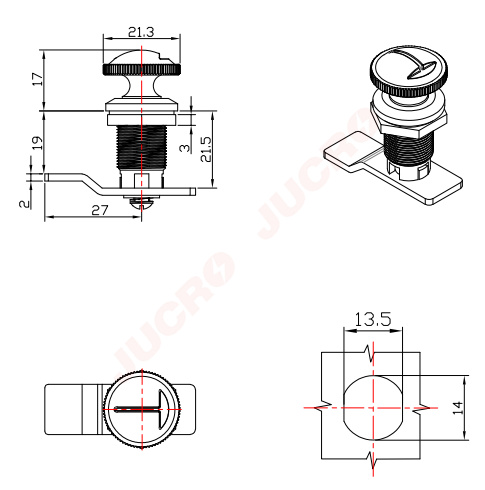

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄,碳钢钢栓

Zinc alloy base and knob, carbon steel bolt

表面处理

Surface treatment

基座及手柄镀亮铬,钢栓镀白锌

Bright chrome plated for base and knob, white zinc plating for steel bolt.

结构说明

Structure descriPTion

旋转90°实现开启或锁闭,具有自锁闭功能

Quarter-turn Lock/un-lock, with self-locking function



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

91N

***输入扭矩

Maximum input torque

4Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
