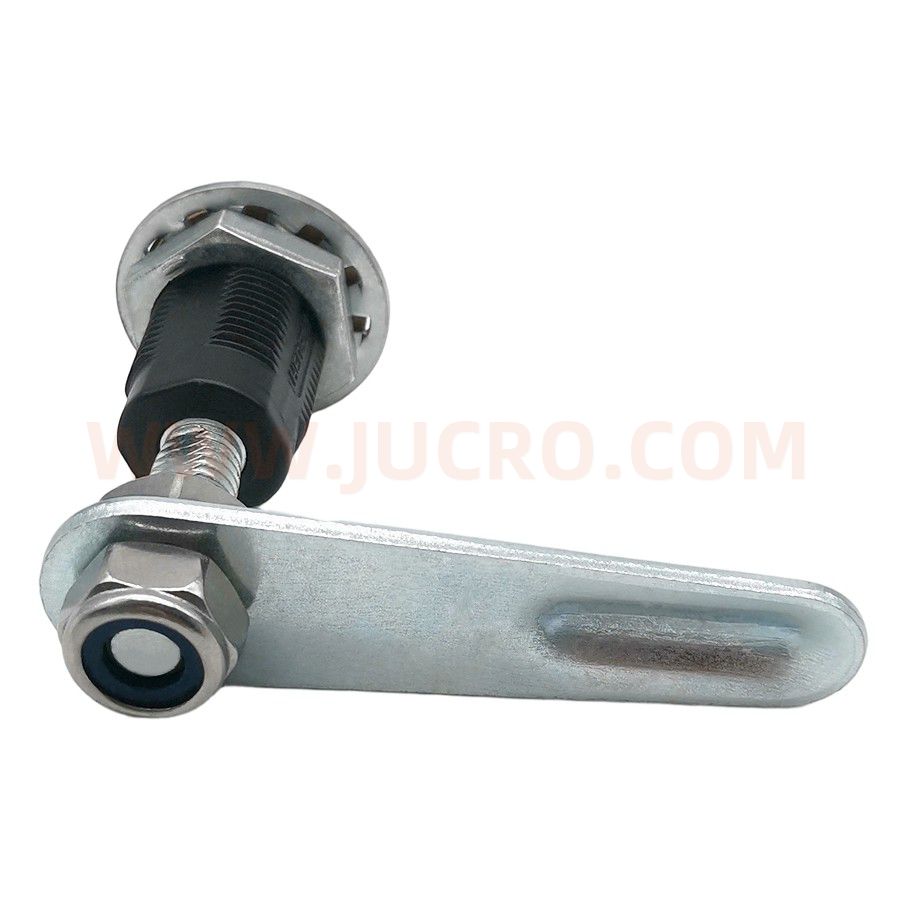

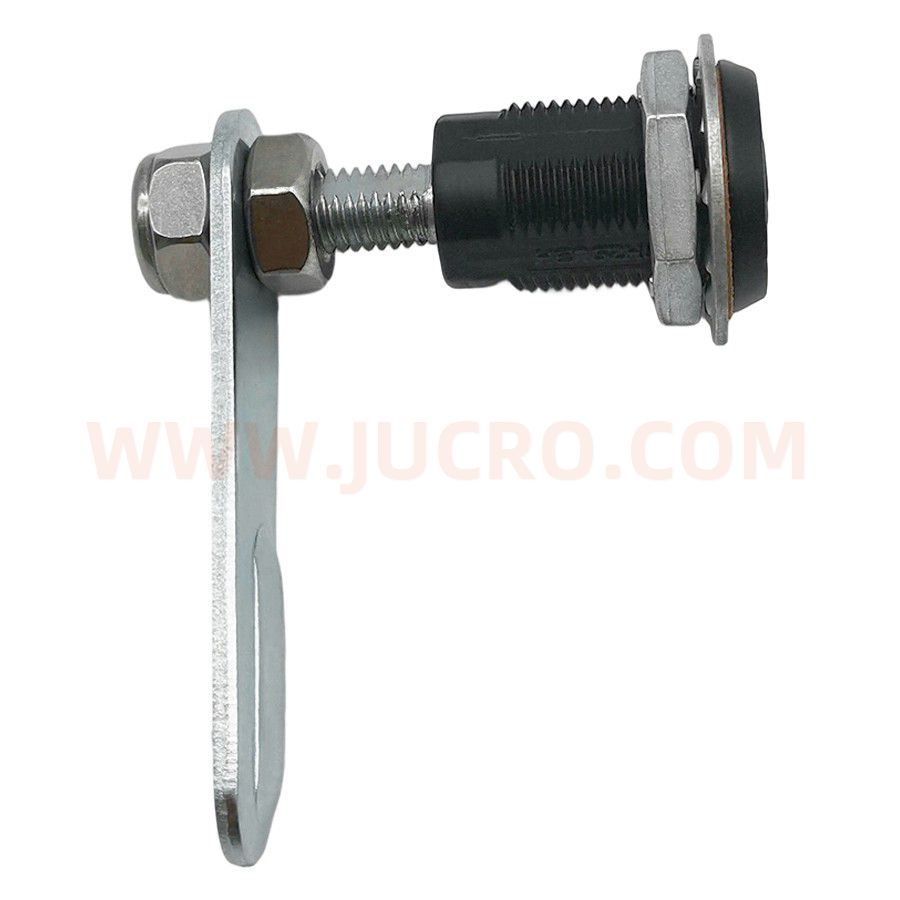

CAM LOCK (DL816-1A)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy housing and Lock core, carbon steel bolt |
表面处理 Surface treatment | 喷漆（黑色）基座，钢栓镀白锌 |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭, 具有锁紧功能 Quarter-turn lock/un-lock, with function of tight locking |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 360N |
***输入扭矩 Maximum input torque | 8N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

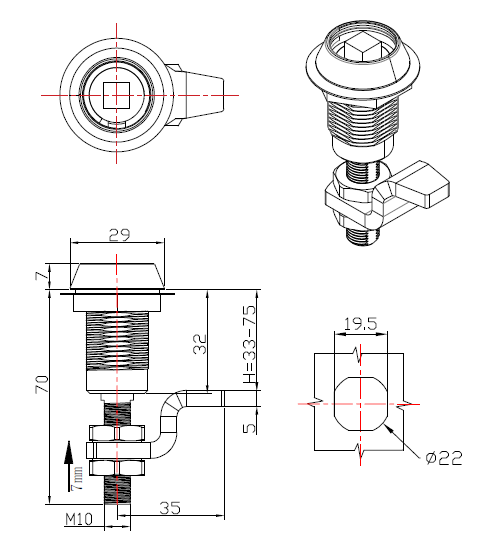

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
