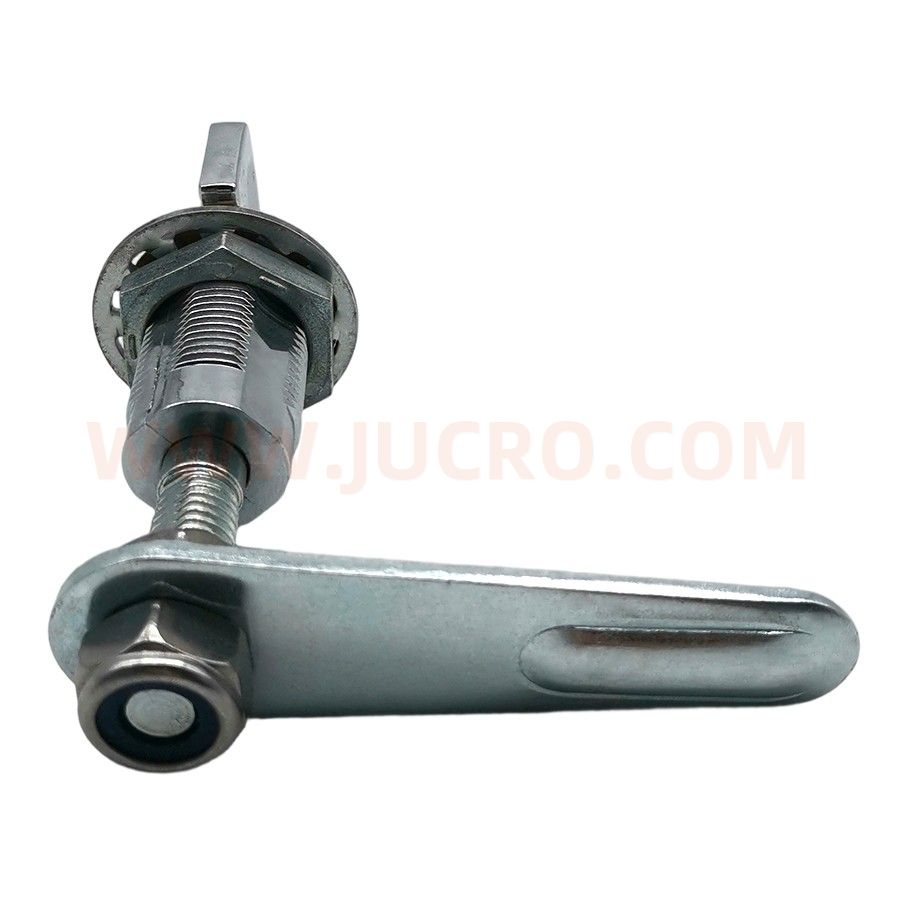

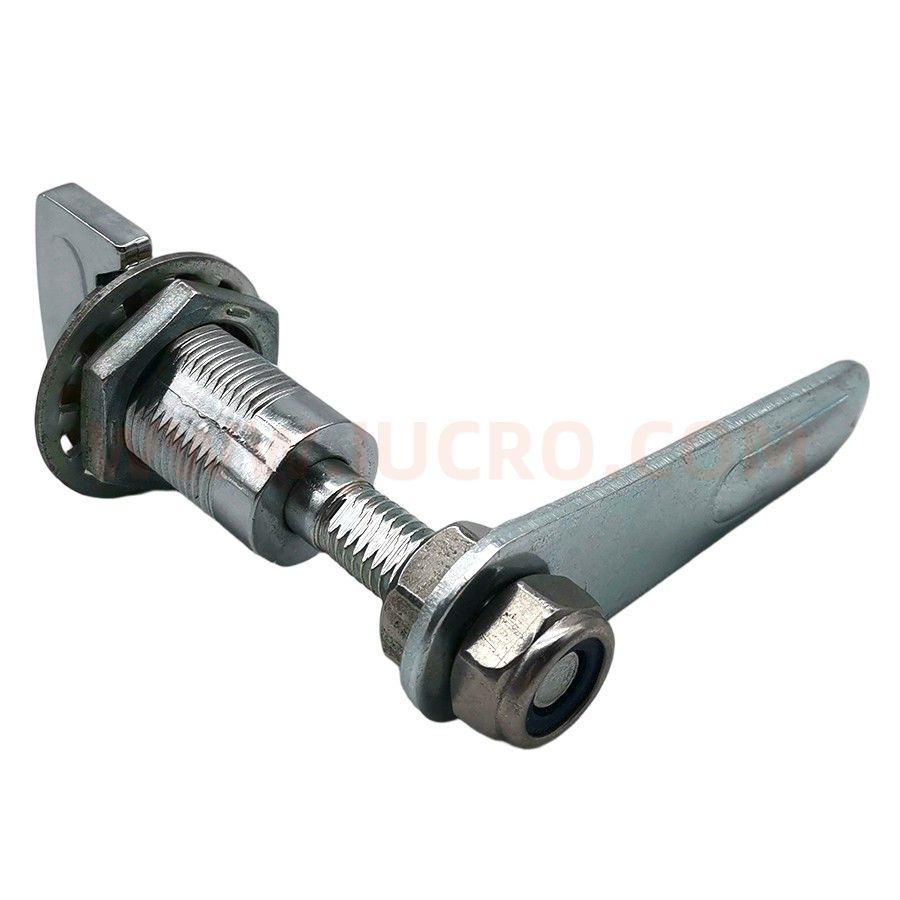

CAM LOCK (DL816-1A-S)

CAM LOCK (DL816-1A-S)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯、把手,碳钢钢栓

Zinc alloy housing, Lock core and handle; carbon steel bolt

表面处理

Surface treatment

镀亮铬基座、把手,钢栓镀白锌

Bright chrome plated housing and handle, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭, 具有锁紧功能

Quarter-turn lock/un-lock, with function of tight locking


性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

360N

***输入扭矩

Maximum input torque

8Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

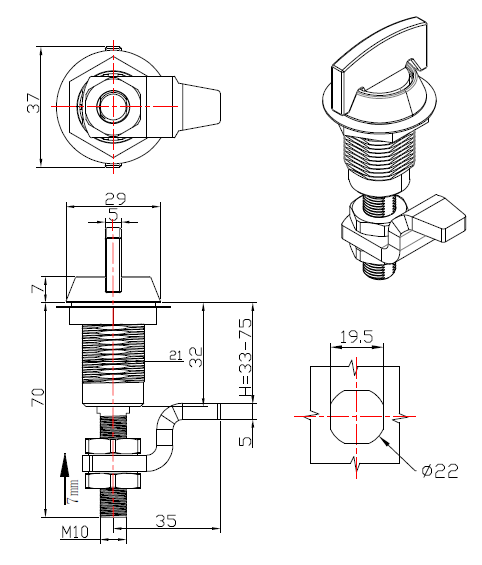

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯、把手,碳钢钢栓

Zinc alloy housing, Lock core and handle; carbon steel bolt

表面处理

Surface treatment

镀亮铬基座、把手,钢栓镀白锌

Bright chrome plated housing and handle, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭, 具有锁紧功能

Quarter-turn lock/un-lock, with function of tight locking


性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

360N

***输入扭矩

Maximum input torque

8Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm


外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
