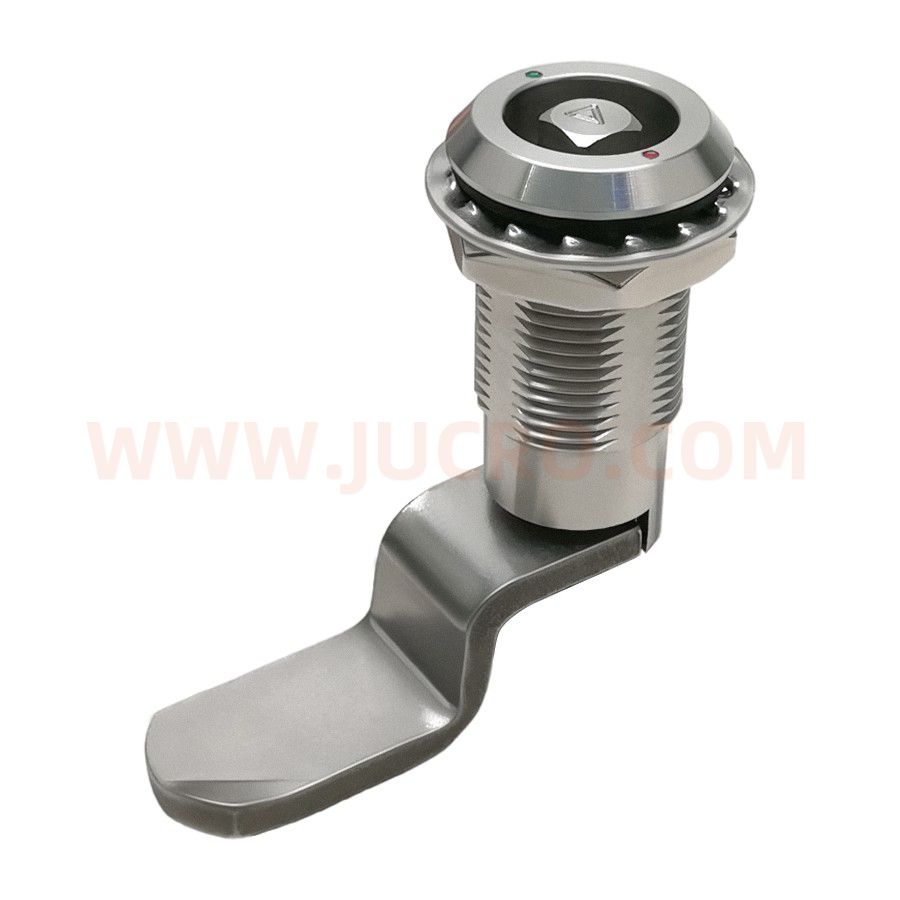

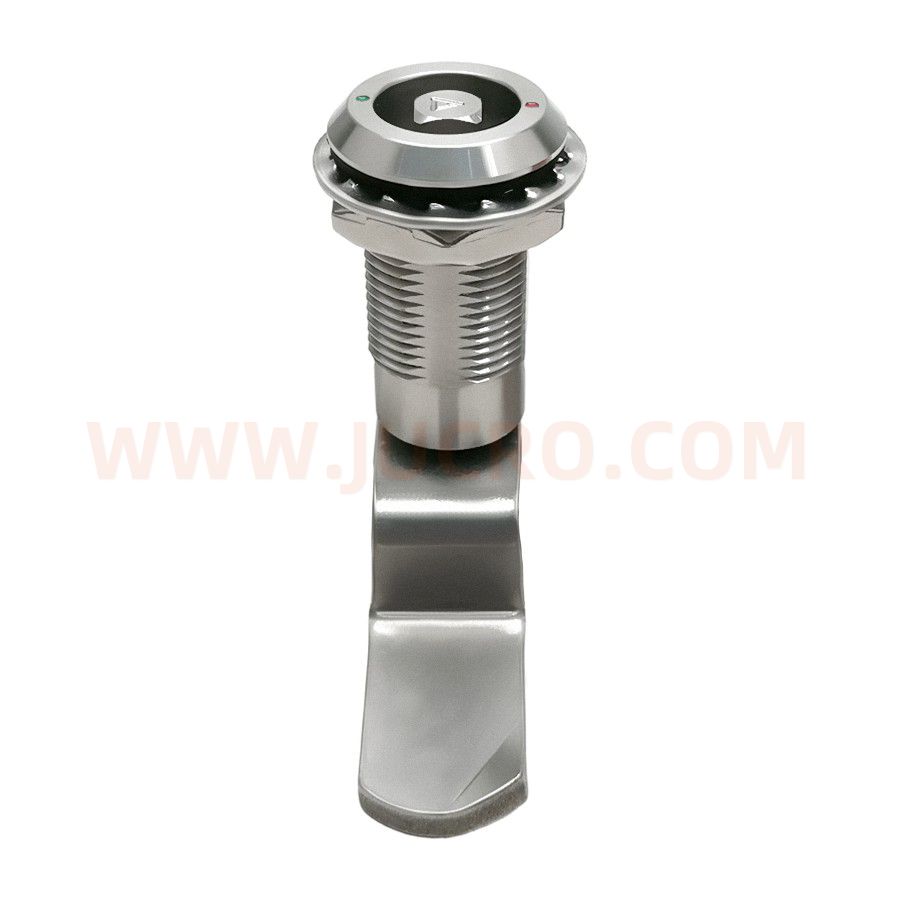

CAM LOCK (DL816-4B)
特征说明 CHARACTERISTICS | |
材 质 Material | 不锈钢基座、锁芯和钢栓 Stainless steel housing, Lock core and cam |
表面处理 Surface treatment | 抛光 Polish |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭, 具有锁紧功能（迫紧行程：6mm） Quarter-turn lock/un-lock, with compression function (Compression distance: 6mm) |
闭锁方向 Latching direction | 顺时针旋转闭锁/逆时针旋转闭锁 Turn to clockwise to latch/Turn to anticlockwise to latch, with compression function. |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 590N |
***输入扭矩 Maximum input torque | 11N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 30N•m |

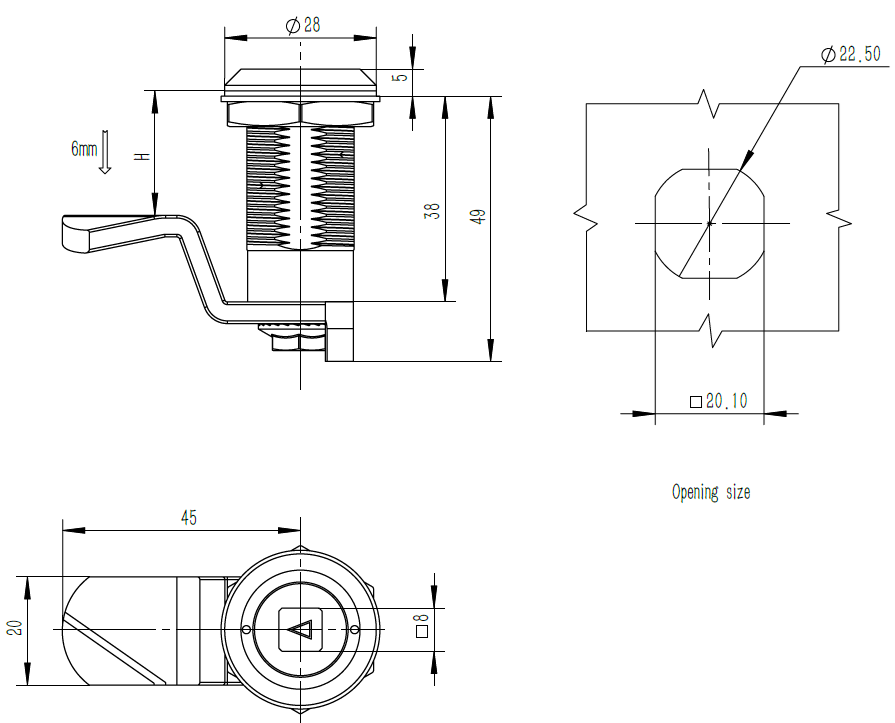

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm
Remarks：Please advise dimension “H” when placing order.
