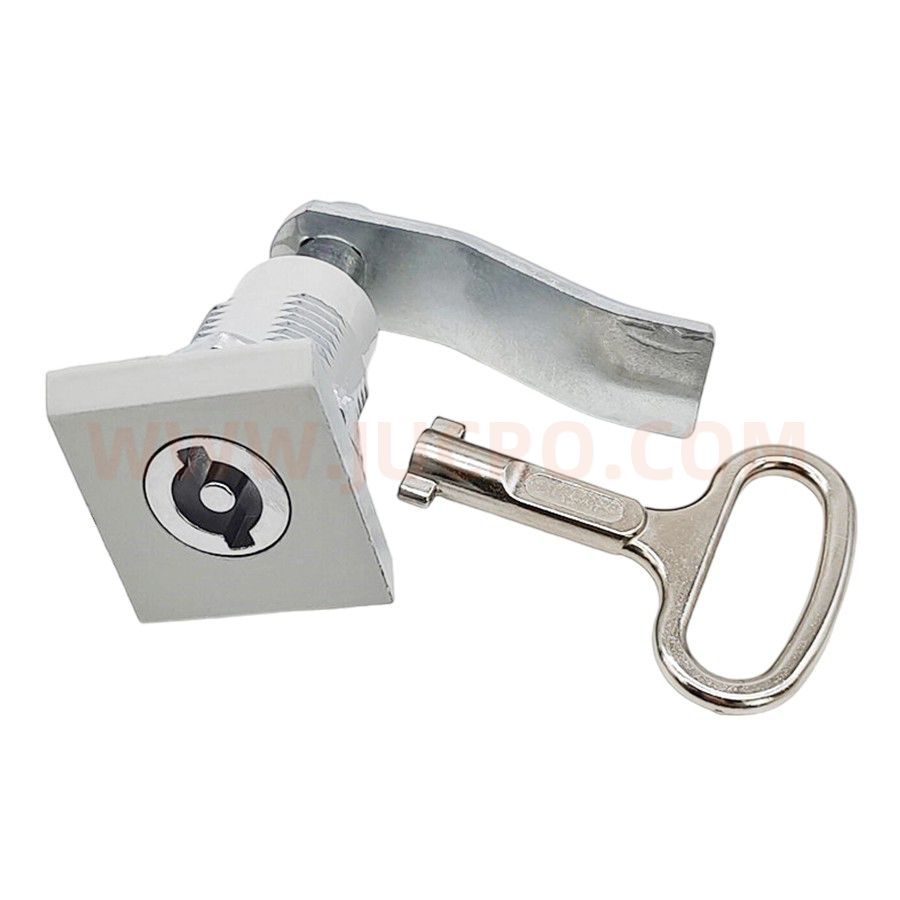

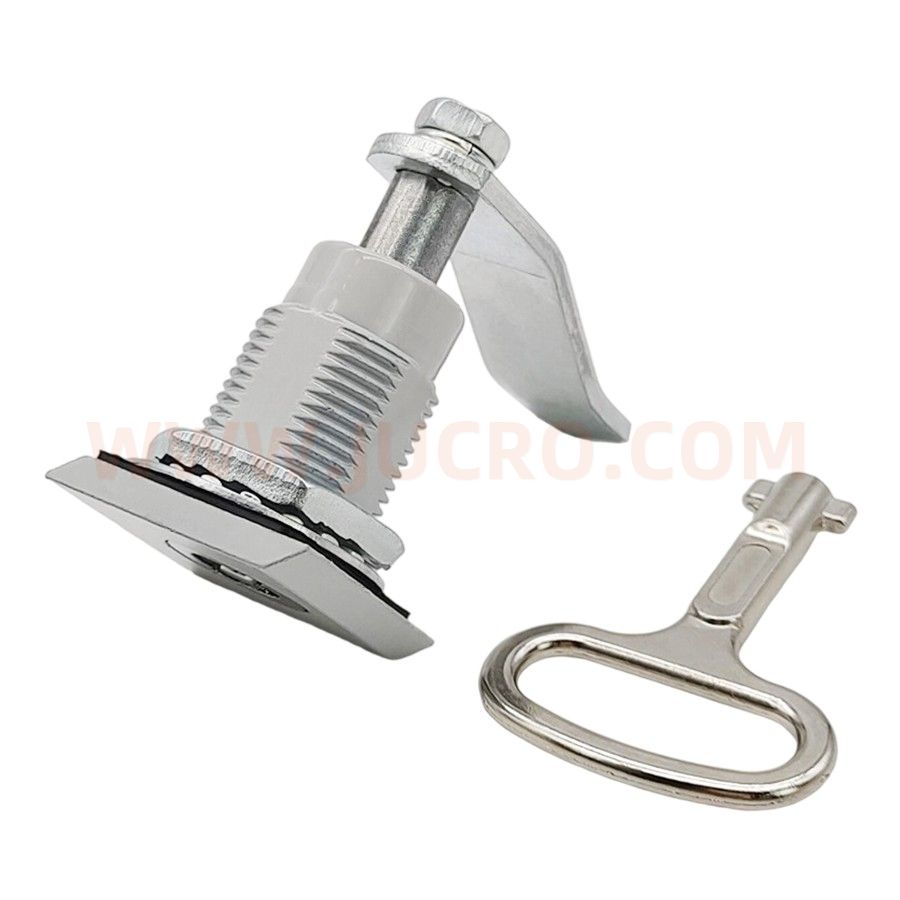

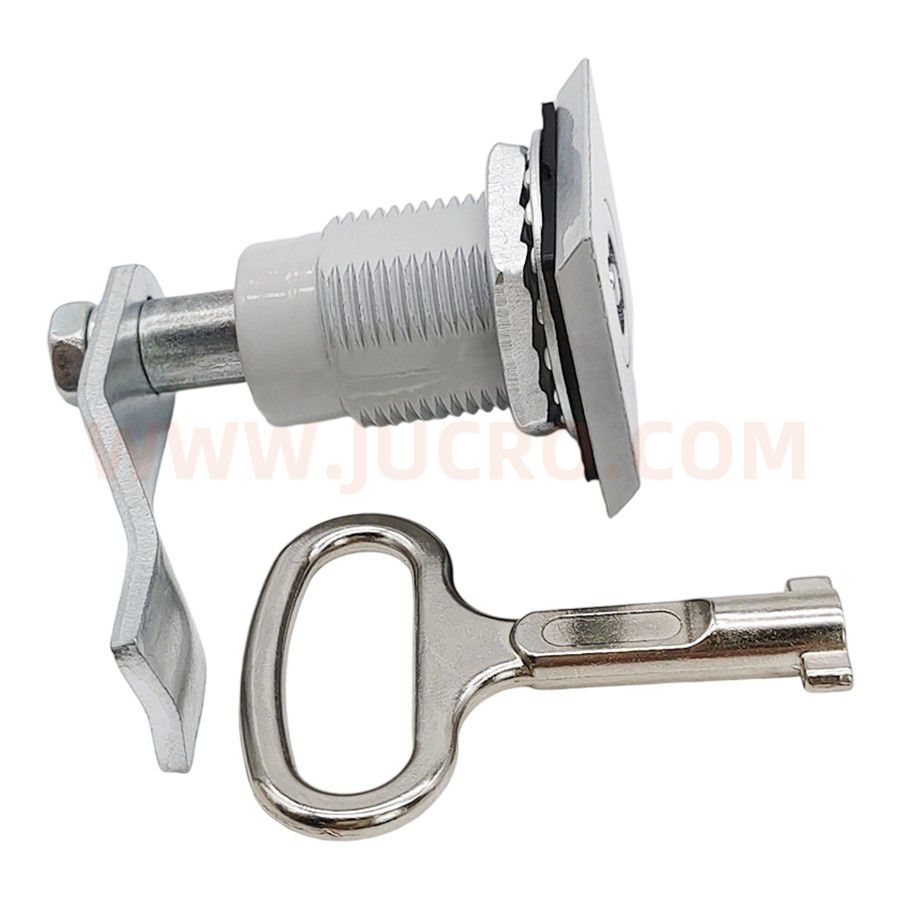

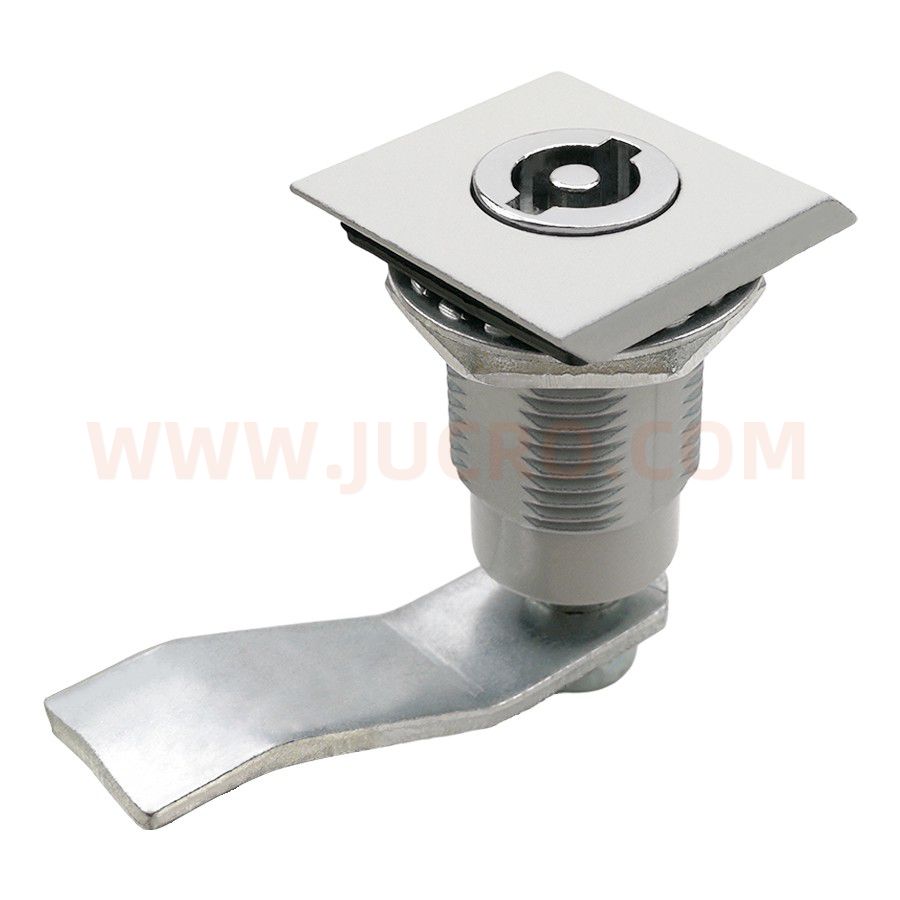

CAM LOCK (DL817-S)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、锁芯，碳钢钢栓 Zinc alloy housing and Lock core, carbon steel bolt |
表面处理 Surface treatment | 基座喷漆黑色，镀铬锁芯，钢栓镀白锌 Black spray paint for base, chrome plated lock core, white zinc plating for steel bolt. |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 190N |
***输入扭矩 Maximum input torque | 6N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

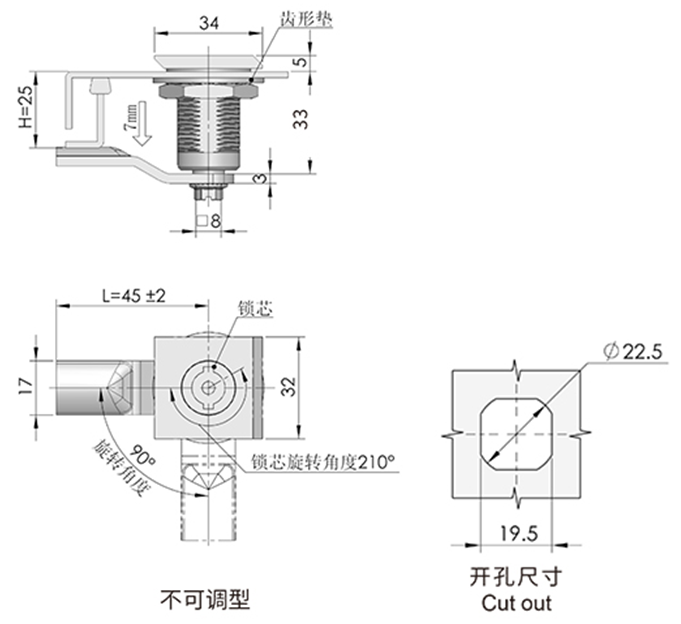

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
