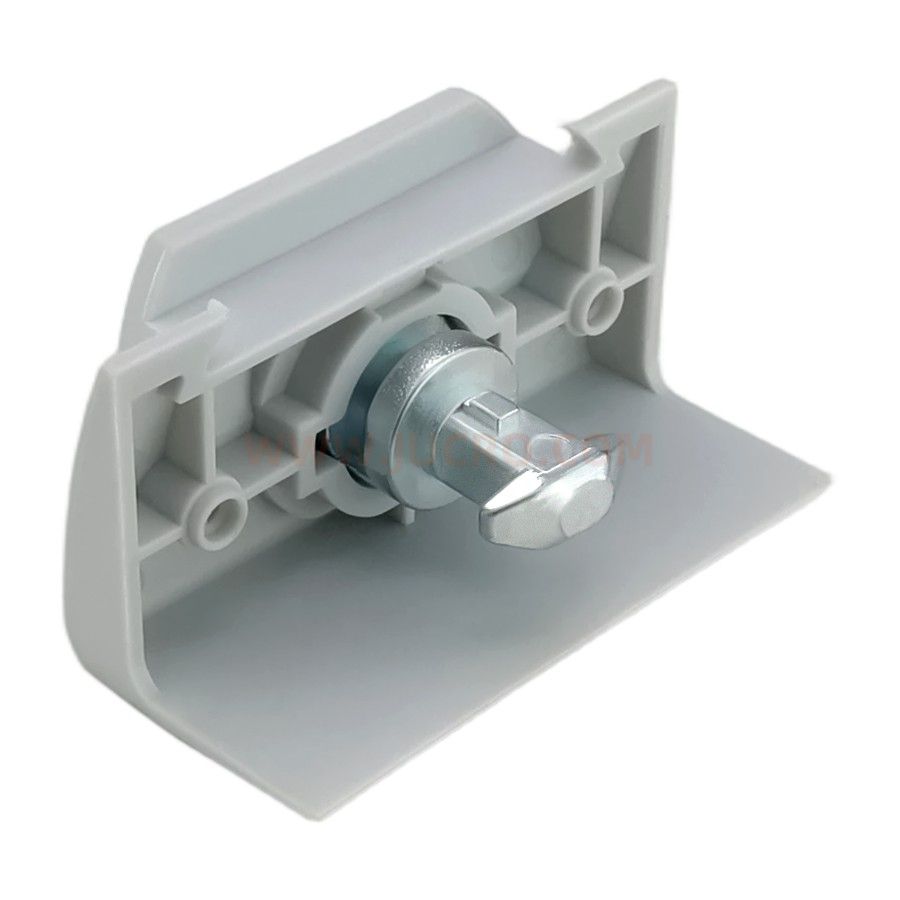

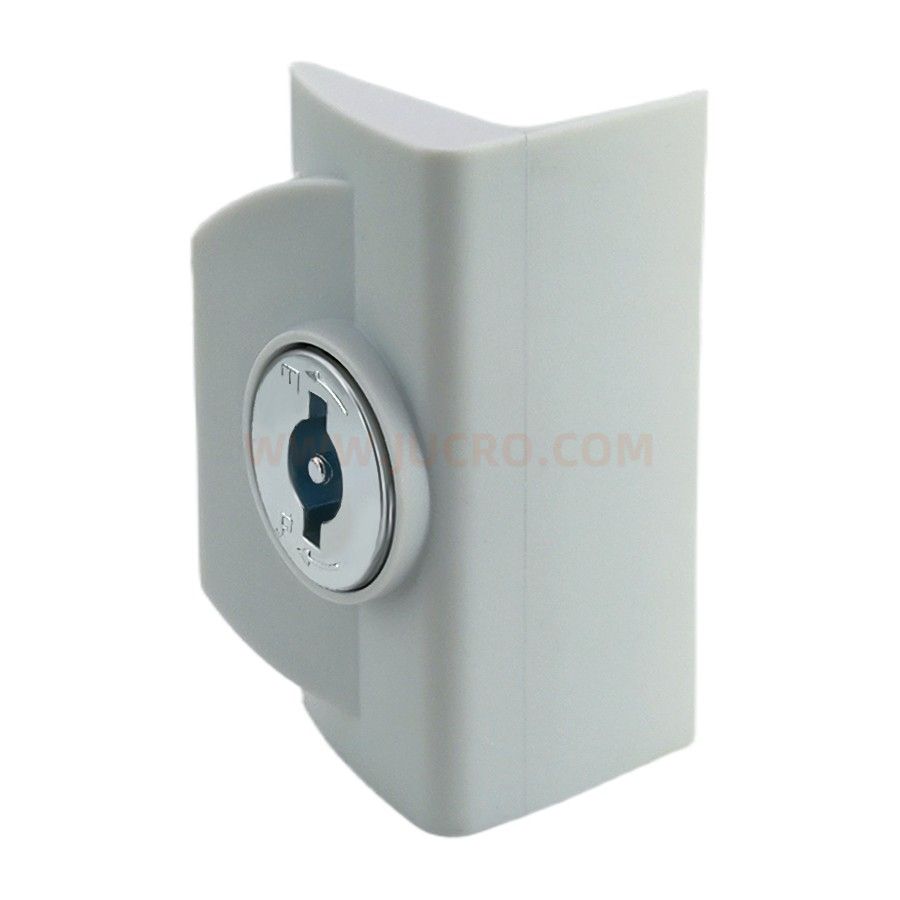

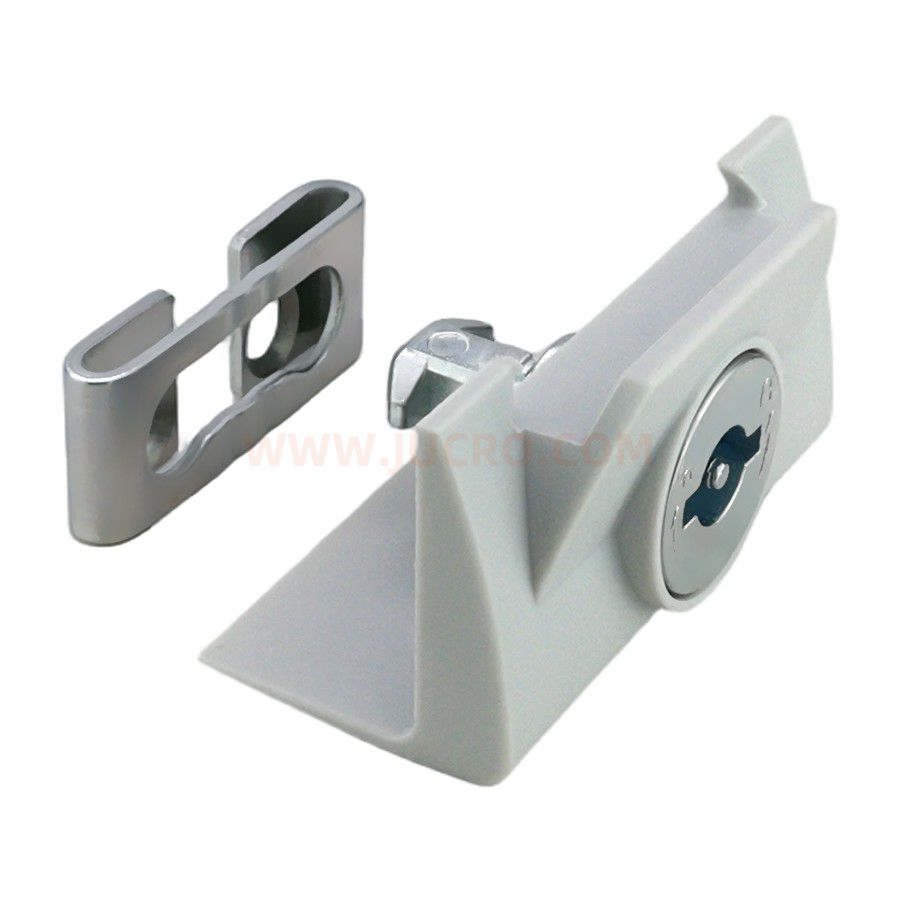

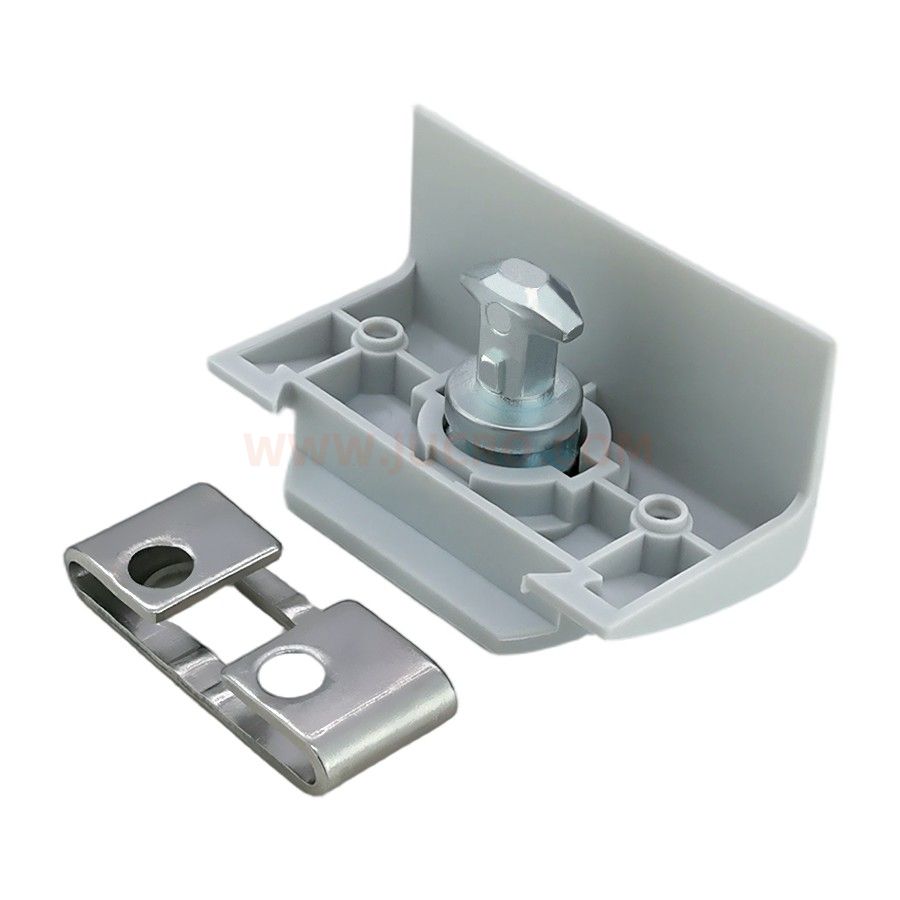

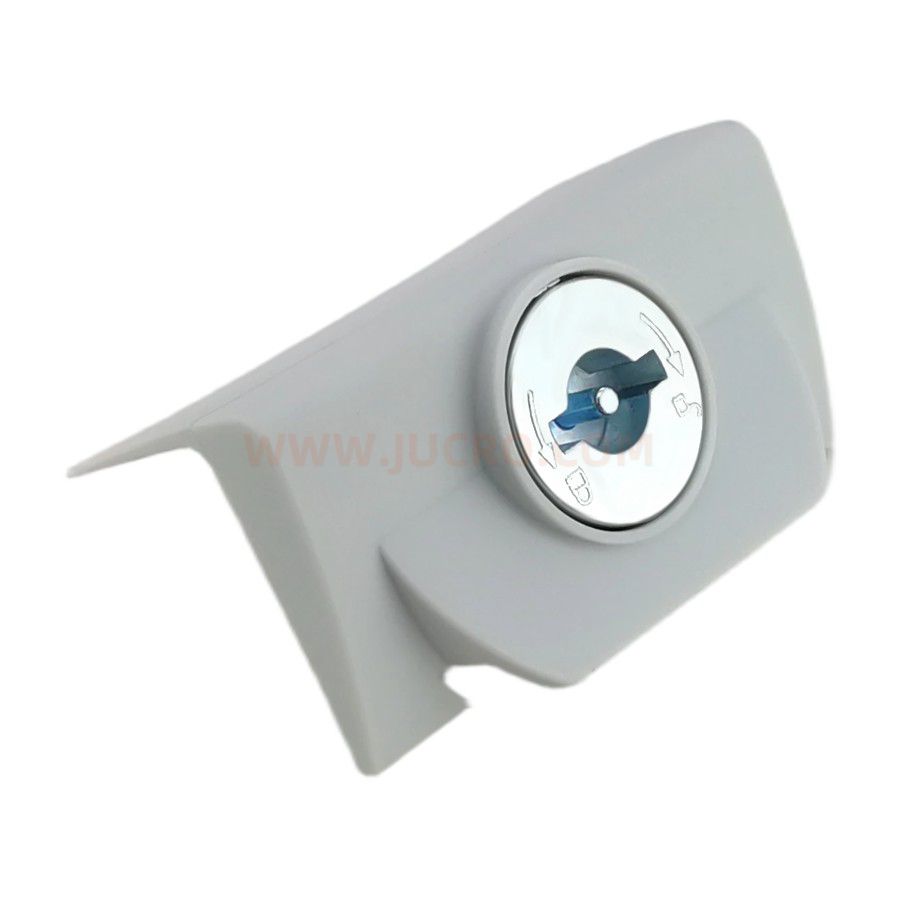

CAM LOCK (DL891)
特征说明 CHARACTERISTICS | |
材 质 Material | 塑料壳体，锌合金锁芯，不锈钢锁扣 Plastic housing, zinc alloy Lock core, stainless steel lock loop |
表面处理 Surface treatment | 灰色/黑色壳体，镀锌锁芯 Grey/Black housing, galvanized lock core |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |
备 注 Remark | 选配钥匙 Optional key |
|

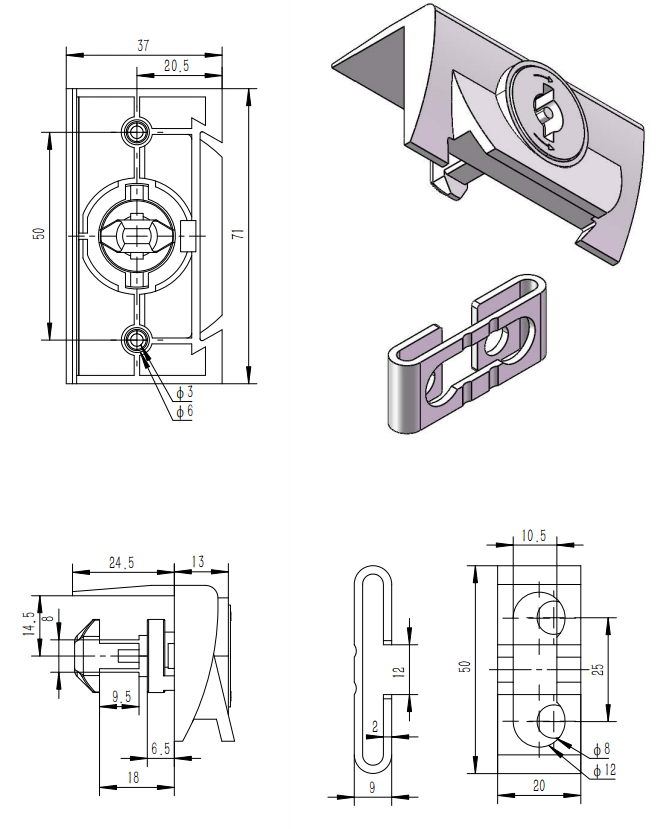

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
