Product Detail
特征说明 CHARACTERISTICS
材 质
Material
锌合金基座、锁芯，碳钢钢栓
Zinc alloy base and Lock cylinder, carbon steel bolt
表面处理
Surface treatment
基座及锁芯镀亮光铬，钢栓镀白锌
Bright chrome plated for base and lock cylinder, white zinc plating for steel bolt
结构说明
Structure descriPTion
旋转90°实现开启或锁闭
Quarter-turn lock/un-lock
备 注
Remark
选配钥匙
Optional key
性能参数 PERFORMANCE PARAMETERS
***静载荷
Maximum static load
270N
***输入扭矩
Maximum input torque
9N•m
固定螺母的推荐拧紧力矩
Recommended nut tightening torque
20N•m

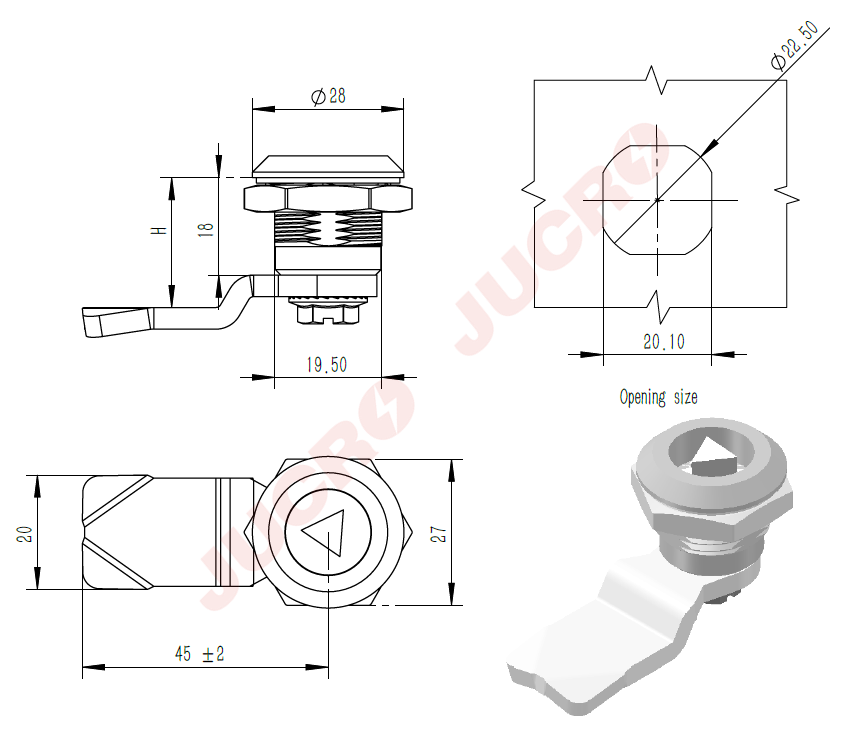

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION
Unit：mm
