Product Detail
特征说明 CHARACTERISTICS
材 质
Material
锌合金基座、锁芯，不锈钢锁舌
Zinc alloy housing and Lock core, stainless steel cam
表面处理
Surface treatment
喷漆黑色基座，钢栓镀白锌
Black painted housing, white zinc plated steel cam
结构说明
Structure descriPTion
锁芯转动180°带动锁舌，实现开启或锁闭
Insert rotating 180° to drive the cam for opening and closing
备注
Remark

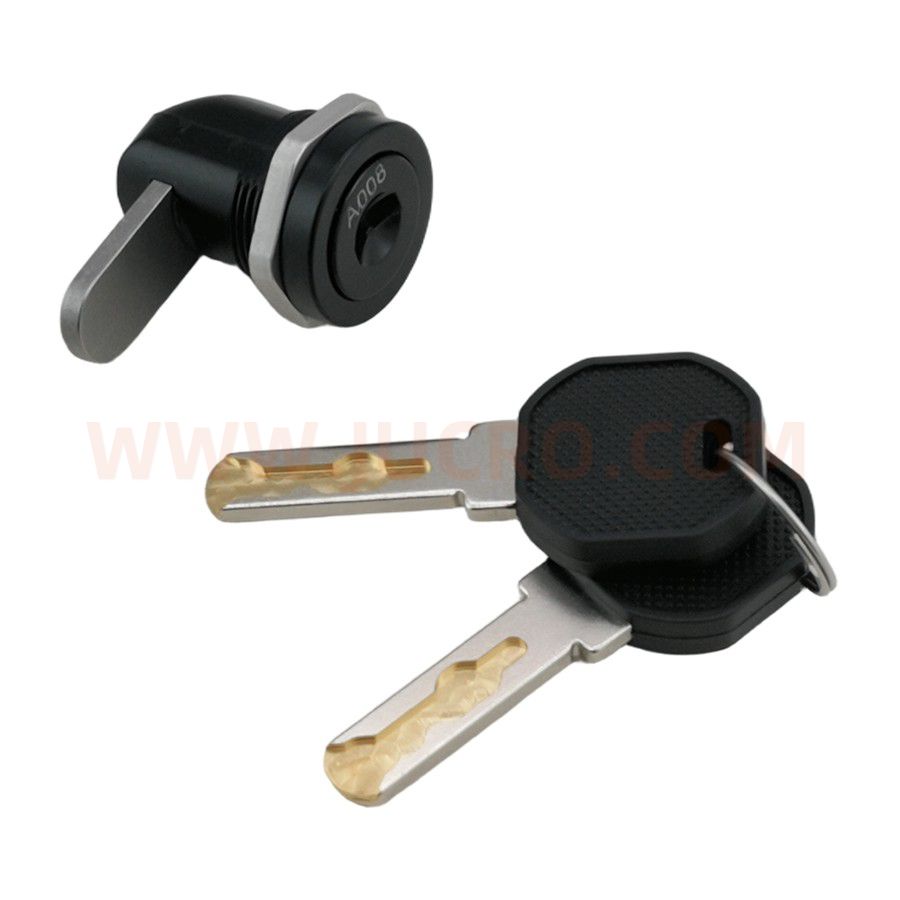

默认钥匙（专用）
Default key (Special)
性能参数 PERFORMANCE PARAMETERS
***静载荷
Maximum static load
220N

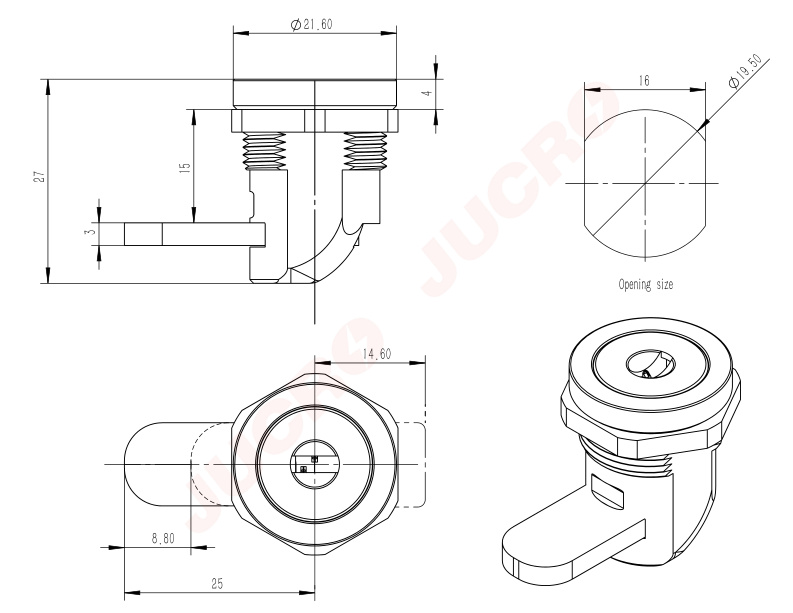

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION
Unit：mm
