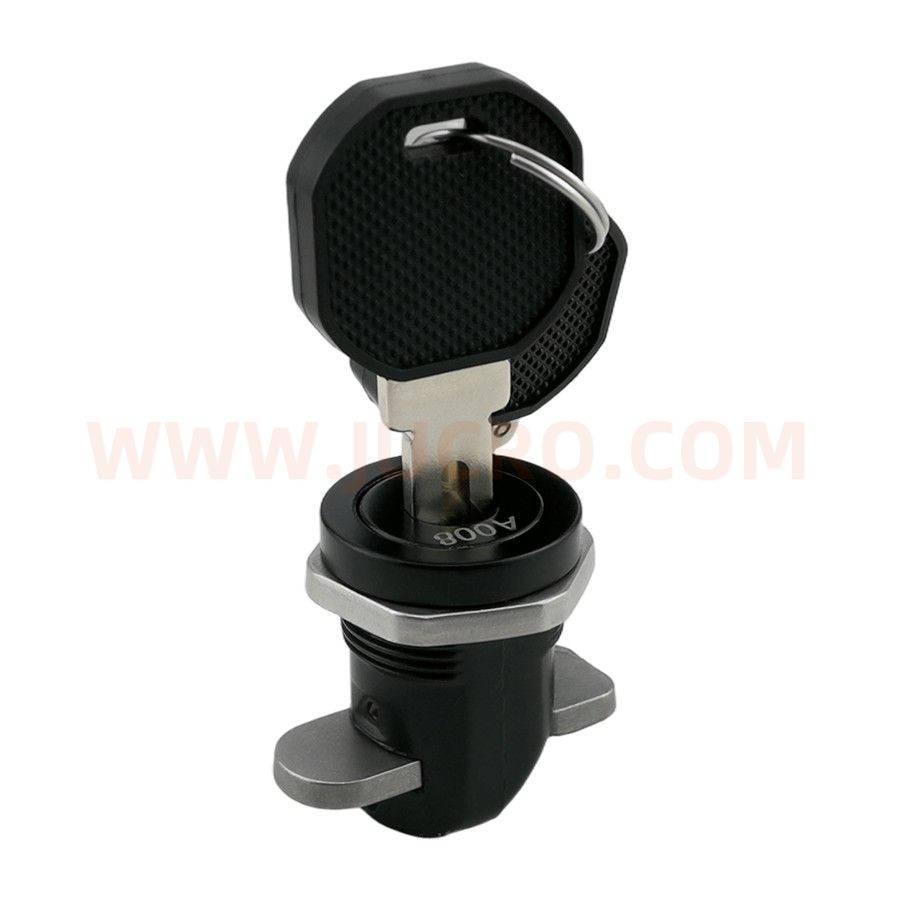

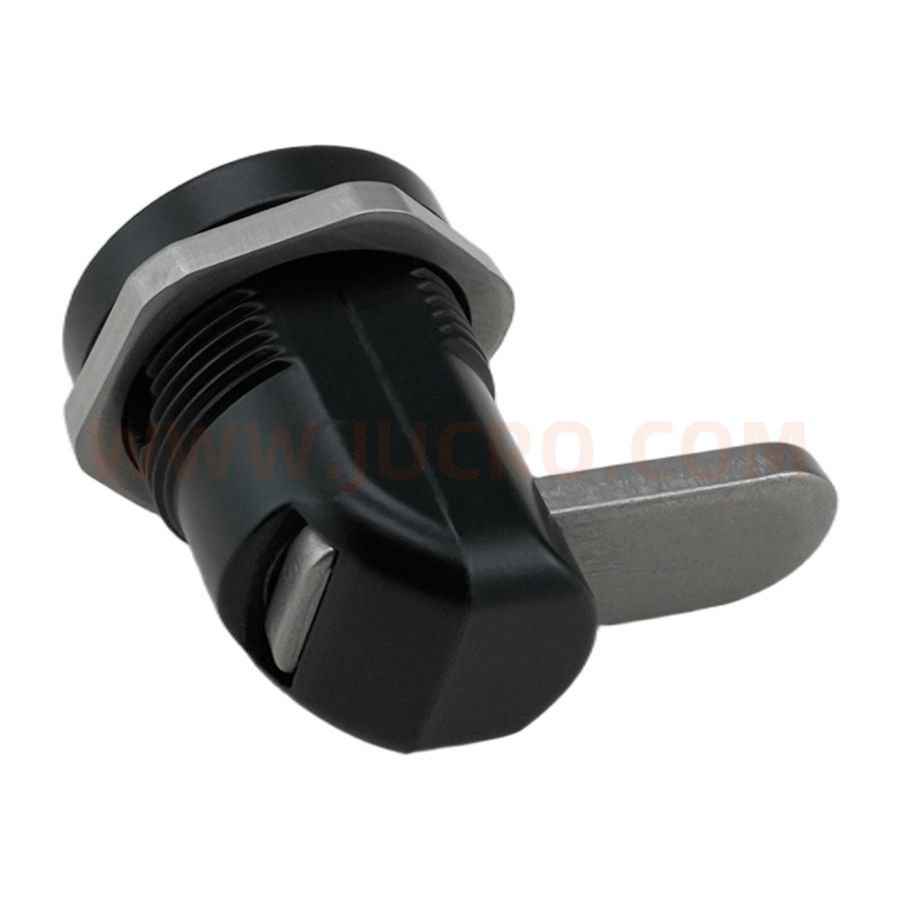

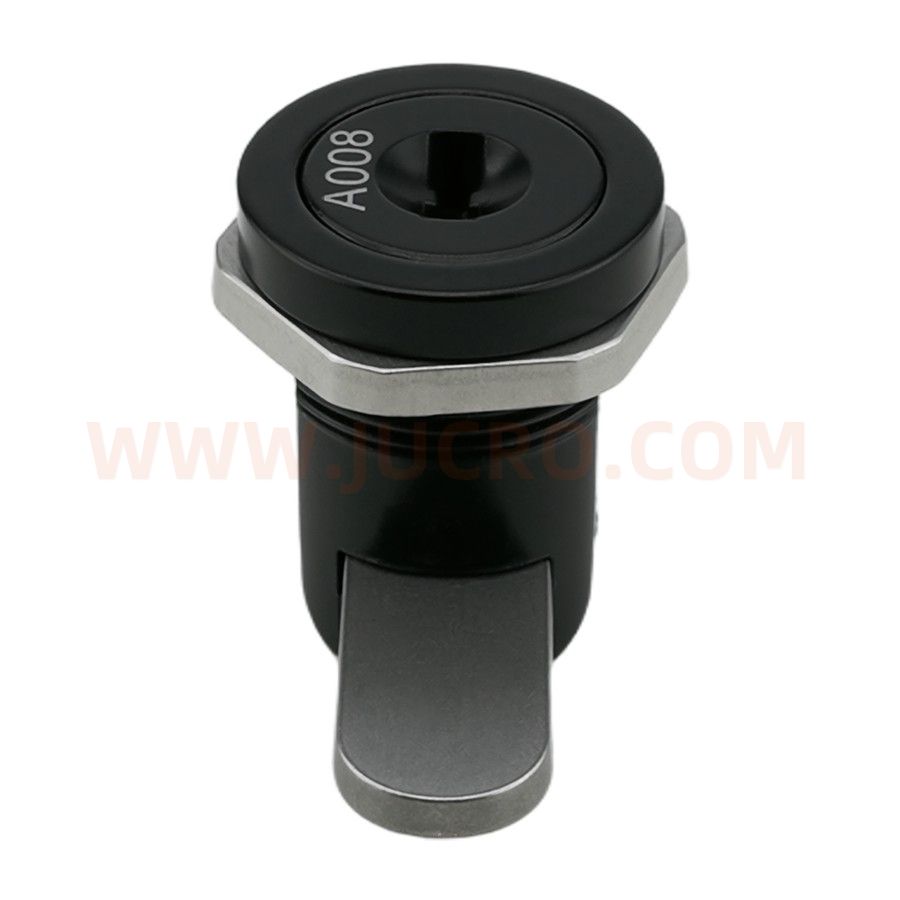

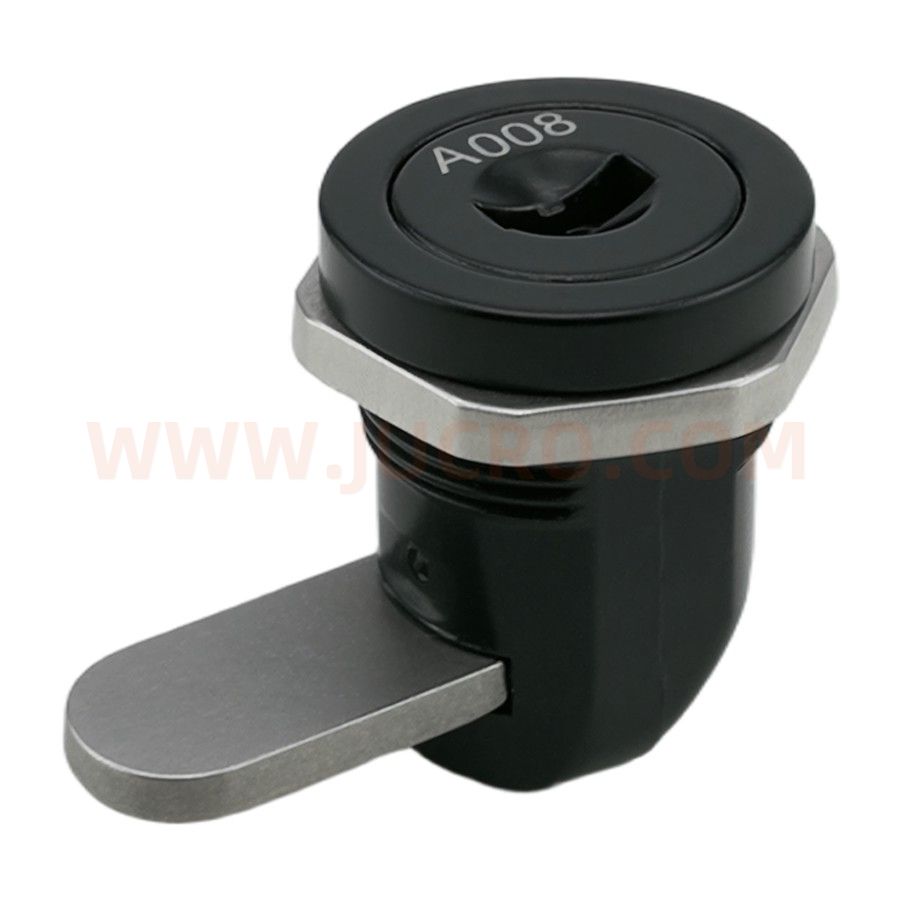

Cylinder Lock (DL786)

Cylinder Lock (DL786)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,不锈钢锁舌

Zinc alloy housing and Lock core, stainless steel cam

表面处理

Surface treatment

喷漆黑色基座,钢栓镀白锌

Black painted housing, white zinc plated steel cam

结构说明

Structure descriPTion

锁芯转动180°带动锁舌,实现开启或锁闭

Insert rotating 180° to drive the cam for opening and closing

备注

Remark

默认钥匙(通开)

Default key (General)



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N

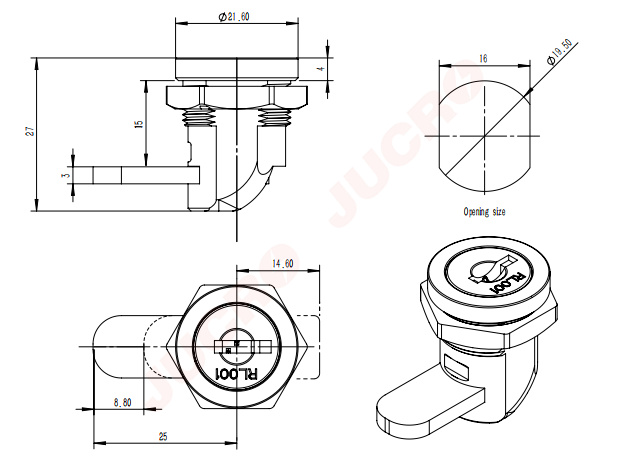

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,不锈钢锁舌

Zinc alloy housing and Lock core, stainless steel cam

表面处理

Surface treatment

喷漆黑色基座,钢栓镀白锌

Black painted housing, white zinc plated steel cam

结构说明

Structure descriPTion

锁芯转动180°带动锁舌,实现开启或锁闭

Insert rotating 180° to drive the cam for opening and closing

备注

Remark

默认钥匙(通开)

Default key (General)



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

220N


外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
