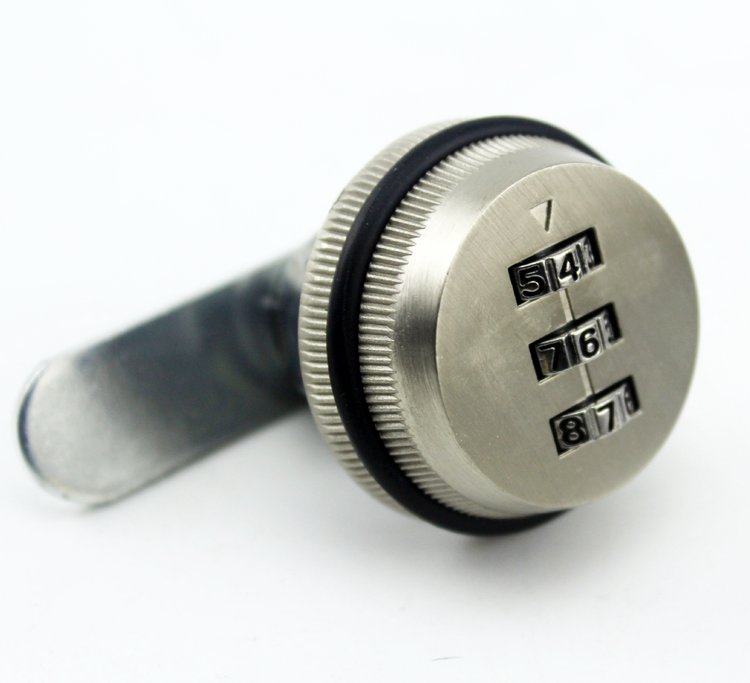

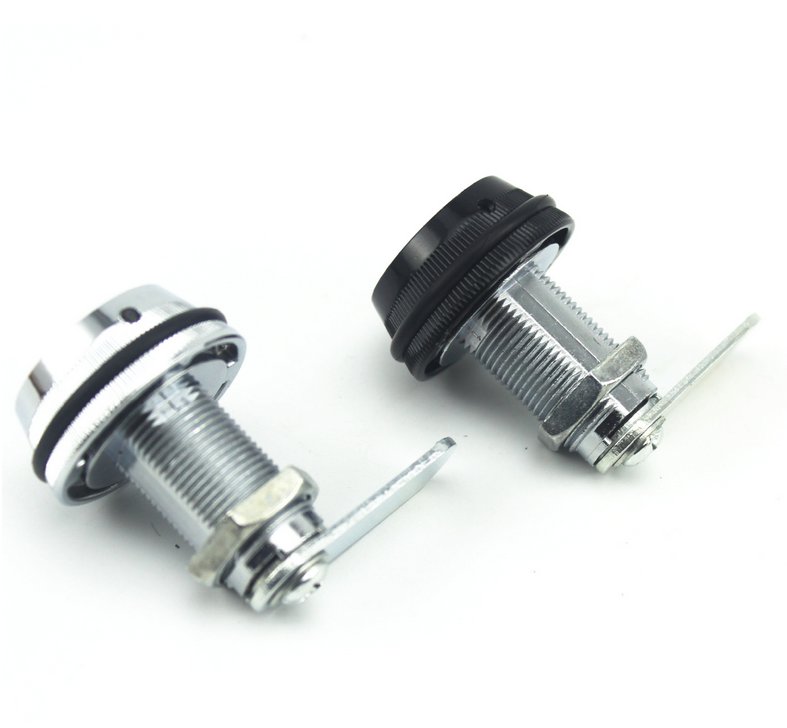

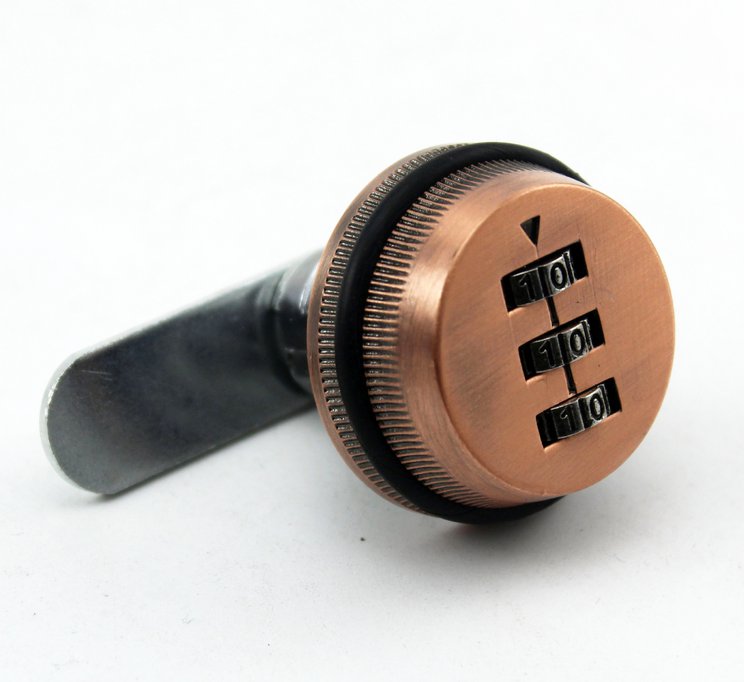

DIGIT CODE CAM LOCK (DL38-20, DL38-30)

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,碳钢钢栓

Zinc alloy base and Lock cylinder, carbon steel bolt

表面处理

Surface treatment

电镀

Electroplating

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn lock/un-lock

Remark

出厂密码:000;

如何改变密码:锁的正面有一个三角孔,在开启状态下用一个别针顶住该孔,不要松开,拨动密码盘至想要的组合,松开别针,密码更改完成。

Default password: 000;

How to change password: There is a triangle hole at front surface, at the unlock status, using a pin to push the hole, hold still, dialing to the wanted combination, release the pin, the password is successfully changed.

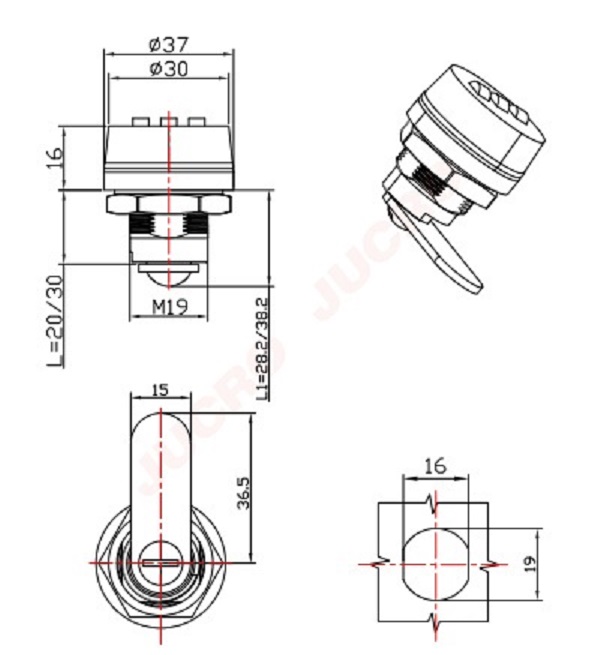

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION
















Unitmm



































尺寸 DIMENSION

L

门板厚度

Suitable for door thickness

开孔直径

Cut out diameter


20

≤11

19


30

≤22

19
