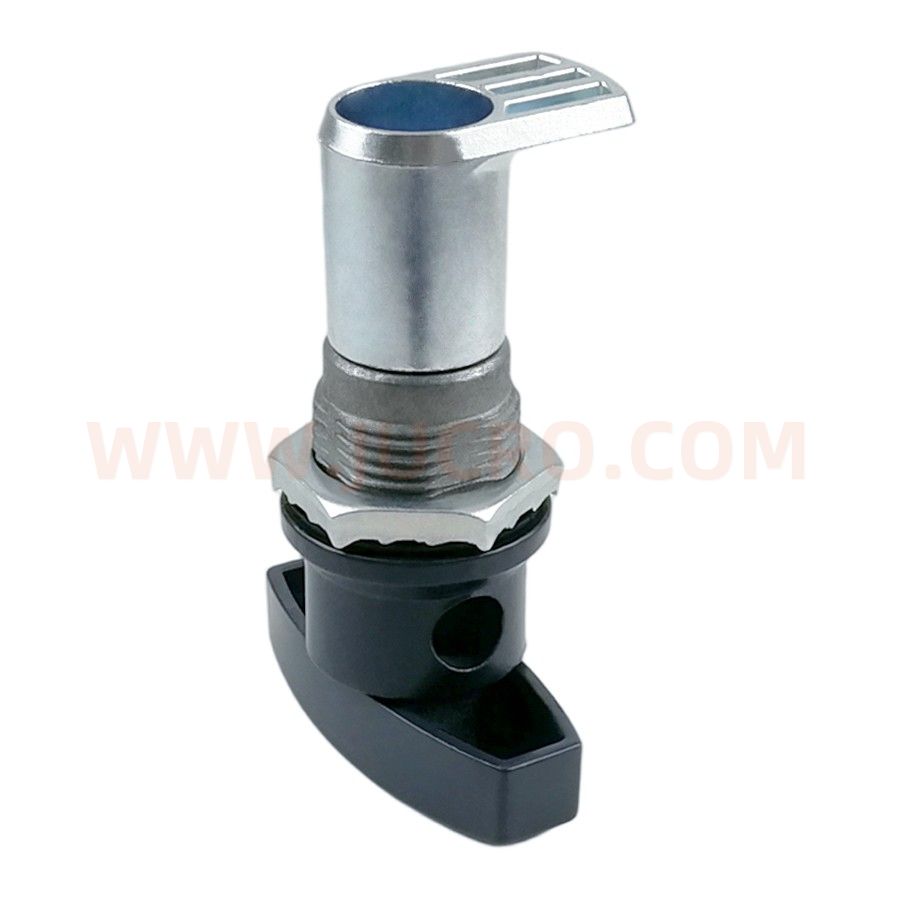

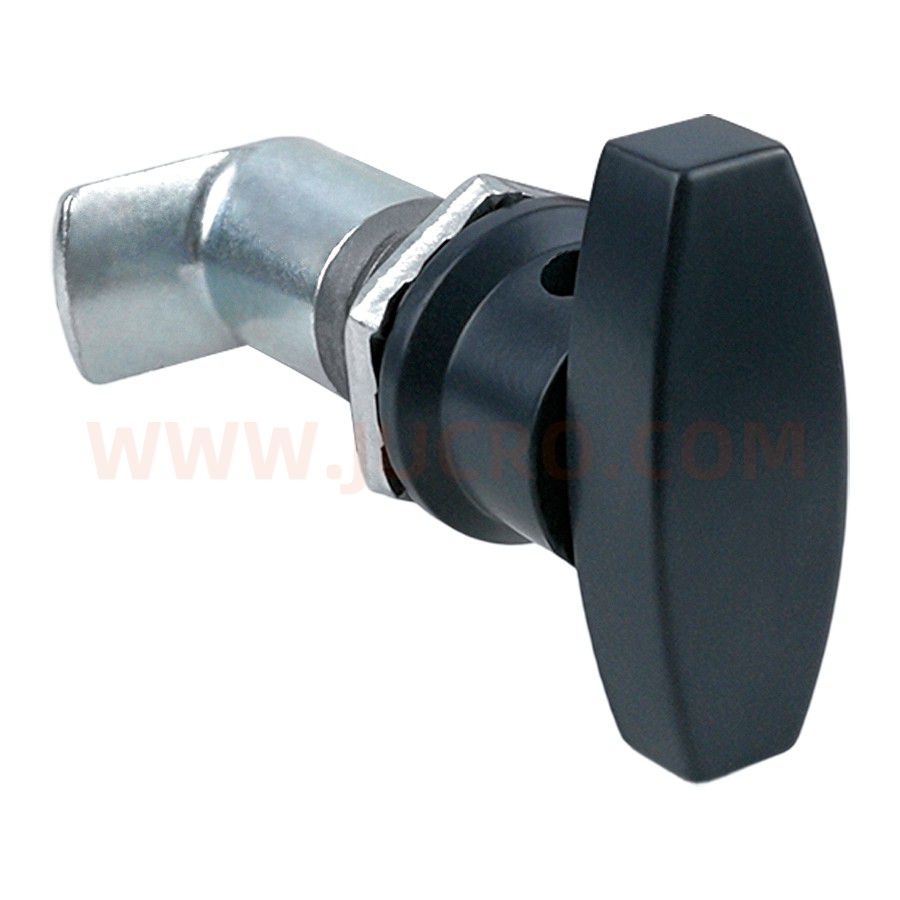

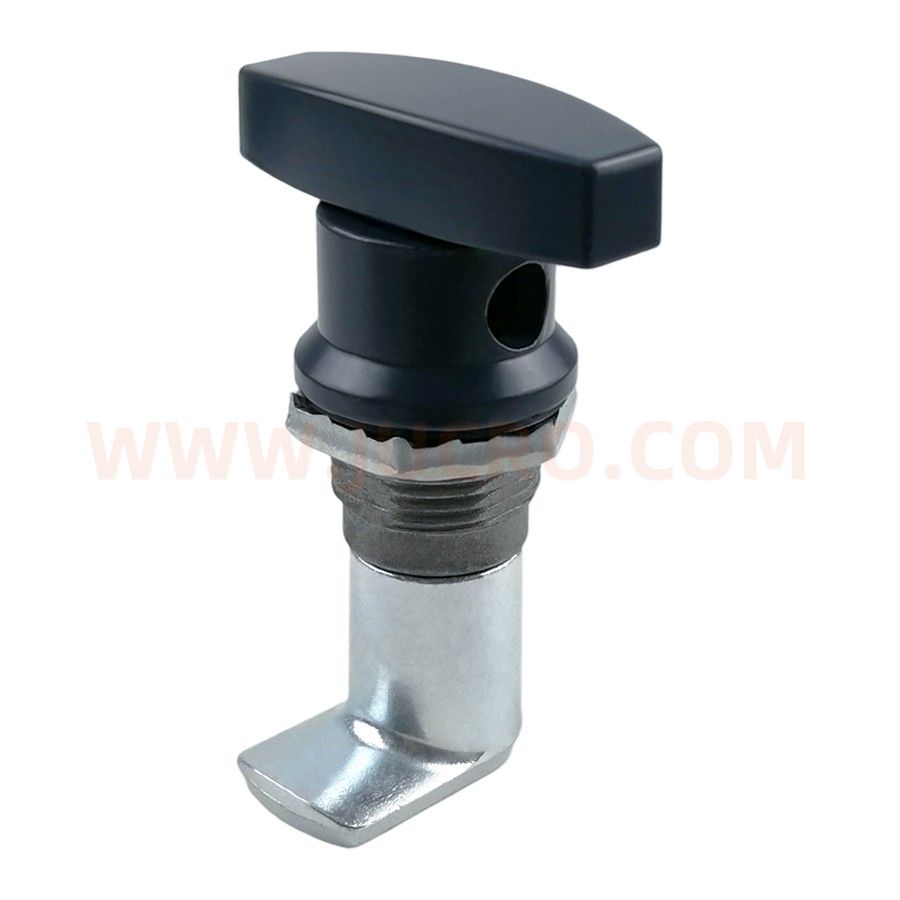

CAM LOCK (DL714-7)
|
特征说明 CHARACTERISTICS |
|
|
材 质 Material |
锌合金锁体、手柄、锁舌 Zinc alloy housing and handle, cam |
|
表面处理 Surface treatment |
喷塑（蓝黑色）锁体、手柄, 镀白锌锁舌 Black-blue painted housing and handle, white zinc plated cam |
|
结构说明 Structure descriPTion |
旋转90°实现开启或闭锁 Quarter-turn Lock/un-lock |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
***静载荷 Maximum static load |
970N |
|
固定螺母的推荐拧紧力矩 Recommended nut tightening torque |
20N•m |
|

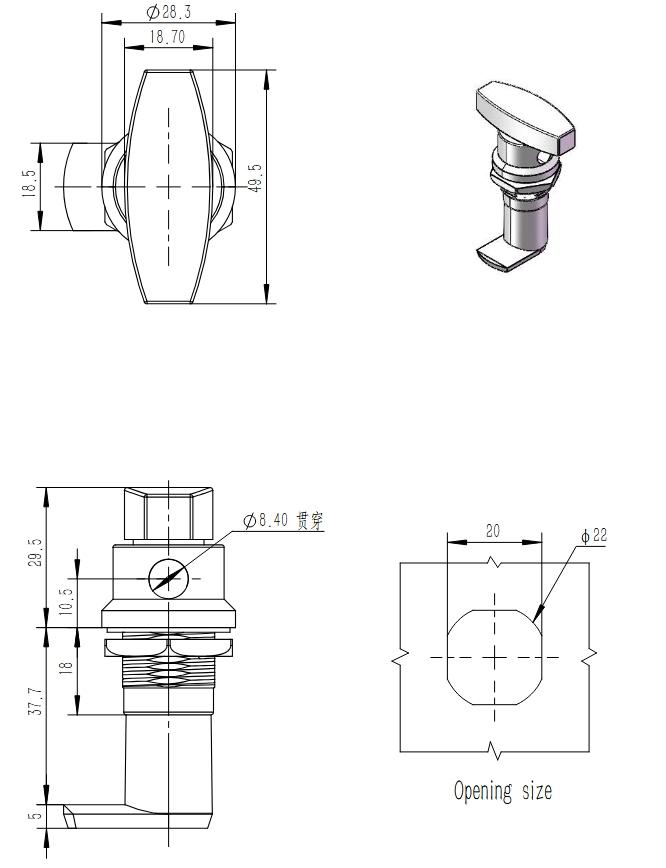

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
