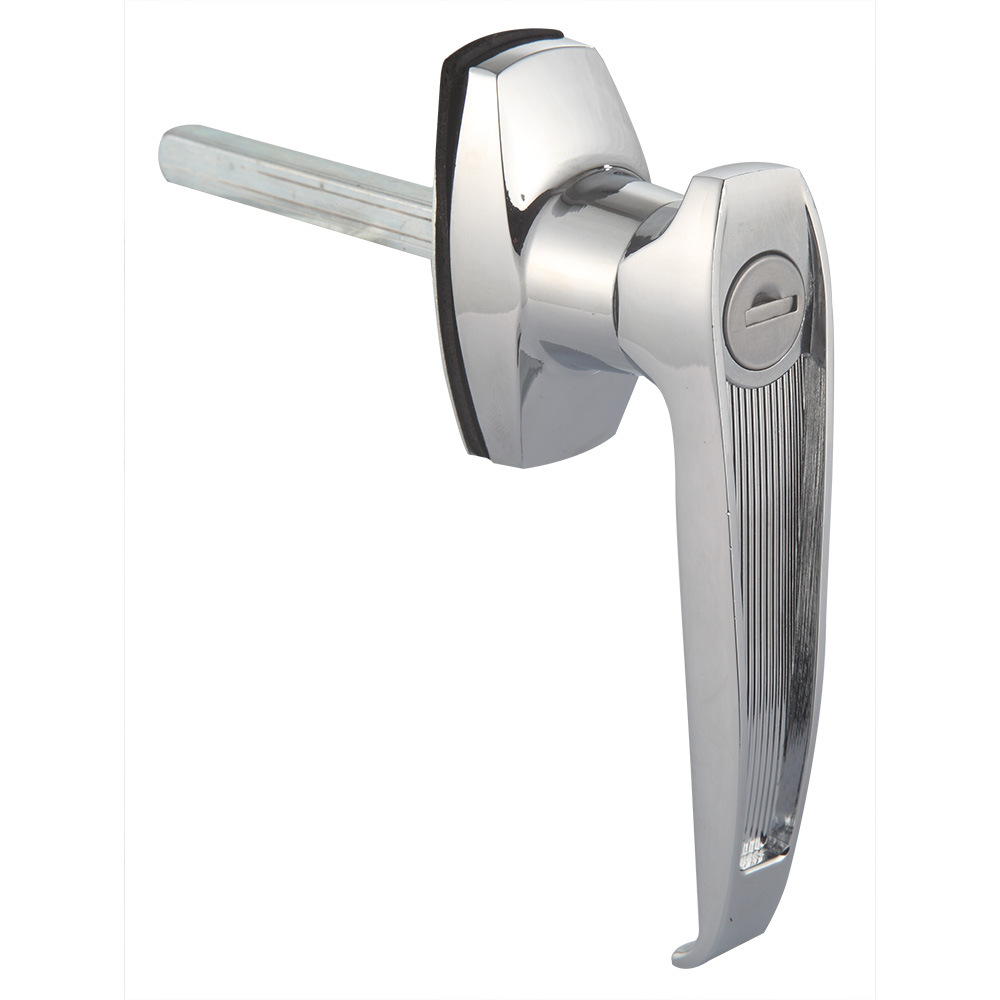

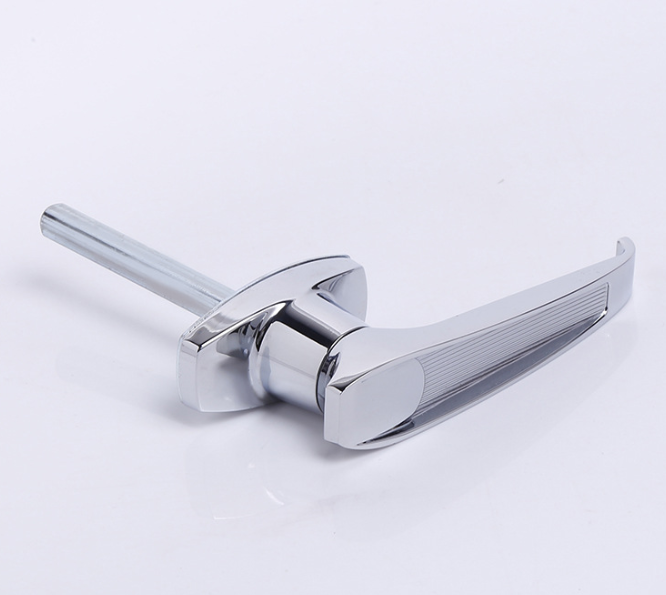

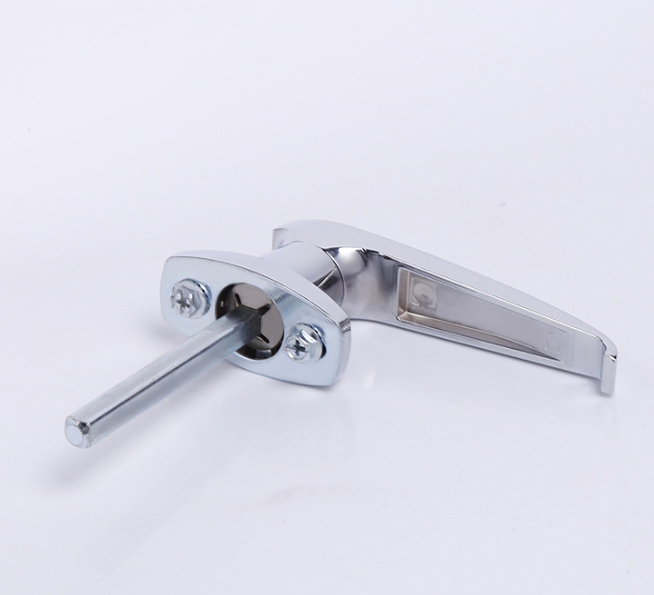

HANDLE LOCK (DL351-1)
特征说明 CHARACTERISTICS | |
材 质 Material | Zinc alloy handle、base、cylinder，carbon steel shaft |
表面处理 Surface treatment | 镀亮光铬把手、基座、锁芯，镀白锌转轴 Shinny Chrome handle、base、cylinder, white zinc plating shaft |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn Lock/un-lock |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
手柄承载拉力: Handle load tension capability: | 780N |
***输入扭矩 Maximum input torque | 15N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 5N•m |

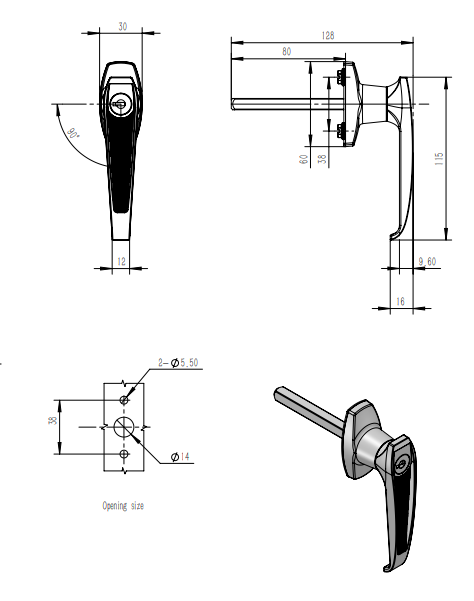

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
|
