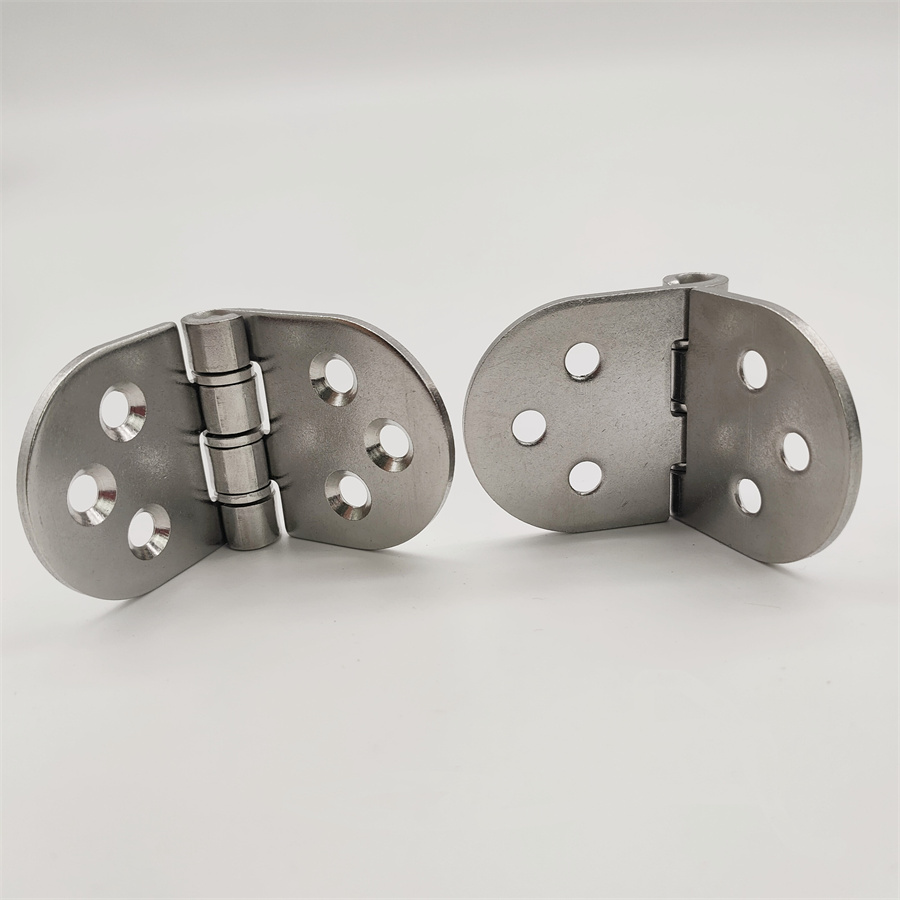

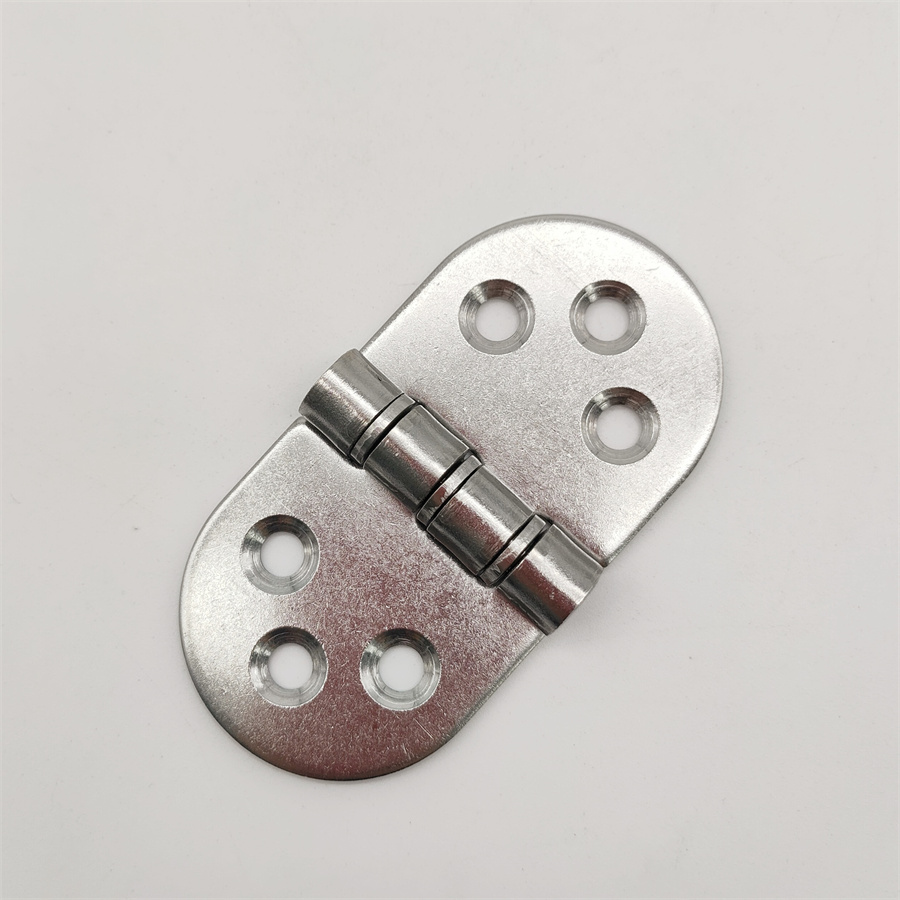

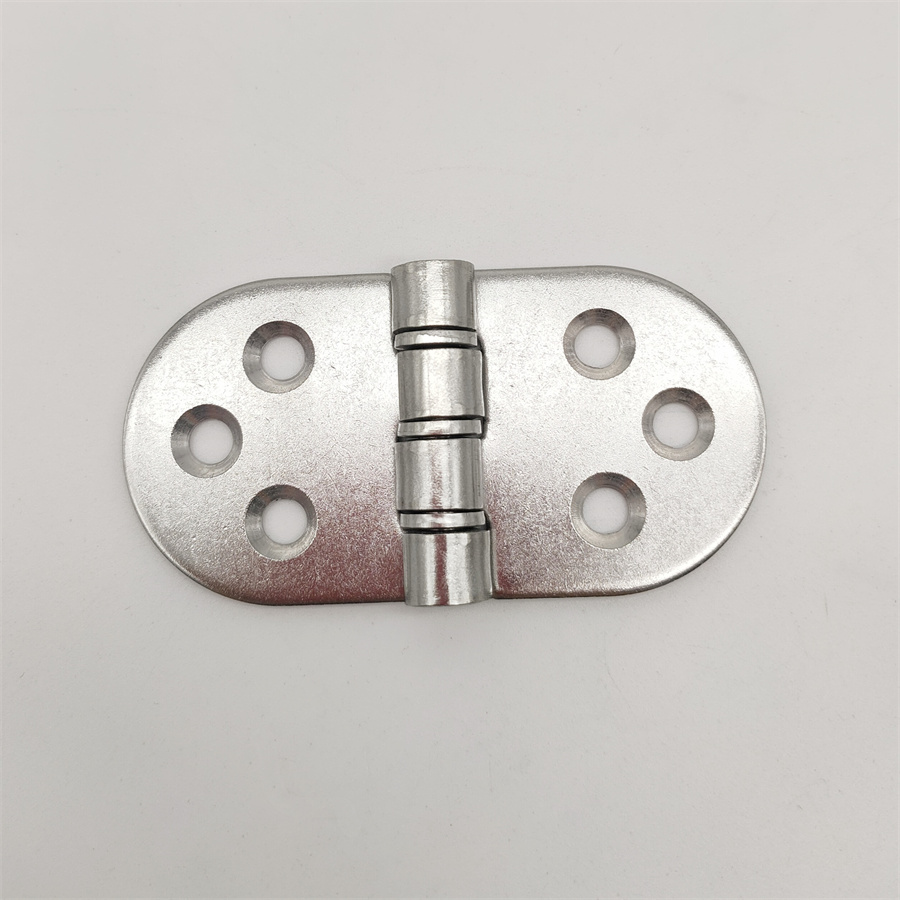

HINGE (JH238-3)
特征说明 CHARACTERISTICS | ||
材 质 Material | 碳钢 Carbon steel | 304不锈钢 Stainless steel 304 |
表面处理 Surface treatment | 镀锌 Zinc plating | 抛光 Polishing |

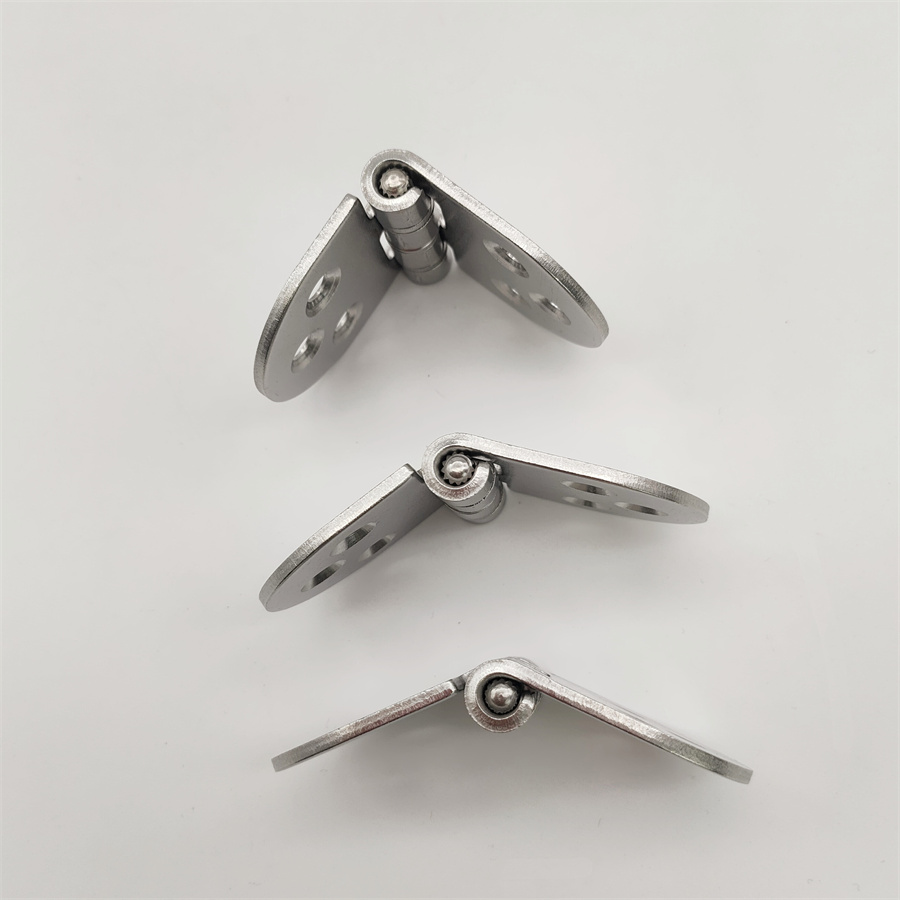

结构说明 Structure descriPTion | 可开启角度180° Opening angle 180° | |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 520N |
轴向载荷 Axial load | 600N |
备注：以上数据为***静载荷。
Remark: The above data is maximum static load.

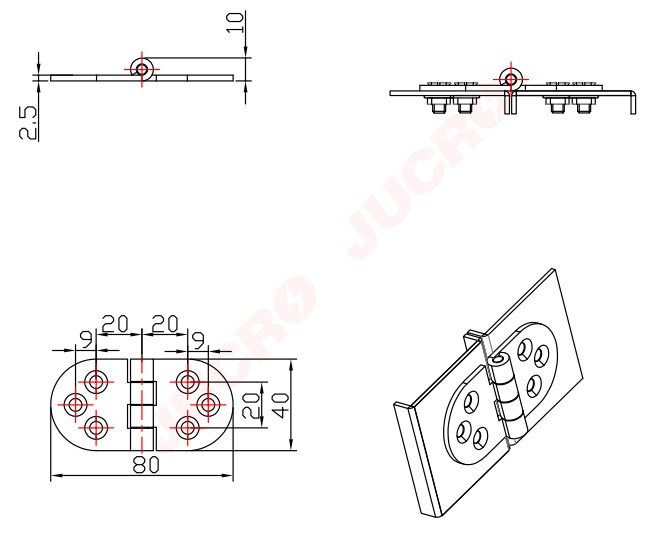

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
