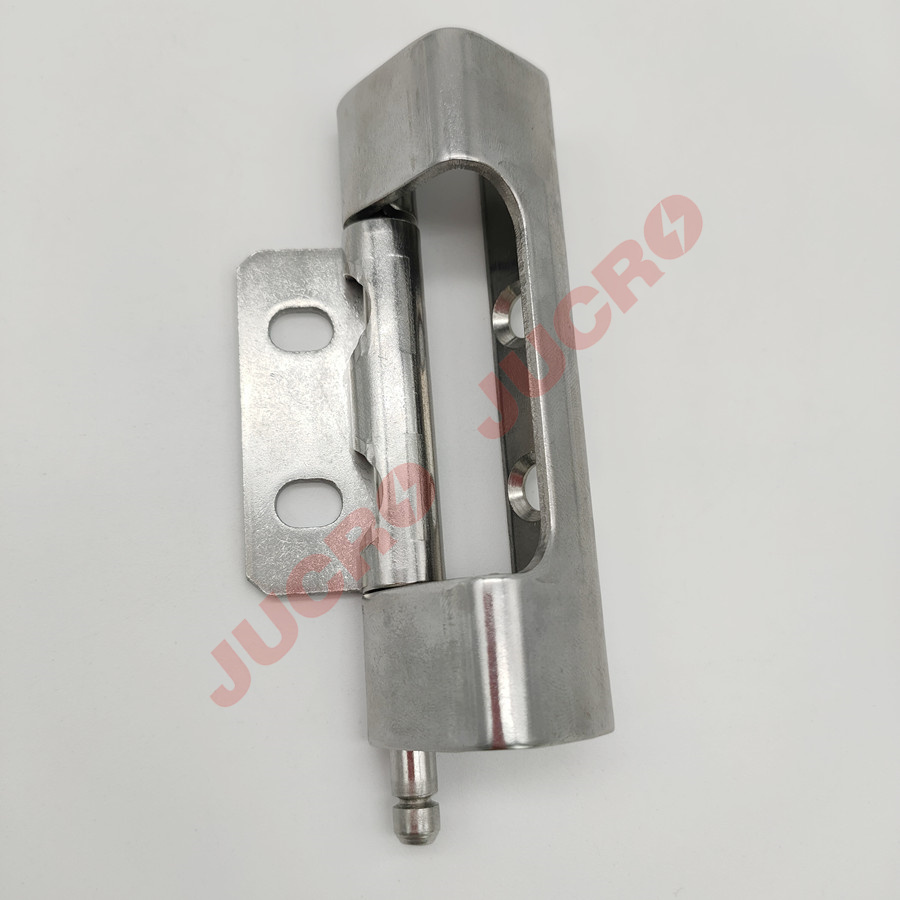

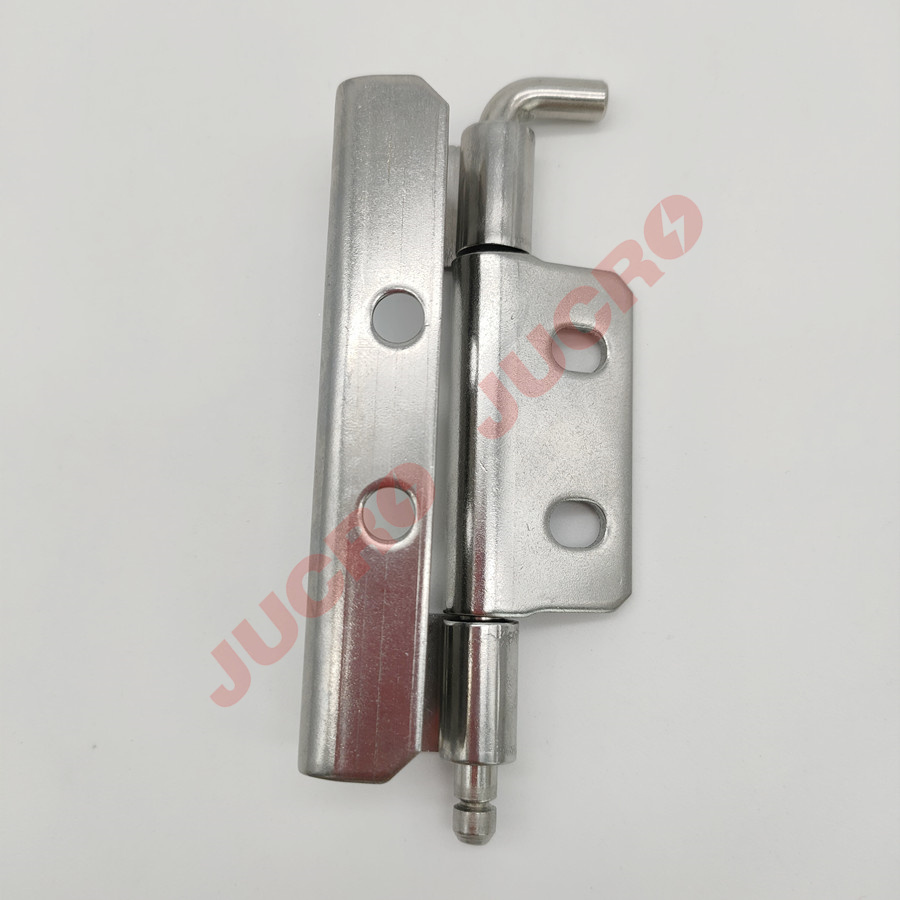

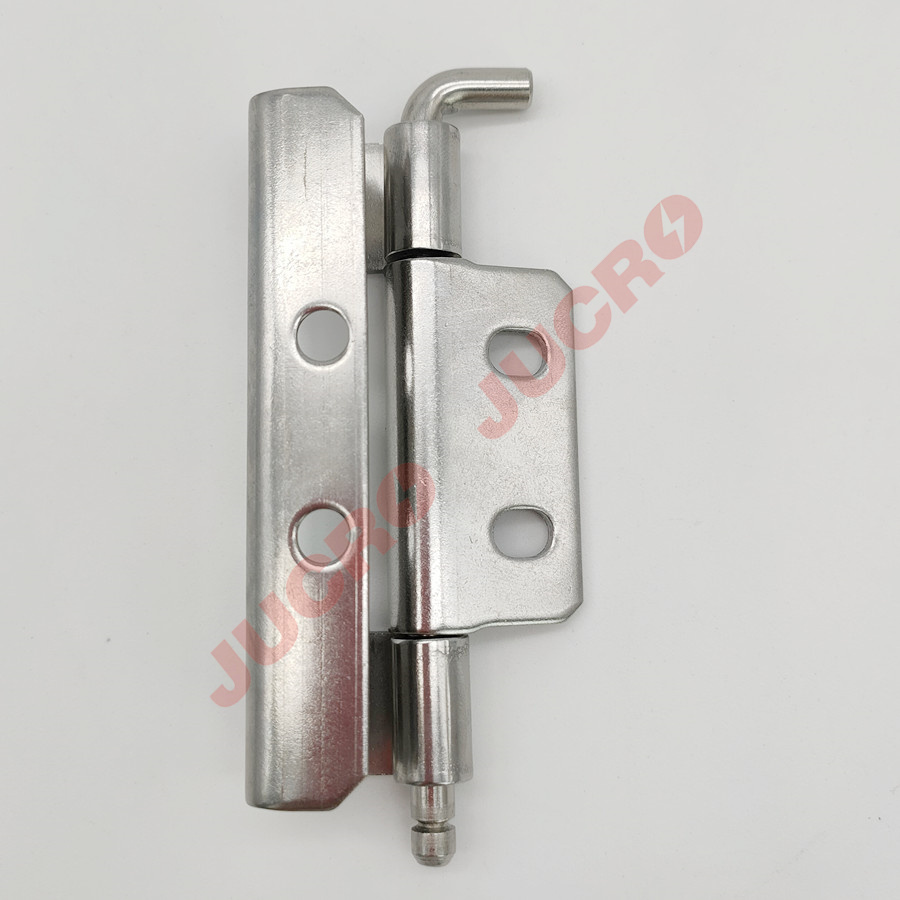

HINGE (JH283-1)
|
特征说明 CHARACTERISTICS |
|
|
材 质 Material |
不锈钢铰链、转轴 Stainless steel Hinge and shaft |
|
表面处理 Surface treatment |
无 Without |
|
结构说明 Structure descriPTion |
可开启角度120° Opening angle 120° |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
径向载荷 Radial load |
500N |
|
轴向载荷 Axial load |
980N |
备注：以上数据为***静载荷。
Remark:The above data is maximum static load.
|

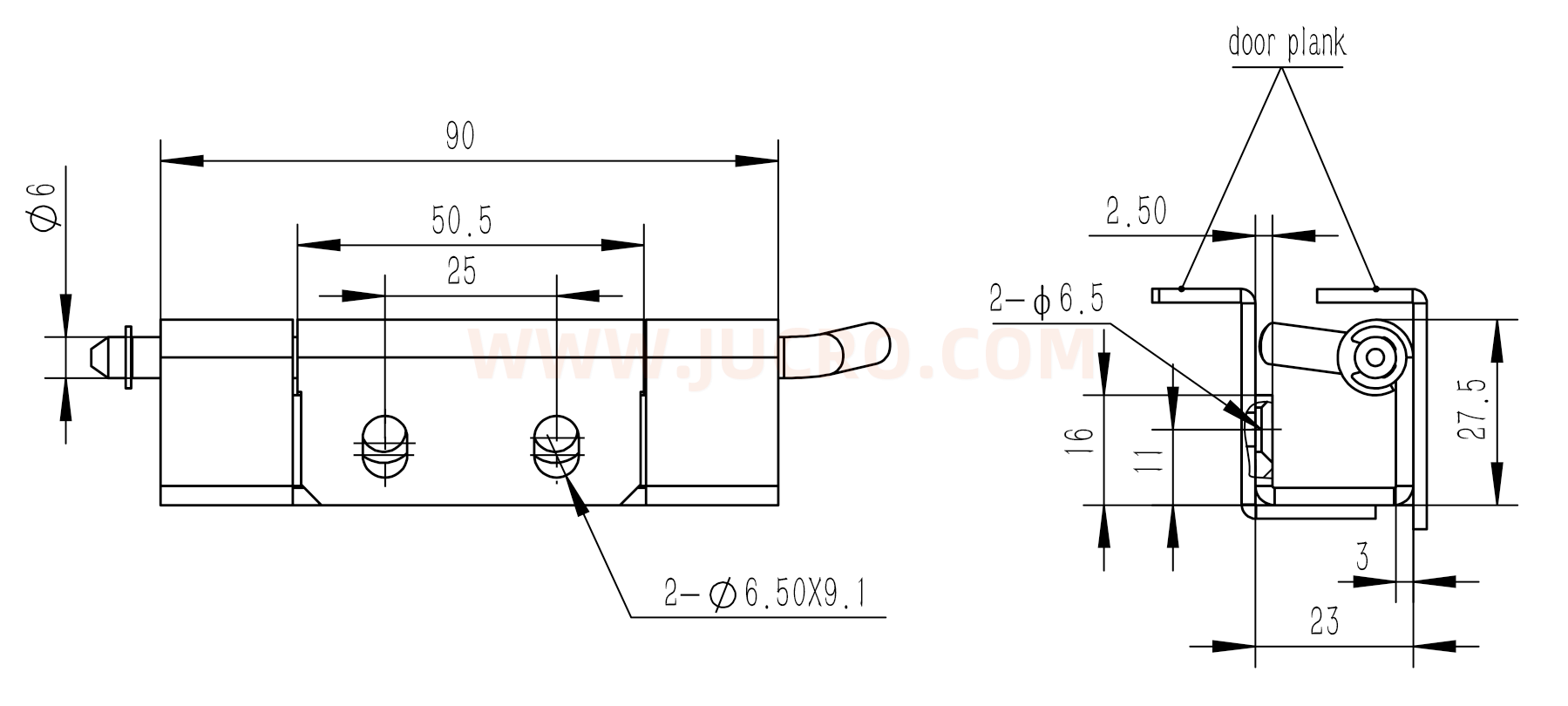

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
