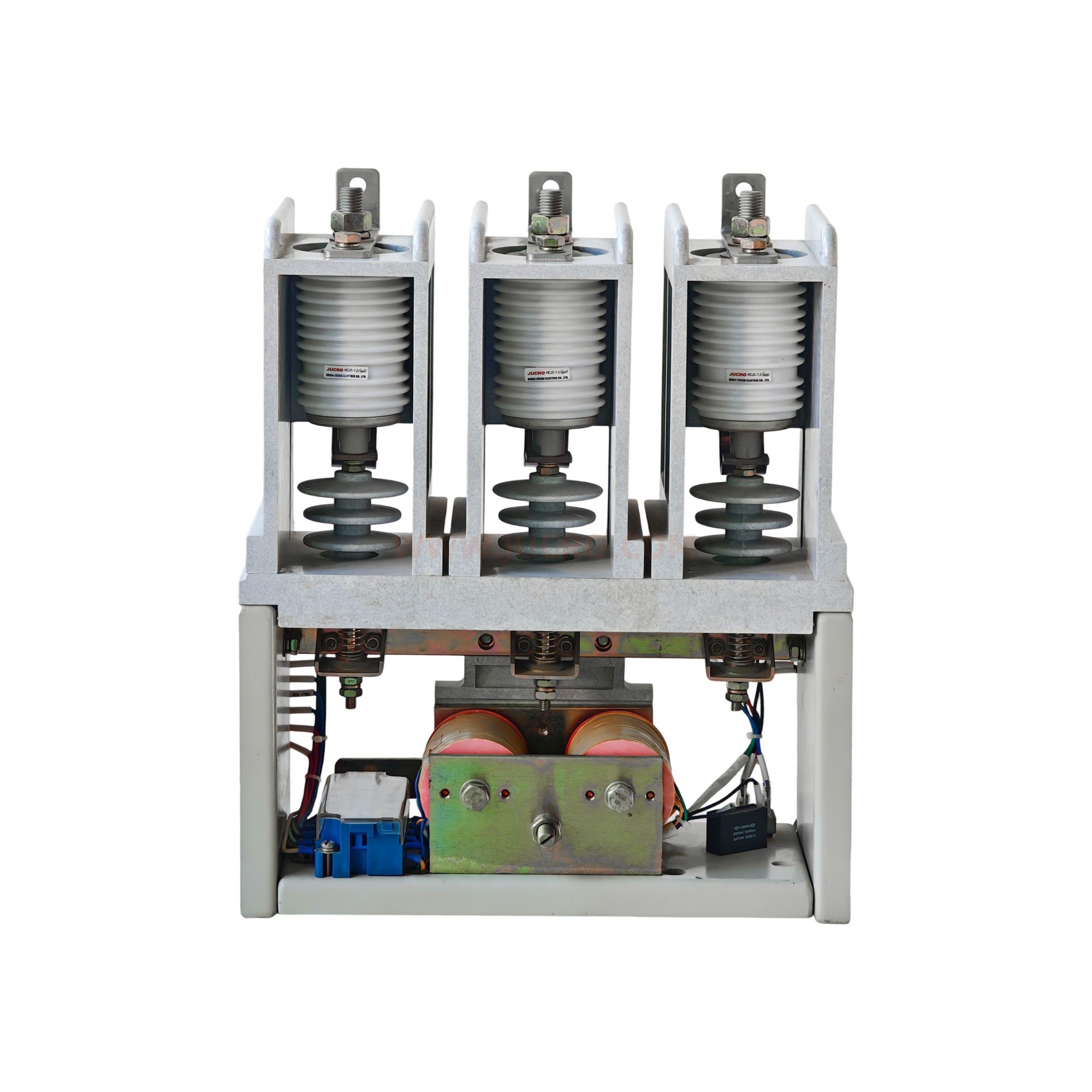

HVJ3-7.2/160/250/400/630

产品主要参数Main technical parameters

Model 产品型号	Rated voltage(v) 额定电压 (V)		Rated current （Main circuit）额定电流（主回路）(A)	Parameter of main contaCTs 主触头参数			Power frequency Withstand voltage V(effective value) 工频耐压V(有效值)
	Main Circuit 主回路	Control Circuit 控制回路		Clearance 开距(mm)	Over travel 超程(mm)	Pressure 终压力(N)
	Main Circuit 主回路	Control Circuit 控制回路		Clearance 开距(mm)	Over travel 超程(mm)	Pressure 终压力(N)	Main Circuit 主回路	Auxiliary Circuit 辅助回路	Control Circuit 控制回路
HVJ3-7.2/160	7200	380/220/110	160	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/250	7200	380/220/110	250	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/400	7200	380/220/110	400	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/630	7200	380/220/110	630	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/800	7200	380/220/110	800	3.5±0.3	2±0.2	>85N	32000	2500	2000
HVJ3-7.2/1000	7200	380/220/110	1000	3.5±0.3	2±0.2	>85N	32000	2500	2000

Model 产品型号	Making capacity 接通能力	Breaking capacity 分断能力	Limit opening current 极限开断电流(A)	Overload 过载能力	Mechanism life 机械寿命	Weight 重量(kg)
HVJ3-7.2/160	10In,100times	8In,25times	10In	8In,10s	1million times	25.5
HVJ3-7.2/250	10In,100times	8In,25times	10In	8In,10s	1million times	25.5
HVJ3-7.2/400	10In,100times	8In,25times	10In	8In,10s	1million times	27
HVJ3-7.2/630	10In,100times	8In,25times	10In	8In,10s	1million times	27
HVJ3-7.2/800	10In,100times	8In,25times	10In	8In,10s	1million times	28
HVJ3-7.2/1000	10In,100times	8In,25times	10In	8In,10s	1million times	28
