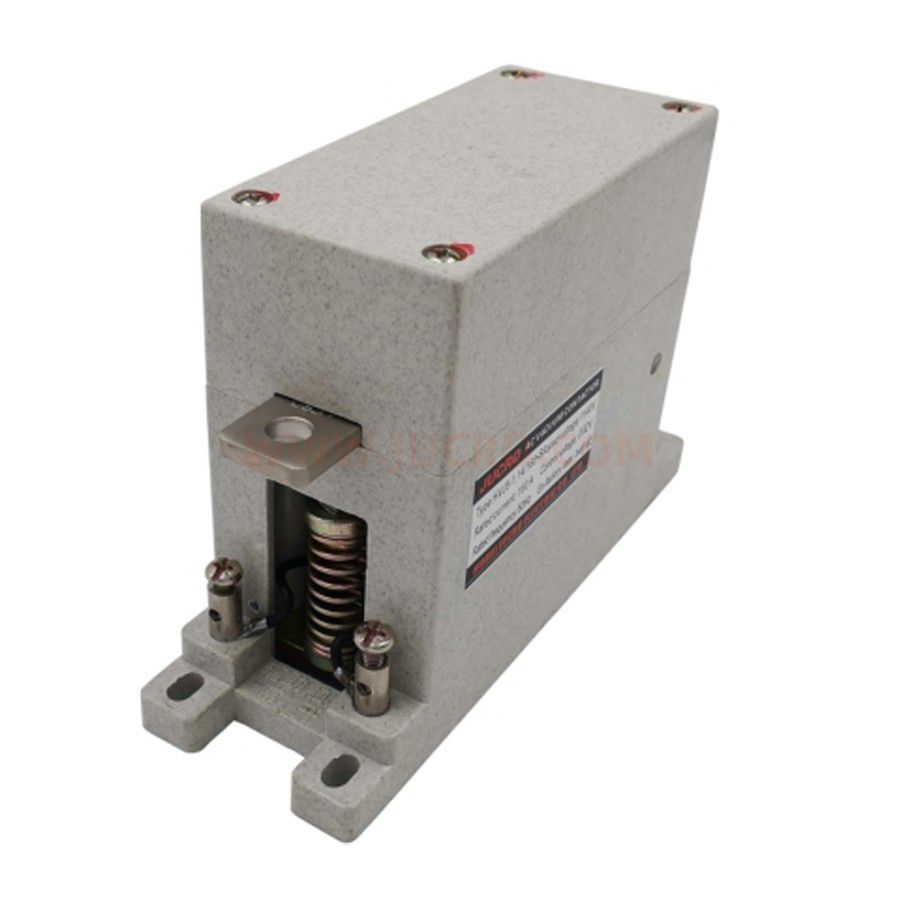

HVJ5-1.14/125/160-S
Main technical parameter 产品参数
Product model 型号 | Rated voltage (V) 额定电压(工频)V | Rated current（Main circuit）A 额定电流 （主电路） | Main contaCTs parameters 主触头参数 | Power frequency withstand voltage V(effective value) 工频耐压V（有效值） | |||||
Main circuit 主电 | Control circuit 控制电路 | Opening distance 开距（mm） | Over travel 超程 | Final pressure 终压力 | |||||
Main circuit 主电路 | Auxiliary circuit 辅助电路 | Control circuit 控制电路 | |||||||
HVJ5-1.14/125-S | 1140 | 36.110.220.380 | 125 | 1.8±0.2 | 1±0.2 | 30±3 | 4200 | 2500 | 2000 |
HVJ5-1.14/160-S | 1140 | 36.110.220.380 | 160 | 1.8±0.2 | 1±0.2 | 30±3 | 4200 | 2500 | 2000 |
|
Product model 产品型号 |
Making capacity 接通能力 |
Breaking capacity 分断能力 |
Limit breaking current 极限分断电流(A) |
Electricity life times 电寿命次数 |
Mechanical life times 机械寿命次数 |
Overload capacity 过载能力 |
|
|
AC3 |
AC4 |
||||||
|
HVJ5-1.14/125-S |
10In,100OPS |
8In, 25OPS |
10In, 3OPS |
60*104 |
6*104 |
300*104 |
8In 10S |
|
HVJ5-1.14/160-S |
10In,100OPS |
8In, 25OPS |
10In, 3OPS |
60*104 |
6*104 |
300*104 |
8In 10S |
Remark: “In” means “Rated current of main circuit”.
“OPS” means “operations”.
注：1. In为主电路额定电流.
2. “OPS” 为操作次数。

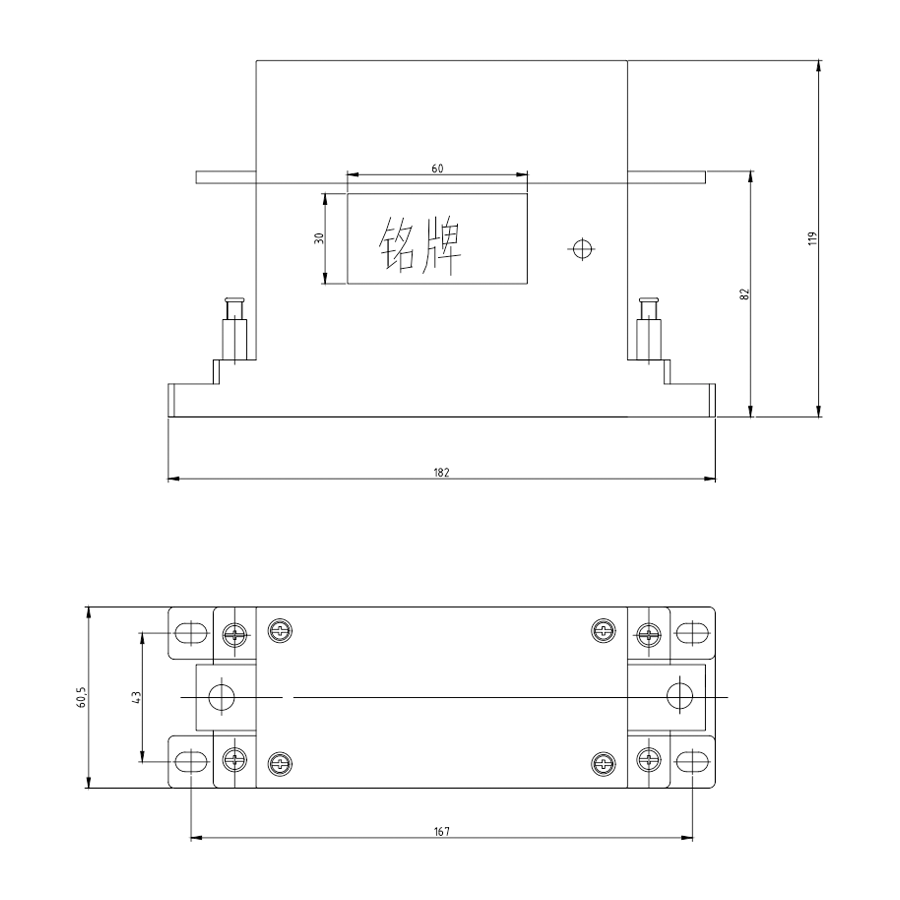

外形及安装尺寸 Overall and installation dimensions
