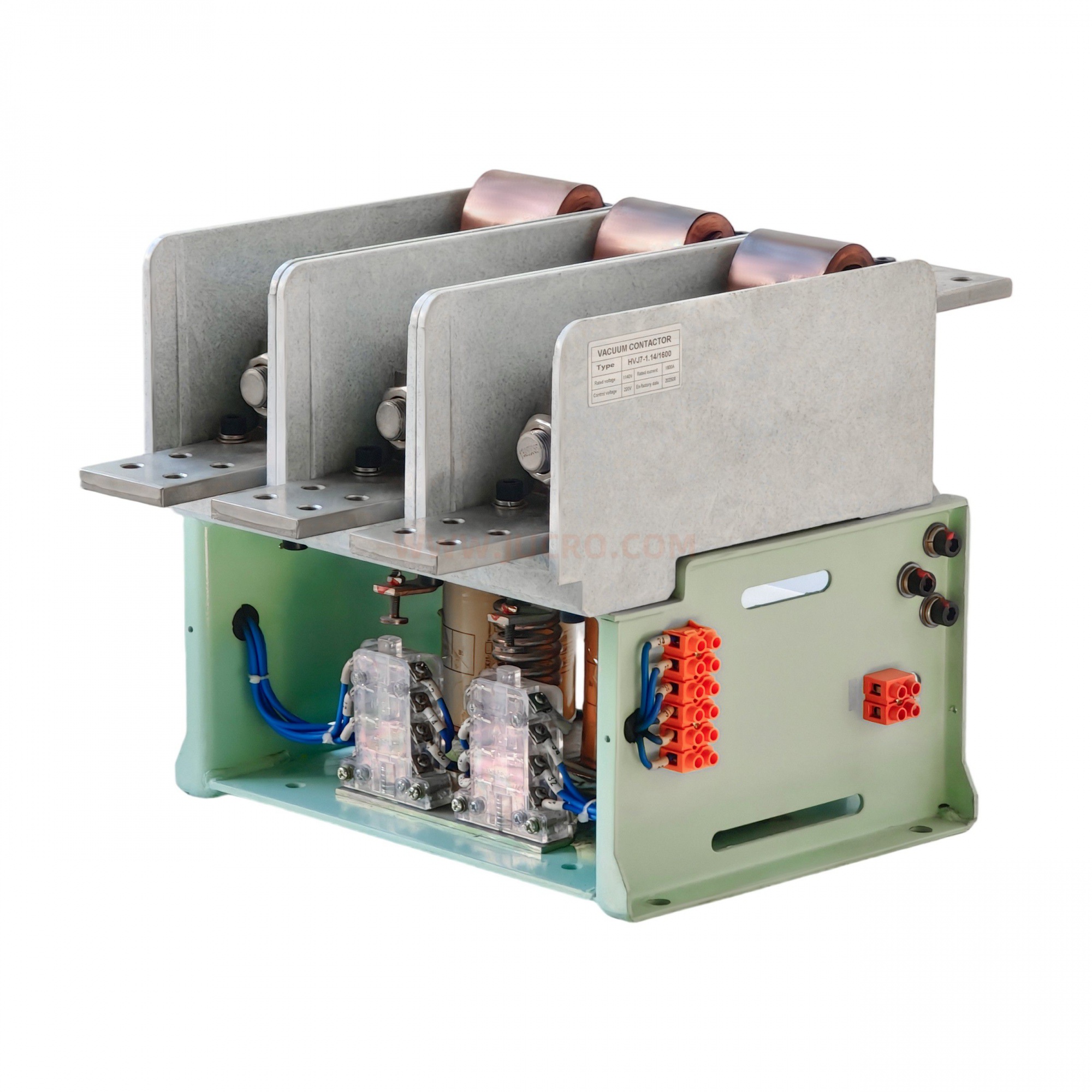

HVJ7-1.14/800/1000/1250/1600
主要规格和技术参数 MAIN SPECIFICATIONS AND TECHNICAL PARAMETERS
型号 Model | 额定电压(V) Rated voltage(V) | 额定电流(A) Rated current (A) | 主触头参数 Parameter of main contaCT | 工频耐压(V)（有效值） Power frequency withstand voltage (V) (effective value) | ||||
主电路 Main circuit | 控制电路 Control circuit | 开距（mm） Clearance (mm) | 超程（mm） Over travel (mm) | 主电路 Main circuit | 辅助电路 Auxiliary circuit | 控制电路 Control circuit | ||
HVJ7-1.14/800 | 1140 | AC/DC220,380 | 800 | 2.5±0.5 | 1.5±0.5 | 4200 | 2000 | 2000 |
HVJ7-1.14/1000 | 1140 | AC/DC220,380 | 1000 | 2.5±0.5 | 1.5±0.5 | 4200 | 2000 | 2000 |
HVJ7-1.14/1250 | 1140 | AC/DC220,380 | 1250 | 2.5±0.5 | 1.5±0.5 | 4200 | 2000 | 2000 |
HVJ7-1.14/1600 | 1140 | AC/DC220,380 | 1600 | 2.5±0.5 | 1.5±0.5 | 4200 | 2000 | 2000 |
型号 Model | 接通能力 Making capacity | 分断能力 Breaking capacity | 极限分断能力 Limit breaking Current(A) | 电寿命次数(次) Electrical life (Operations) | 机械寿命次数(次) Mechanism life (Operations) |
AC3 | |||||
HVJ7-1.14/800 | 4In, 50times | 4In, 50times | 10In, 3times | 25*10⁴ | 100*10⁴ |
HVJ7-1.14/1000 | 4In, 50times | 4In, 50times | 10In, 3times | 25*10⁴ | 100*10⁴ |
HVJ7-1.14/1250 | 4In, 50times | 4In, 50times | 10In, 3times | 25*10⁴ | 100*10⁴ |
HVJ7-1.14/1600 | 4In, 50times | 4In, 50times | 10In, 3times | 25*10⁴ | 100*10⁴ |
注：“In”为主电路额定电流。
Note：“In”represents the rated current of the main circuit.

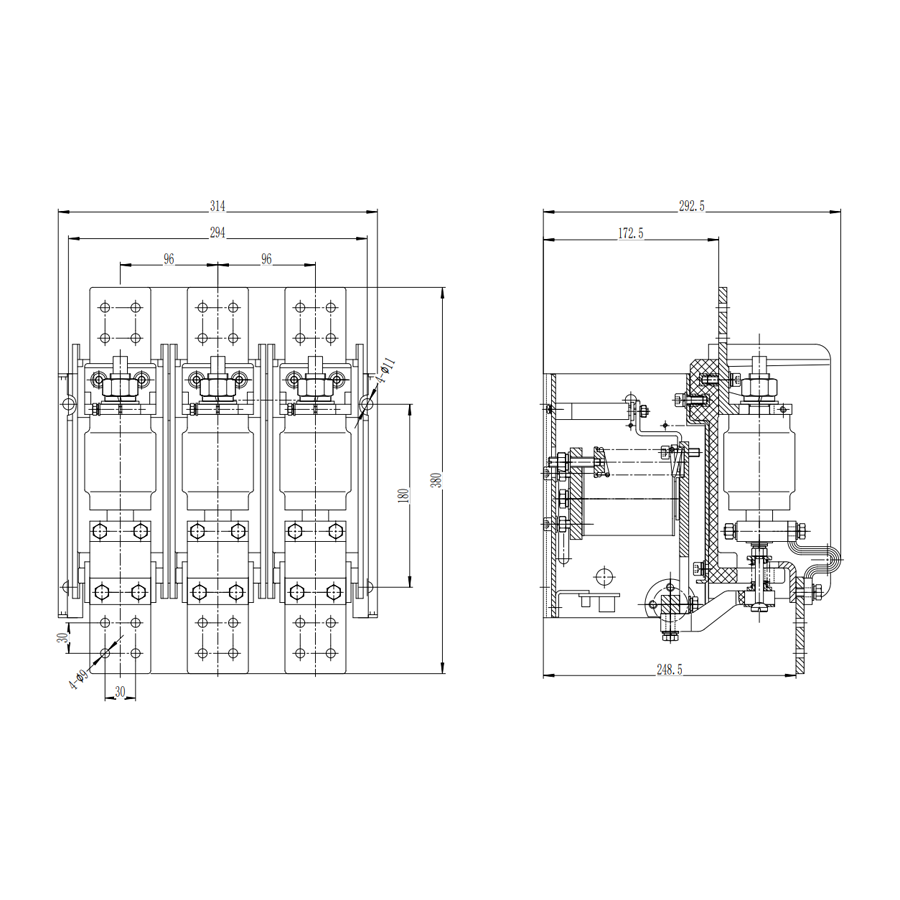

外形及安装尺寸 Overall and installation dimensions
