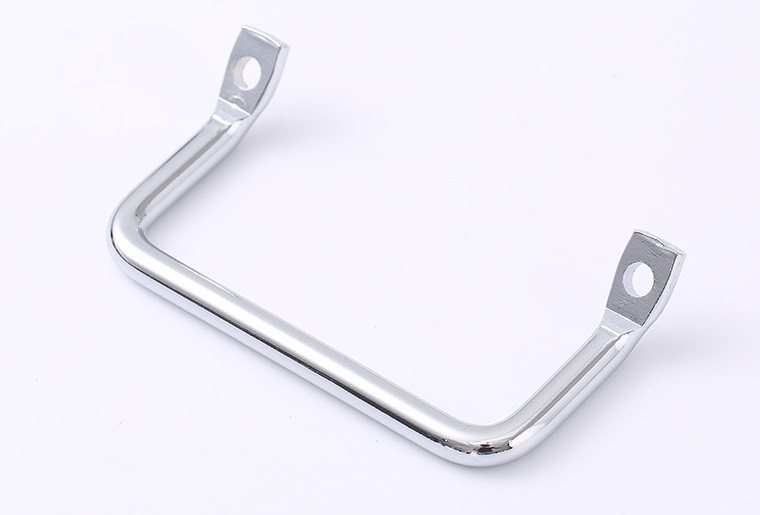

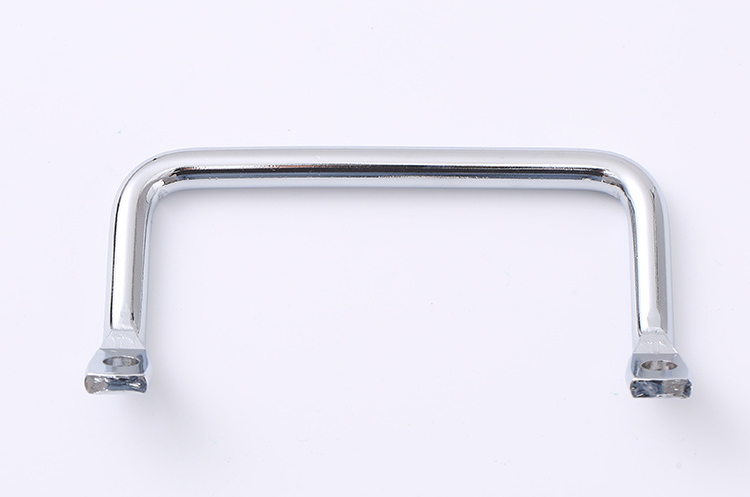

Handle(HL531)
特征说明 CHARACTERISTICS | |
材 质 Material | 不锈钢/碳钢 Stainless steel/carbon steel |
表面处理 Finish | 抛光/镀铬 Polishing/chrome plated |

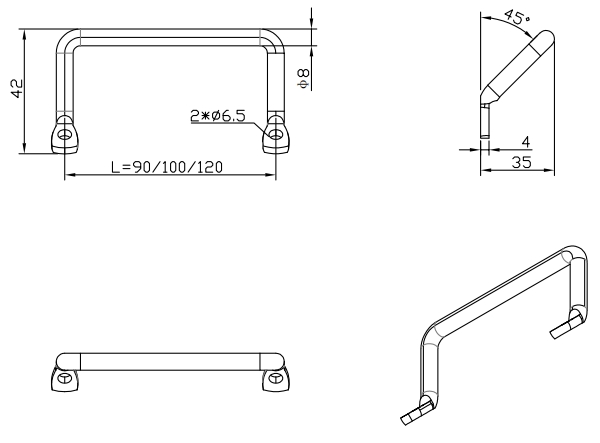

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
型号 Model No. | 尺寸Dimension(mm) | |||||
L | A | D | d | H | h | |
HL531-90 | 90 | 42 | Φ8 | Φ6.5 | 35 | 4 |
HL531-100 | 100 | 42 | Φ8 | Φ6.5 | 35 | 4 |
HL531-120 | 120 | 42 | Φ8 | Φ6.5 | 35 | 4 |
