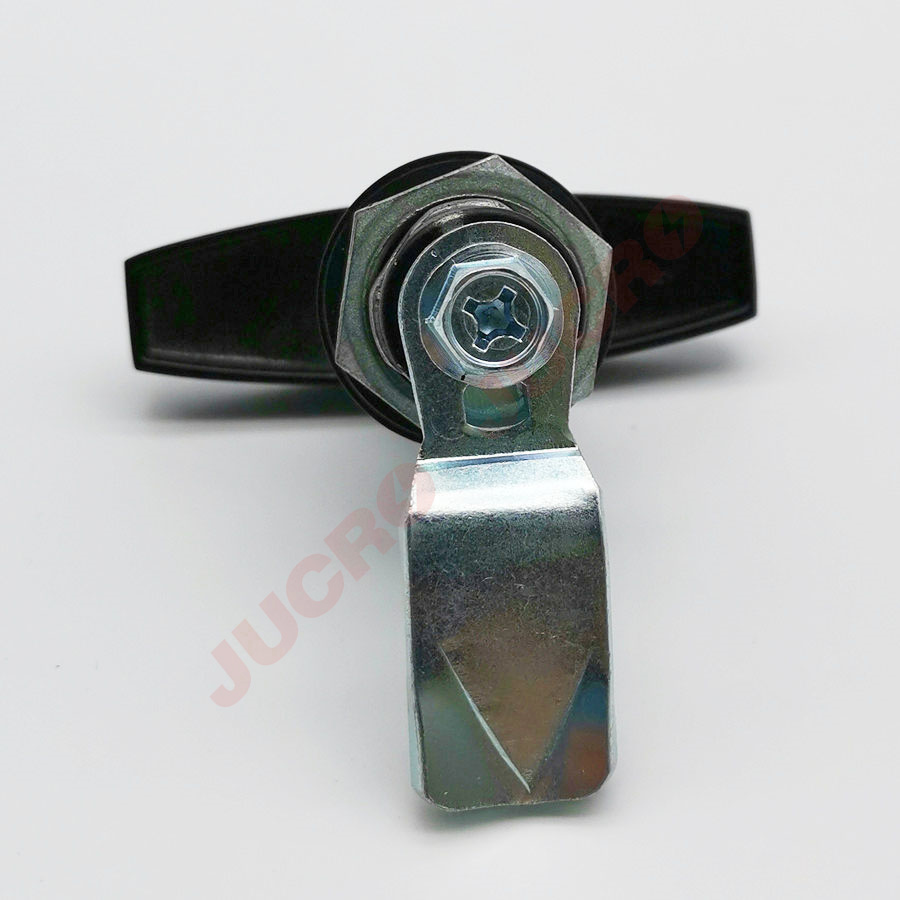

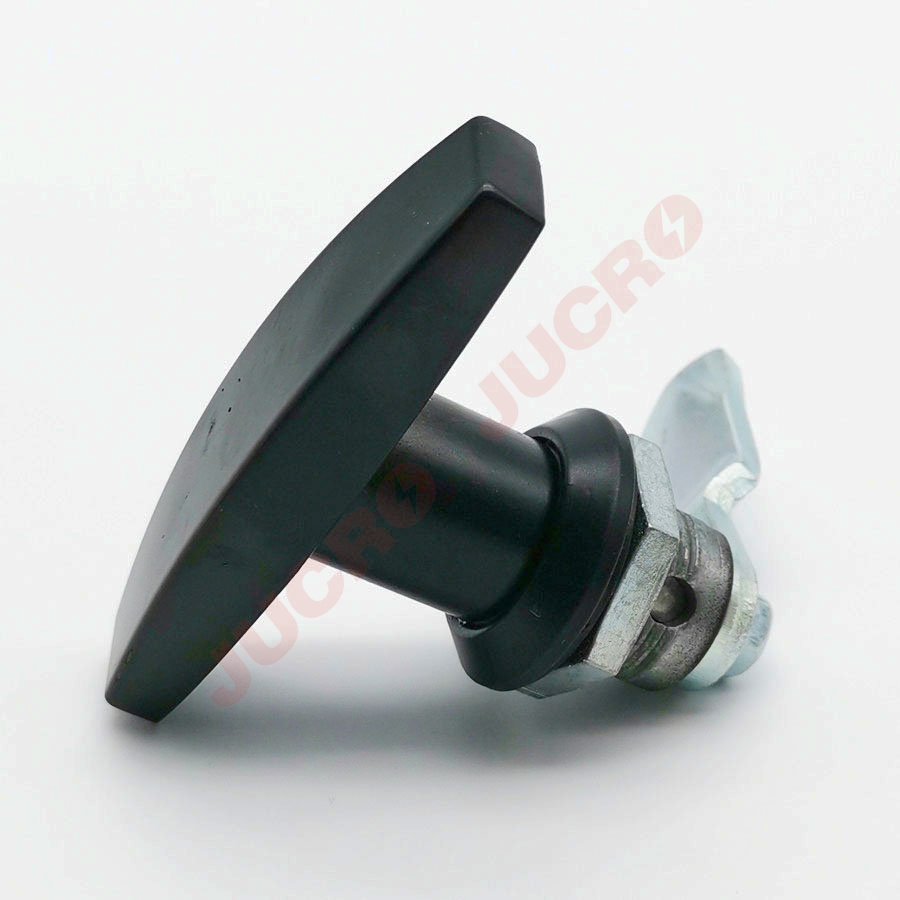

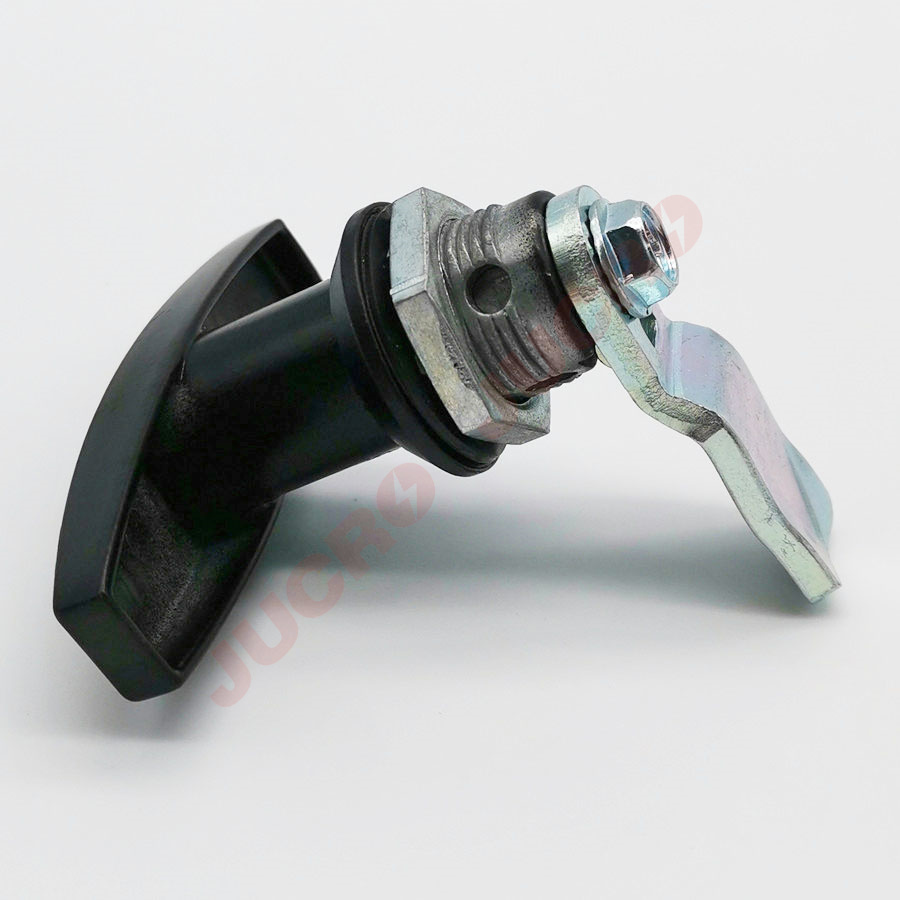

Handle lock DL101-2
特征说明 CHARACTERISTICS | |
材 质 Material | Zinc alloy base and handle, Carbon steel bolt |
表面处理 Surface treatment | 基座及手柄喷黑漆，钢栓镀白锌 Black spray paint for base and handle, white zinc plating for steel bolt. |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn Lock/un-lock |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 220N |
***输入扭矩 Maximum input torque | 15N•m |
固定螺母的推荐拧紧力矩 Recommended nut tightening torque | 20N•m |

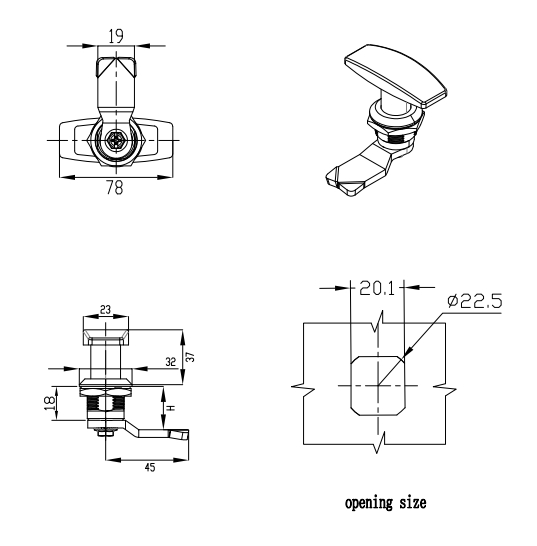

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
