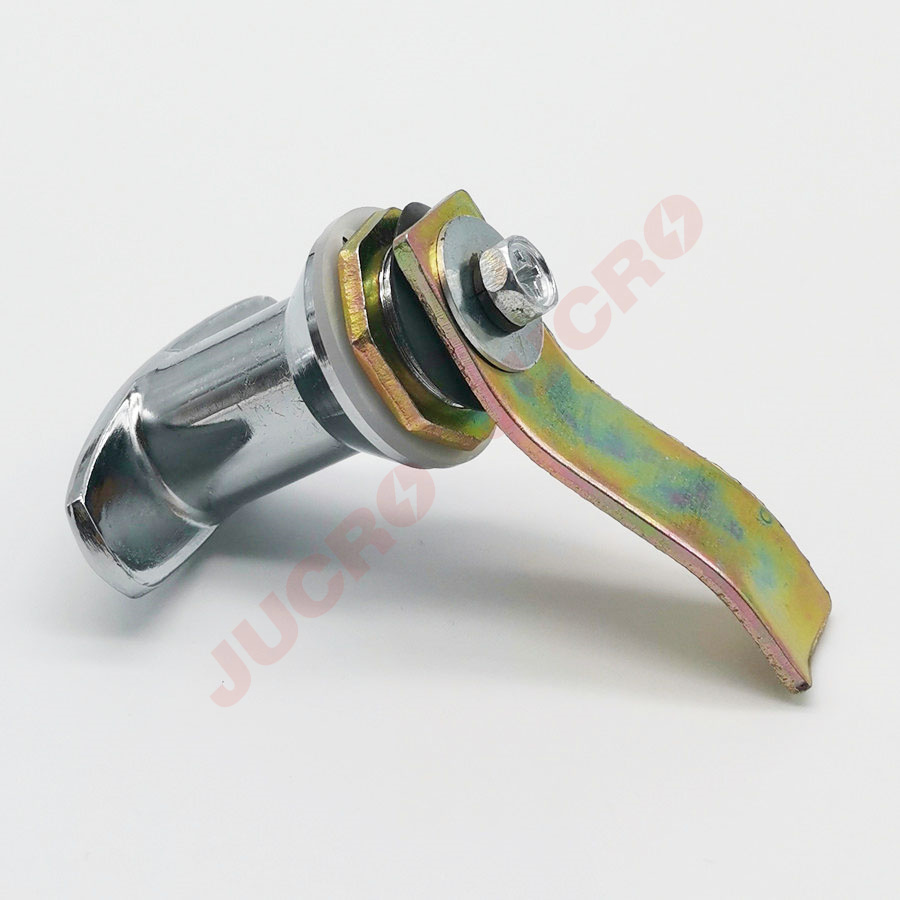

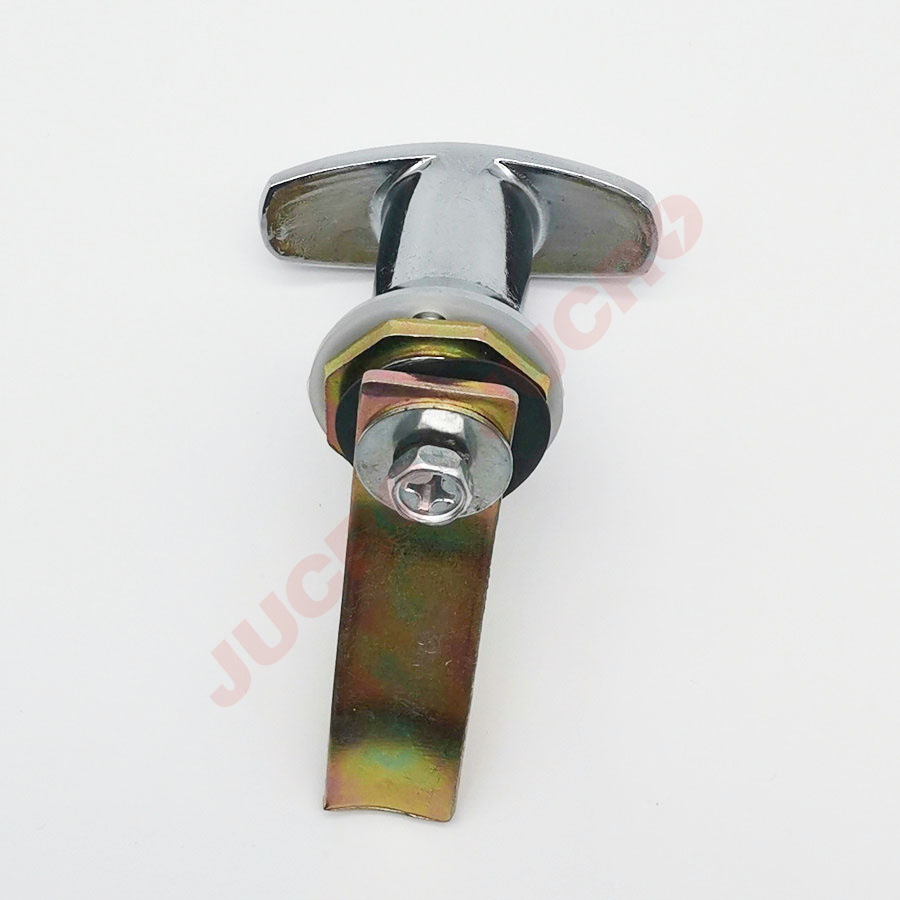

Handle lock DL302-1

Handle lock DL302-1

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座手柄,碳钢钢栓

Zinc alloy base and handle, Carbon steel bolt

表面处理

Surface treatment

基座及手柄镀亮铬,钢栓镀彩锌

Bright chrome plated for base and handle, Color-zinc plating for steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn Lock/un-lock

备 注

Remark

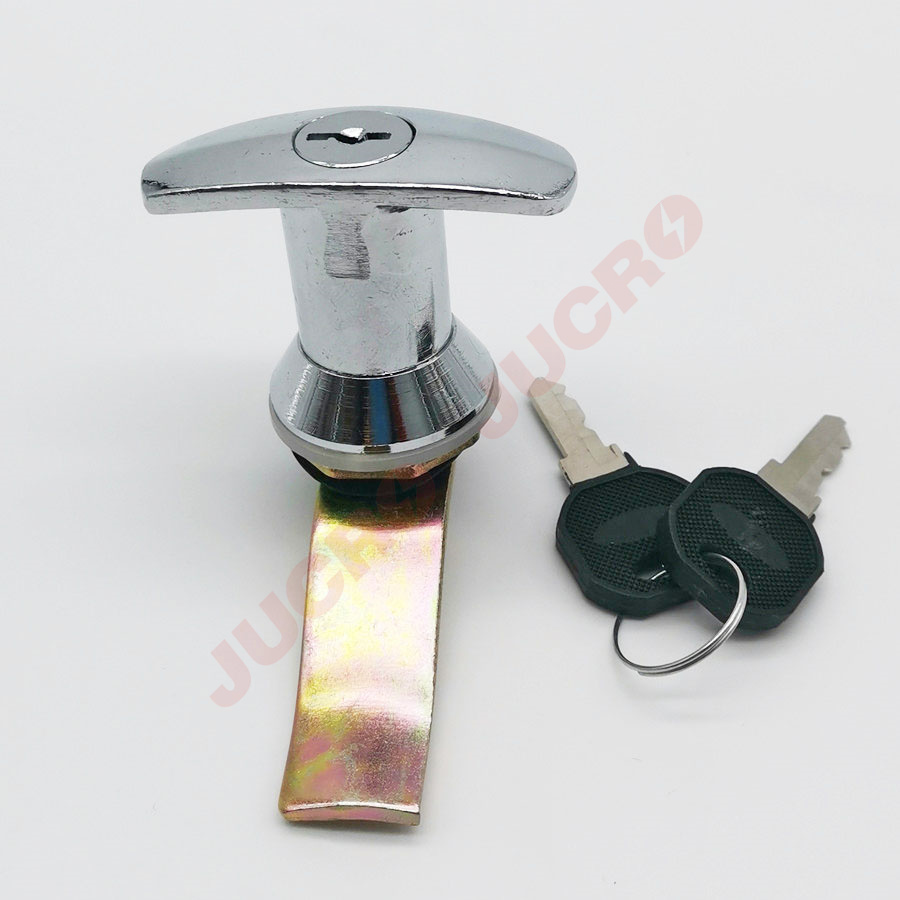

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

20Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm

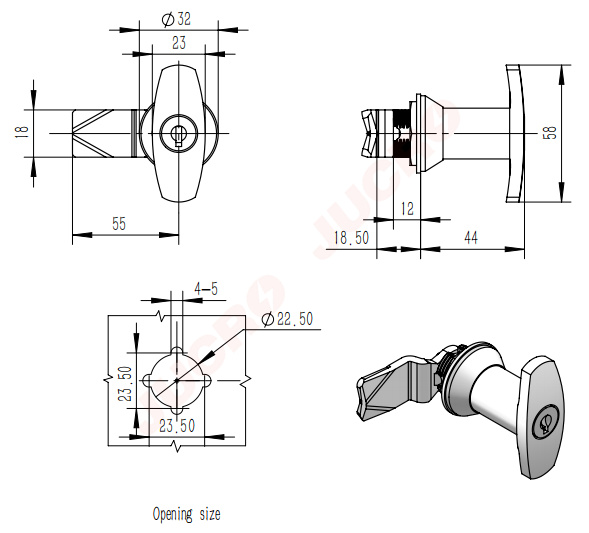

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座手柄,碳钢钢栓

Zinc alloy base and handle, Carbon steel bolt

表面处理

Surface treatment

基座及手柄镀亮铬,钢栓镀彩锌

Bright chrome plated for base and handle, Color-zinc plating for steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或锁闭

Quarter-turn Lock/un-lock

备 注

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

***输入扭矩

Maximum input torque

20Nm

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

20Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
