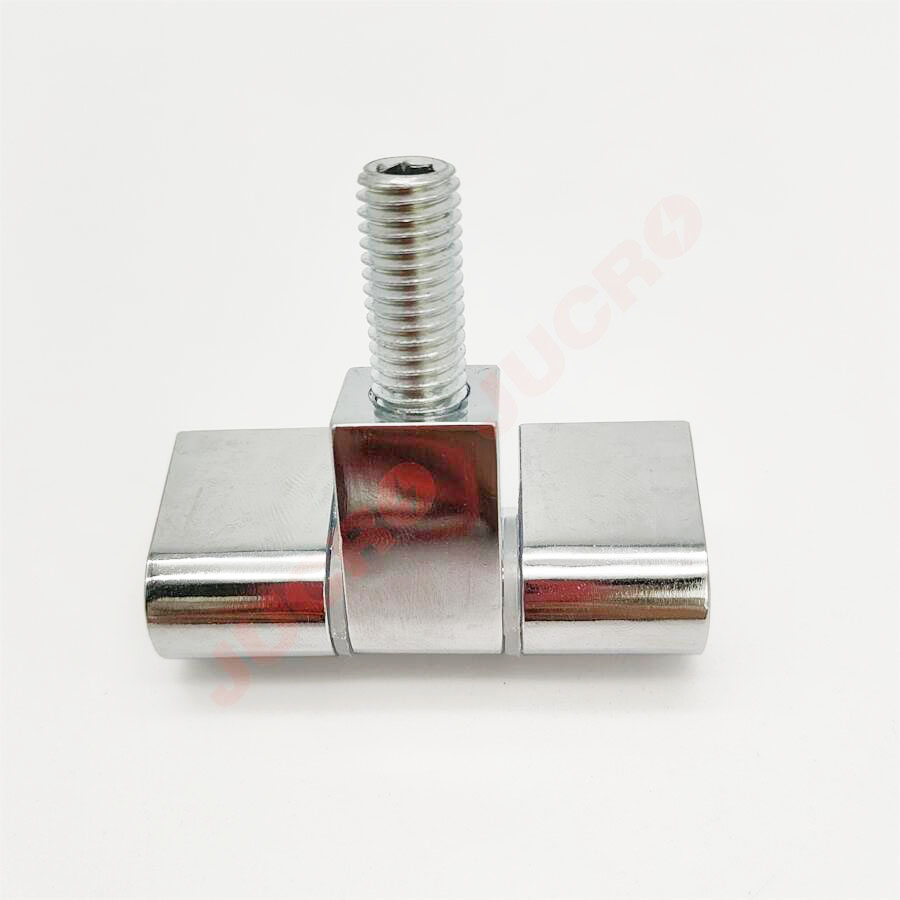

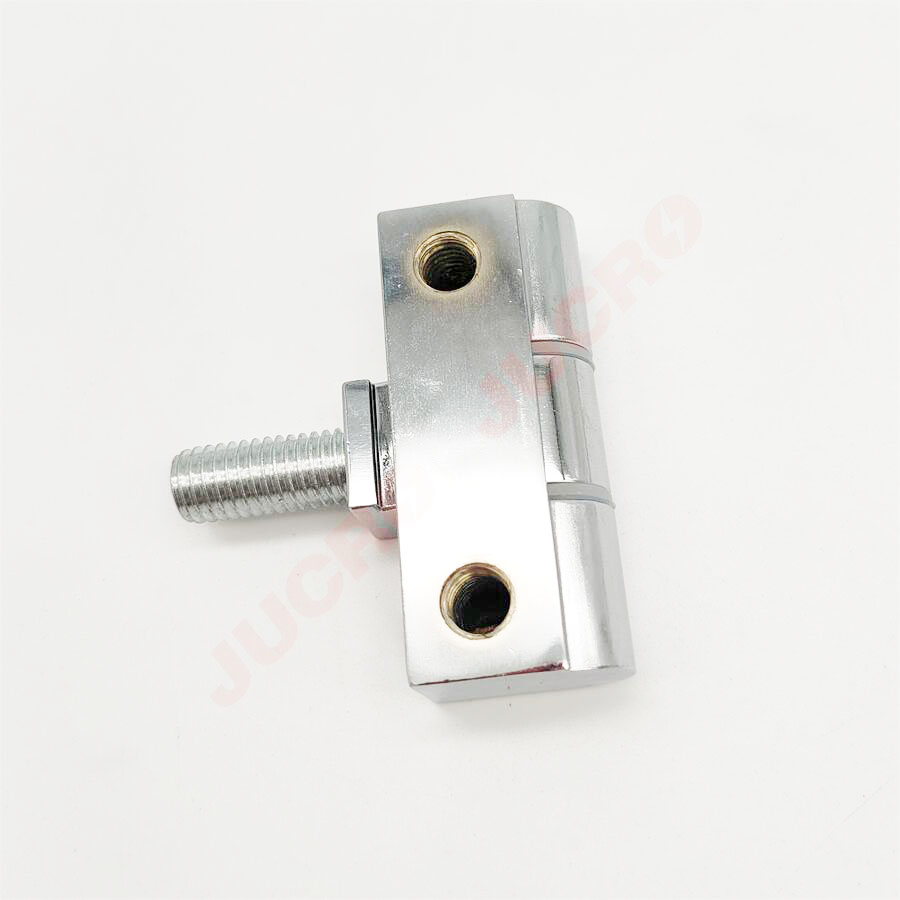

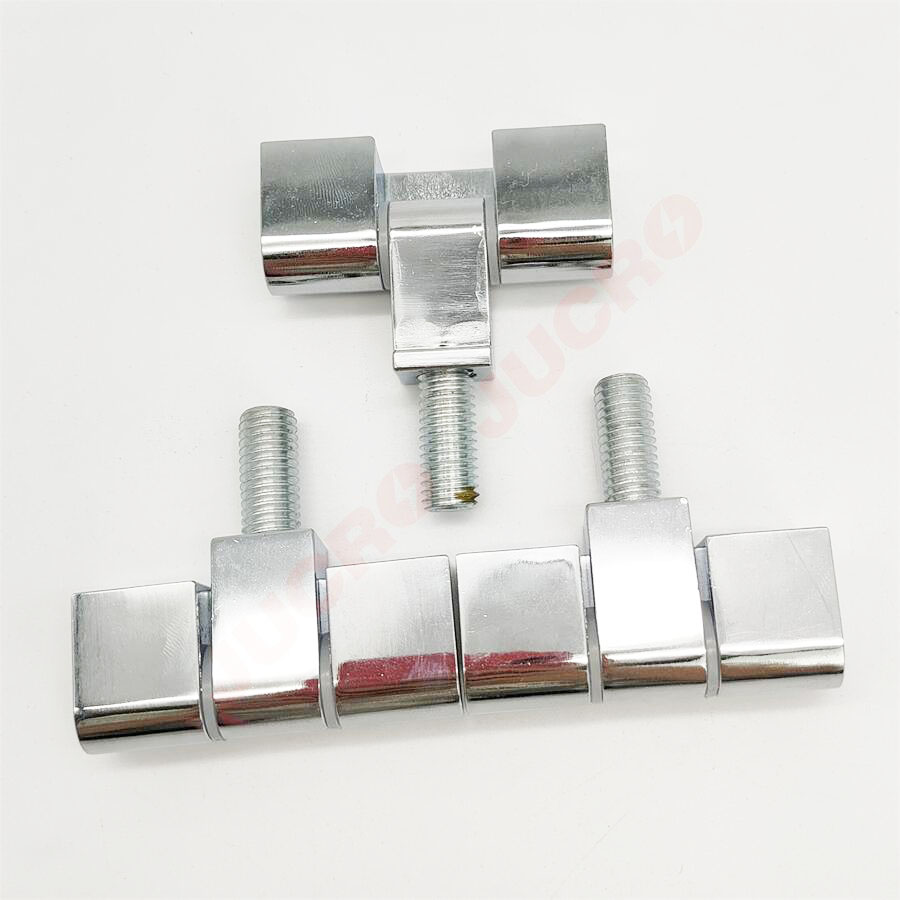

Hinge (JH206-3B Bright)
特征说明 CHARACTERISTICS | |
材质 Material | 锌合金铰链，碳钢销子和螺杆 Zinc alloy Hinge, carbon steel screw and pin |
表面处理 Surface treatment | 镀亮光铬，销子和螺杆镀白锌 Bright chrome plated, white zinc plated for screw and pin |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 2000 N |
轴向载荷 Axial load | 1520 N |

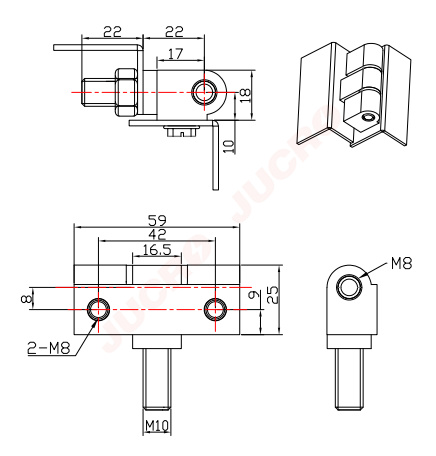

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
