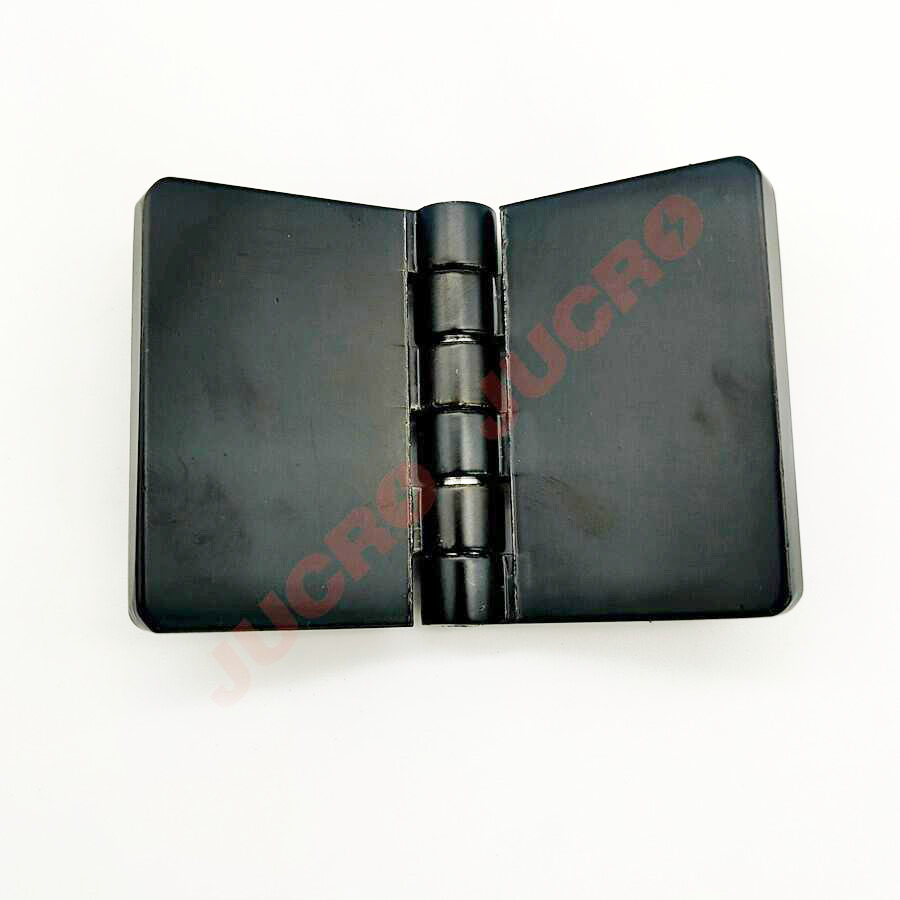

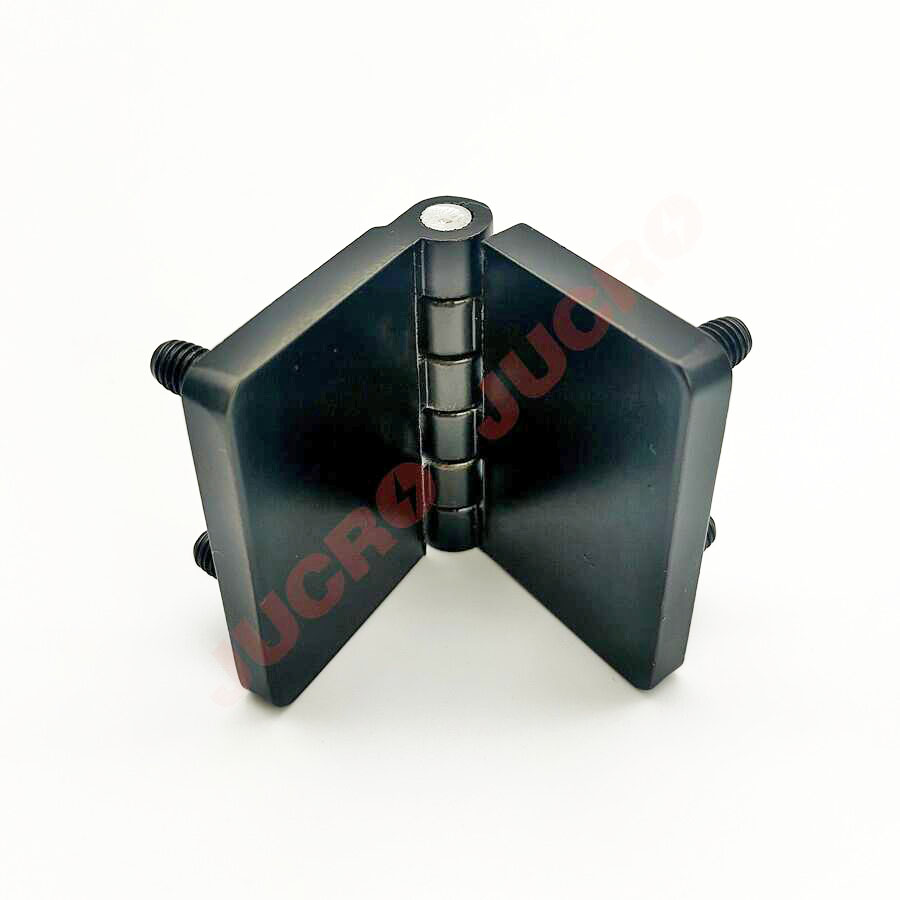

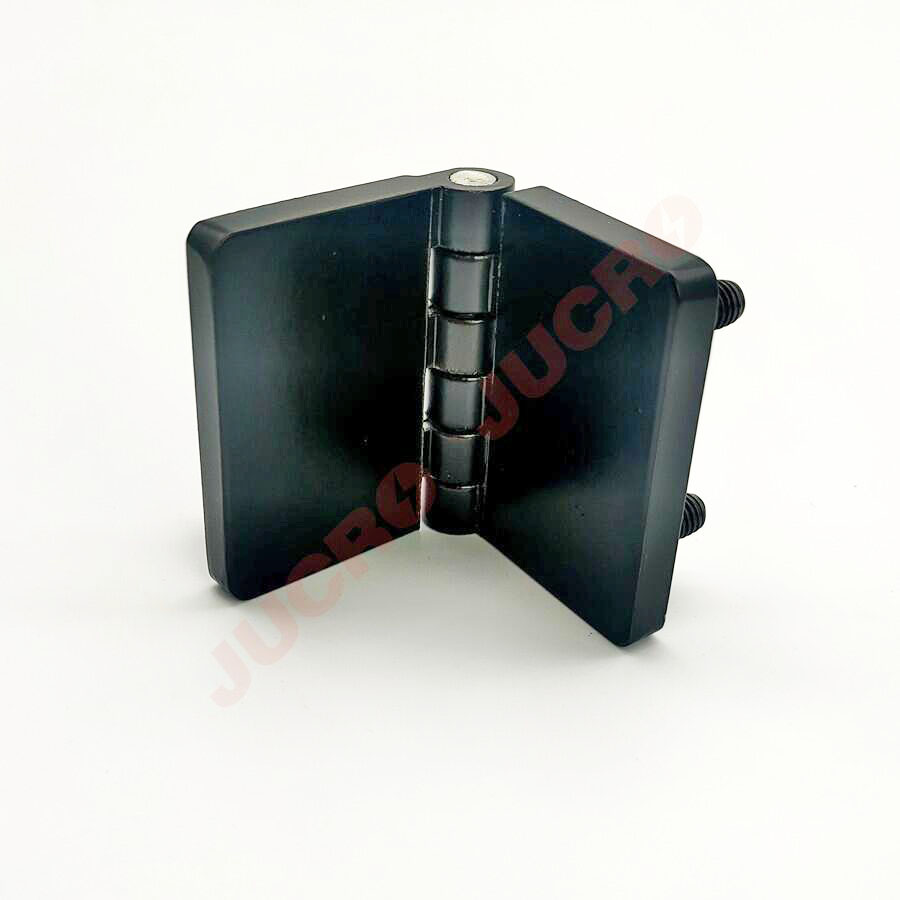

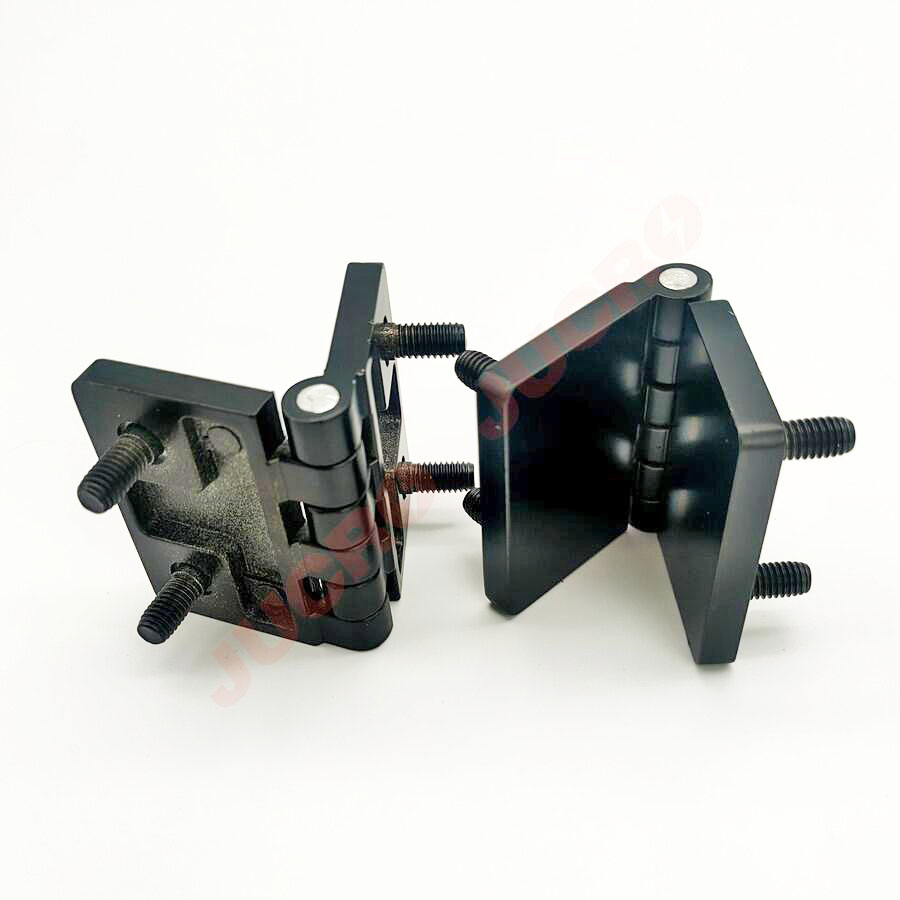

Hinge (JH214-1 Black)

Hinge (JH214-1 Black)

Product Detail

特征说明 CHARACTERISTICS

 材质

Material

锌合金铰链,碳钢销子

Zinc alloy hinge, carbon steel pin

表面处理

Surface treatment

喷漆黑色

Black spray paint

结构说明

Structure descriPTion

可开启角度180°

180 degree rotation



性能参数 PERFORMANCE PARAMETERS

径向载荷

Radial load

760N

轴向载荷

Axial load

810N

镶嵌螺钉推荐拧紧力矩

Recommend tightening torque

12N.m

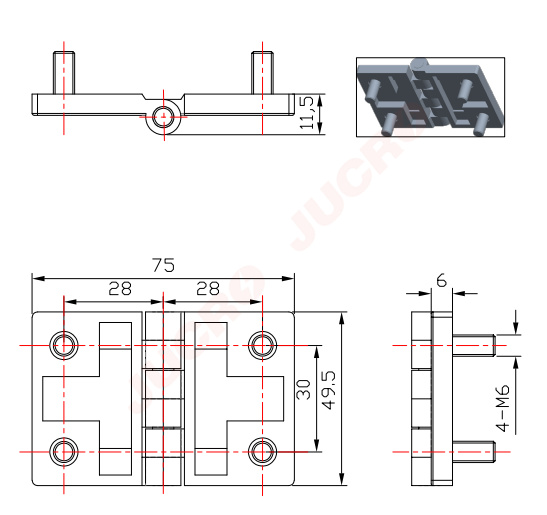

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

 材质

Material

锌合金铰链,碳钢销子

Zinc alloy hinge, carbon steel pin

表面处理

Surface treatment

喷漆黑色

Black spray paint

结构说明

Structure descriPTion

可开启角度180°

180 degree rotation



性能参数 PERFORMANCE PARAMETERS

径向载荷

Radial load

760N

轴向载荷

Axial load

810N

镶嵌螺钉推荐拧紧力矩

Recommend tightening torque

12N.m



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
