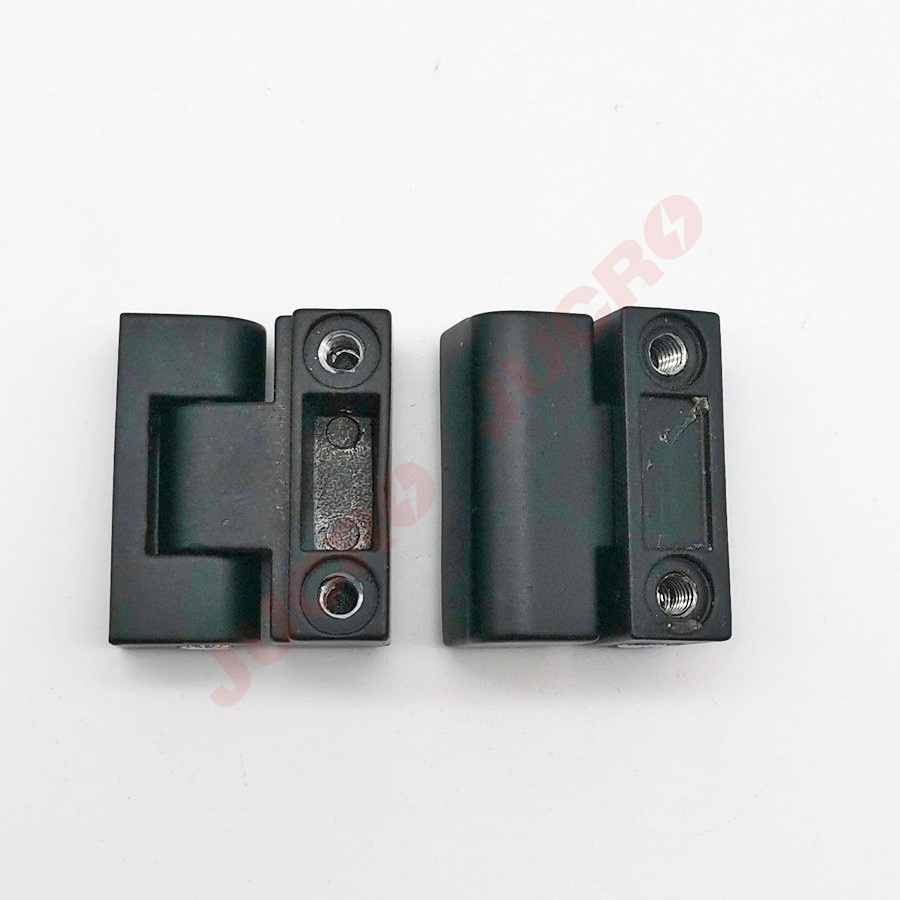

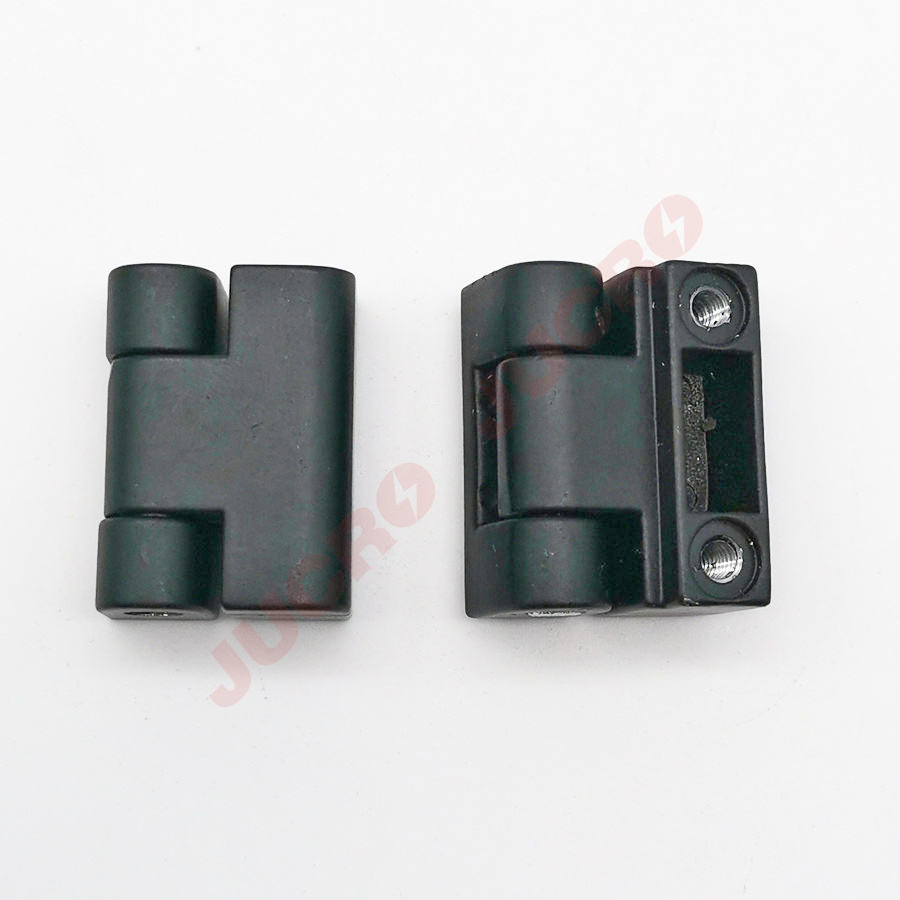

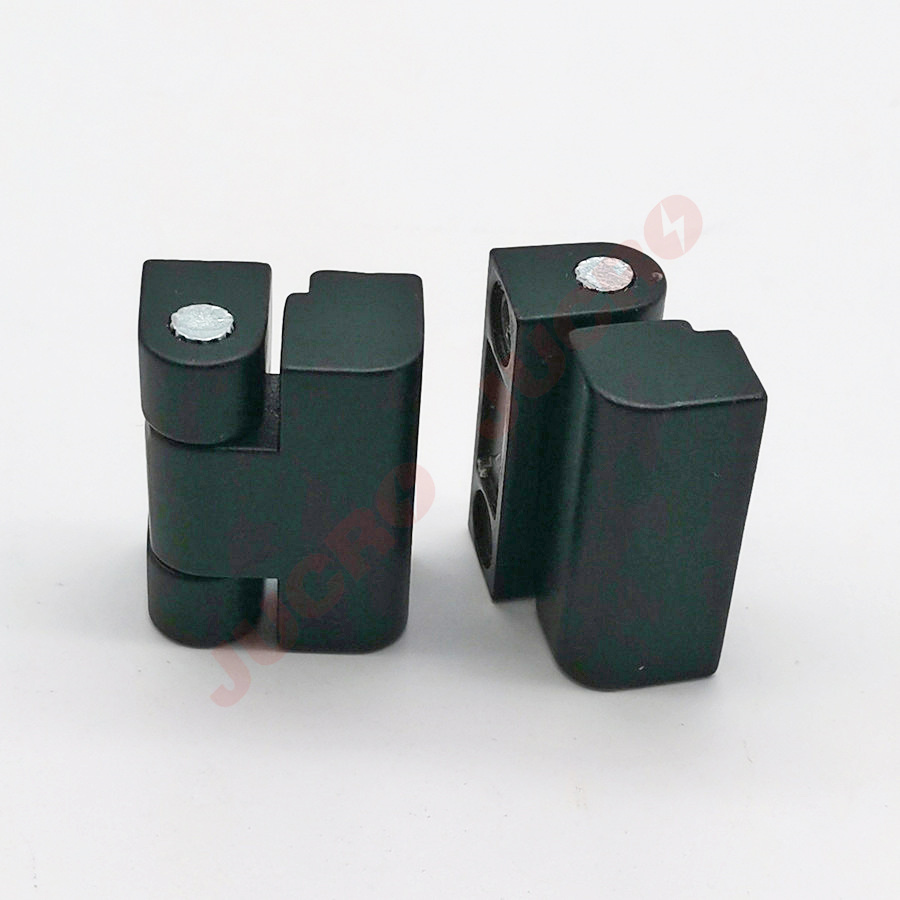

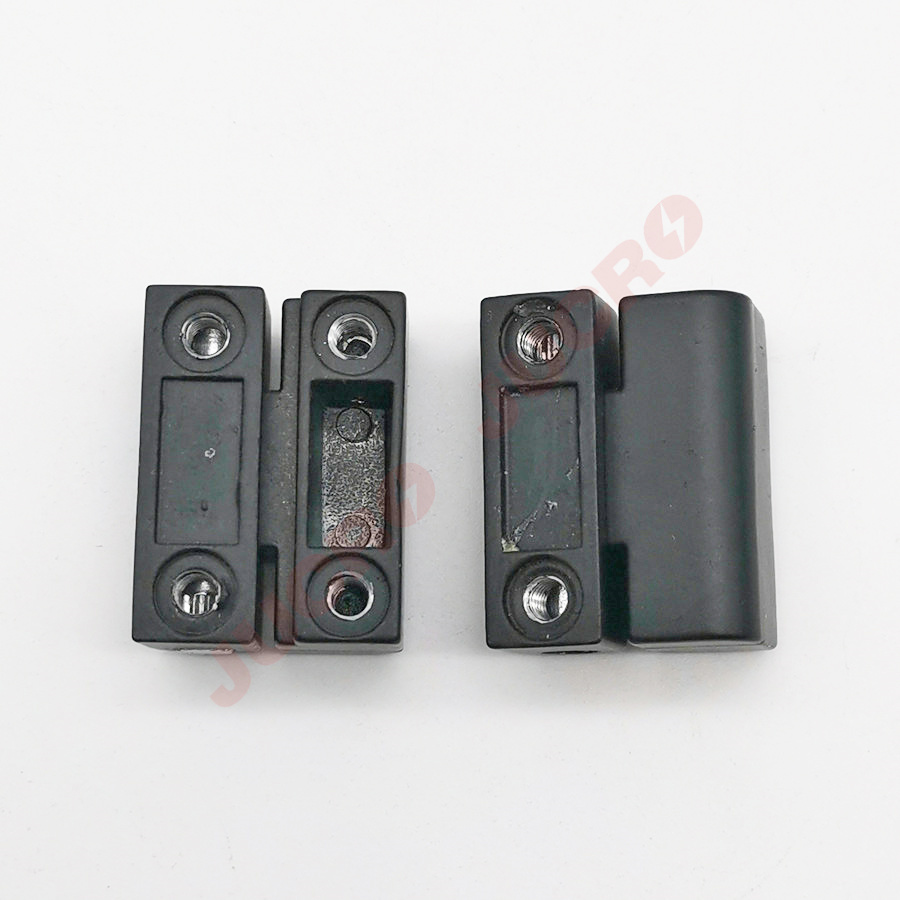

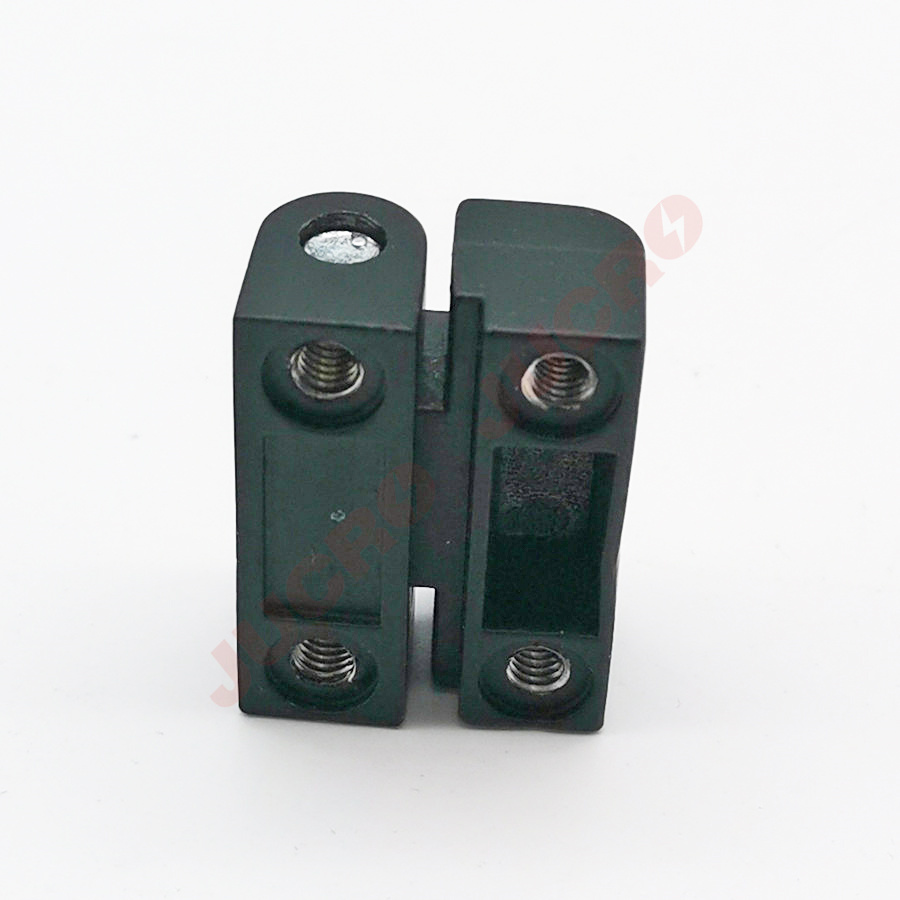

Hinge (JH219-3 Black)

Hinge (JH219-3 Black)

Product Detail

特征说明 CHARACTERISTICS

材质

Material

锌合金铰链,碳钢销子

Zinc alloy Hinge, carbon steel pin

表面处理

Surface treatment

喷漆黑色,钢栓镀蓝白锌

Black spray paint, blue-white zinc plated for steel bolt

结构说明

Structure descriPTion

可开启角度180°

180 degree rotation



性能参数 PERFORMANCE PARAMETERS

径向载荷

Radial load

600N

轴向载荷

Axial load

460N

备注:以上数据为***静载荷。

Remark: The above data is maximum static load.

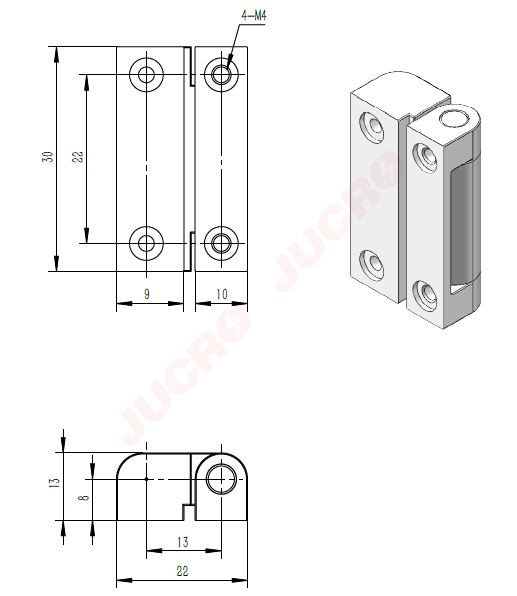

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材质

Material

锌合金铰链,碳钢销子

Zinc alloy Hinge, carbon steel pin

表面处理

Surface treatment

喷漆黑色,钢栓镀蓝白锌

Black spray paint, blue-white zinc plated for steel bolt

结构说明

Structure descriPTion

可开启角度180°

180 degree rotation



性能参数 PERFORMANCE PARAMETERS

径向载荷

Radial load

600N

轴向载荷

Axial load

460N

备注:以上数据为***静载荷。

Remark: The above data is maximum static load.


外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
