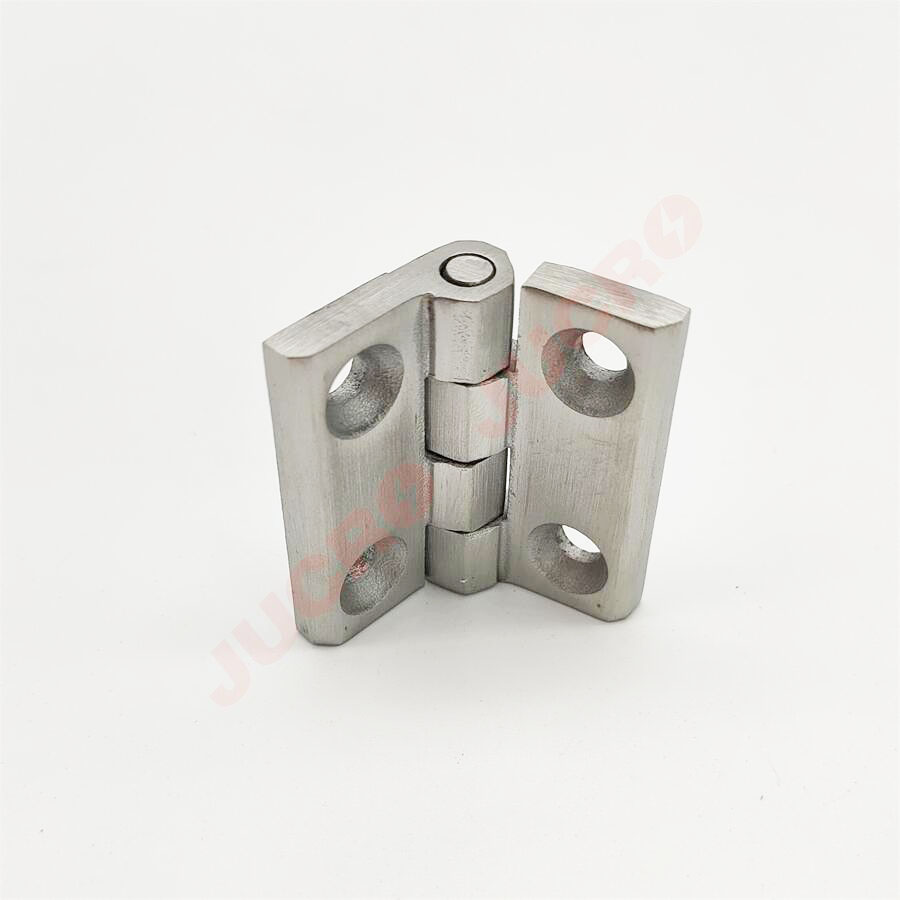

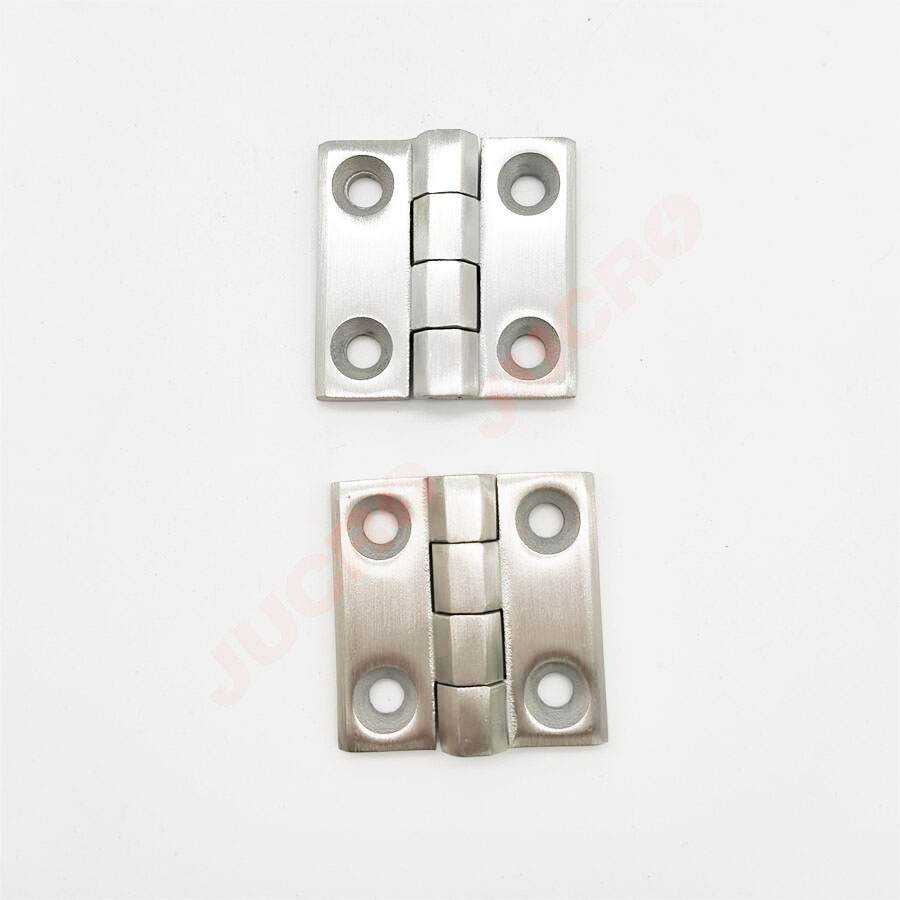

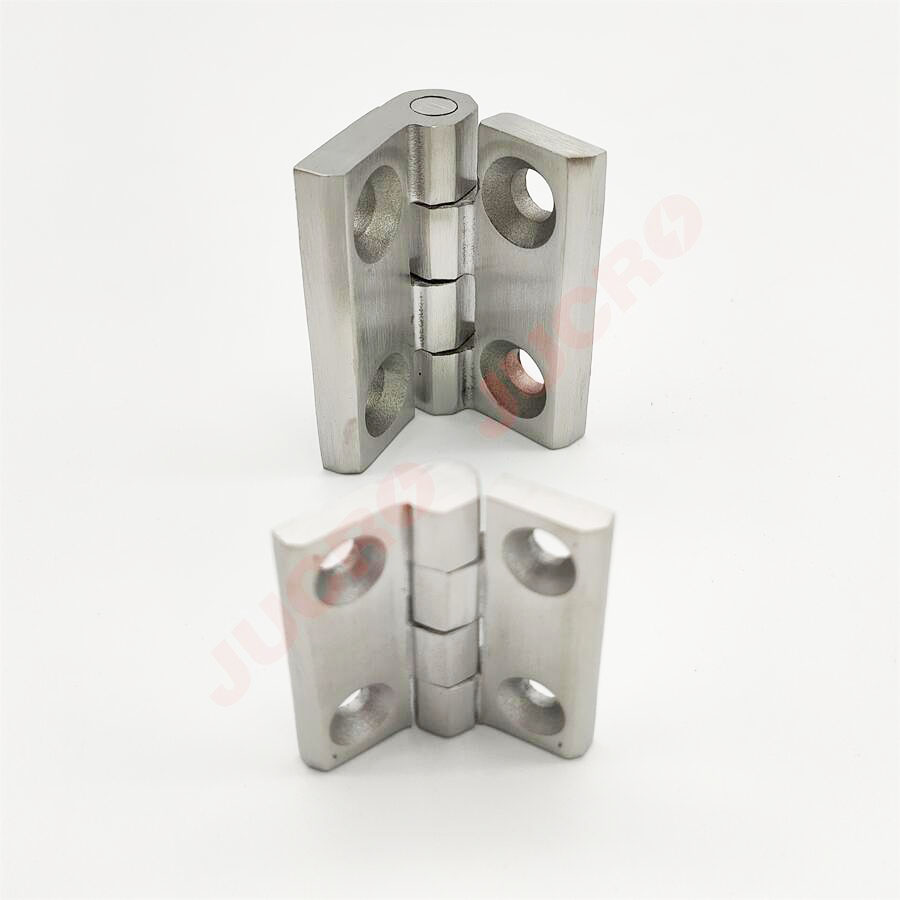

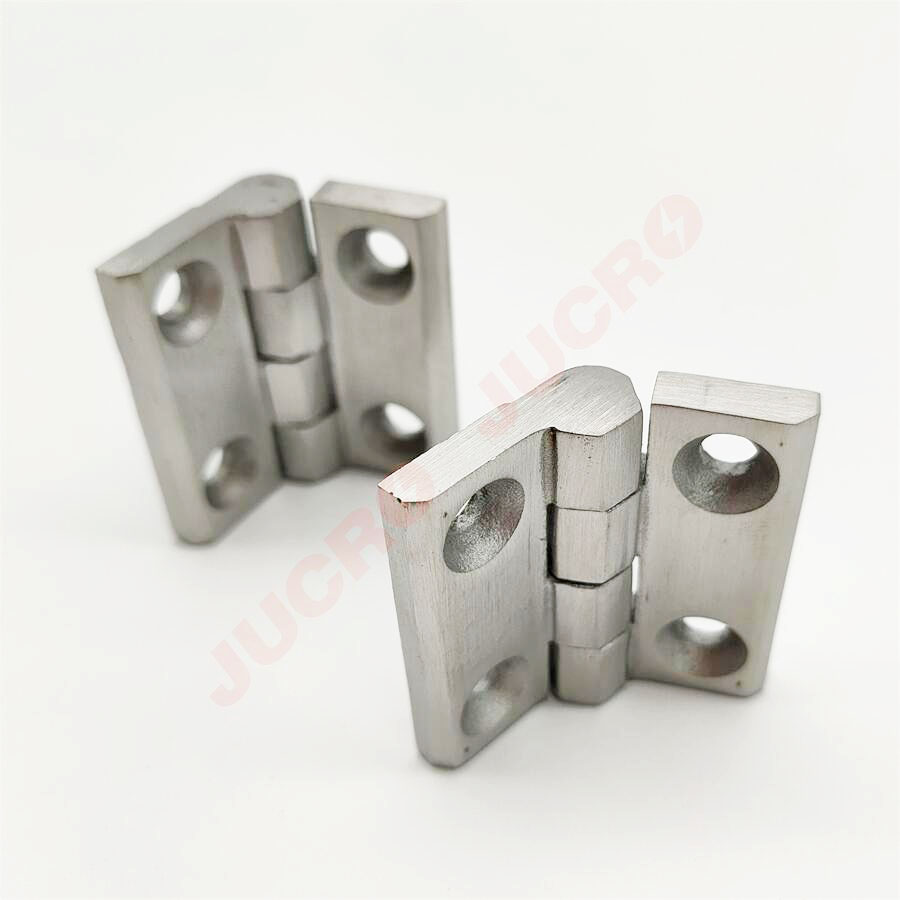

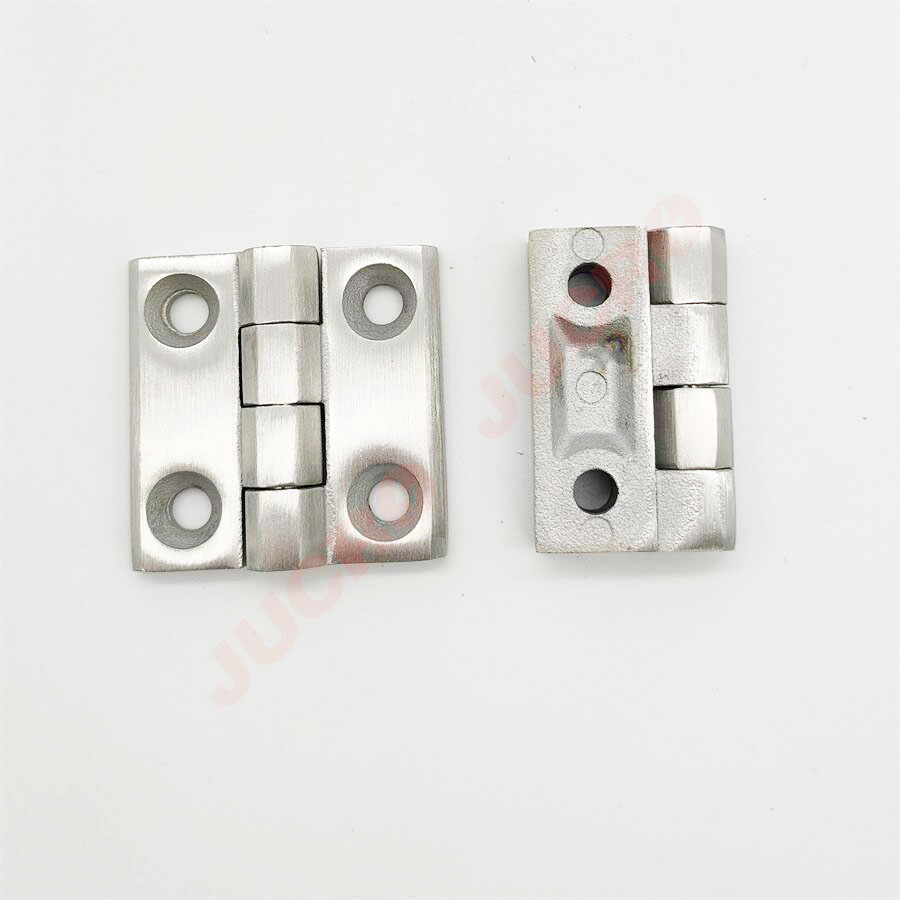

Hinge (JH226-3S)
特征说明 CHARACTERISTICS | |
材 质 Material | 不锈钢铰链 Stainless steel hinge |
表面处理 Surface treatment | 无 Without |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 1000N |
轴向载荷 Axial load | 1200N |
备注：以上数据为***静荷载。
Remark：The above data is maximum static load.

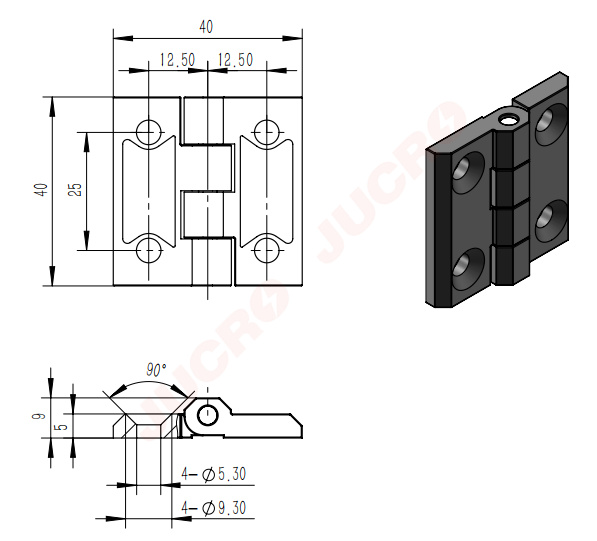

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
