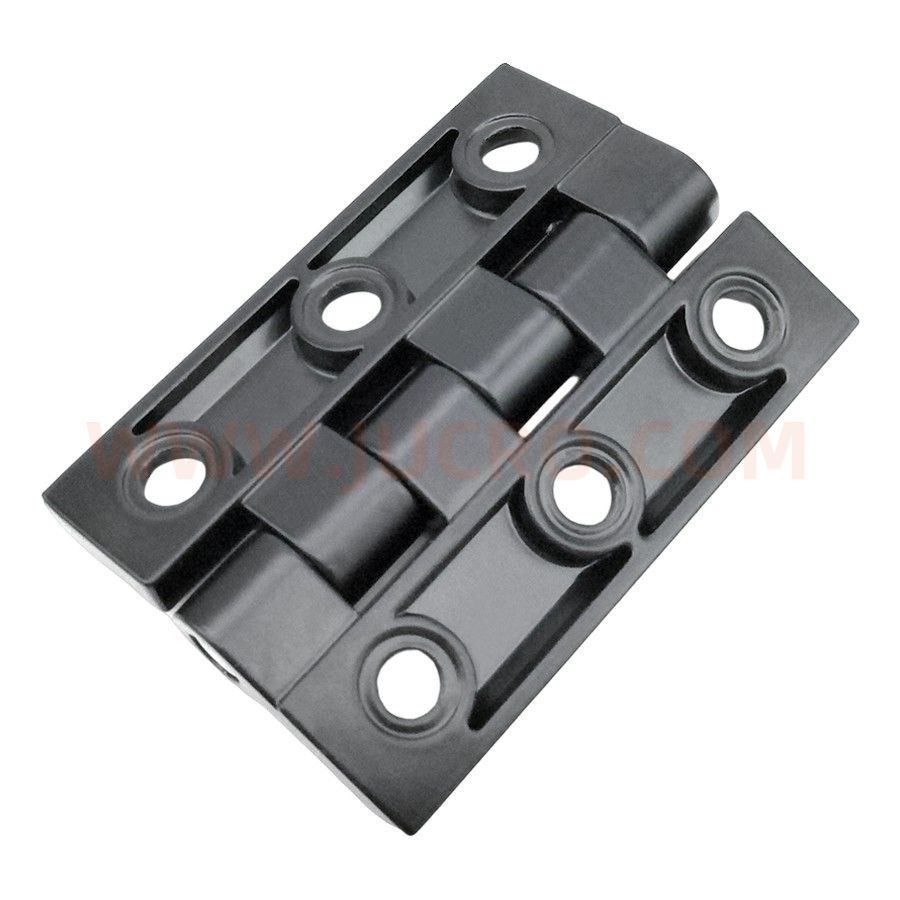

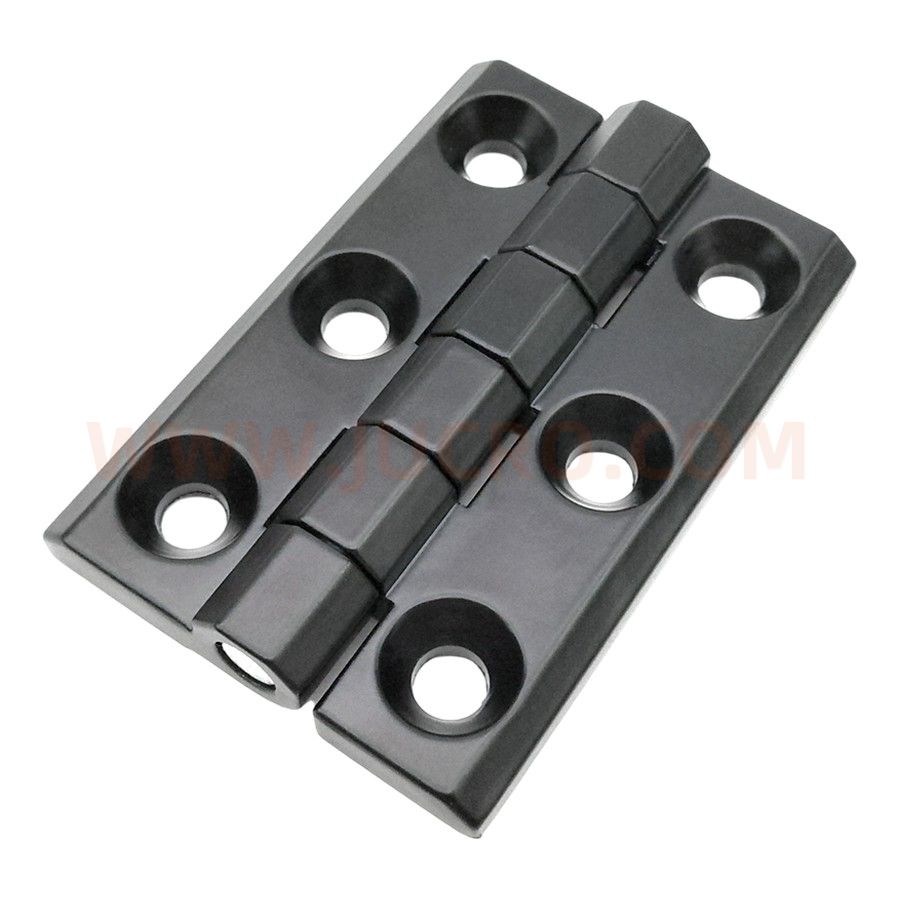

Hinge (JH226-5)
特征说明 CHARACTERISTICS | |
材质 Material | 锌合金铰链，碳钢销子 Zinc alloy hinge, carbon steel pin |
表面处理 Surface treatment | 喷漆黑色，销子镀蓝白锌 Black spray paint, blue white zinc plated for pin |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
径向载荷 Radial load |
1120N |
|
轴向载荷 Axial load |
1200N |
|
镶嵌螺钉推荐拧紧扭矩 Recommend tightening torque |
12N.m |
备注：以上数据为***静载荷。
Remark: The above data is maximum static load.
|

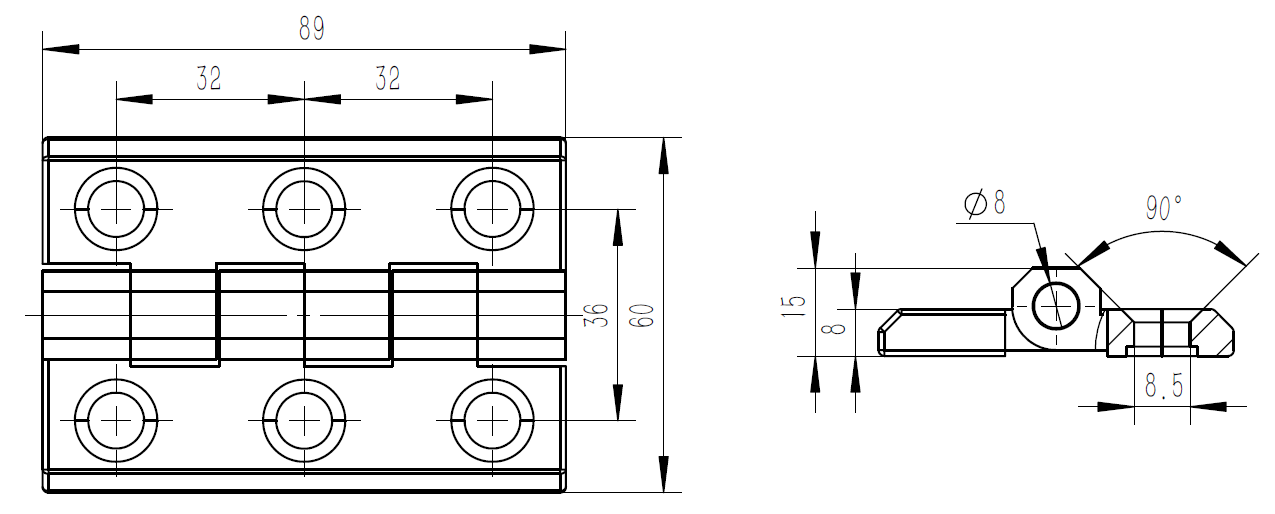

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
