特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金静铰链,碳钢动铰链、销子 Zinc alloy female hinge, carbon steel male Hinge and steel bolt |
表面处理 Surface treatment | 喷砂镀镍铰链,镀白锌动铰链,镀镍销子 Sand-spraying nickel plated female hinge, white zinc plated male hinge, nickel plated steel bolt |
结构说明 Structure descriPTion | 可开启角度90° 90 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | 1295N |
轴向载荷 Axial load | 290N |
备注:以上数据为***静荷载。
Remark:The above data is maximum static load.

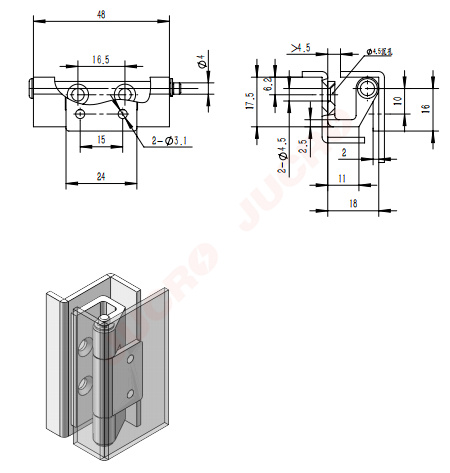

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
