特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金铰链,PA-6面盖,碳钢销子 Zinc alloy hinge, PA cover, and steel pin |
表面处理 Surface treatment | 喷砂纹黑,销子镀蓝白锌 Grind arenaceous paint, zinc plated pin |
结构说明 Structure descriPTion | 可开启角度180° 180 degree rotation |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 Radial load | |
轴向载荷 Axial load | |
镶嵌螺钉推荐拧紧扭矩 Embedded screw recommended tightening torque |
备注:以上数据为***静荷载。
Remark:The above data is maximum static load.

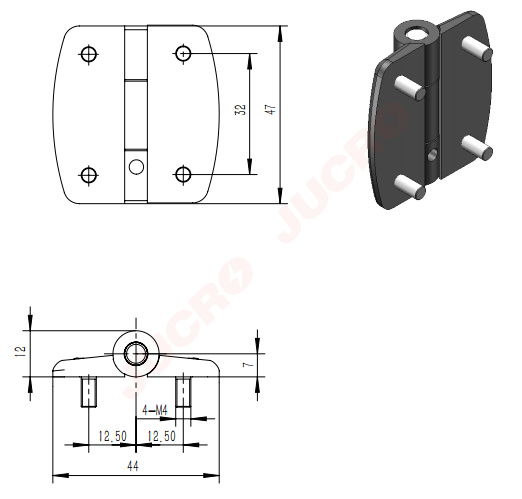

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
