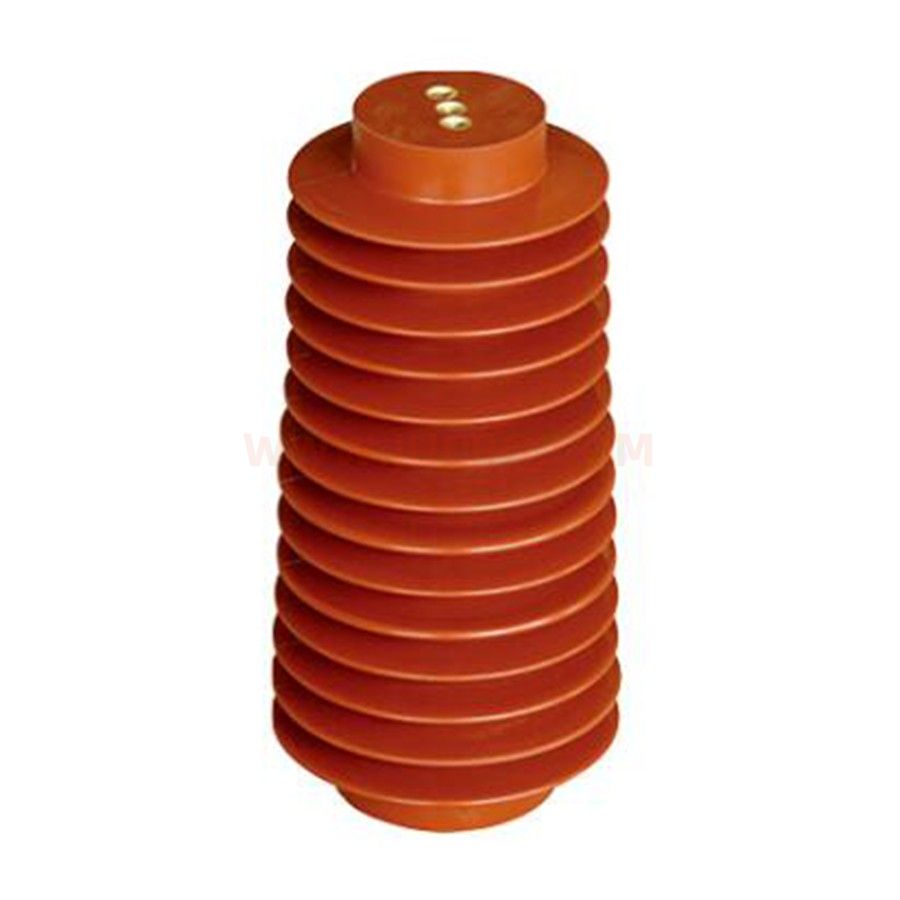

JYZ-40.5Q-155×320/340/360/380
产品参数 Main technical parameter
|
Ordering code产品编号 |
Model型号 |
|
1563506 |
JYZ-40.5Q-155×320 |
|
1563507 |
JYZ-40.5Q-155×340 |
|
1563508 |
JYZ-40.5Q-155×360 |
|
1563509 |
JYZ-40.5Q-155×380 |
|
Item 项目 |
Data 参数 |
|
Power frequency withstand voltage工频耐压 |
95kV/1min |
|
Partial Discharge局放 |
>10pc |
|
Lightning impulse voltage雷电冲击电压 |
185KV |
|
Glass transition temperature玻璃化温度 |
≥105℃ |
|
Bending breaking load弯曲破环负荷 |
No less than不小于10KN |

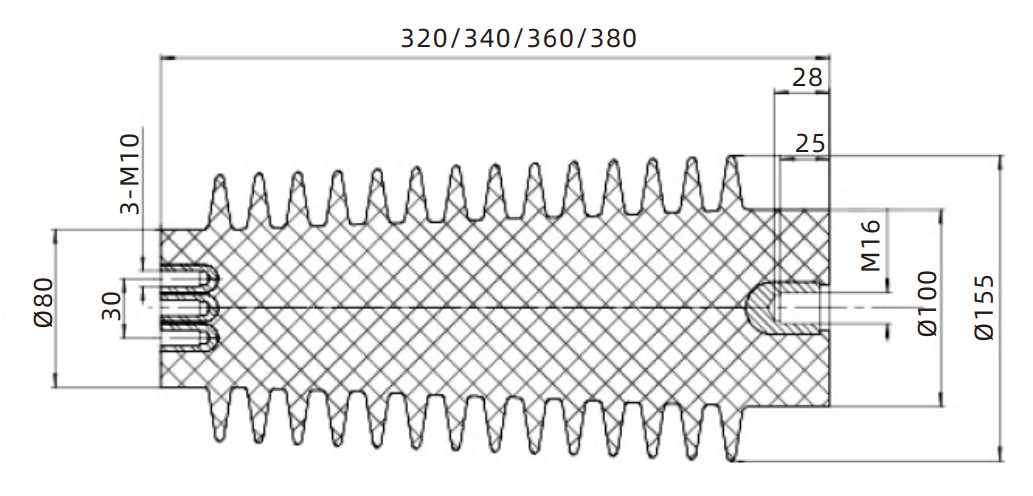

尺寸 Dimension
