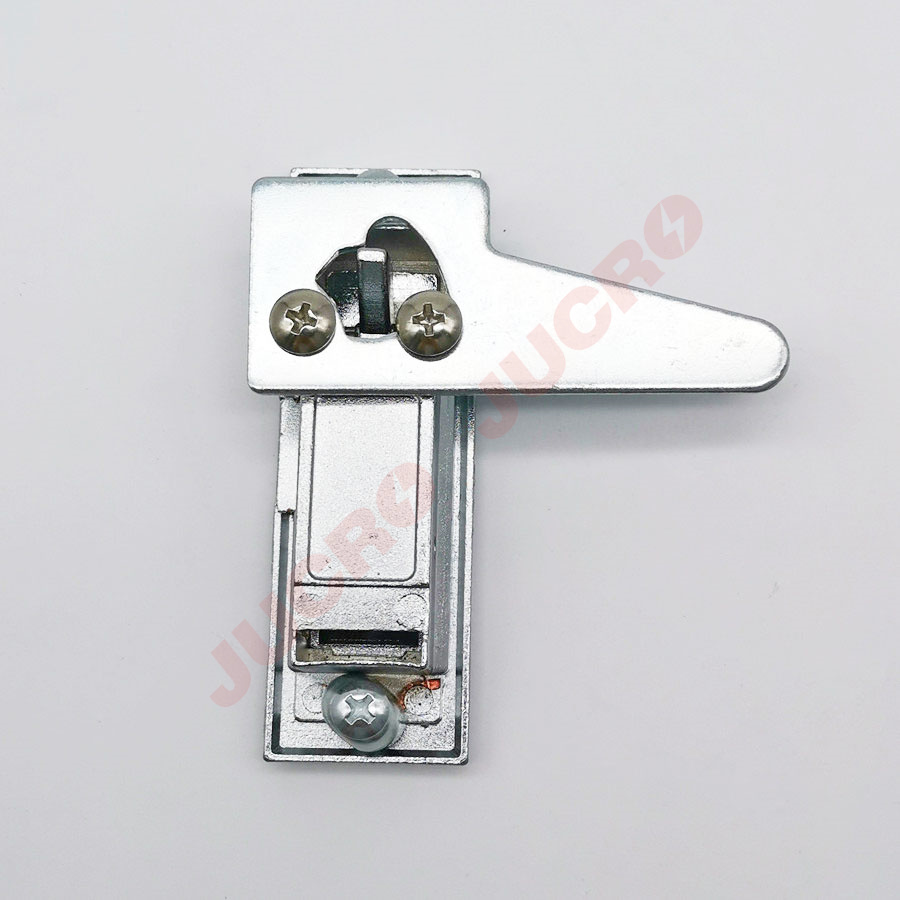

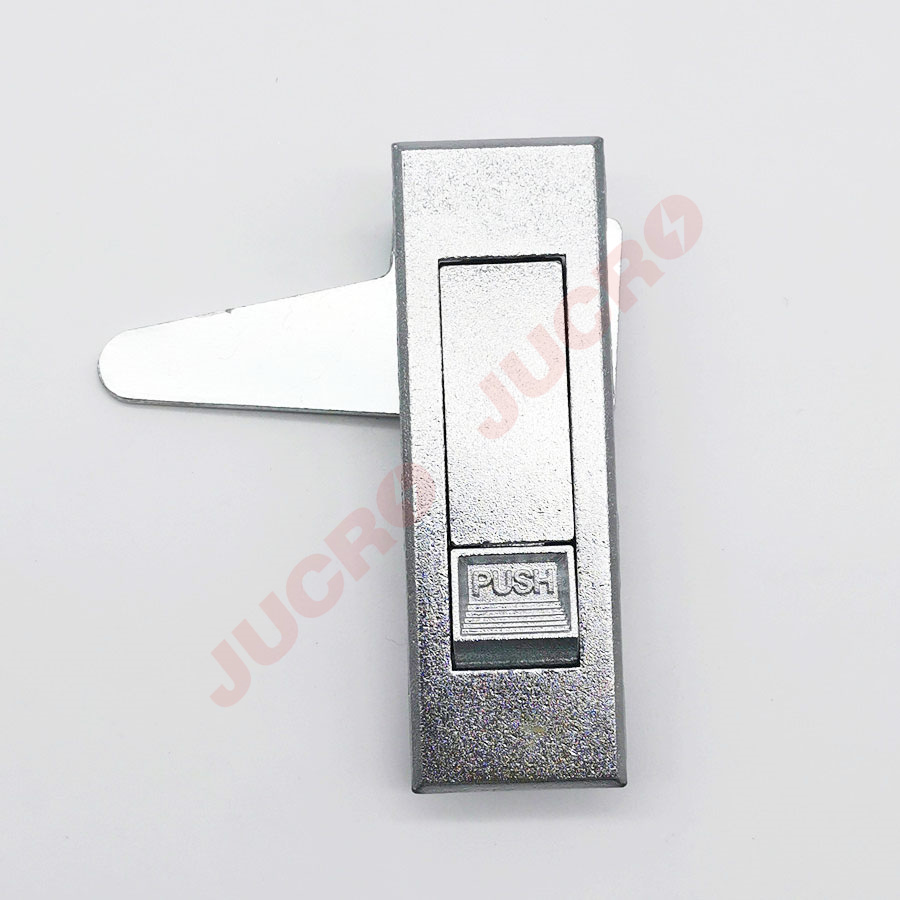

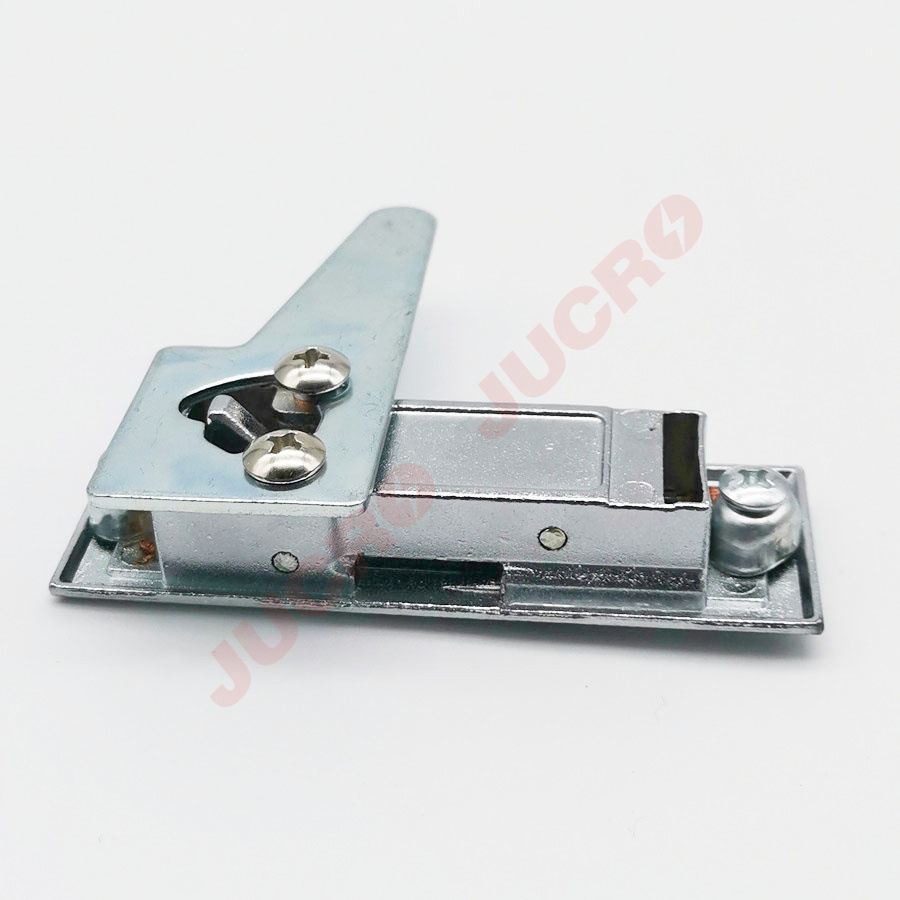

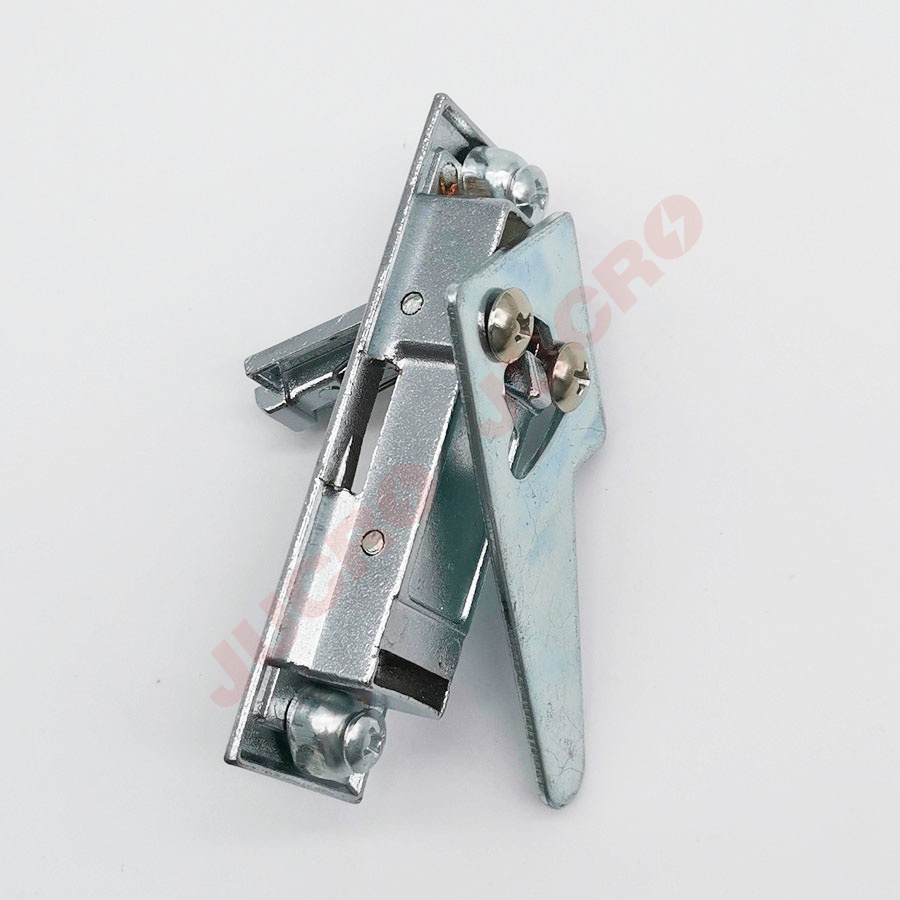

PLANE LOCK (DL720-2)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、按钮，碳钢钢栓 Zinc alloy base and button, carbon steel plate and steel bolt |
表面处理 Surface treatment | 基座、按钮喷砂镀铬，钢栓镀白锌 Sandblasting chrome plated for base and button, white zinc plating for steel bolt |
结构说明 Structure descriPTion | 快速开启，安装方便快捷 Quick-open, easy assembling |
备 注 Remark | 无需钥匙 Keyless |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 350 N |
手柄承载拉力值 Handle load tension capability | ≤555 N |

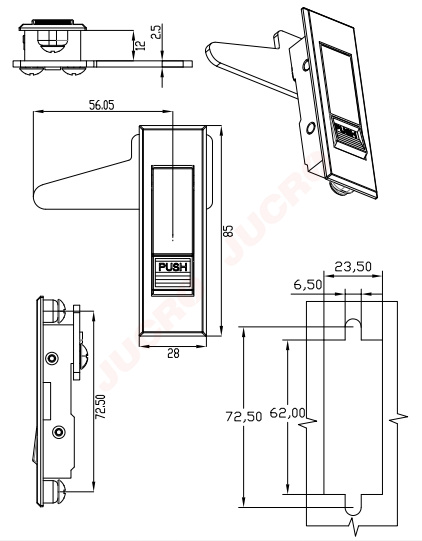

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
