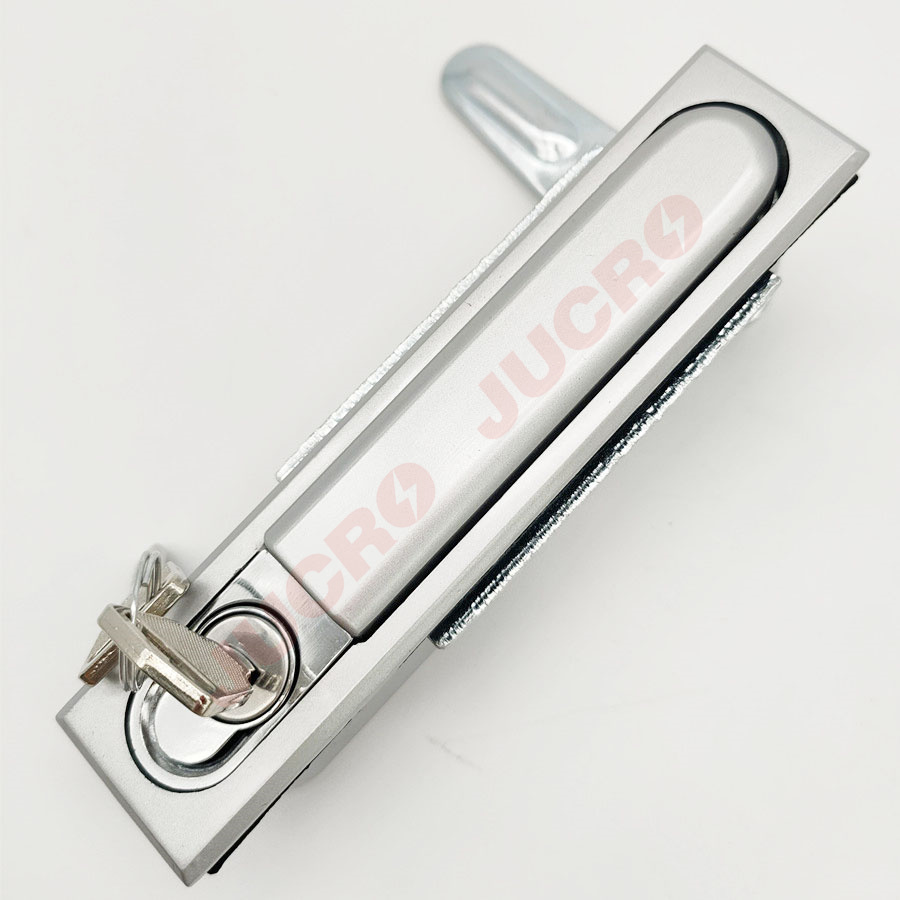

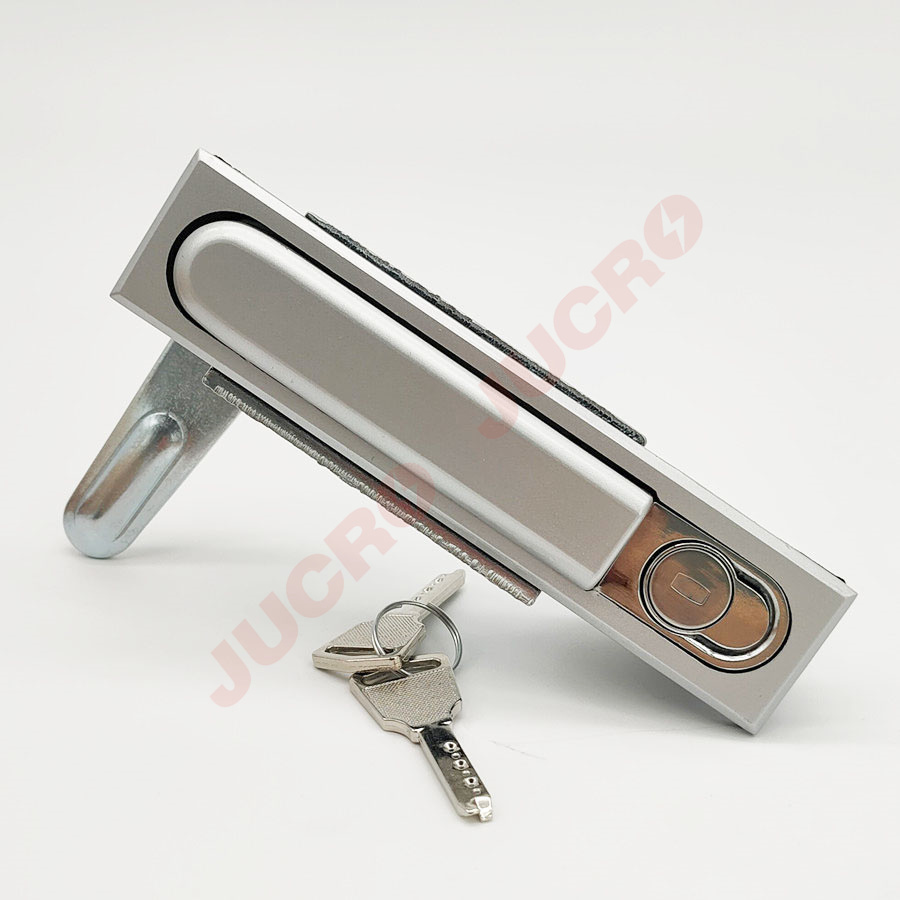

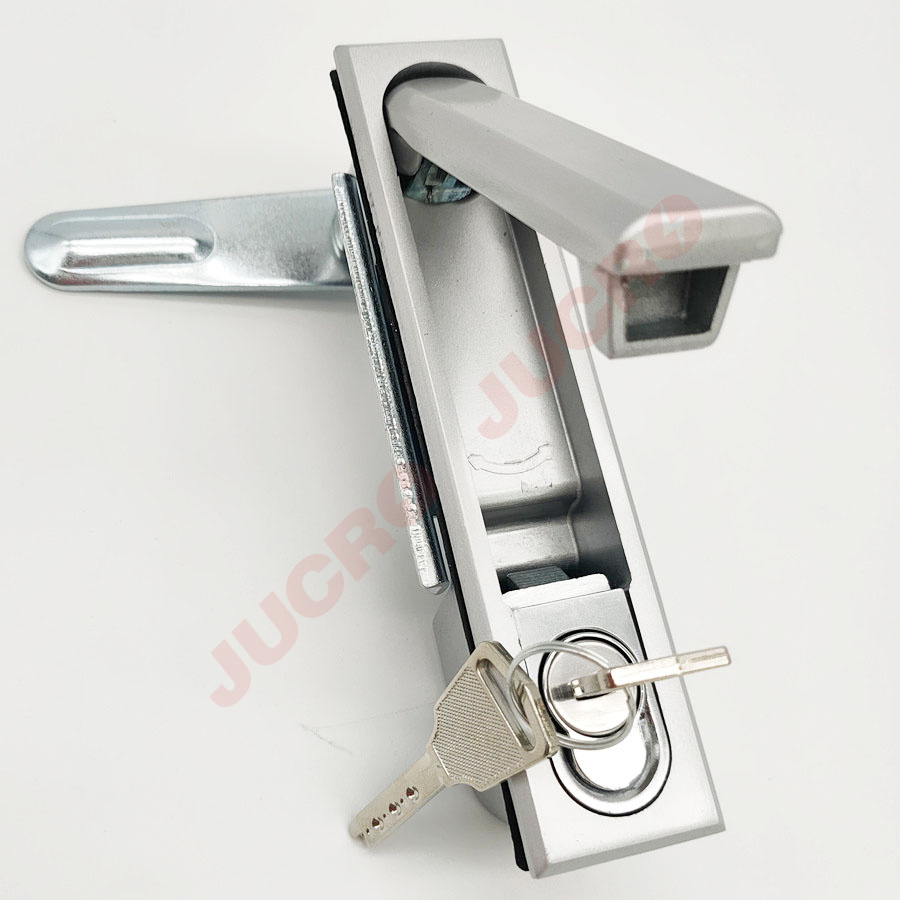

PLANE LOCK (DL818-1S MATTE)

PLANE LOCK (DL818-1S MATTE)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金手柄、锁头组件,铝合金基座,碳钢压板、钢栓

Zinc alloy handle and cylinder, aluminium alloy base, carbon steel plate and steel bolt

表面处理

Surface treatment

喷塑基座、手柄,镀亮光铬锁头组件,钢栓、压板镀白锌

Spray painted base and handle, bright chrome plated cylinder, white zinc plating for steel bolt and supporting plate

结构说明

Structure descriPTion

快速开启,安装方便快捷

Quick-open, easy assembling

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

手柄承载扭矩值

Handle load torque capability

30 N.m

手柄承载拉力值

Handle load tension capability

250 N

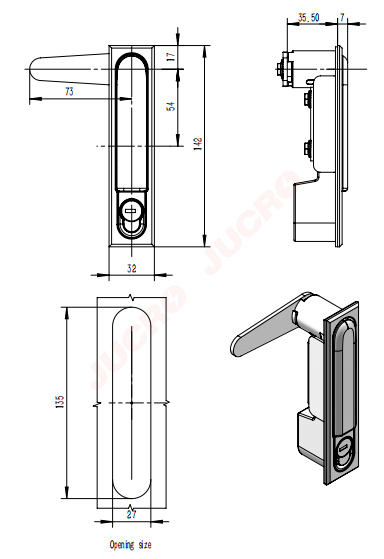

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金手柄、锁头组件,铝合金基座,碳钢压板、钢栓

Zinc alloy handle and cylinder, aluminium alloy base, carbon steel plate and steel bolt

表面处理

Surface treatment

喷塑基座、手柄,镀亮光铬锁头组件,钢栓、压板镀白锌

Spray painted base and handle, bright chrome plated cylinder, white zinc plating for steel bolt and supporting plate

结构说明

Structure descriPTion

快速开启,安装方便快捷

Quick-open, easy assembling

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

手柄承载扭矩值

Handle load torque capability

30 N.m

手柄承载拉力值

Handle load tension capability

250 N

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
