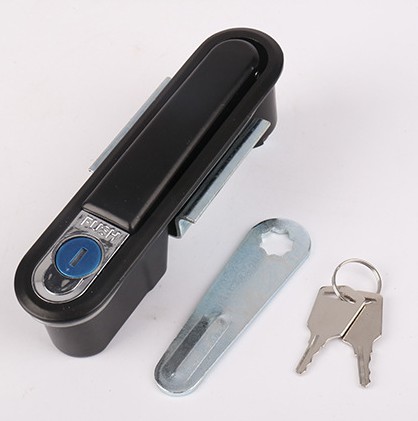

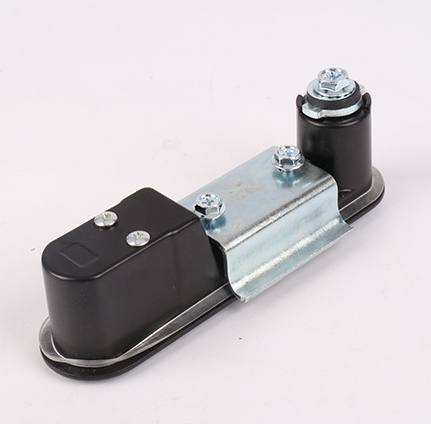

PLANE LOCK （DL818-1Y)
特征说明 CHARACTERISTICS | |
材 质 Material | 铝合金基座、手柄，锌合金锁芯，碳钢压板、钢栓 Aluminum alloy housing and handle, zinc alloy Lock core, carbon steel pressing plate and cam |
表面处理 Surface treatment | 喷黑漆基座、手柄，镀亮光铬锁头组件，镀白锌压板、钢栓 Black spray painted housing and handle, bright chrome plated insert, white zinc plated steel pressing plate and cam |
结构说明 Structure descriPTion | 快速开启，安装方便快捷；更换钢栓可达到单点与三点锁住功能 Quick-open and easy assembling; one-point or three-point locking function will be achieved with different cam mounted on |
备 注 Remark | 默认TC04-1锁头、K040钥匙 Default insert TC04-1 and key K040 |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 300N |
手柄承载拉力值 Handle load tension capability | ≤250N |
手柄承载扭矩值 Handle load torque capability | ≤30N•m |

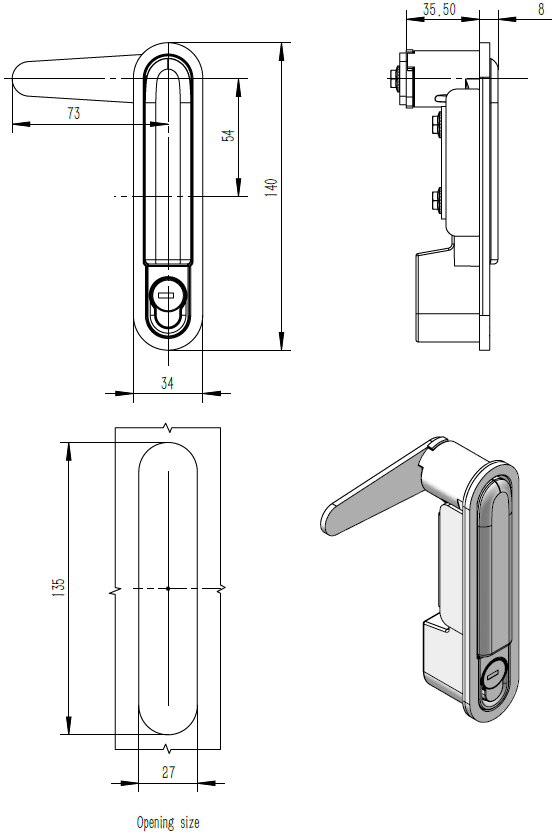

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
