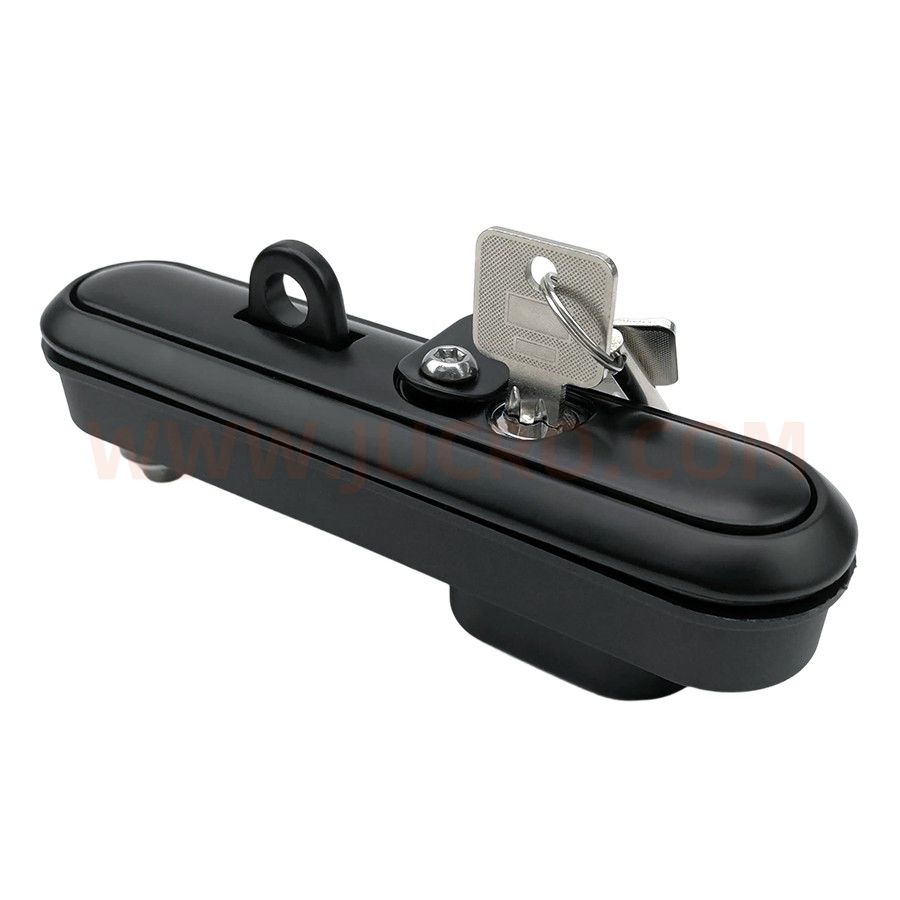

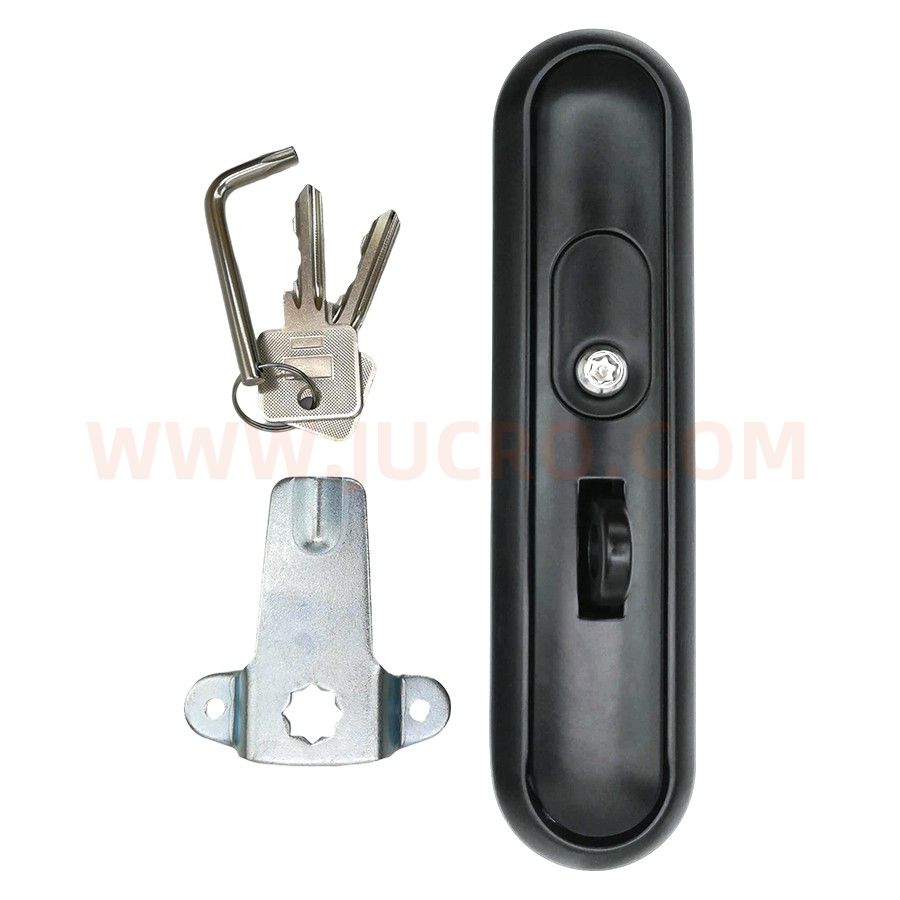

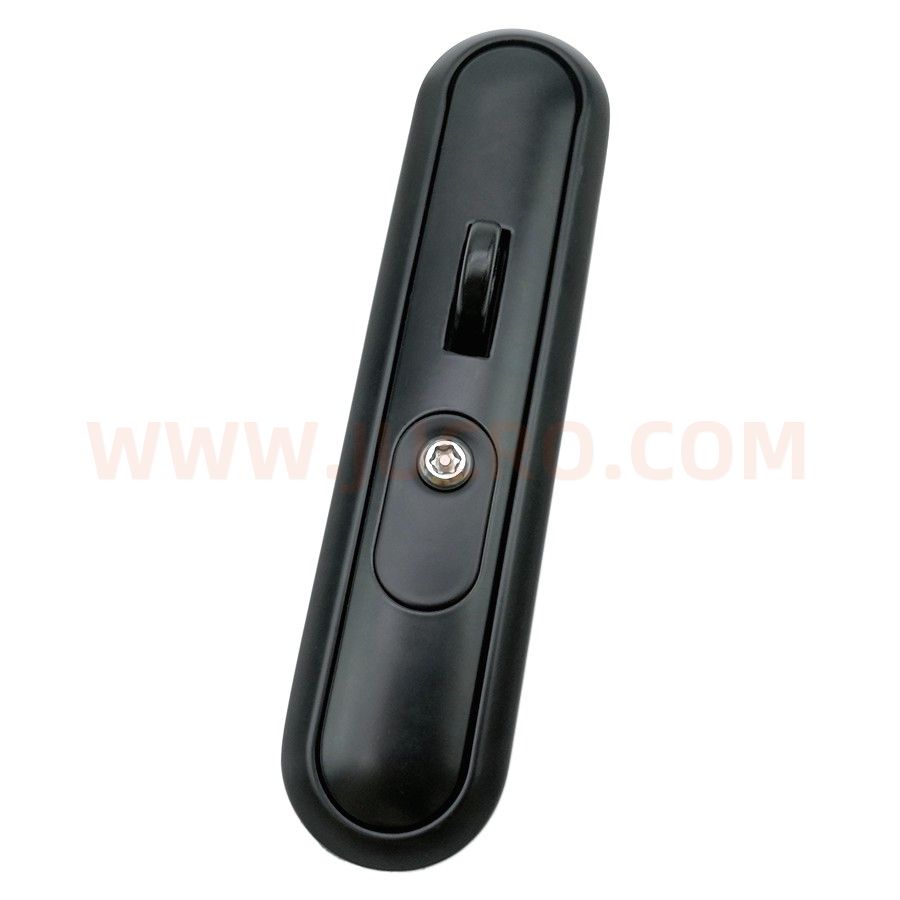

PLANE LOCK (DL864-4)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄 Zinc alloy housing, handle |
表面处理 Finish | 喷黑漆（高耐盐雾） Black spray coated (High salt-spray resistant) |

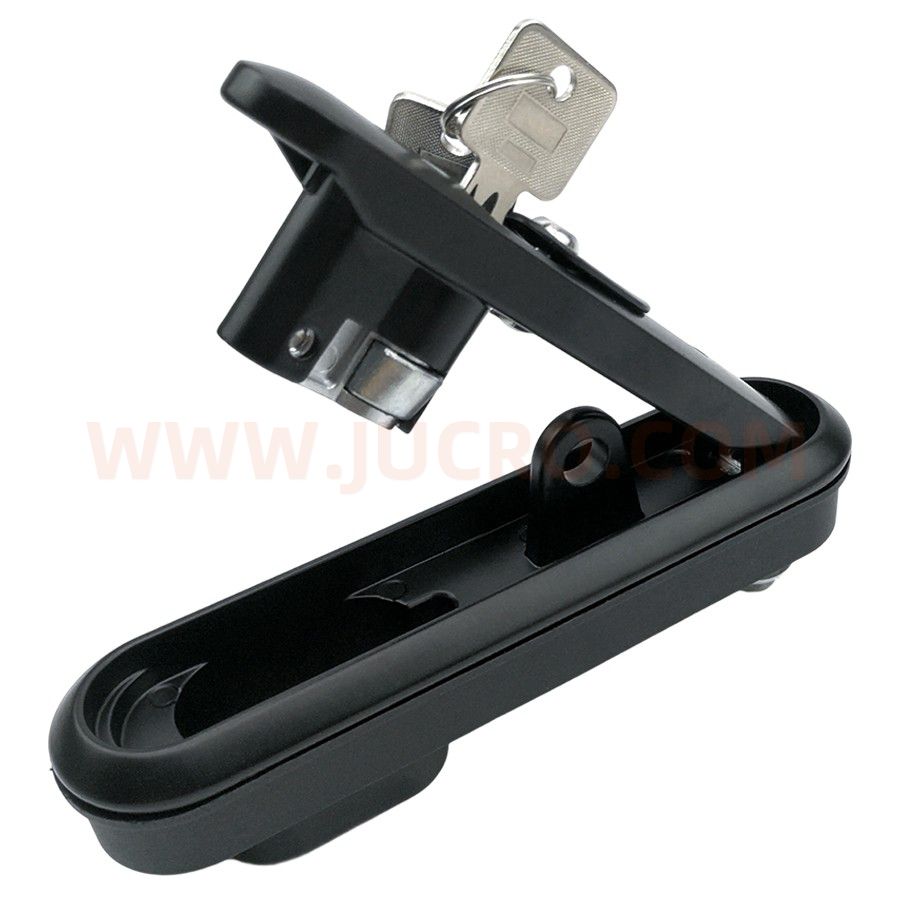

结构说明 Structure descriPTion | 把手90°旋转实现打开及锁闭，调换定位件方向实现左右开启，止口高度可调，带挂锁 90° rotation to open or close, change the direction of the position device to suit RH or LH application, grip range is adjustable, padLockable |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
手柄承载拉力值： Handle tension capability |
≤2500N |
|
手柄承载扭矩值： Handle torque capability |
≤21N.m |
|
***静载荷： Maximum static load |
600N |
|
提示：拧紧防护盖有利于保护锁头 Remark: The tighten cap is good for protecting the cylinder |
|
|

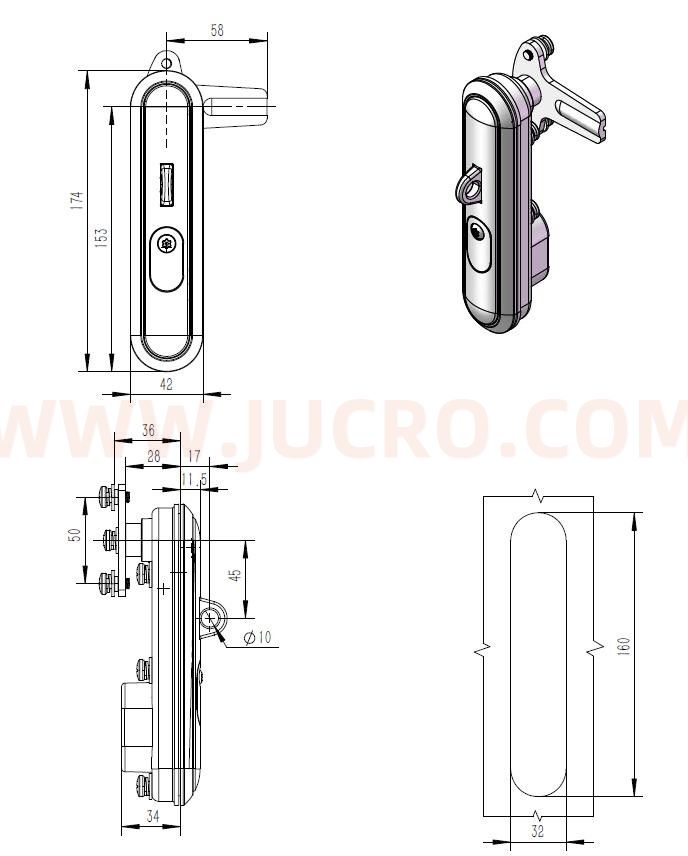

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
