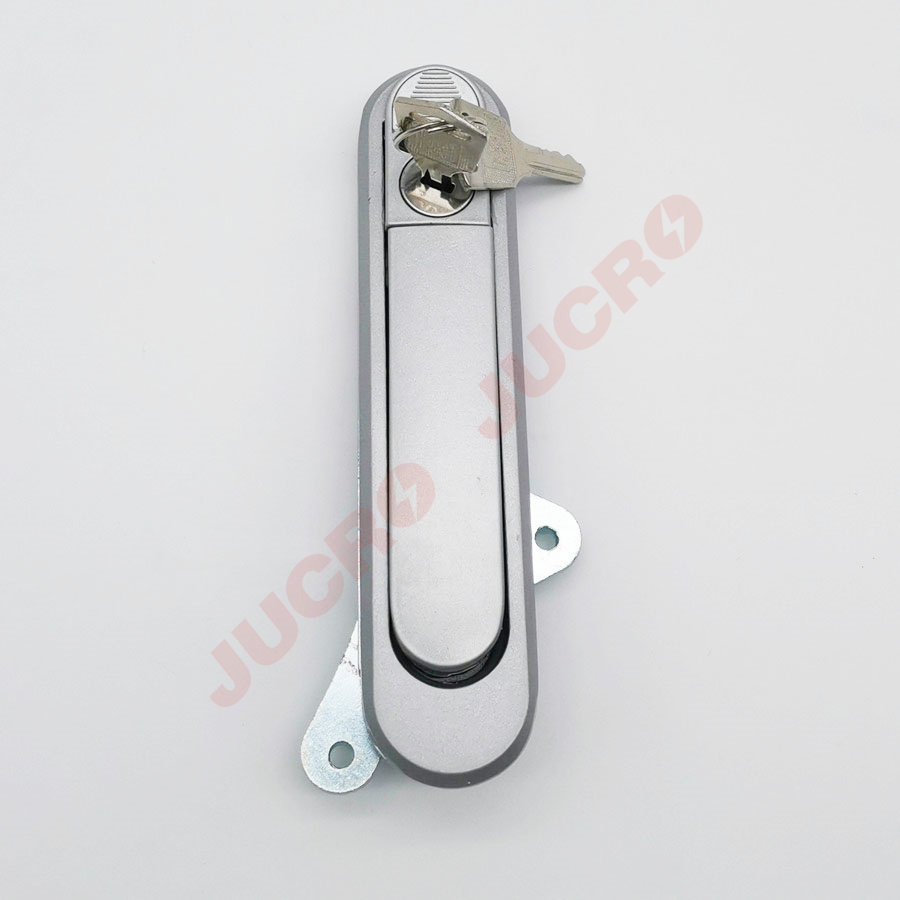

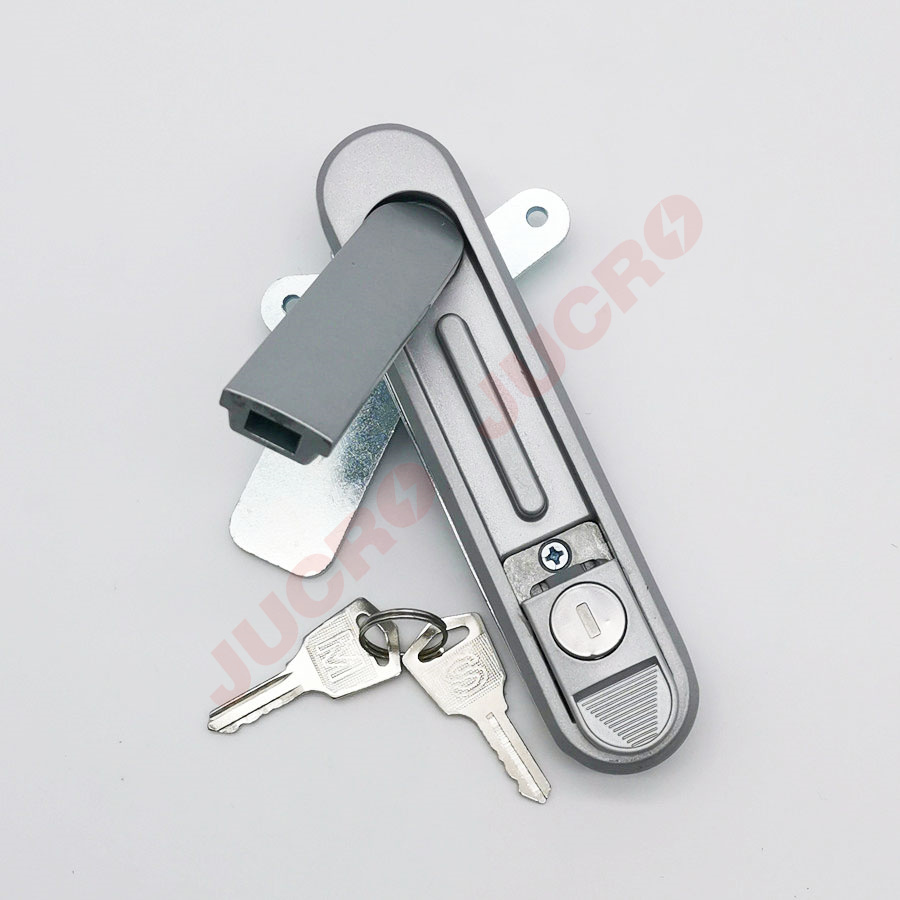

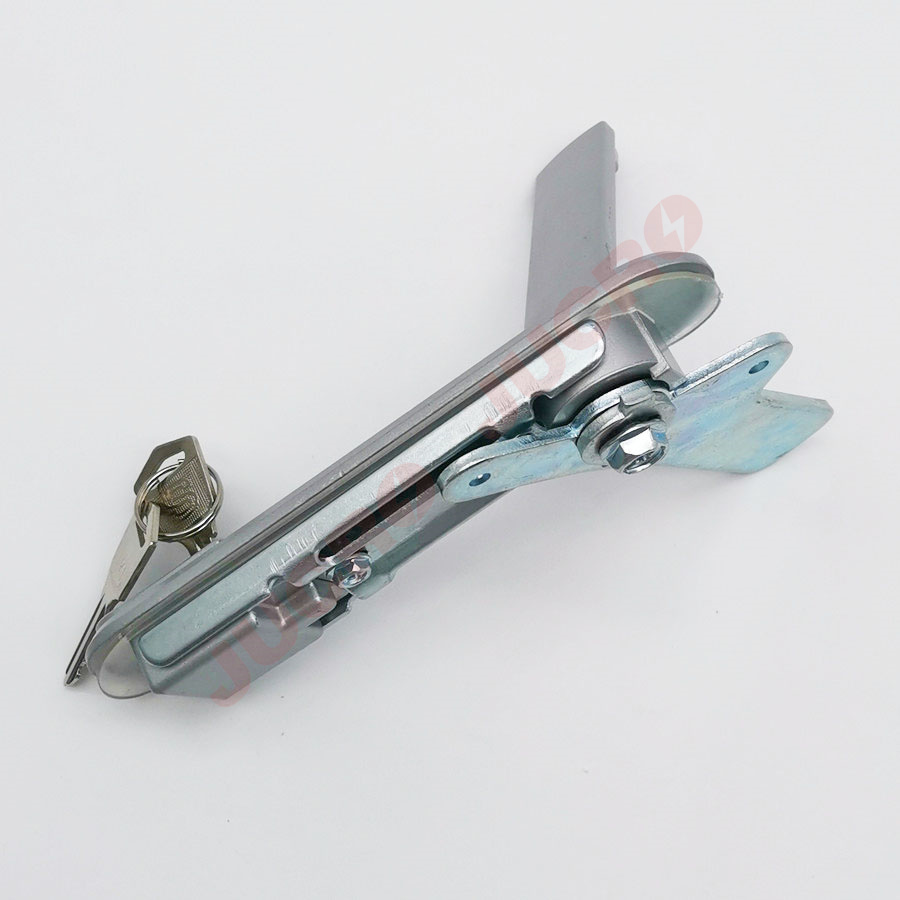

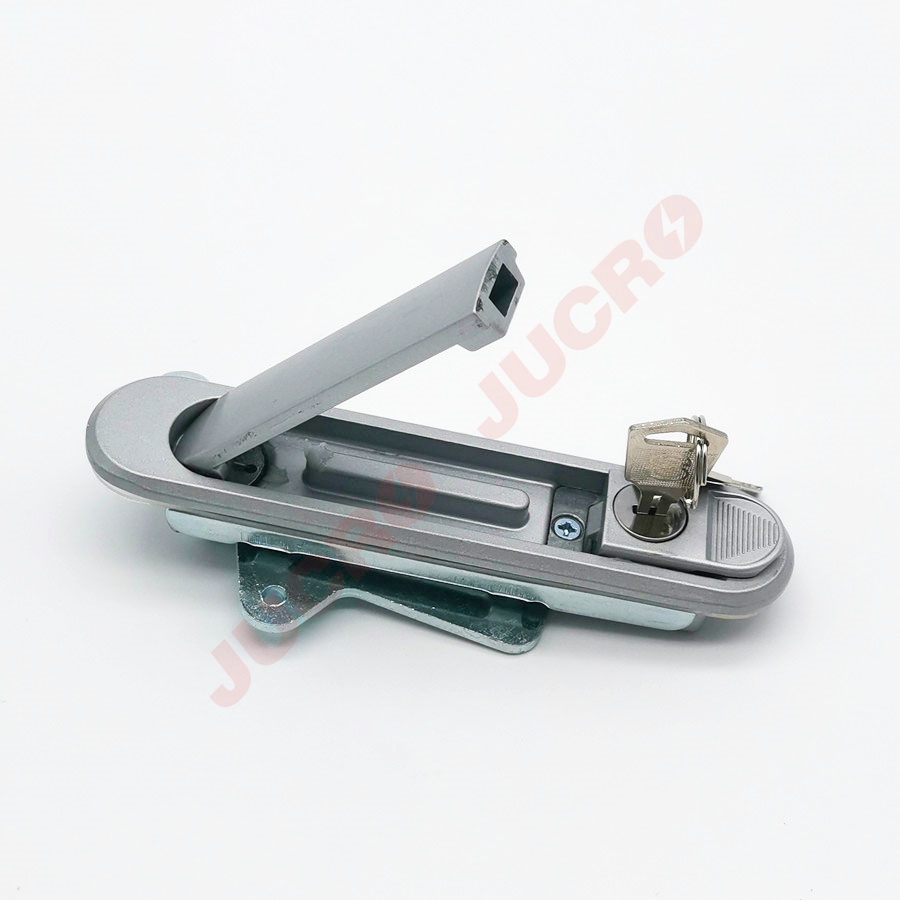

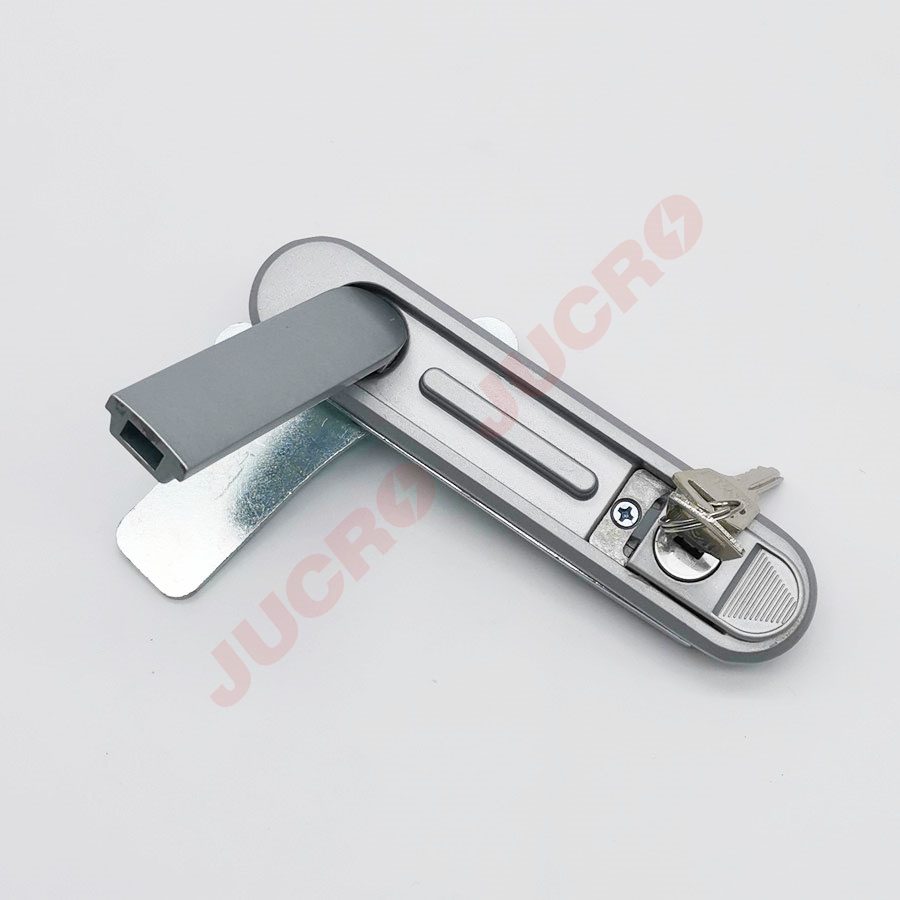

PLANE LOCK (DLP301-1)

PLANE LOCK (DLP301-1)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢压板、钢栓

Zinc alloy base, handle and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

纳米哑光基座、手柄、按钮,钢栓、压板镀白锌

Nanometre matte painted base, handle and button, white zinc plating for steel bolt and supporting plate

结构说明

Structure descriPTion

快速开启,安装方便快捷;更换钢栓可达到单点与三点锁住功能的变换

Quick-open,easy assembling. Replace the steel bolt can change the Locking function of a single point and three points.

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

手柄承载扭矩值

Handle load torque capability

40N.m

手柄承载拉力值

Handle load tension capability

690N

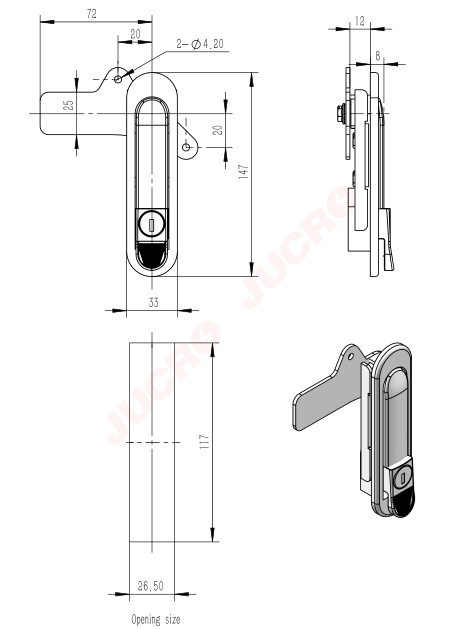

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢压板、钢栓

Zinc alloy base, handle and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

纳米哑光基座、手柄、按钮,钢栓、压板镀白锌

Nanometre matte painted base, handle and button, white zinc plating for steel bolt and supporting plate

结构说明

Structure descriPTion

快速开启,安装方便快捷;更换钢栓可达到单点与三点锁住功能的变换

Quick-open,easy assembling. Replace the steel bolt can change the Locking function of a single point and three points.

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

270N

手柄承载扭矩值

Handle load torque capability

40N.m

手柄承载拉力值

Handle load tension capability

690N

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
