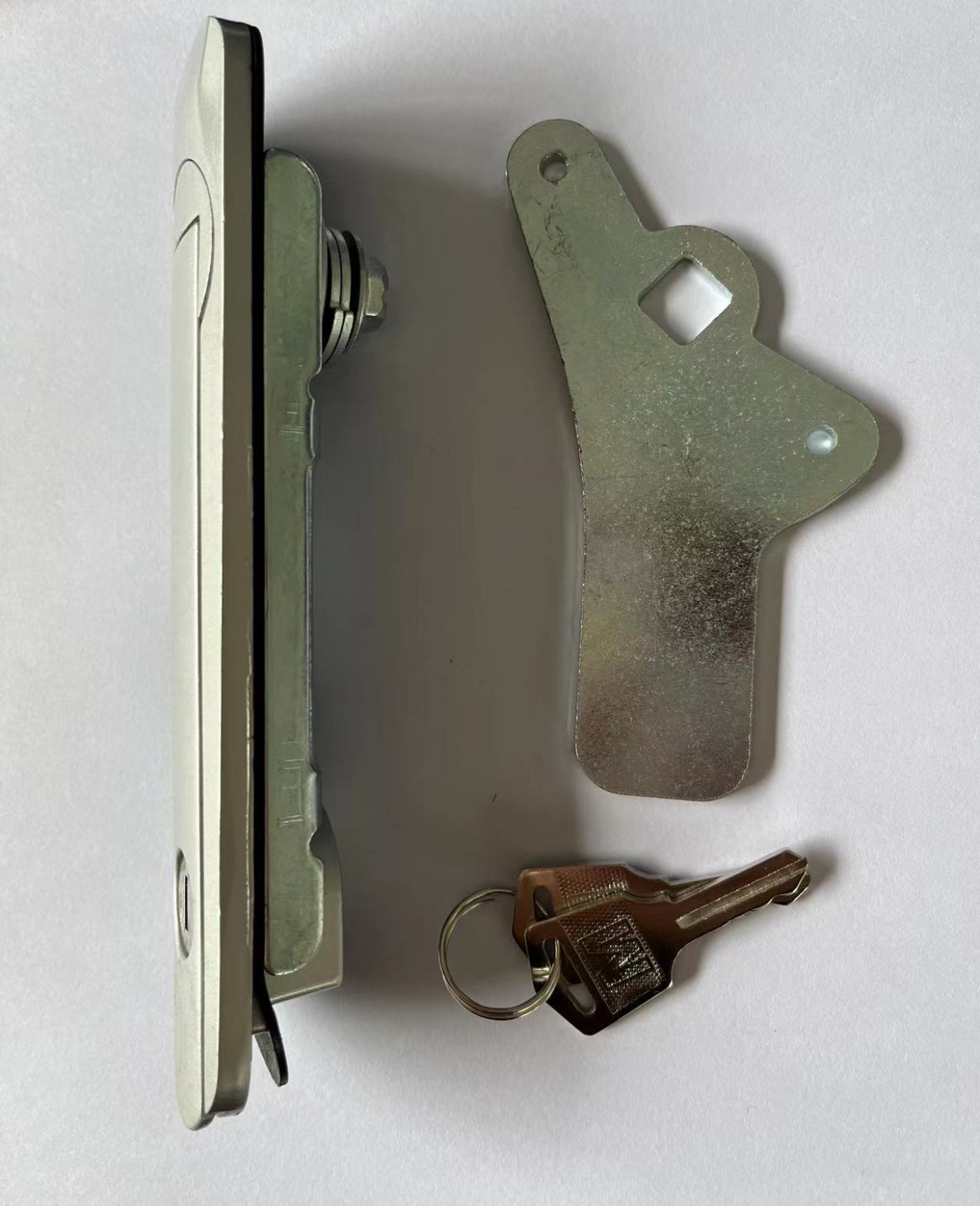

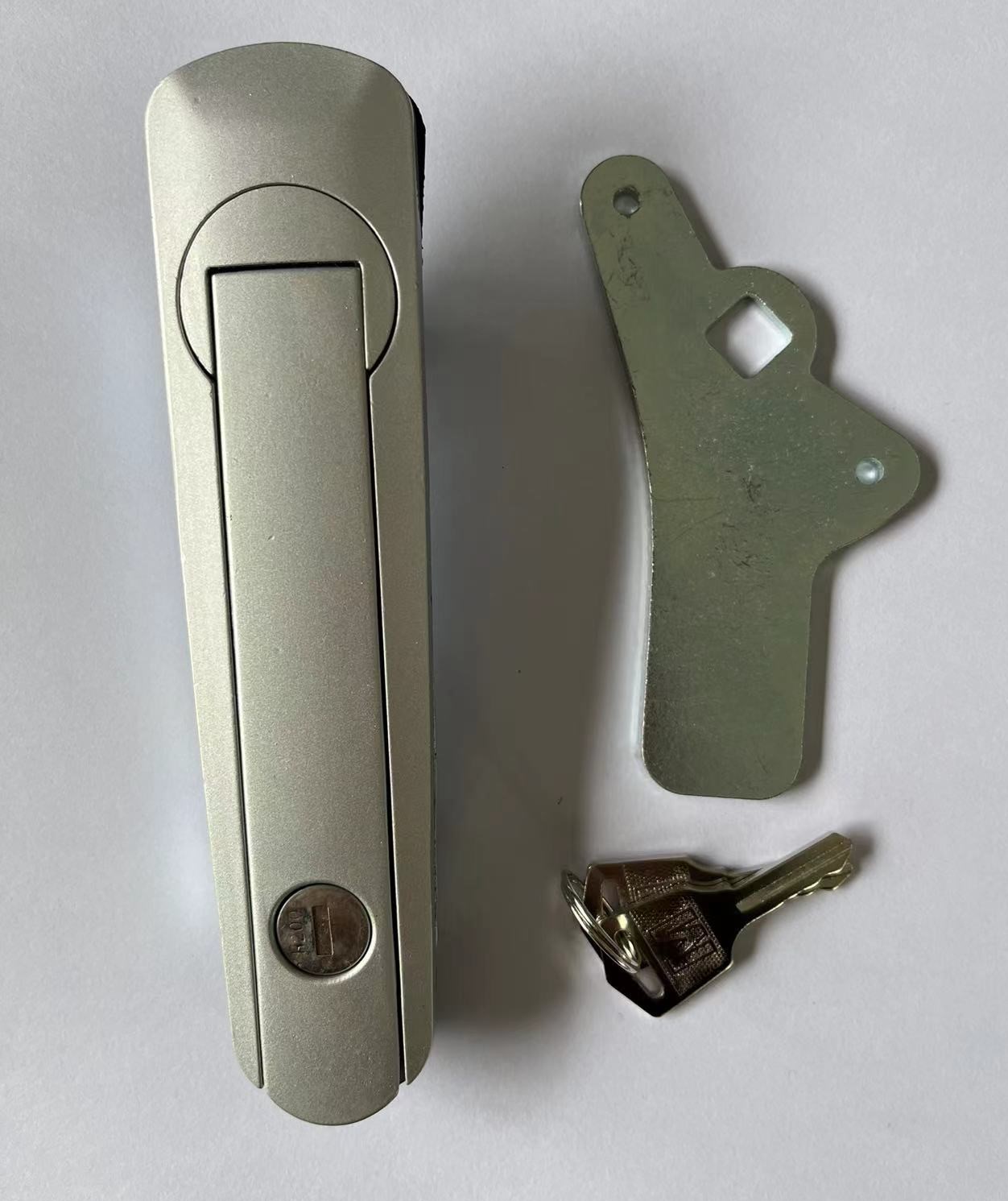

PLANE LOCK (DLP401)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、锁芯，碳钢压板、钢栓 Zinc alloy base, handle and cylinder, carbon steel plate and steel bolt |
表面处理 Surface treatment | 纳米哑光基座及手柄，钢栓、压板镀蓝白锌 Nanometer matte painted base and handle, blue white zinc plating for steel bolt and supporting plate |
结构说明 Structure descriPTion | 手柄向上打开，90°旋转实现开启 Open the handle upward, quarter-turn opening |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 300N |
手柄承载扭矩值 Handle load torque capability | ≤12N.m |
手柄承载拉力值 Handle load tension capability | ≤390N |

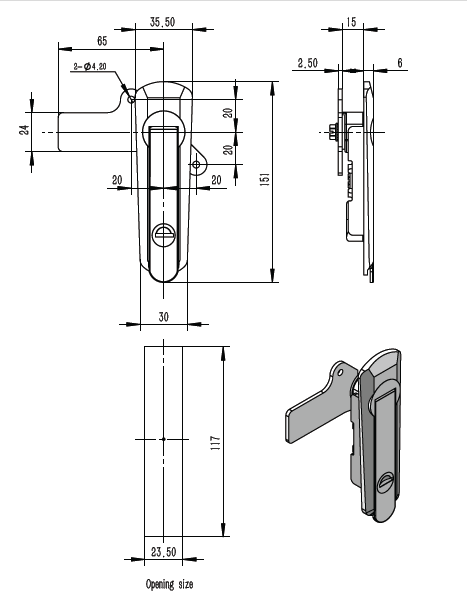

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
