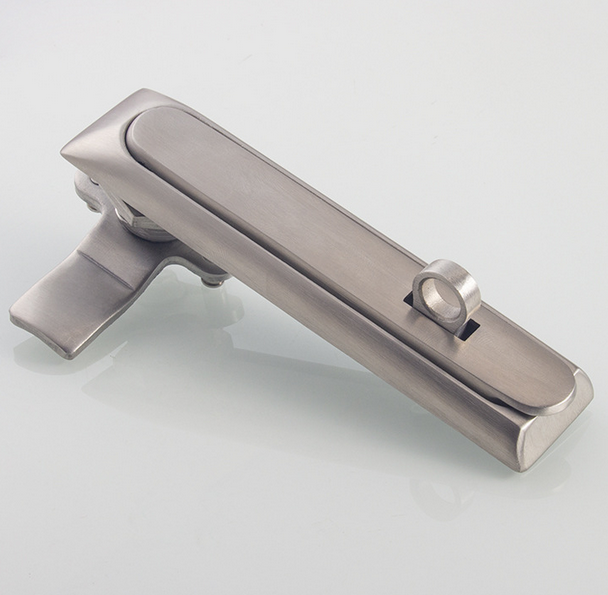

Plane Lock (DL834)
特征说明 CHARACTERISTICS | |
材 质 Material | 不锈钢 Stainless steel |
表面处理 Surface treatment | 拉丝抛光 Polishing |
结构说明 Structure descriPTion | 带挂锁; 把手90°旋转实现打开及锁闭 PadLock available；Quarter-turn lock/un-lock |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 300N |
手柄承载拉力值 Handle load tension capability | ≤280N |
手柄承载扭矩值 Handle load torque capability | ≤42N•m |

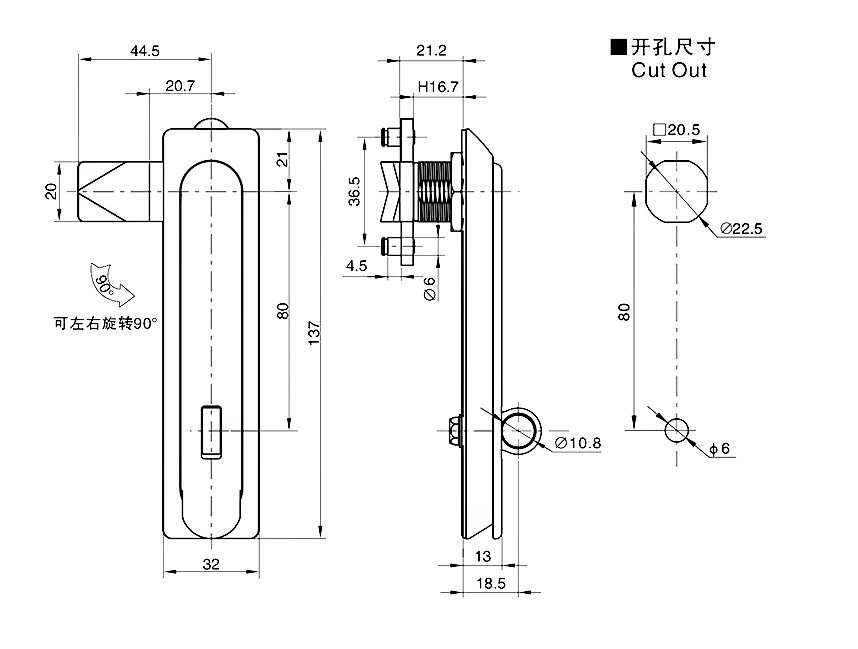

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
