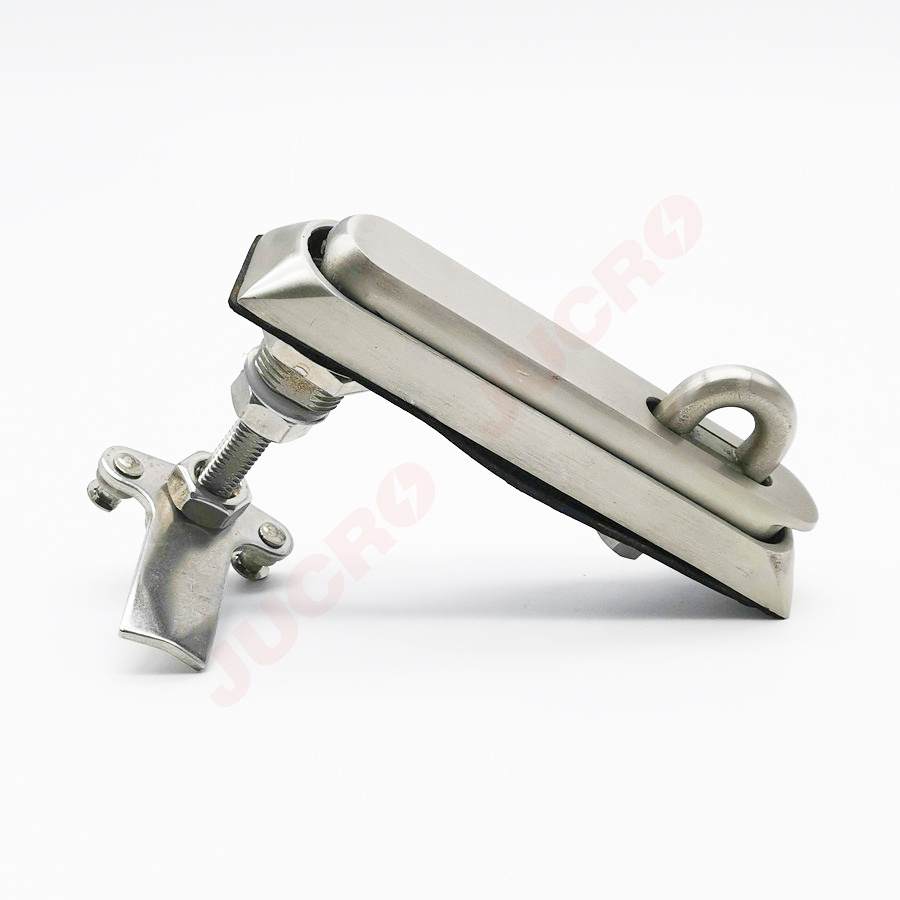

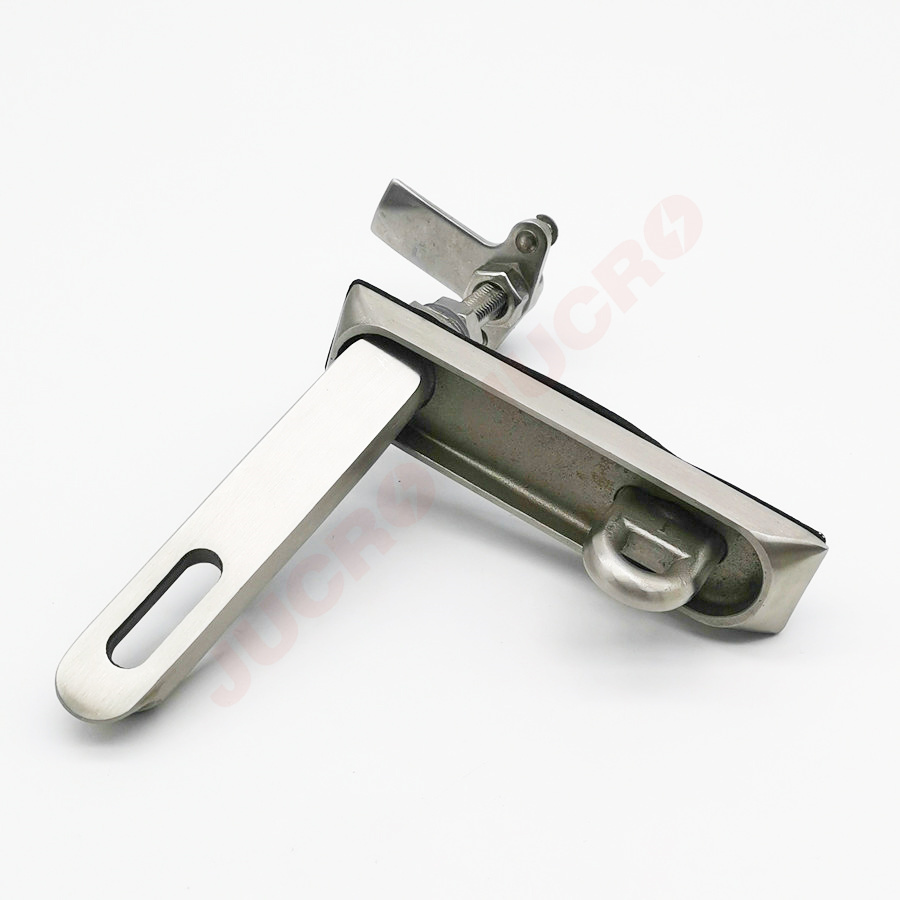

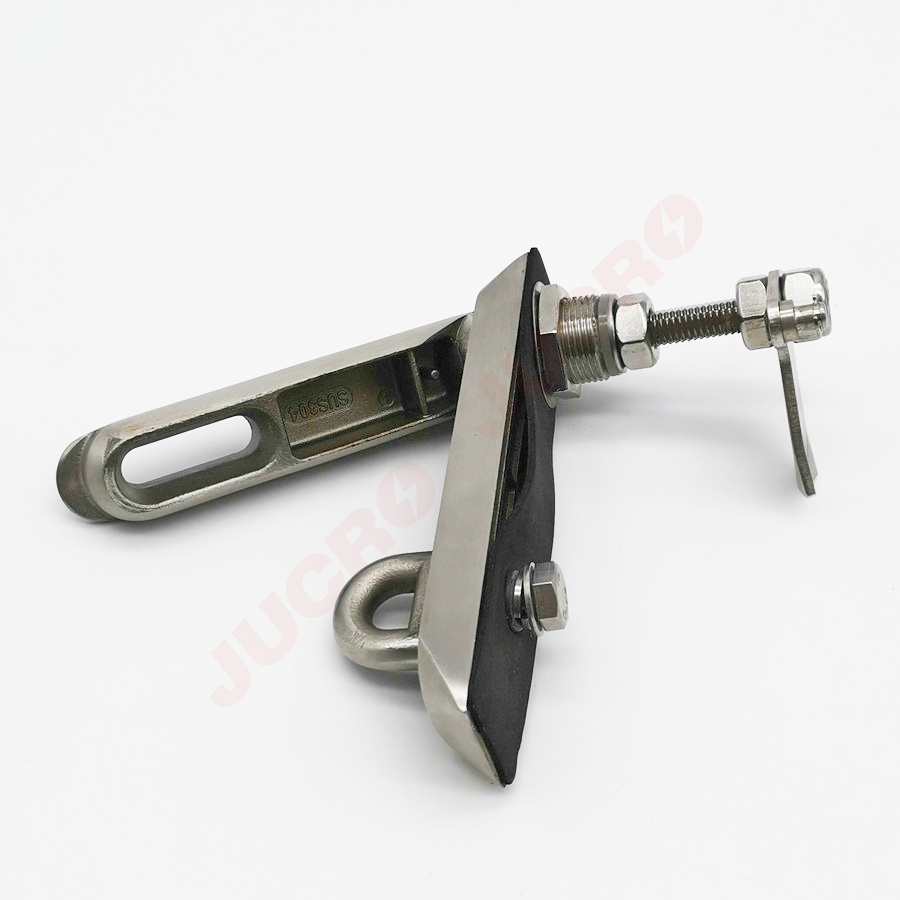

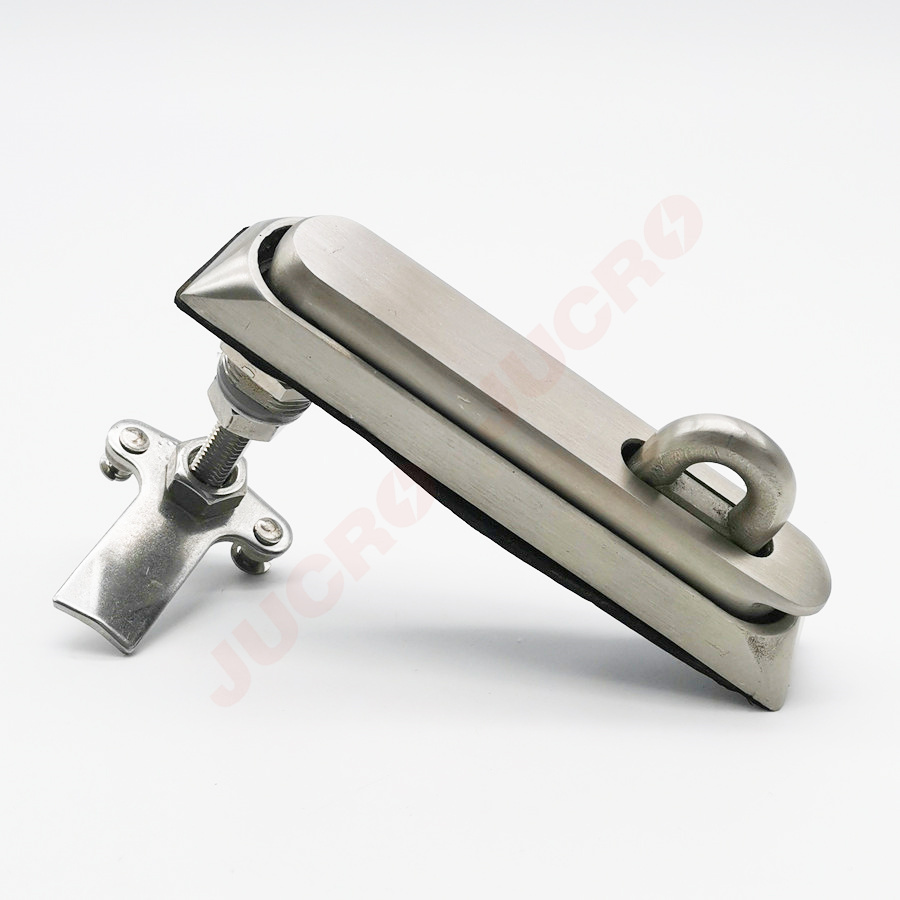

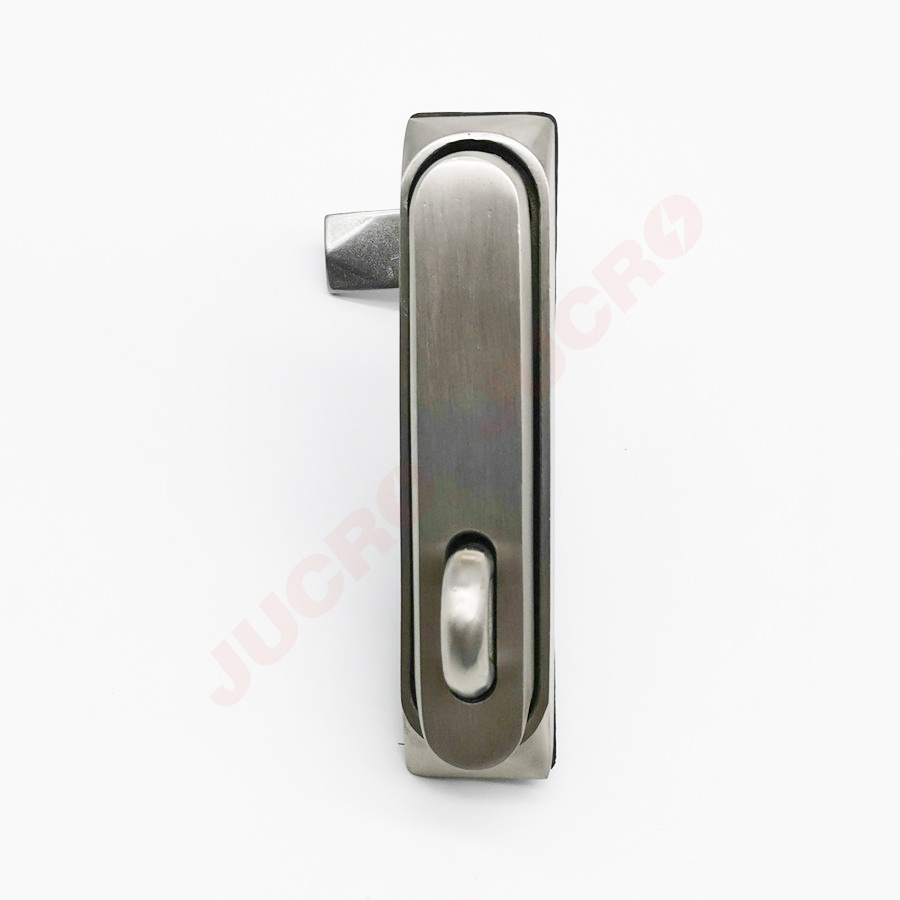

Plane Lock (DL860-1S)

Plane Lock (DL860-1S)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

不锈钢

Stainless steel

表面处理

Surface treatment

拉丝抛光

Polishing

结构说明

Structure descriPTion

止口高度可通过螺母调节;带挂锁

The H dimension can be adjusted by nut; padLock available



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

300N

手柄承载拉力值

Handle load tension capability

280N

手柄承载扭矩值

Handle load torque capability

42Nm

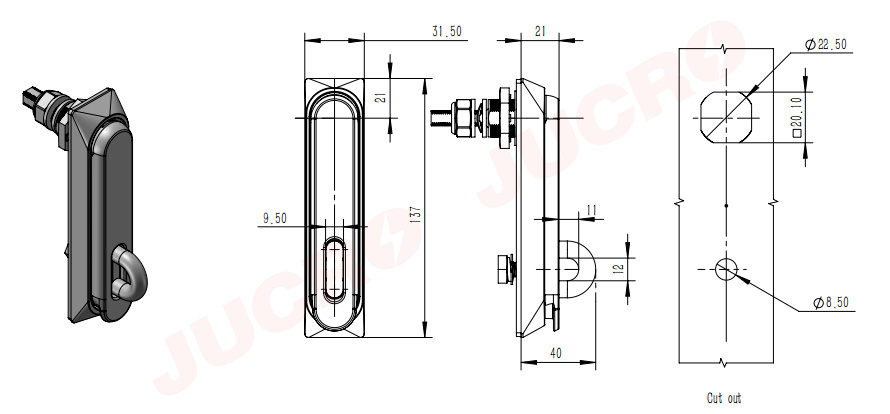

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

不锈钢

Stainless steel

表面处理

Surface treatment

拉丝抛光

Polishing

结构说明

Structure descriPTion

止口高度可通过螺母调节;带挂锁

The H dimension can be adjusted by nut; padLock available



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

300N

手柄承载拉力值

Handle load tension capability

280N

手柄承载扭矩值

Handle load torque capability

42Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
