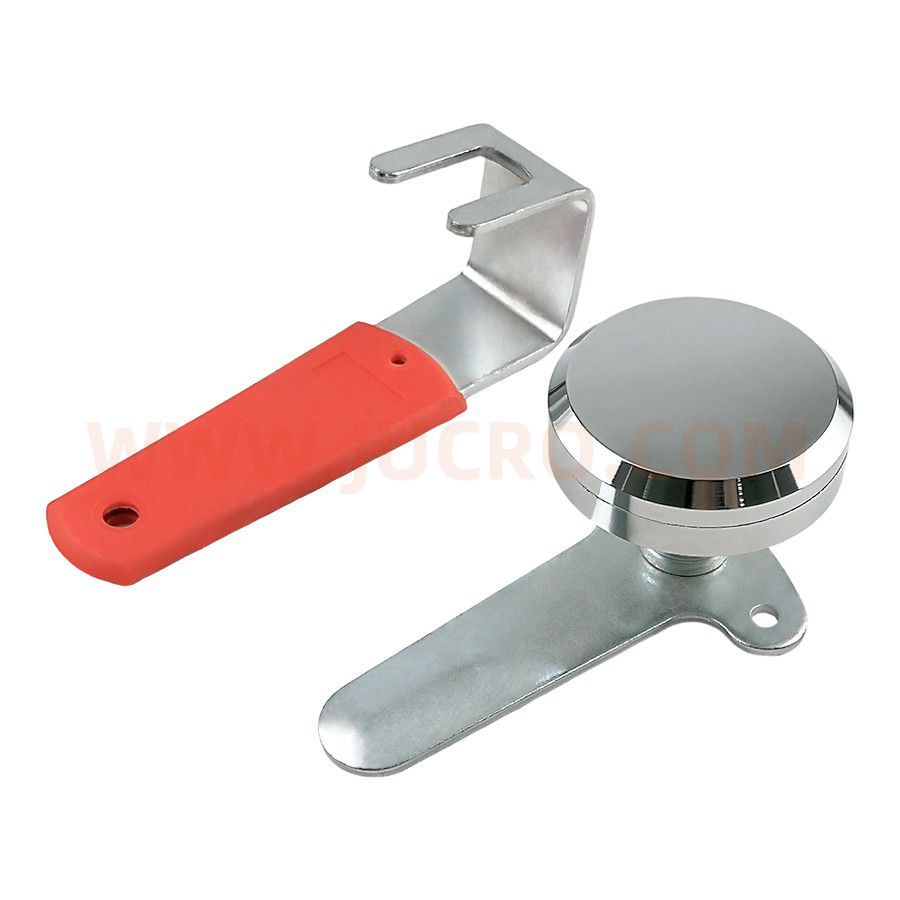

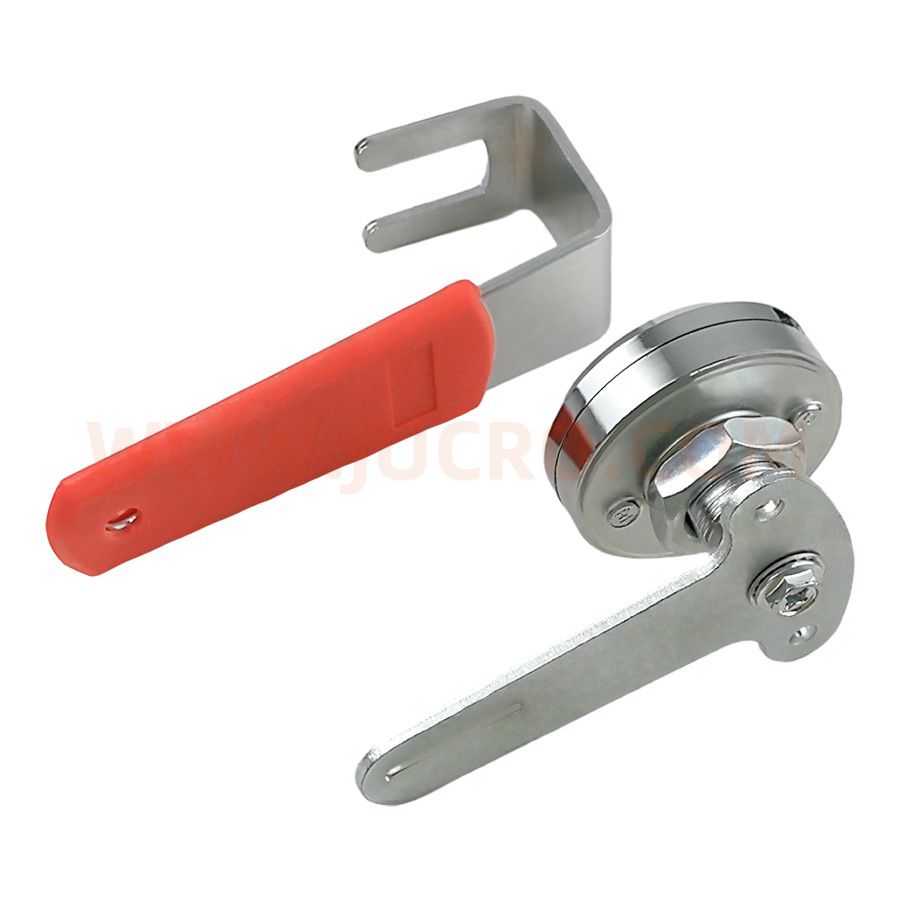

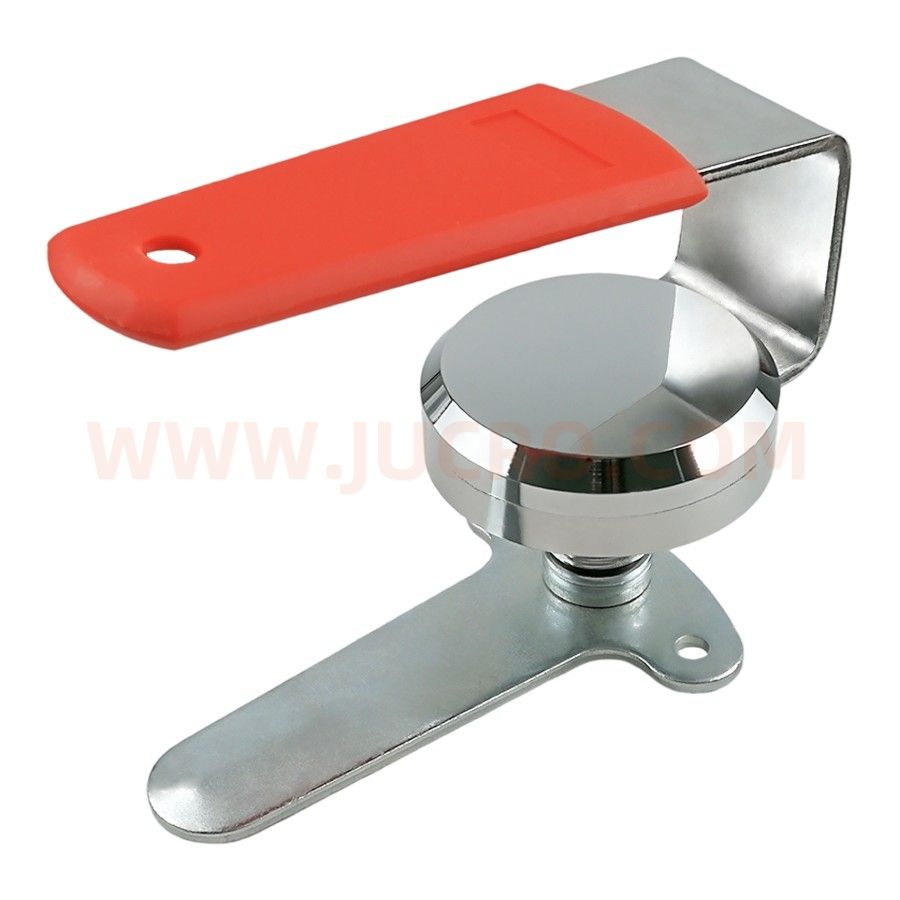

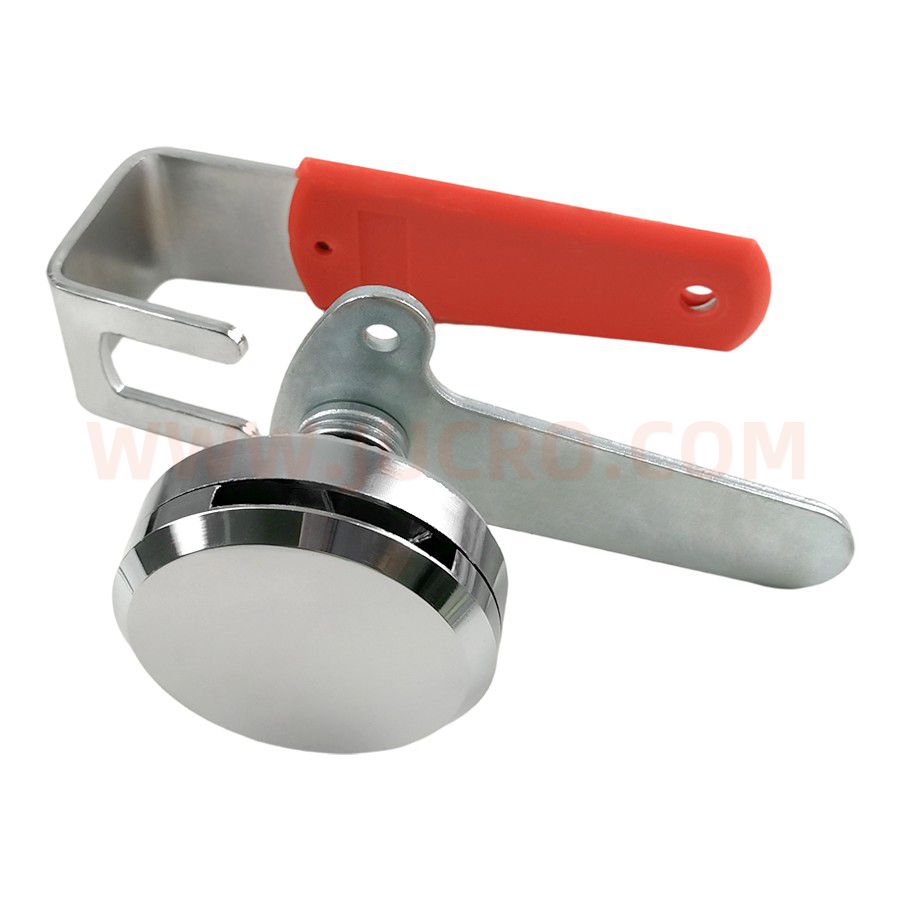

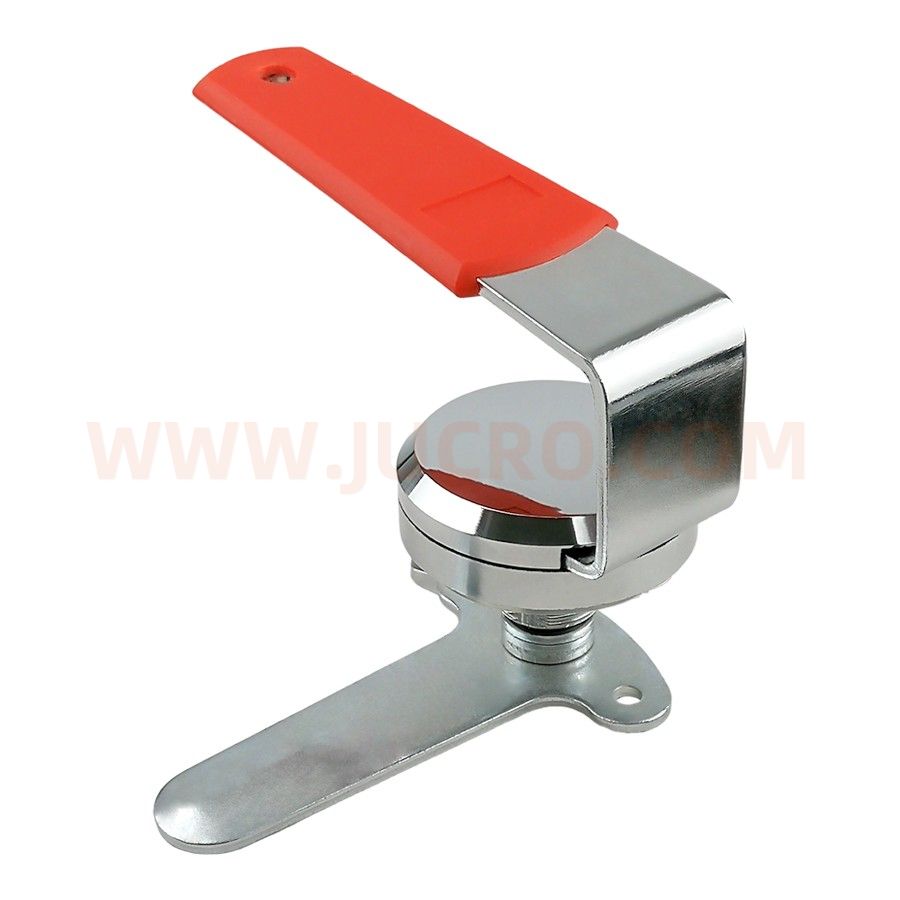

CAM LOCK (DL812-1)
|
特征说明 CHARACTERISTICS |
|
|
材 质 Material |
锌合金锁体、盖板，碳钢锁舌 Zinc alloy housing and cover, carbon steel cam |
|
表面处理 Surface treatment |
镀亮光铬锁体、盖板，镀白锌锁舌 Bright chrome plated housing, cover, white zinc plated steel cam |
|
结构说明 Structure descriPTion |
70°旋转实现开启或锁闭 70 degrees rotation to achieve Lock and unlock function |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
***静载荷 Maximum static load |
110N |
|
***输入扭矩 Maximum input torque |
11N.m |
|
固走螺母的推荐拧紧力矩 Recommended nut tightening torque |
20N.m |
备注：以上数据为***静荷载。
Remark：Theabovedata is maximum static load.
|

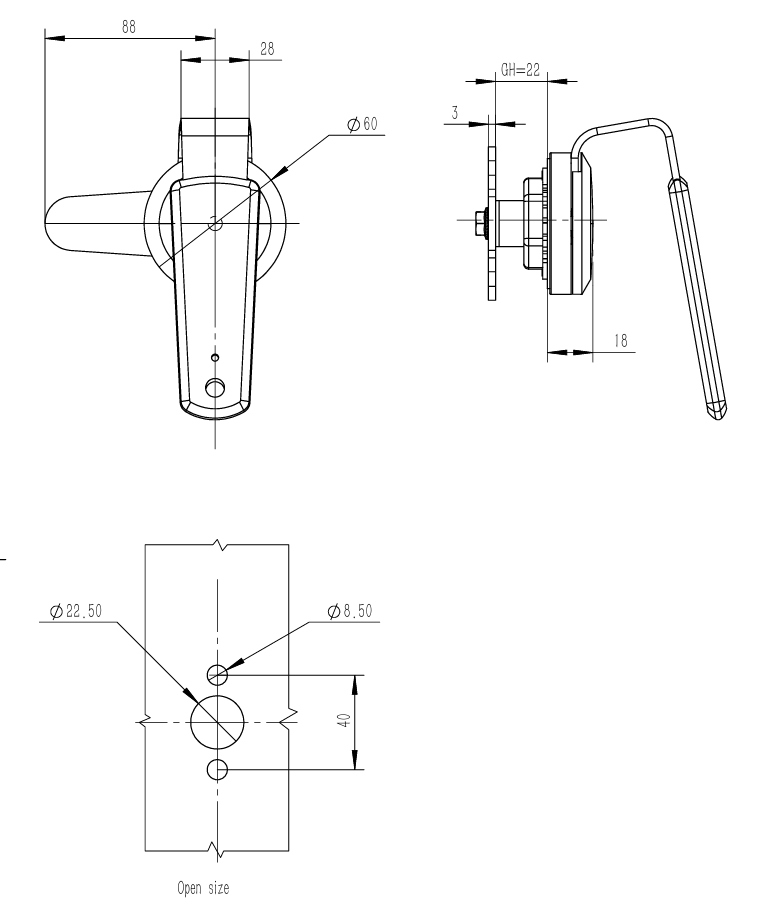

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
