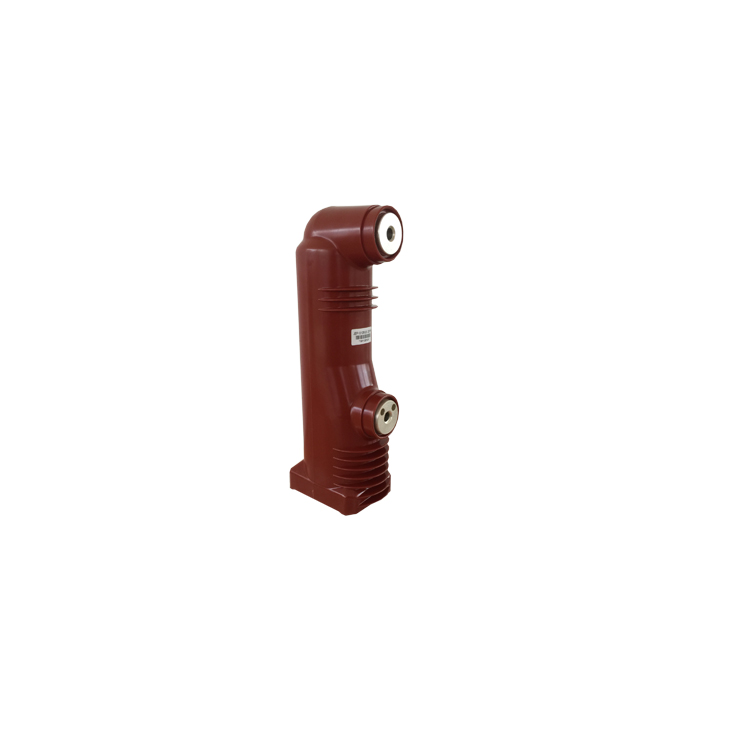

Solid Embedded Poles 12KV 1250A 1600A 25A for vacuum circuit breaker

Vacuum circuit breaker resin cast pole

Product Detail

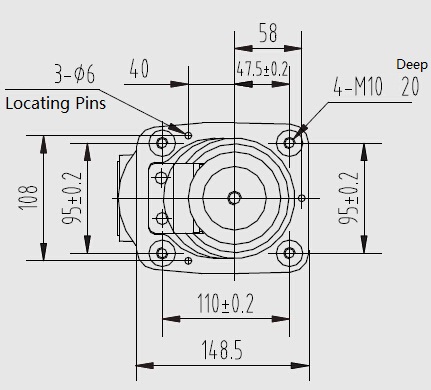

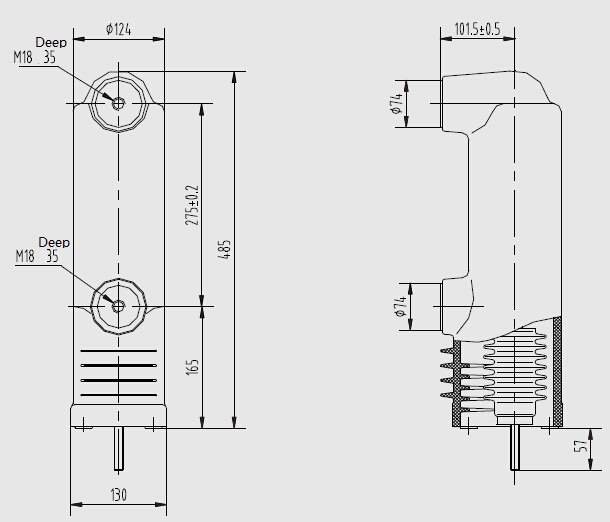

Solid Embedded Poles 12KV 1250A 1600A 25A for vacuum circuit breaker


The Solid Embedded Poles use epoxy resin to cast vacuum interrupter(chamber) and its electric connecting parts into pole with special technique. We can offer 12kv, 24kv and 40.5kv Solid Embedded Poles for corresponding Vacuum Circuit Breaker. Its characteristics are as following.

a). High reliability: Reducing assembly and adjustment procedures and improving mechanical reliability. The solid embedded pole has been assembled the upper/lower outgoing line bases together with electric clamp, flexible connector and insulating bar. The user just needs to fix the solid embedded pole on the switch operation mechanism, connect it with VCB mechanism by a special screw. Thus it reduces many assembly and adjustment procedures, improves assembly quality and mechanical reliability.

b). Compact design: Adopting epoxy resin as insulation medium, the pole distance can be shortened to 30-60mm. So that the size of the vacuum circuit breaker and switchgear can be reduced.

c). Lengthening the outside creepage distance: Lengthening the outside creepage distance of the main circuit, improving outside insulation level of the Vacuum interrupter (chamber) and the anti-pollution ability.

d). Maintenance-free: Maintenance-free of Vacuum interrupter (chamber) enables Vacuum circuit breaker maintenance-free.



Main Technical Parameter

Unit

Value

Rated voltage

kV

12

Rated current

A

1250/1600

Rated frequency

Hz

50/60

Short time power frequency withstand voltage (1min)

kV

42/48

Rated lightning impulse withstand voltage

kV

75/85

Rated short circuit breaking current

kA

25

Rated short circuit making current

kA

63

Breaking operations of rated short circuit breaking current

Time

30

Rated breaking current of capacitor bank

A

630

Rated short time withstand current

kA

25

Rated peak withstand current

kA

63

Rated duration of short circuit

s

4

Mechanical endurance

Time

20000

Closing force due to bellow and atmosphere

N

120±40

Force required to hold contacts open at full stroke

N

180±50

Circuit resistance at lower limit of rated contact force

μΩ

25

Storage time

Year

20

Contact limit erosion

mm

3


No comment
