JCZR Series Indoor High Vacuum Contactor-Fuse Combination Electric Appliance

Vacuum contactor cart (draw out type vacuum contactor)



General:

This combination electric appliance may install in the switch cabinet to form the F-C loop, use with the integrated protection device. It is used for loading of the switching on and switching off the power pant as well as the industry and mining enterprise, dropout AC high-tension motor, the transformer, capacitor and so on, and it has overload, short circuit protection function. This combination electric appliance may use in AC 50 HZ three-phase power systems.



Technical Data:

1. Main Technical Parameter see Table 1.

No.

Name

Unit

Data

1

Rated voltage

KV

7.2

12

2

Rated insulation level 1min power frequency withstand voltage phase to phase, to earth, the fracture impact withstand voltage(fracture)

KV

32

42

60

75

3

Fuse rated current

A

25-250

25-200

4

Prospective short circuit breaking current

KA

50

50

5

Prospective short circuit making current(peak value)

130

130

6

Prospective short circuit withstand current( peak value)

10

10

7

Rated short time withstand current( effective value)

4

4

8

Rated short circuit duration

S

4

4

9

Rated making current

KA

4

4

10

Rated breaking current

KA

3.2

3.2

11

Limit breaking current

KA

4.5

4.5

12

Contactor distance between fixed and moving contact

mm

4.5

5

13

Contactor over-travel

mm

1.5

1.5

14

Mechanical life

Time

Model J:100,000

Model D:300,000

Model J100000

Model D:300,000



2.      Closing/open coil technical data see Table 2


Closing coil

Holding coil

Opening coil

Rated operation voltage(V)

DC220,DC110

DC220,DC110

DC220,DC110

Coil power(W)

1200

15

80

Normal work voltage range

85%-110% rated voltage

85%-110% rated voltage

60Z%-120% rated voltage



Requirement for service condition

a)      Ambient temperature: +40℃~-15, average temperature in 24h limited below +35

b)     Altitude: Model JCZR-7.2J(D)

When used in rated voltage 7.2kv system, not over 1000m

When used in rated voltage 3.6kv system, not over 3000m

Model JCZR-12J(D)

When used in rated voltage 12kv system, not over 1000m

When used in rated voltage 7.2kv system, not over 3000m.

c)      The surrounding air free from the pollution of dust, smoke, caustic gas, steam or salt mist.

d)     Temperature:

Relative humidity: The daily average not over 95%m the monthly average not over 90%;

Steam pressure: The daily average not over 2.2Kpa, the monthly average not over 1.8Kpa.

e)      The external vibration and earth movement of switch device and control device can be neglected.

In secondary system, the amplitude value of electromagnet interference does not surpass 1.6KV.



Main Structure and Working Principle

4.1 Main structure

4.1.1The fuse and contactor in the contactor-fuses association electrical apparatus is distributed vertically, and installed on the bottom plate together.

4.1.2Fuses are installed next to the power of contactor.

4.1.3After operating the fuse impinges causes the contactor switches off electrically, and cut the switch on loop.

4.1.4The entering and exit of cart uses the feed screw mechanism that may realize closing operation.

4.1.5Complete interlock functions and reasonable design.



Installing dimensions

7.2kv dimensions (the dimensions in brackets is for 12kv)


No comment

Product Detail

JCZR Series Indoor High Vacuum Contactor-Fuse Combination Electric Appliance

Vacuum contactor cart (draw out type vacuum contactor)



General:

This combination electric appliance may install in the switch cabinet to form the F-C loop, use with the integrated protection device. It is used for loading of the switching on and switching off the power pant as well as the industry and mining enterprise, dropout AC high-tension motor, the transformer, capacitor and so on, and it has overload, short circuit protection function. This combination electric appliance may use in AC 50 HZ three-phase power systems.



Technical Data:

1. Main Technical Parameter see Table 1.

No.

Name

Unit

Data

1

Rated voltage

KV

7.2

12

2

Rated insulation level 1min power frequency withstand voltage phase to phase, to earth, the fracture impact withstand voltage(fracture)

KV

32

42

60

75

3

Fuse rated current

A

25-250

25-200

4

Prospective short circuit breaking current

KA

50

50

5

Prospective short circuit making current(peak value)

130

130

6

Prospective short circuit withstand current( peak value)

10

10

7

Rated short time withstand current( effective value)

4

4

8

Rated short circuit duration

S

4

4

9

Rated making current

KA

4

4

10

Rated breaking current

KA

3.2

3.2

11

Limit breaking current

KA

4.5

4.5

12

Contactor distance between fixed and moving contact

mm

4.5

5

13

Contactor over-travel

mm

1.5

1.5

14

Mechanical life

Time

Model J:100,000

Model D:300,000

Model J100000

Model D:300,000



2.      Closing/open coil technical data see Table 2


Closing coil

Holding coil

Opening coil

Rated operation voltage(V)

DC220,DC110

DC220,DC110

DC220,DC110

Coil power(W)

1200

15

80

Normal work voltage range

85%-110% rated voltage

85%-110% rated voltage

60Z%-120% rated voltage



Requirement for service condition

a)      Ambient temperature: +40℃~-15, average temperature in 24h limited below +35

b)     Altitude: Model JCZR-7.2J(D)

When used in rated voltage 7.2kv system, not over 1000m

When used in rated voltage 3.6kv system, not over 3000m

Model JCZR-12J(D)

When used in rated voltage 12kv system, not over 1000m

When used in rated voltage 7.2kv system, not over 3000m.

c)      The surrounding air free from the pollution of dust, smoke, caustic gas, steam or salt mist.

d)     Temperature:

Relative humidity: The daily average not over 95%m the monthly average not over 90%;

Steam pressure: The daily average not over 2.2Kpa, the monthly average not over 1.8Kpa.

e)      The external vibration and earth movement of switch device and control device can be neglected.

In secondary system, the amplitude value of electromagnet interference does not surpass 1.6KV.



Main Structure and Working Principle

4.1 Main structure

4.1.1The fuse and contactor in the contactor-fuses association electrical apparatus is distributed vertically, and installed on the bottom plate together.

4.1.2Fuses are installed next to the power of contactor.

4.1.3After operating the fuse impinges causes the contactor switches off electrically, and cut the switch on loop.

4.1.4The entering and exit of cart uses the feed screw mechanism that may realize closing operation.

4.1.5Complete interlock functions and reasonable design.



Installing dimensions

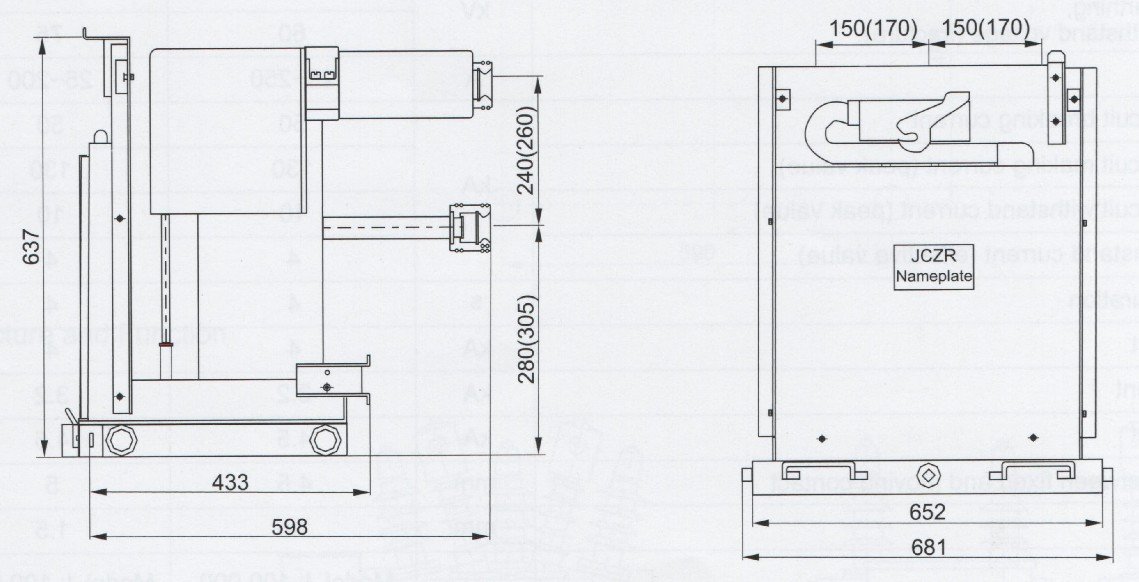

7.2kv dimensions (the dimensions in brackets is for 12kv)
