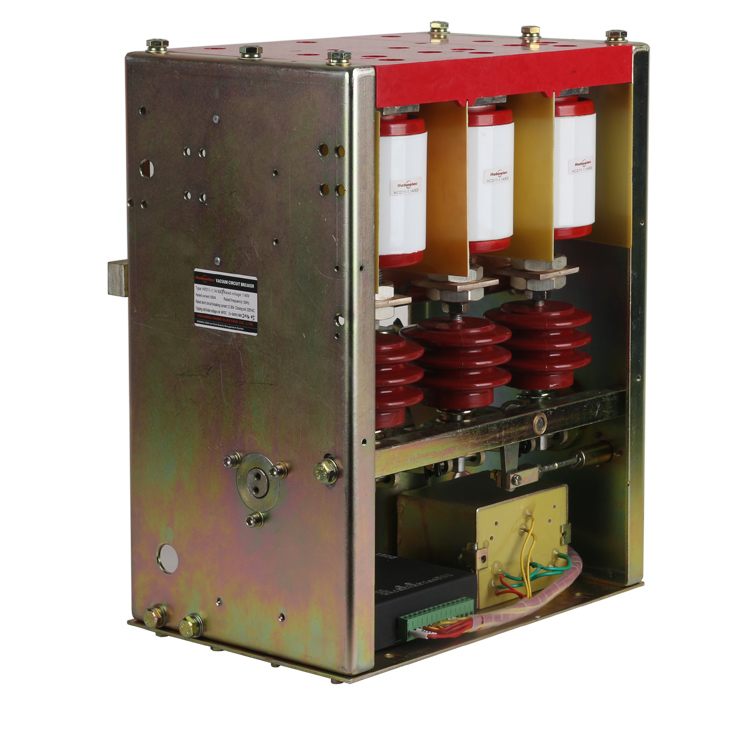

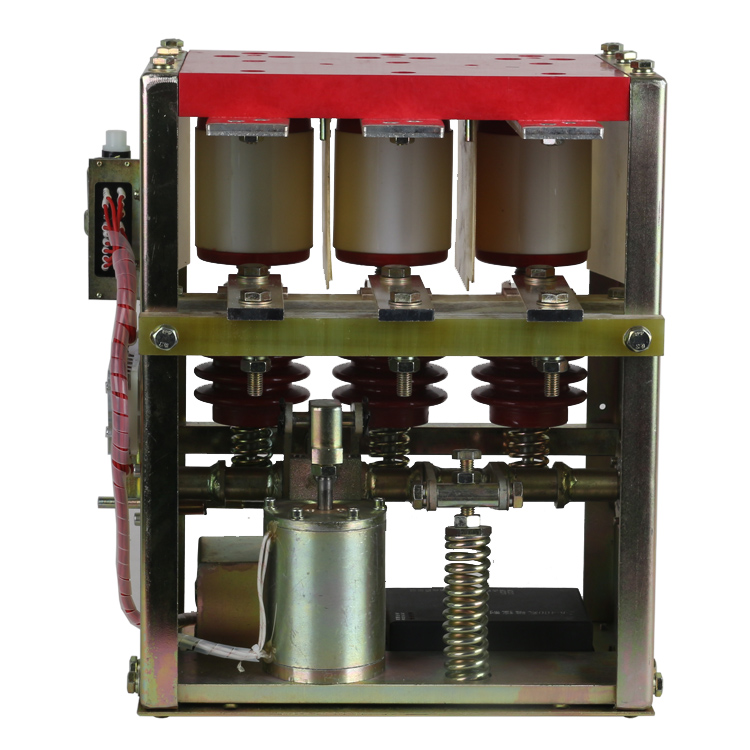

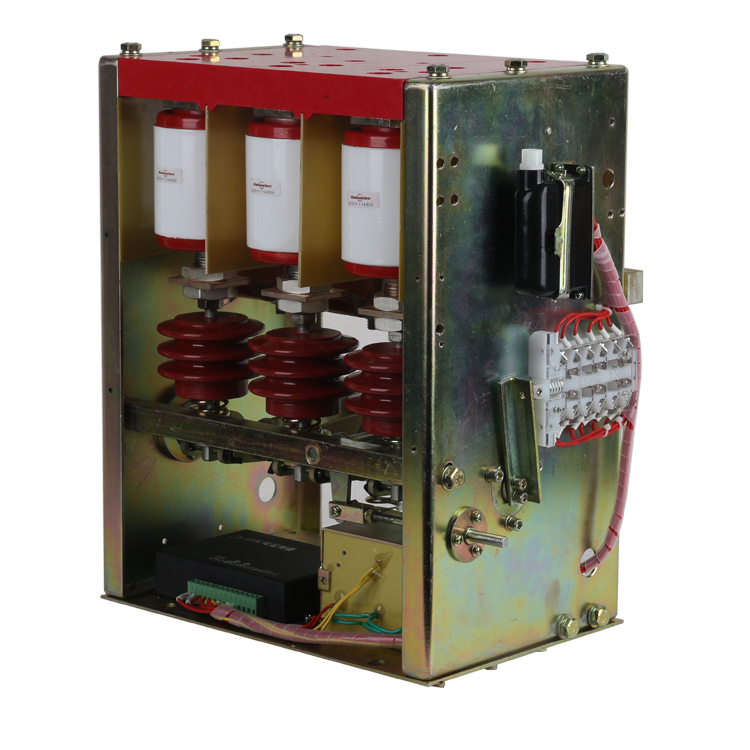

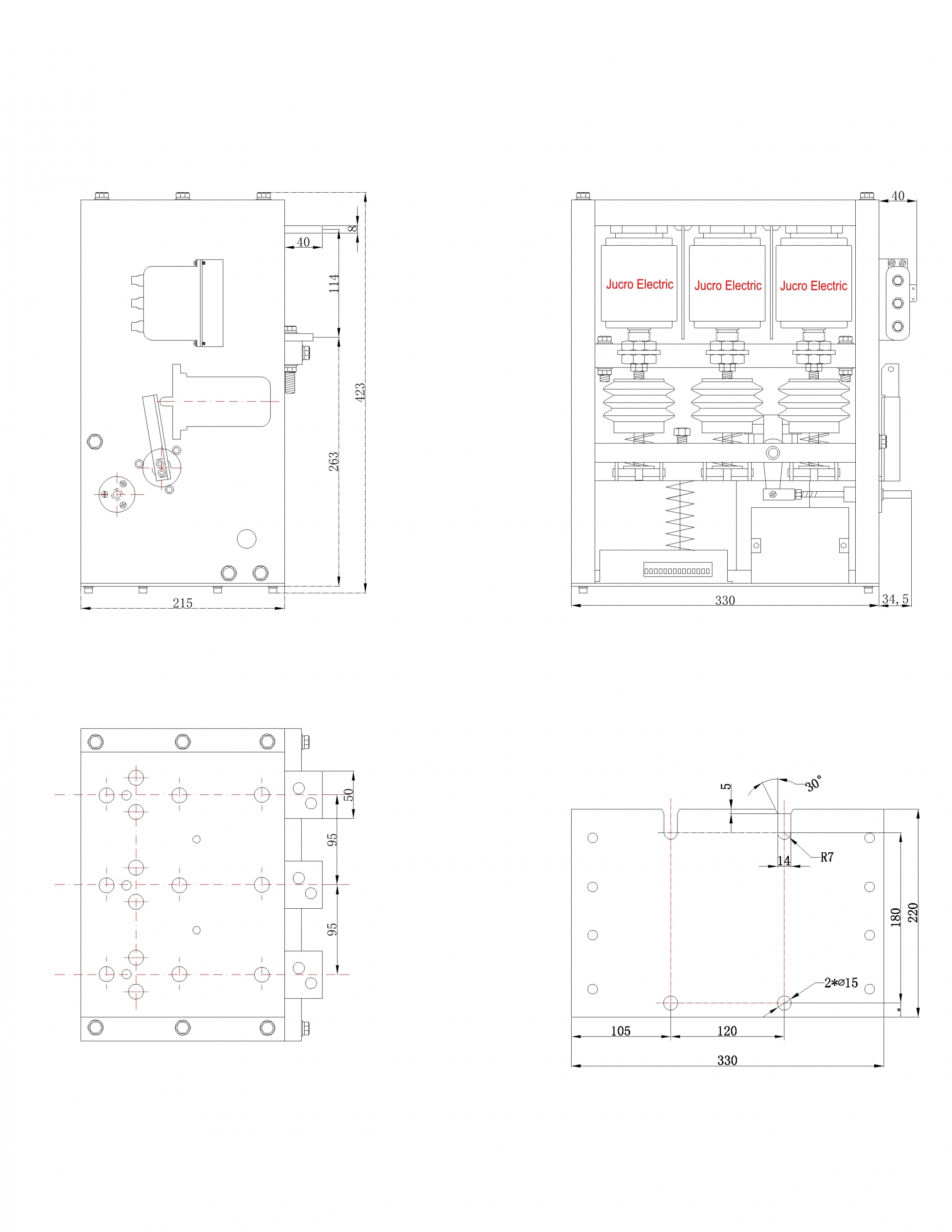

Vacuum Circuit Breaker VCB Permanent magnet mechanism HVD11Y 1.14KV 630A 15KA


General

HVD11-1.14 Permanent magnet mechanism Vacuum Circuit Breaker is mainly used in 1140v or 660v three phases electrical distribution system. Permanent magnet low-voltage vacuum circuit breakers can be operated under the rated current range frequently breaking the short-circuit current, more suitable for use in coal mine feed systems, composed of mining and high voltage flameproof distribution. ALso could use for Large-capacity motors for start infrequently.

This product uses bistable permanent magnet mechanism + short-circuit magnetic manual opening, simple structure, stable and reliable. Because there is no axle, hook and other mechanical parts, greatly reduced the mechanical parts failure caused by wear and tear, Longer service life.



Main specifications and technical parameters

No.

Item项目

Data参数

1

Rated voltage额定电压

1140v AC

2

Rated current额定电流

630A

3

Convention thermal current额定发热电流

630A

4

Rated short circuit breaking current短路分断电流

15KA(1140V, COSφ=0.3)

5

Rated short circuit breaking times额定短路开断时间

16times(Closing-Opening 10 times, Opening 6 times)

6

Rated working frequency额定频率

50HZ

7

Electrical life电寿命

3000times AC-2

8

Mechanical life机械寿命

50000times AC-2

9

Inherent closing time固有合闸时间

100ms

10

Inherent opening time固有分闸时间

30ms

11

Three phases unsynchronized time三相不同期时间

1.5ms

12

Resistance of single phase closing circuit

单极合闸回路电阻

100μΩ

13

Opening distance开距

3.0~4.0mm

14

Over travel distance超程

1.8~2.2mm

15

Auxiliary contacts辅助触头

3NO+3NC



永磁机构主要参数表

NO.

项目Item

单位Unit

参数Data

1

控制电路额定电压

Rated control voltage

V

AC110-AC380

2

控制电路总功率

Control circuit total power

W

≤200

3

操作机构***操作频率

Operating mechanism maximum operating frequency

Times/H

300

4

合闸最小间隔时间

Minimum closing interval time

S

≥2
