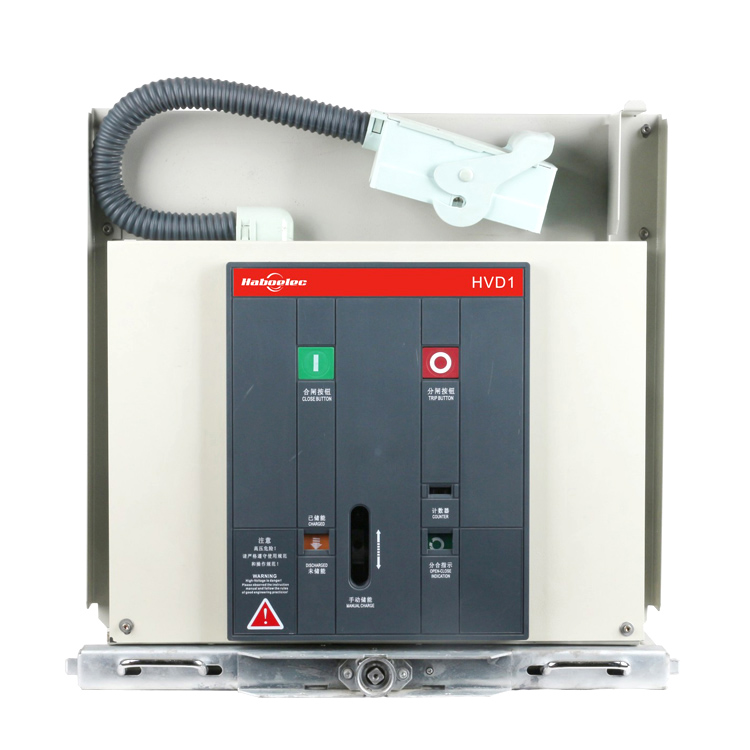

12KV VCB Vacuum Circuit Breaker HVD1-12 from JUCRO Electric


1General

   HVD1-12(VS1-12) type indoor AC HV vacuum circuit breaker (hereinafter referred to as circuit breaker) are suitable for 12kV air-insulated indoor switchgears, used as protection and control unit of power equipment of industrial& mining enterprise. Due to the super excellence, it is especially for location where requires the frequent operation of rated working current or multi breaking short circuit current.

    The circuit breaker adopts the integrated design of operating mechanism and circuit breaker body, servers as not only fixed installation, but also the handcart unit through equipping with a special propelling mechanism.



2. Service conditions

3.1 Environment temperature:-15+40;

3.2 Environment humidity: Daily average relative humidity:95%, monthly average relative humidity:90%; Daily average saturated vapor pressure:2.2×10 -3 Mpa,monthly average saturated vapor pressure:1.8×10 -3 Mpa;

3.3 Altitude: Not exceed 1000m

3.4 Earthquake intensity: Not exceed&degree;

3.5 Service location: No water, flammable or explosive matter, chemical corrosive gas or drastic vibration.



3. Main specifications and technical parameters

NO.

Item

Unit

Parameter

1

Rated voltage

KV

12

2

Rate voltage

Hz

50

3

Rated lightning impulse withstand voltage(1min)

KV

75

4

Rated short-time power frequency withstand voltage (1min)

KV

42

5

Rated short-circuit breaking current

KA

20

25

31.5

40

6

Rated current

A

630 1000
1250

630 1000
1250 1600

1250 1600
2000 2500

1600 2000
2500 3150

7

Rated peak withstand current

KA

50

63

80

100

8

Rated shorted-time withstand current

KA

20

25

31.5

40

9

Rated shorted-time making current(peak)

KA

50

63

80

100

10

Power frequency withstand voltage of secondary circuit1min

V

2000

11

Rated operation sequence


Off-0.3s-On&Off-180s- On& Off
Off -180s- On& Off -180s- On& Off *

12

Rated breaking current of capacitor bank

A

630/400(40kA 800/400)

13

Opening time(rated voltage)

ms

20~50

14

Closing time(rated voltage)

ms

30~70

15

Rated short-circuit current breaking times

times

50(40kA 30)

16

Mechanical life

times

30000

17

Rated opening/closing voltage

V

AC110, 220; DC110, 220

18

Rated voltage of energy-storage motor

V

AC110, 220; DC100, 220

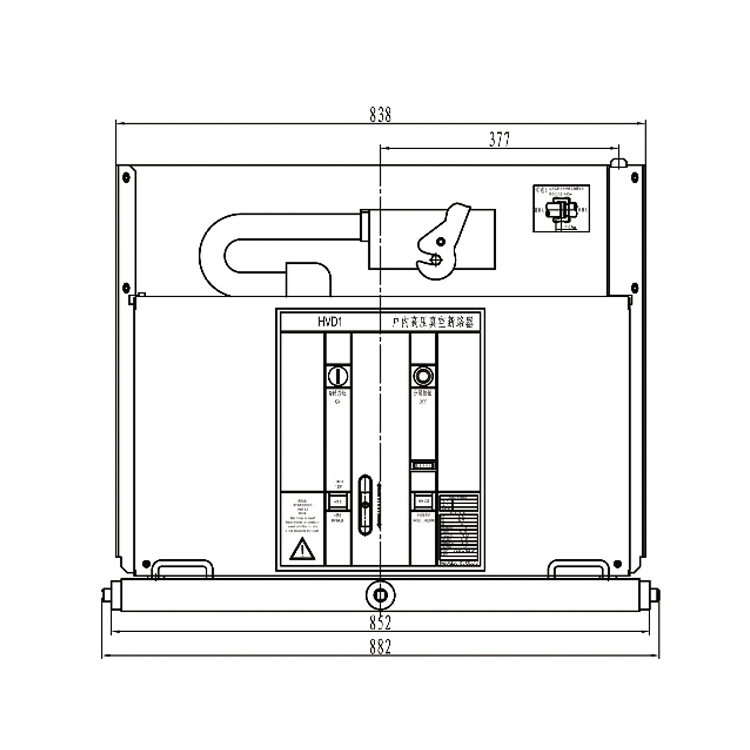

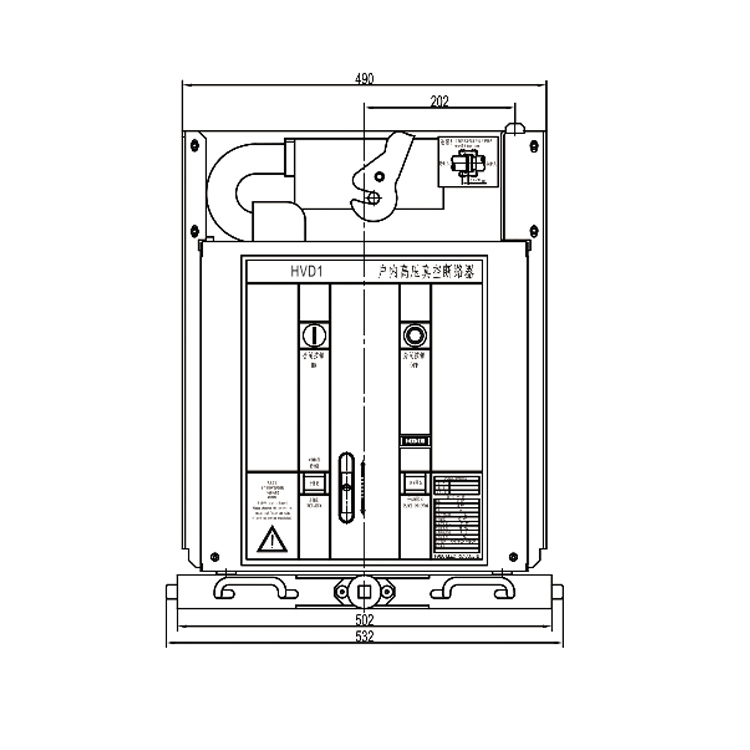

150mm pole distance:

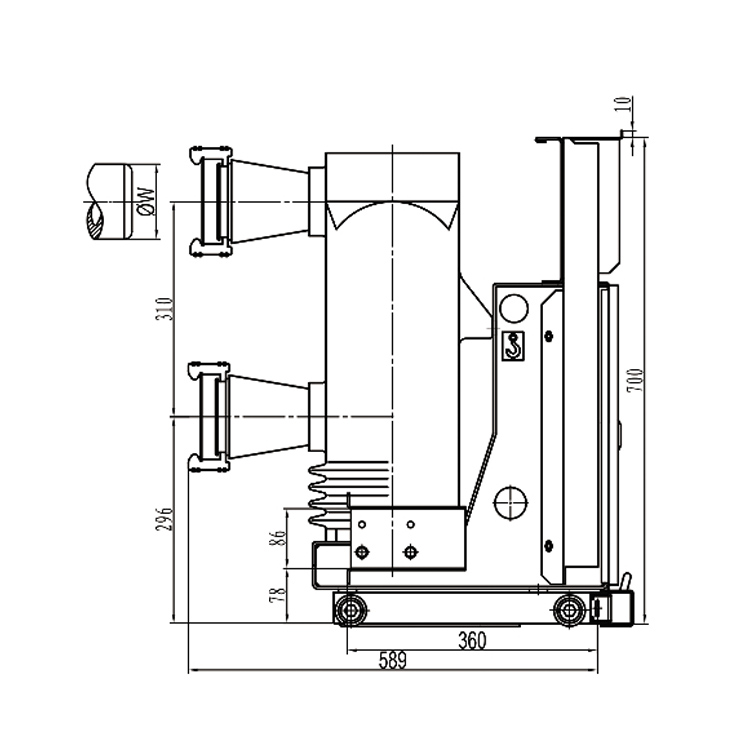

210mm pole distance:

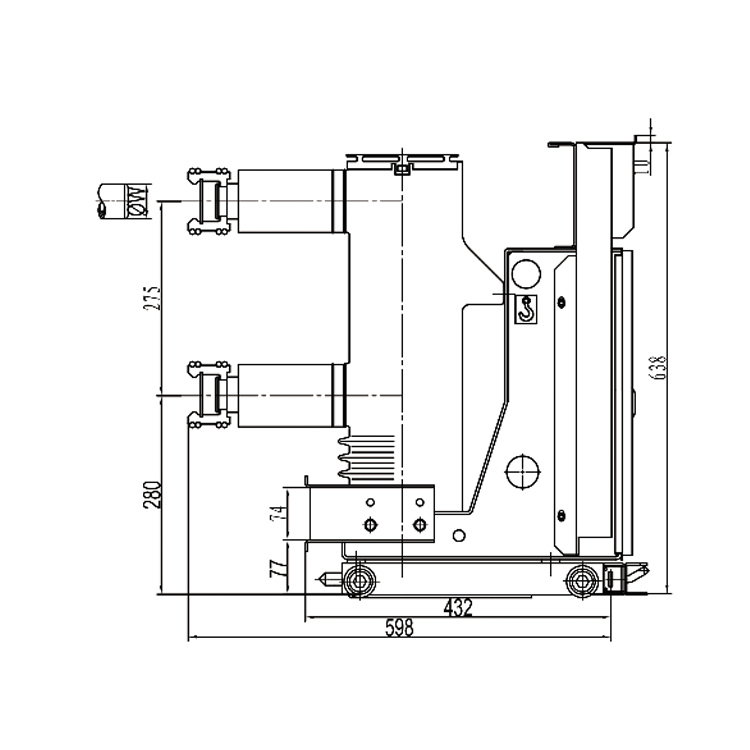

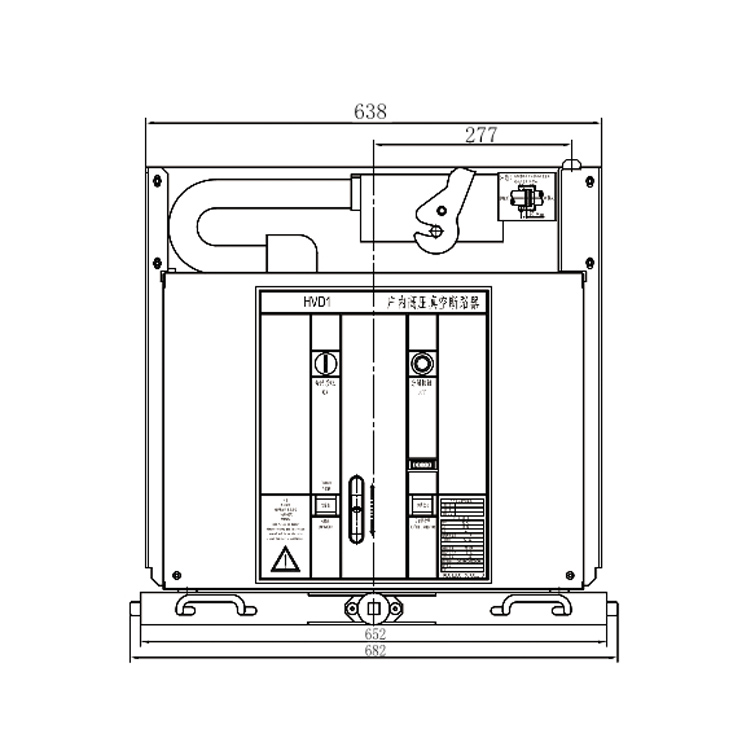

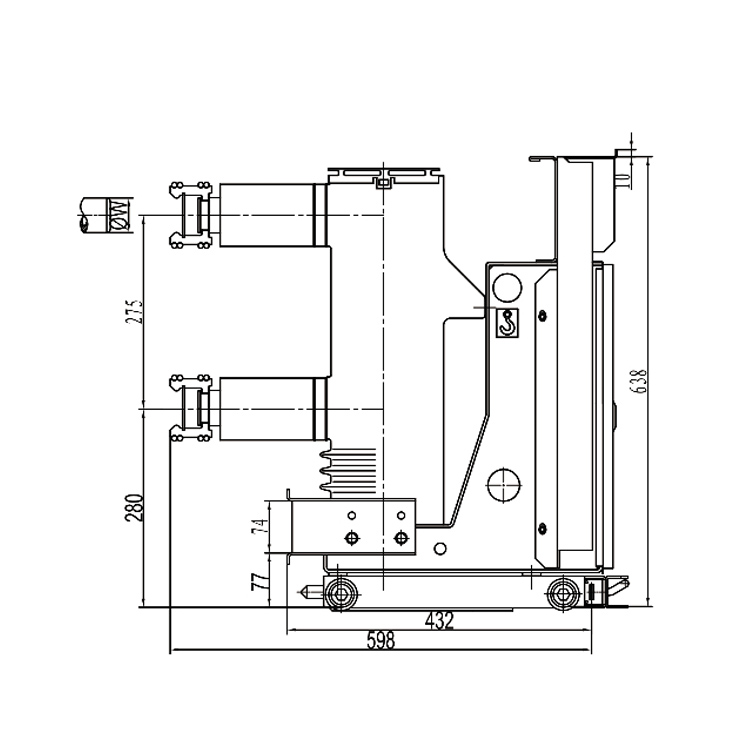

275mm pole distance:
