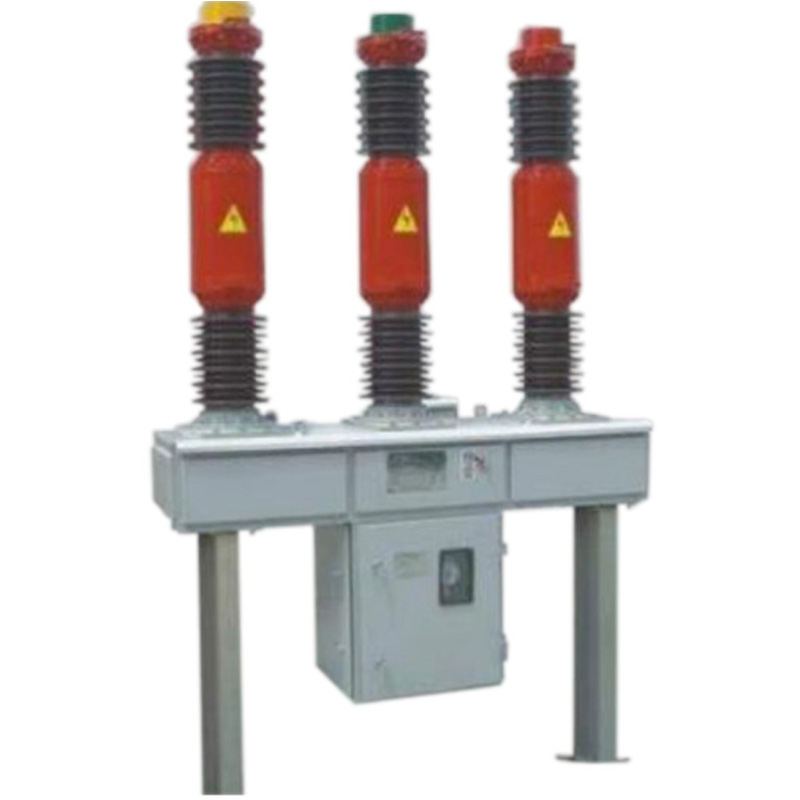

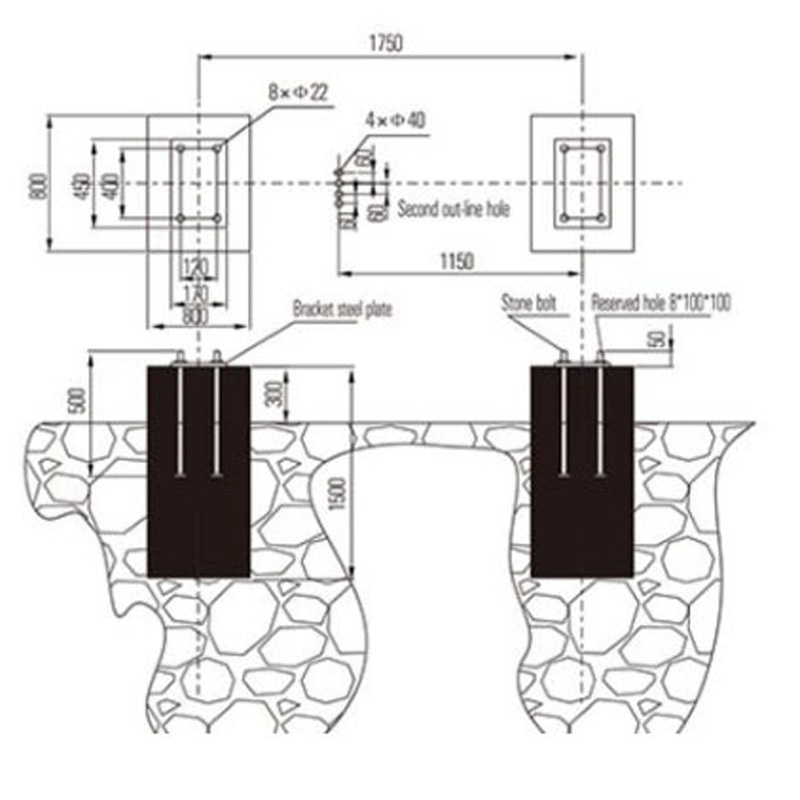

HVD8 40.5KV 2000A SF6 Circuit Breaker from JUCRO Electric

SF6 Circuit Breaker
Rated voltage: 40.5KV
Rated current: 2000A
Model: HVD8 40.5KV 2000A
Brand: JUCRO

Quantity

Product Detail

HVD8 /LW8-40.5 type outdoor high-pressure sulfur hexafluoride circuit breaker is three-pole ac 50 hz, outdoor high voltage switch equipment, applicable to 40.5 kV power transmission and distribution system control and protection, can also be used to contact circuit breaker and movable capacitor group.

Standard: IEC 62271-100.

Certification: ISO9001-2015

Operation: Energy-storage Type

Installation: Fixed

Arc-extinguishing Medium: SF6

Speed: Normal Type Circuit Breaker

HS Code: 85353000

a.       The circuit breaker is outdoor small ceramic column structure, which equipped with CT14 spring operationmechanism; mechanism and main part connected with simple installation. It has features of convenientadjustment, reliable operation, suitable for frequent operation; mechanism service life more than 3000 times;

b.      Adopt air-compression arc-extinguishing structure, with strong breaking capacity, 40kA total breakingtimes up to 12, which is the highest in China:

c.       Reliable sealing performance. Adopt import seal; dynamic seal adopts "V" type sealing ring with springpressure compensation structure; the transformer secondary wiring board matched by cooperativeenterprises, to ensure the annual leakage rate less than 1%,

d.      Inner current transformer adopts micro crystallizing alloy high magnetic materials, with accurate class up to grade 0. 2 or grade 0.2S. According to users' needs, it can be matched with 12 transformers, to meet the load line of 50 km without restrike

Item

Unit

Data

Rated voltage

KV 40.5

Rated insulation

       level

Lightning impulse withstand voltage(peak value)

KV 185

1min power frequency
withstand voltage

KV 95

Rated current

A 2000

Mechanical life time

time 3000

Rated air pressure of SF6 (psig at 20)

Mpa 0.05

Alarm pressure/Min function pressure (psig at 20)

Mpa 0.47/0.45

Rated short-circuit breaking current



KA 40

Rated short circuit making current (peak value)



KA 100

Rated short time withstand current (thermal stability current)

KA 40

Rated peak withstand current (dynamic stability current)

KA 100

Rated out of step breaking current

KA 10

Rated breaking times under short circuit breaking current

time 12

Rated short circuit duration

S 4

Closing time (under rated operation voltage)

S ≤0.1

Opening time (under rated operation voltage)

S ≤0.06

Rated operating sequence


O-0.3s-CO-180s-CO

Rated making single capacitor bank current



A 400

Annual leakage rate



% ≤1

SF6 water content(V/V)


≤150*10 -6

Rated operation voltage of matched CT14 spring operation mechanism



Closing and opening coil voltage

V AC: 220 380  DC: 18 110 220

Energy storage motor voltage

V AC: 220 380  DC: 110 220

Weight of SF6 gas

kg 8

Weight of circuit breaker (including operation mechanism)

kg 1400


Item

Unit

Data

Technical parameter

Moving contact travel



mm 95±2

Measure moving contact travel

Opening distance between contacts



mm 60±1.5

Measure distance between moving and fixed contact



Pole-to-pole closing synchronous

ms ≤3

Measure pole distance difference between moving and fixed contact

Pole-to-pole opening synchronous

ms ≤2

Measure pole distance difference between moving and fixed contact



Main circuit resistance

≤120

Measure DC voltage reduction



Closing speed



m/s 3.2±0.2

Rated air pressure, measuring method



Opening speed



m/s 3.4±0.2

Rated air pressure, measuring method



Closing buffer distance

mm 9.5-11

Under closing state



Spacer of closing buffer

mm 1-2

Under closing state



Partial 48.6kV

Pc 20

Measure by partial measuring device under rated air pressure; apply voltage 486kv on the two out-line ends of the circuit breaker for 1 min, then reduce the voltage to 28V to measure

Disharge 28kV

Pc 10


No comment

Product Detail

HVD8 /LW8-40.5 type outdoor high-pressure sulfur hexafluoride circuit breaker is three-pole ac 50 hz, outdoor high voltage switch equipment, applicable to 40.5 kV power transmission and distribution system control and protection, can also be used to contact circuit breaker and movable capacitor group.

Standard: IEC 62271-100.

Certification: ISO9001-2015

Operation: Energy-storage Type

Installation: Fixed

Arc-extinguishing Medium: SF6

Speed: Normal Type Circuit Breaker

HS Code: 85353000

a.       The circuit breaker is outdoor small ceramic column structure, which equipped with CT14 spring operationmechanism; mechanism and main part connected with simple installation. It has features of convenientadjustment, reliable operation, suitable for frequent operation; mechanism service life more than 3000 times;

b.      Adopt air-compression arc-extinguishing structure, with strong breaking capacity, 40kA total breakingtimes up to 12, which is the highest in China:

c.       Reliable sealing performance. Adopt import seal; dynamic seal adopts "V" type sealing ring with springpressure compensation structure; the transformer secondary wiring board matched by cooperativeenterprises, to ensure the annual leakage rate less than 1%,

d.      Inner current transformer adopts micro crystallizing alloy high magnetic materials, with accurate class up to grade 0. 2 or grade 0.2S. According to users' needs, it can be matched with 12 transformers, to meet the load line of 50 km without restrike

Item

Unit

Data

Rated voltage

KV 40.5

Rated insulation

       level

Lightning impulse withstand voltage(peak value)

KV 185

1min power frequency
withstand voltage

KV 95

Rated current

A 2000

Mechanical life time

time 3000

Rated air pressure of SF6 (psig at 20)

Mpa 0.05

Alarm pressure/Min function pressure (psig at 20)

Mpa 0.47/0.45

Rated short-circuit breaking current



KA 40

Rated short circuit making current (peak value)



KA 100

Rated short time withstand current (thermal stability current)

KA 40

Rated peak withstand current (dynamic stability current)

KA 100

Rated out of step breaking current

KA 10

Rated breaking times under short circuit breaking current

time 12

Rated short circuit duration

S 4

Closing time (under rated operation voltage)

S ≤0.1

Opening time (under rated operation voltage)

S ≤0.06

Rated operating sequence


O-0.3s-CO-180s-CO

Rated making single capacitor bank current



A 400

Annual leakage rate



% ≤1

SF6 water content(V/V)


≤150*10 -6

Rated operation voltage of matched CT14 spring operation mechanism



Closing and opening coil voltage

V AC: 220 380  DC: 18 110 220

Energy storage motor voltage

V AC: 220 380  DC: 110 220

Weight of SF6 gas

kg 8

Weight of circuit breaker (including operation mechanism)

kg 1400


Item

Unit

Data

Technical parameter

Moving contact travel



mm 95±2

Measure moving contact travel

Opening distance between contacts



mm 60±1.5

Measure distance between moving and fixed contact



Pole-to-pole closing synchronous

ms ≤3

Measure pole distance difference between moving and fixed contact

Pole-to-pole opening synchronous

ms ≤2

Measure pole distance difference between moving and fixed contact



Main circuit resistance

≤120

Measure DC voltage reduction



Closing speed



m/s 3.2±0.2

Rated air pressure, measuring method



Opening speed



m/s 3.4±0.2

Rated air pressure, measuring method



Closing buffer distance

mm 9.5-11

Under closing state



Spacer of closing buffer

mm 1-2

Under closing state



Partial 48.6kV

Pc 20

Measure by partial measuring device under rated air pressure; apply voltage 486kv on the two out-line ends of the circuit breaker for 1 min, then reduce the voltage to 28V to measure

Disharge 28kV

Pc 10
