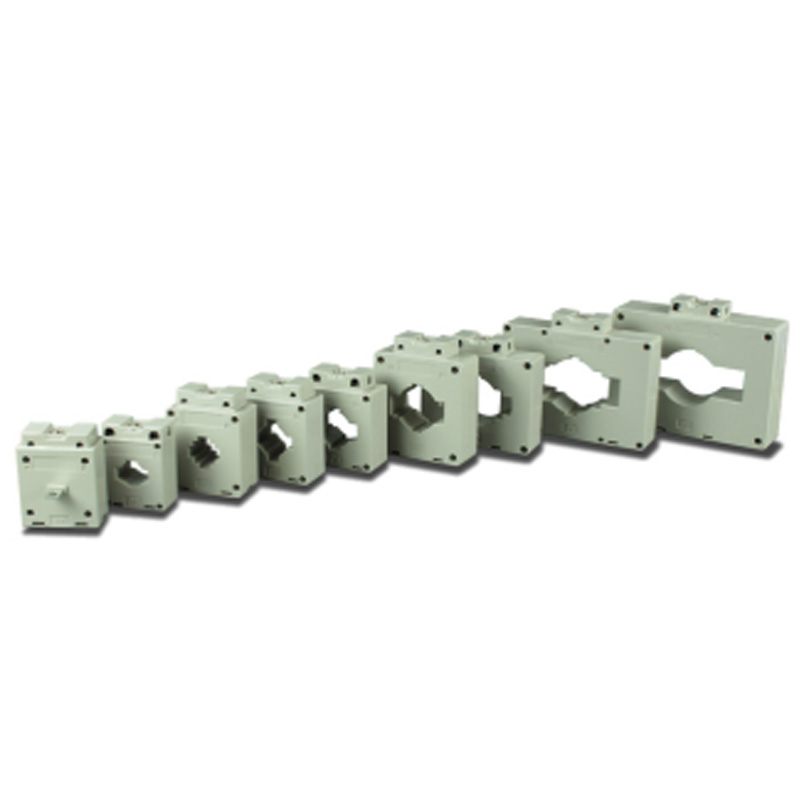

Current Transformer BH-0.66-40-400-5 .SDH.LN from JUCRO Electric


 Description



The current transformer is used for measuring electric energy and current, relay protection in the electric systems up to rated frequency 50Hz or 60Hz and rated voltage 0.66kV.

Type description





Note:Type I (square circuit hole) capable of passing through either the cable or the purpose of monitoring.

Type II(horizontal square hole) capable of passing through 1-3 bus bar(s) is generally used for the purpose of monitoring.

Type III(vertical square hole) capable of passing through 1-3 bus bar(s) has the same characteristics of Type I and Type II, and is also intended to measure the electric energy of power supply system(Class0.2).It can still be used at larger secondary impedance and act as the zero-sequence current transformer.



 Construction


 The iron core is loop type. The secondary winding go uniformity around the core. There has hole for the busbar going through on the nip.



 Technical data


Specification


Rated primary/

Secondary current




Rated

loading(VA)


Accuracy

grade


Tallest

work

Voltage

(V)




Primary

ampere-turn


Window

way size(mm)


Install the way


Cut the size(m)


Root NO































BH-40

15/5



2.5

1

660

5

B

HIJK

20/5



2.5

1

660

4

B

HIJK

25/5



2.5

1

660

3

B

HIJK

30/5



2.5

1

660

3

B

HIJK

40/5



2.5

1

660

2

B

HIJK

50/5



2.5

1

660

2

B

HIJK

60/5



2.5

1

660

2

B

HIJK

75/5

40×10

1

2.5

1

660

1

B

HIJKL

100/5

40×10

1

2.5

1

660

1

B

HIJKL

150/5

40×10

1

2.5

0.5

660

1

B

HIJKL

200/5

40×10

1

5

0.5

660

1

B

HIJKL

250/5

40×10

1

5

0.5

660

1

B

HIJKL

300/5

40×10

1

5

0.5

660

1

B

HIJKL

400/5

40×10

1

5

0.5

660

1

B

HIJKL

500/5

40×10

1

10

0.5

660

1

B

HIJKL

600/5

40×10

1

10

0.5

660

1

B

HIJKL

750/5

40×10

1

10

0.5

660

1

B

HIJKL

800/5

40×10

1

10

0.5

660

1

B

HIJKL
