Voltage transformer  RZL12、JDZ10-3,6,10A(B)from JUCRO Electric


Description


The voltage transformers of the types RZL(JDZ)10-3,6,10A(B) are single phase, casting resin insulated and full enclosed products. They are used for metering electric energy, voltage control and relay protection in the electric non-useful-ground neutral system up to rated frequency 50Hz or 60Hz and rated voltage 3kV6kV and 10kV. The transformers can be executed according to the standards IEC186 and GB1207-1997.

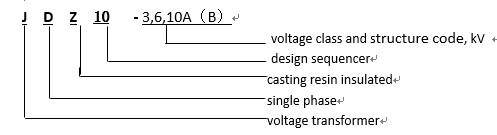

Type description

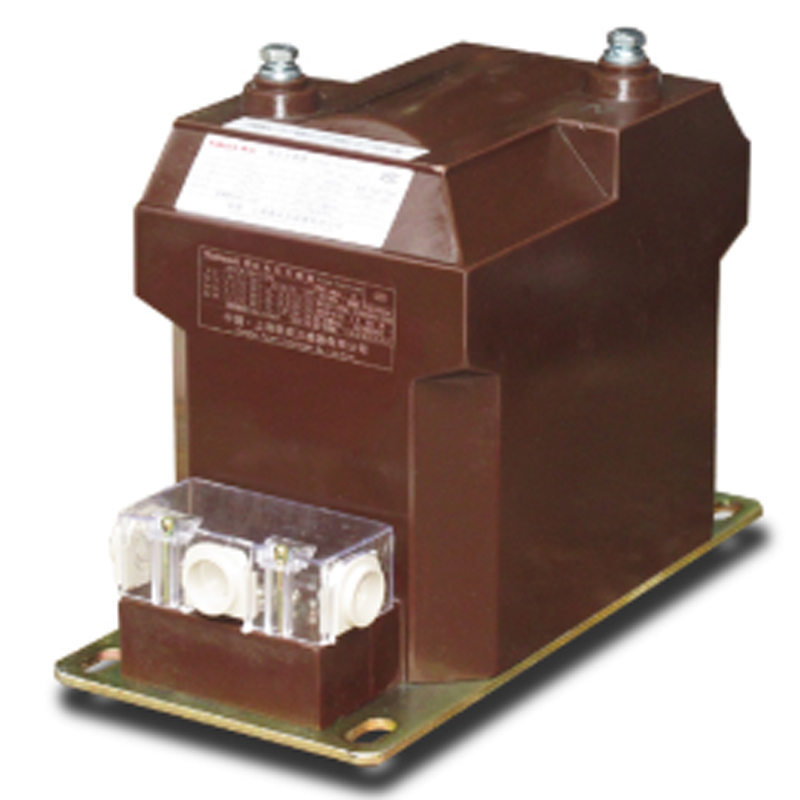

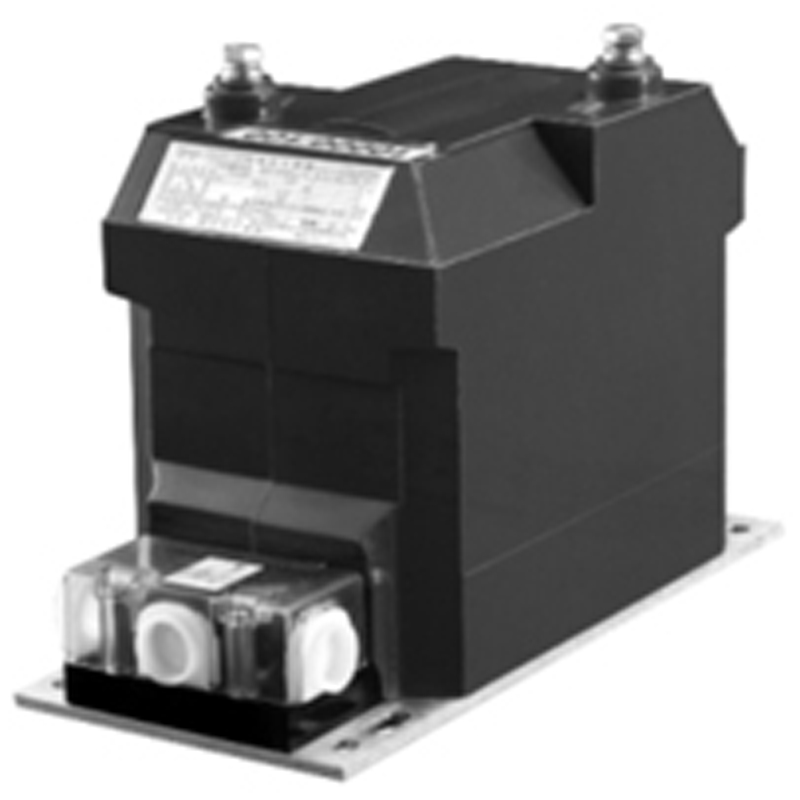

 Construction


  These voltage transformers are casting resin insulated, fully enclosed type. The iron core and winding are casting together. It is small and light. The secondary outlet line is wrapped by outlet box and has three exits with different direction feed lines.



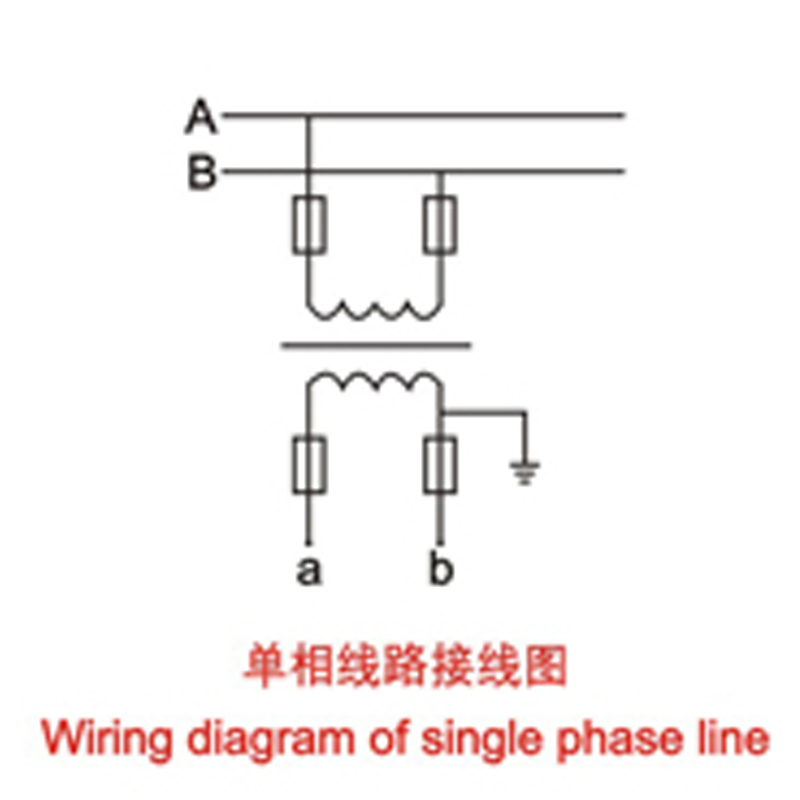

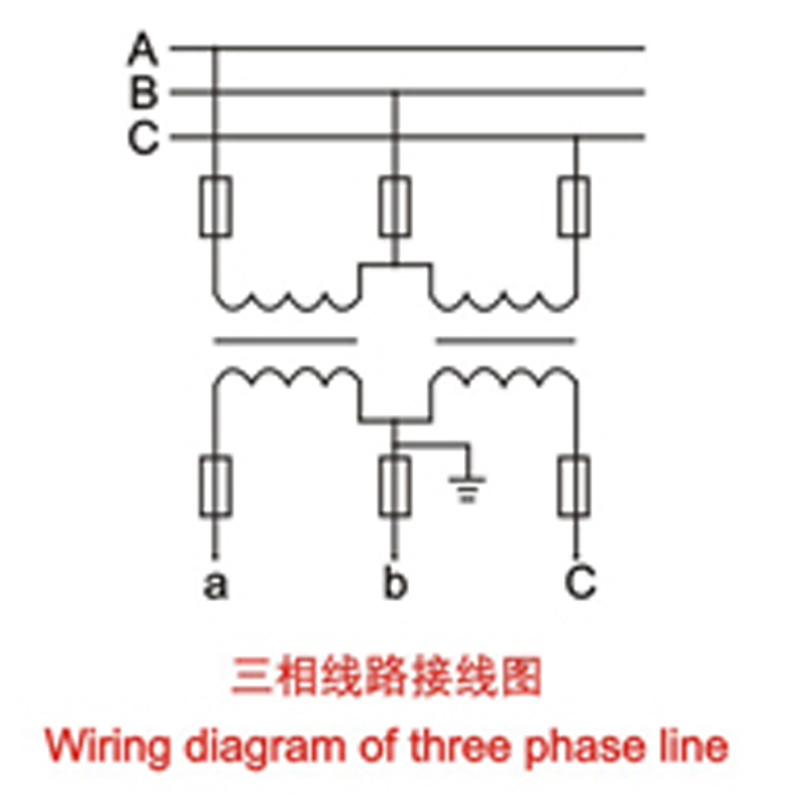

Technical data


1.        The voltage transformers are in accordance with GB1207-1997 Voltage transformerstandards;

2.        Power factor of load: cosф=0.8(lagging)

3.        Surface creepage distance: the product accords with the request of Ⅱclass;

4.        The other technical data see following table.




type


Rated voltage ratio(V)


Rated output(VA)



Frequency(Hz)


Limit output(VA)


Insulated level(kV)

0.2

0.5

1

6P

JDZ10-3A1

JDZ10-3A2

3000/100







15







30







60
























50.60





150

3.6/25/40

JDZ10-6A1

JDZ10-6A2

6000/100

7.2/32/60

JDZ10-10A1

JDZ10-10A2

10000/100

12/42/75

JDZ10-3B1

JDZ10-3B2

3000/100







25







50







90






300

3.6/25/40

JDZ10-6B1

JDZ10-6B2

6000/100

7.2/32/60

JDZ10-10B1

JDZ10-10B2

10000/100

12/42/75

JDZ10-3AG

3000/2sin60°/100/2sin60°/100/3


40

60

50

150

3.6/25/40

JDZ10-6AG



6000/2sin60°/100/2sin60°/100/3


40

60

50

150

7.2/32/60

JDZ10-10AG



10000/2sin60°/100/2sin60°/100/3


40

60

50

150

12/42/75

JDZ10-3BG

3000/2sin60°/100/2sin60°/100/3


50

90

50

400

3.6/25/40

JDZ10-6BG



6000/2sin60°/100/2sin60°/100/3


50

90

50

400

7.2/32/60

JDZ10-10BG



10000/2sin60°/100/2sin60°/100/3


50

90

50

400

12/42/75






No comment

Product Detail

Voltage transformer  RZL12、JDZ10-3,6,10A(B)from JUCRO Electric


Description


The voltage transformers of the types RZL(JDZ)10-3,6,10A(B) are single phase, casting resin insulated and full enclosed products. They are used for metering electric energy, voltage control and relay protection in the electric non-useful-ground neutral system up to rated frequency 50Hz or 60Hz and rated voltage 3kV6kV and 10kV. The transformers can be executed according to the standards IEC186 and GB1207-1997.


Type description

 Construction


  These voltage transformers are casting resin insulated, fully enclosed type. The iron core and winding are casting together. It is small and light. The secondary outlet line is wrapped by outlet box and has three exits with different direction feed lines.



Technical data


1.        The voltage transformers are in accordance with GB1207-1997 Voltage transformerstandards;

2.        Power factor of load: cosф=0.8(lagging)

3.        Surface creepage distance: the product accords with the request of Ⅱclass;

4.        The other technical data see following table.




type


Rated voltage ratio(V)


Rated output(VA)



Frequency(Hz)


Limit output(VA)


Insulated level(kV)

0.2

0.5

1

6P

JDZ10-3A1

JDZ10-3A2

3000/100







15







30







60
























50.60





150

3.6/25/40

JDZ10-6A1

JDZ10-6A2

6000/100

7.2/32/60

JDZ10-10A1

JDZ10-10A2

10000/100

12/42/75

JDZ10-3B1

JDZ10-3B2

3000/100







25







50







90






300

3.6/25/40

JDZ10-6B1

JDZ10-6B2

6000/100

7.2/32/60

JDZ10-10B1

JDZ10-10B2

10000/100

12/42/75

JDZ10-3AG

3000/2sin60°/100/2sin60°/100/3


40

60

50

150

3.6/25/40

JDZ10-6AG



6000/2sin60°/100/2sin60°/100/3


40

60

50

150

7.2/32/60

JDZ10-10AG



10000/2sin60°/100/2sin60°/100/3


40

60

50

150

12/42/75

JDZ10-3BG

3000/2sin60°/100/2sin60°/100/3


50

90

50

400

3.6/25/40

JDZ10-6BG



6000/2sin60°/100/2sin60°/100/3


50

90

50

400

7.2/32/60

JDZ10-10BG



10000/2sin60°/100/2sin60°/100/3


50

90

50

400

12/42/75
